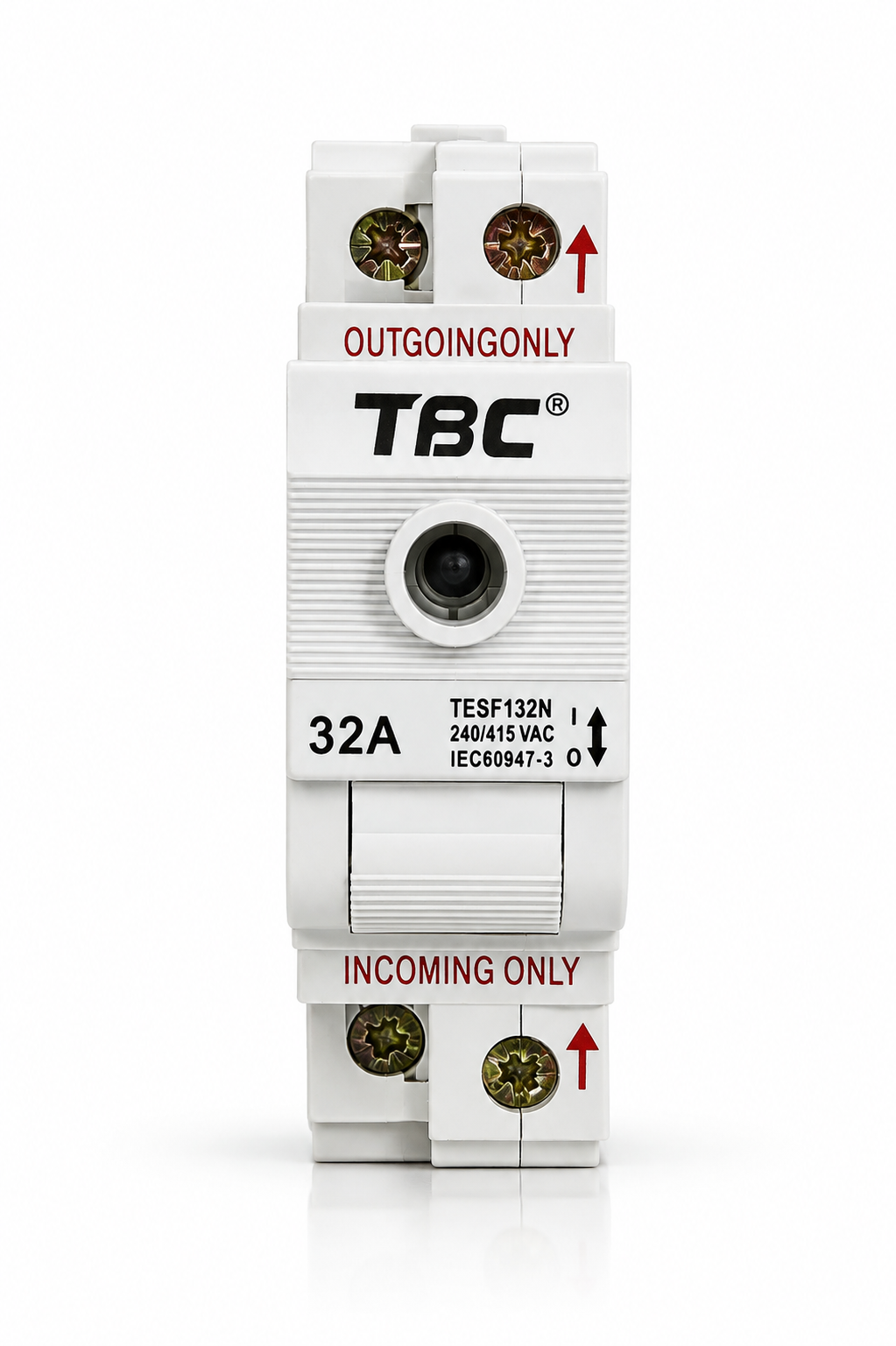

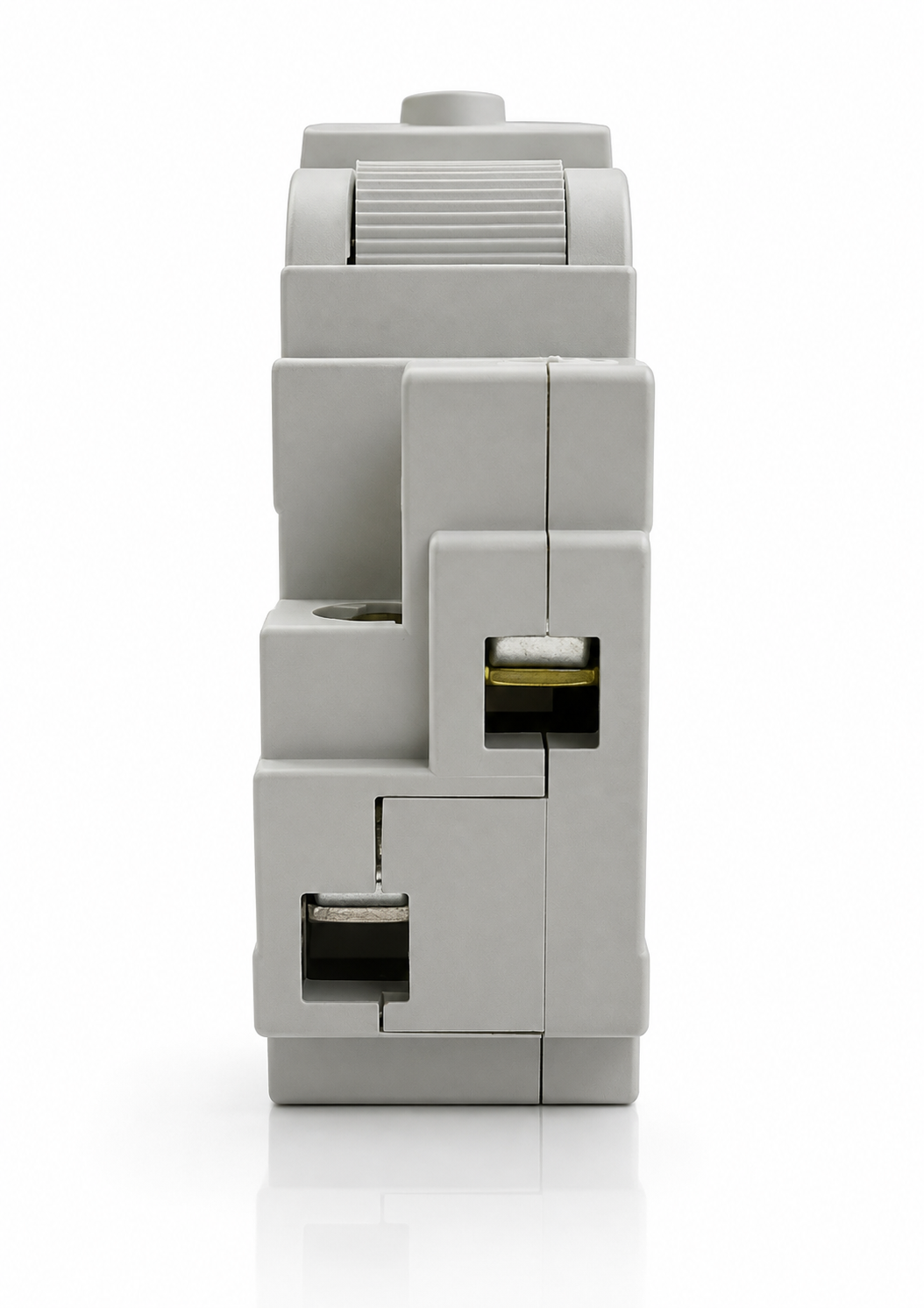

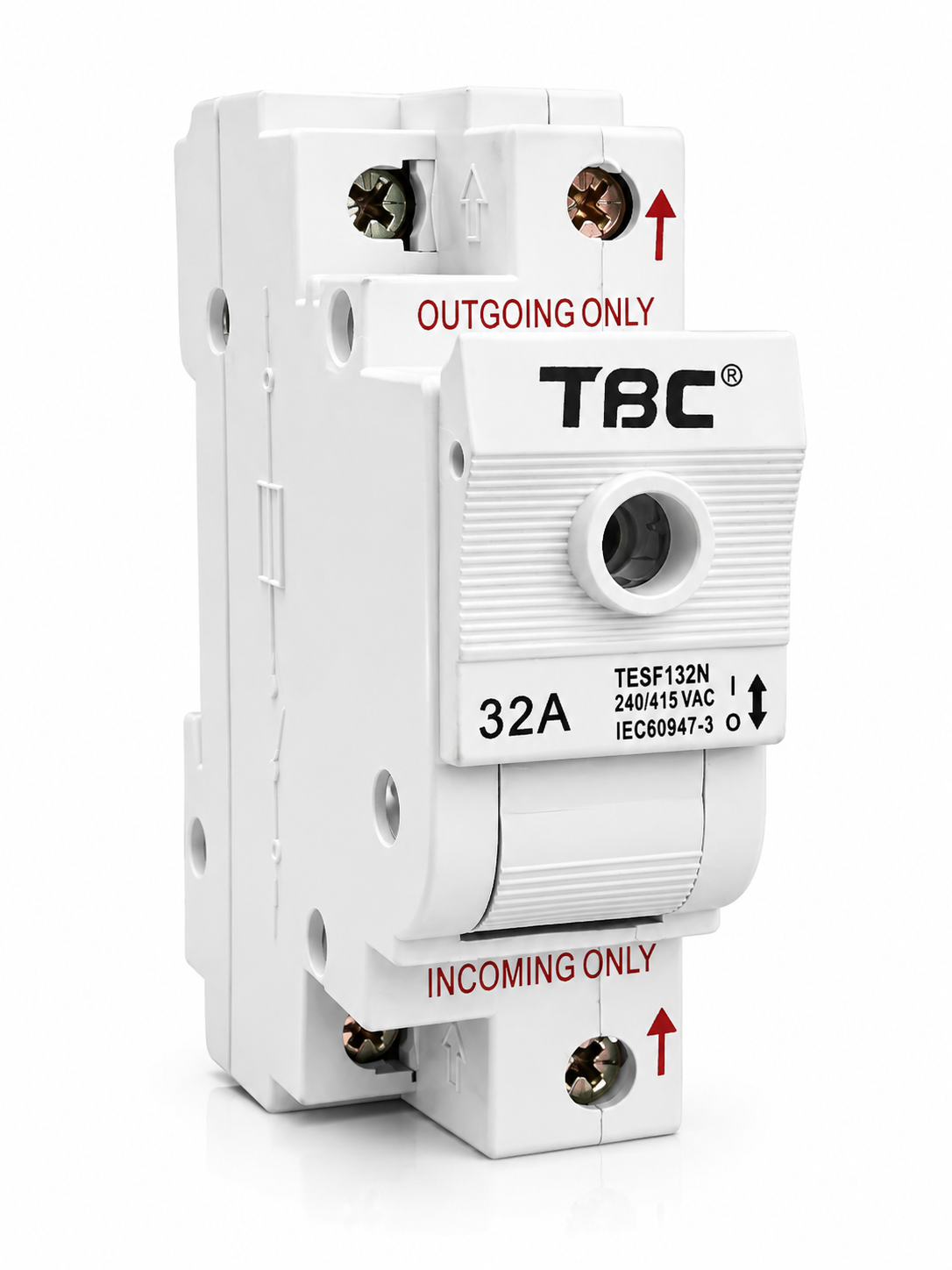

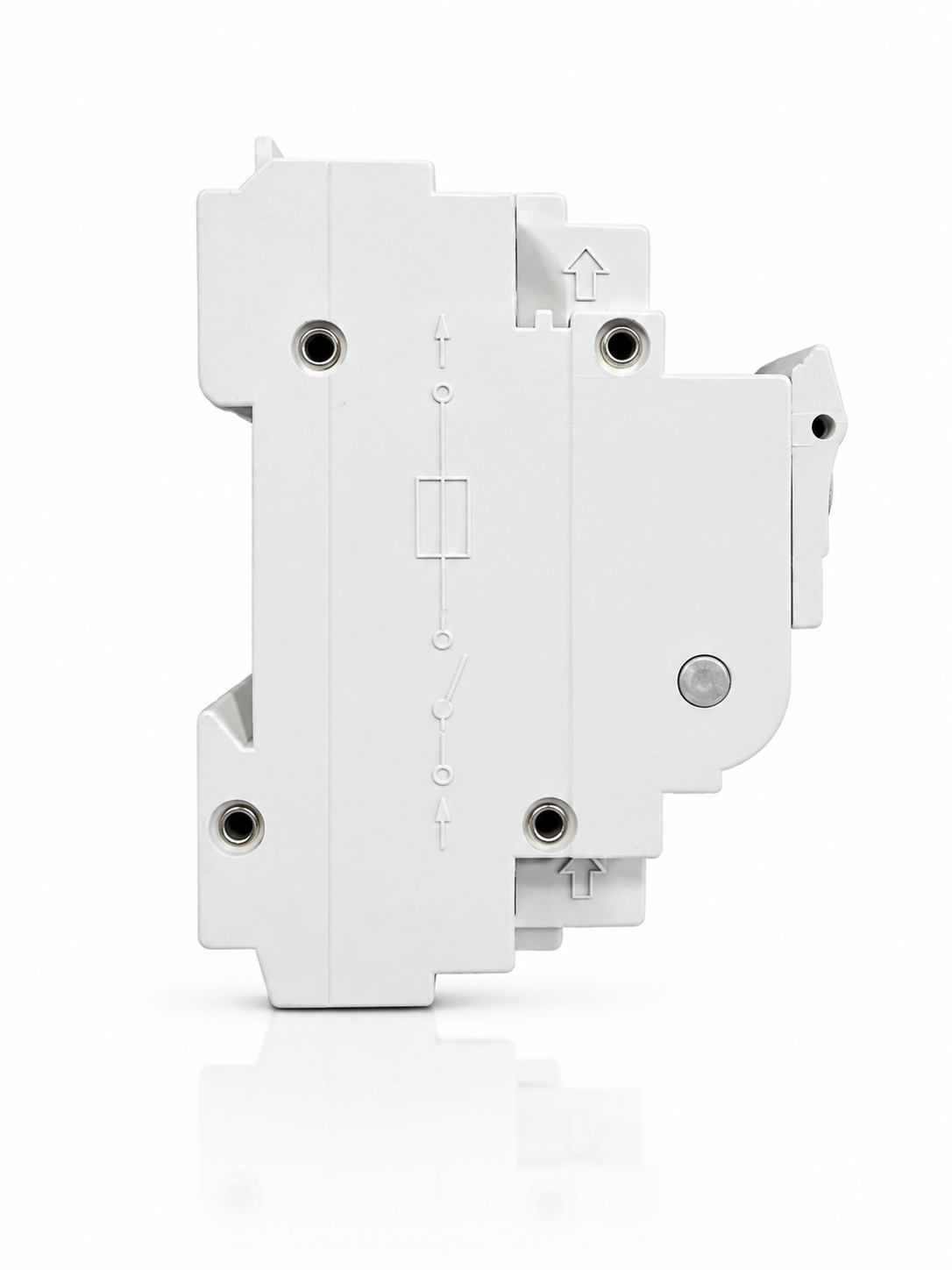

The TBC TSF-132N is a robust 2-pole DIN rail mounted switch fuse engineered for demanding low-voltage power distribution applications. Combining manual isolation with high-performance fuse protection, this device delivers safe disconnection and exceptional short-circuit withstand capability up to 50kA. Compatible with Neozed DO2 fuse links, the TSF-132N is the ideal solution for distribution boards in industrial and commercial electrical installations.
The TBC TSF-132N switch fuse represents a reliable and cost-effective solution for manual isolation and overcurrent protection in low-voltage distribution networks. Designed to meet the rigorous demands of industrial and commercial environments, this 2-pole device combines the functionality of a manual switch with the protective capabilities of a fuse holder.
Engineered for versatility, the TSF-132N operates seamlessly across both single-phase (240V AC) and three-phase (415V AC) systems at standard 50/60 Hz frequencies. Its impressive 50kA short-circuit rating ensures that your electrical installation remains protected even under severe fault conditions, while the Neozed DO2 fuse link compatibility provides standardized, replaceable protection elements.
The compact DIN rail mounting design facilitates straightforward installation in distribution boards and sub-distribution panels, making it an excellent choice for both new installations and retrofit projects. With a mechanical durability rating of 5,000 cycles and a wide operating temperature range, the TSF-132N delivers long-term reliability in diverse environmental conditions.
Electrical Characteristics:
The TSF-132N is rated for 32A continuous current at 240/415V AC, suitable for both single-phase and three-phase distribution applications. The device operates on AC networks at standard 50/60 Hz frequencies and provides a short-circuit breaking capacity of 50kA, ensuring robust protection against fault currents.
Mechanical Design:
Constructed for DIN rail mounting, the switch fuse features a compact footprint measuring 90mm (H) × 27mm (W) × 69mm (D). The device is designed to accept Neozed DO2 type fuse links, providing standardized and easily replaceable protection elements. The mechanical switching mechanism is rated for 5,000 operations, ensuring long service life in typical distribution applications.
Environmental Performance:
The TSF-132N operates reliably across an extended temperature range from -35°C to +70°C, making it suitable for both indoor and temperature-controlled outdoor installations. With an IP20 degree of protection, the device is designed for installation within enclosed distribution boards. It can withstand relative humidity levels up to 95%, ensuring stable performance in various climatic conditions.
Standards Compliance:
Manufactured in accordance with IEC 60947-3 standards for switch-disconnectors and fuse-combination units, the TSF-132N carries CE certification, confirming compliance with European safety and performance directives.
| Parameter | Specification |
|---|---|
| Product Type | Switch Fuse |
| Model Number | TSF-132N |
| Product Application | Distribution |
| Poles Description | 2P |
| Rated Current | 32 A |
| Rated Voltage | 240 / 415 V AC |
| Frequency | 50 / 60 Hz |
| Network Type | AC |
| Mounting Type | DIN Rail |
| Fuse Link Type | Neozed DO2 |
| Short Circuit Rating | 50 kA |
| Mechanical Durability | 5,000 cycles |
| Height | 90 mm |
| Width | 27 mm |
| Depth | 69 mm |
| Operating Temperature | -35 °C to +70 °C |
| Relative Humidity | 0 – 95 % |
| Degree of Protection | IP20 |
| Standards Compliance | IEC 60947-3, CE |

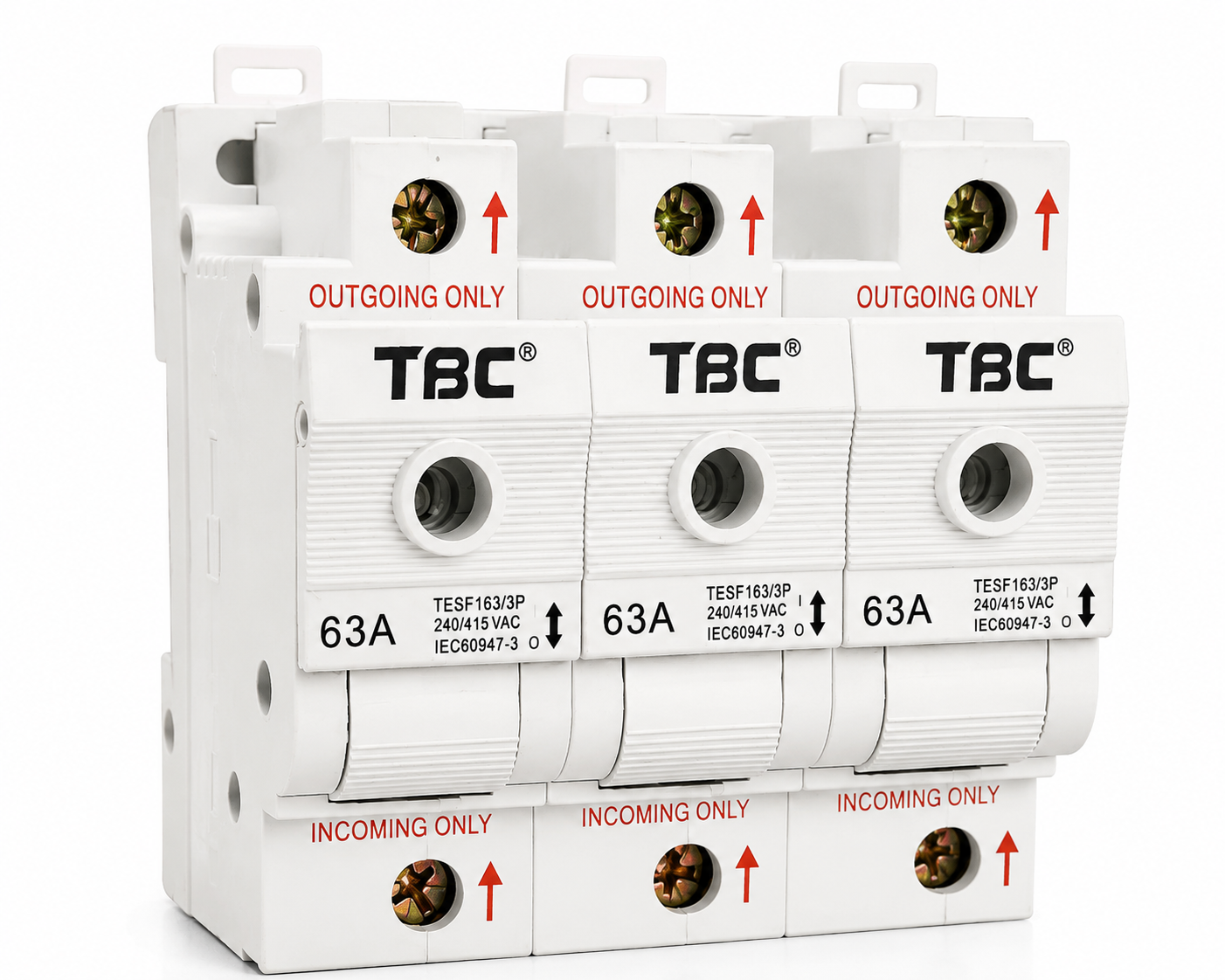

TSF-363
3-pole 63A DIN-rail switch fuse with 50kA breaking capacity, combining load isolation and fuse prote...
View Details

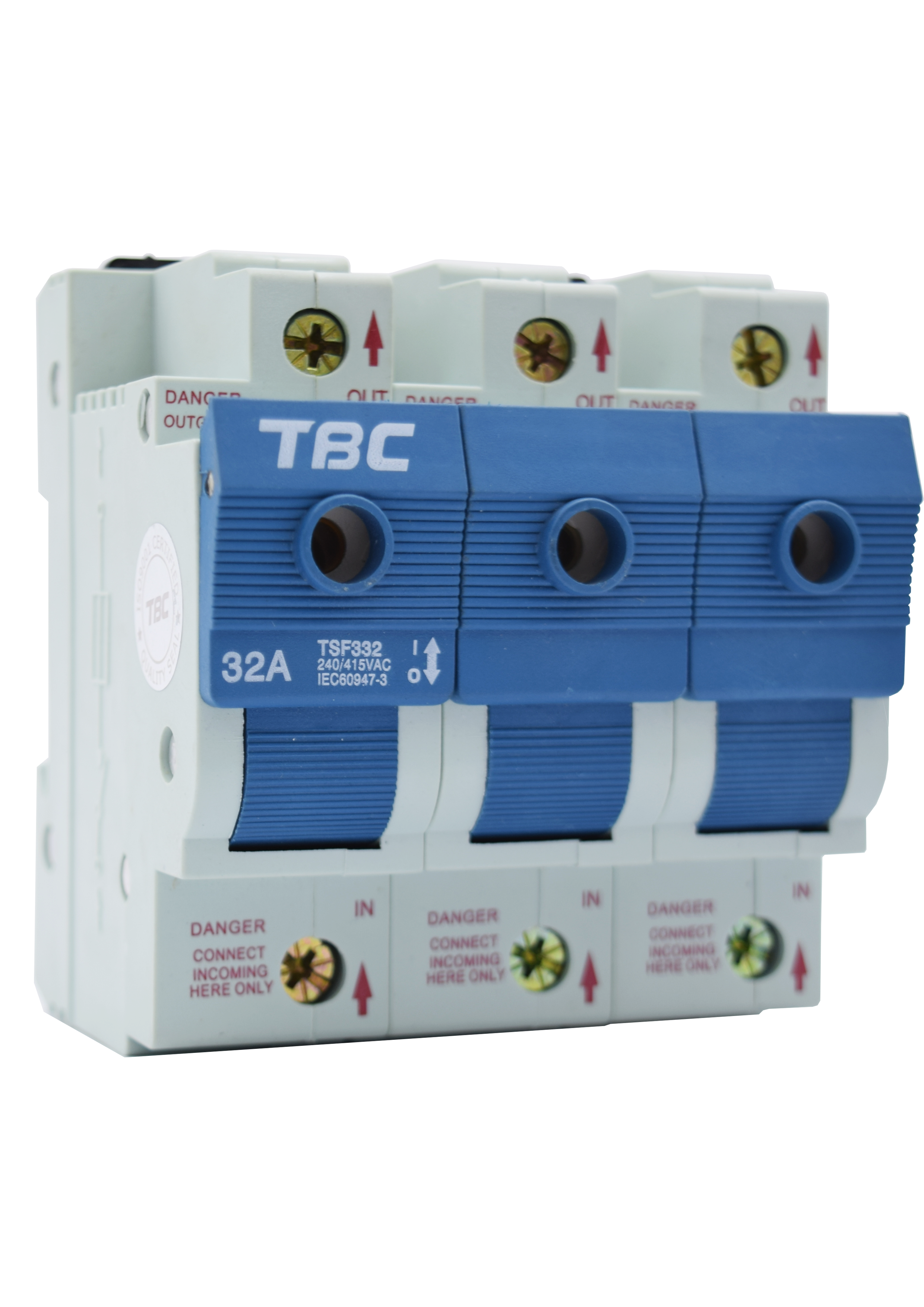

TSF-332
3-pole 32A switch fuse with 50kA short-circuit capacity, DIN rail mounted, compatible with Neozed DO...
View Details

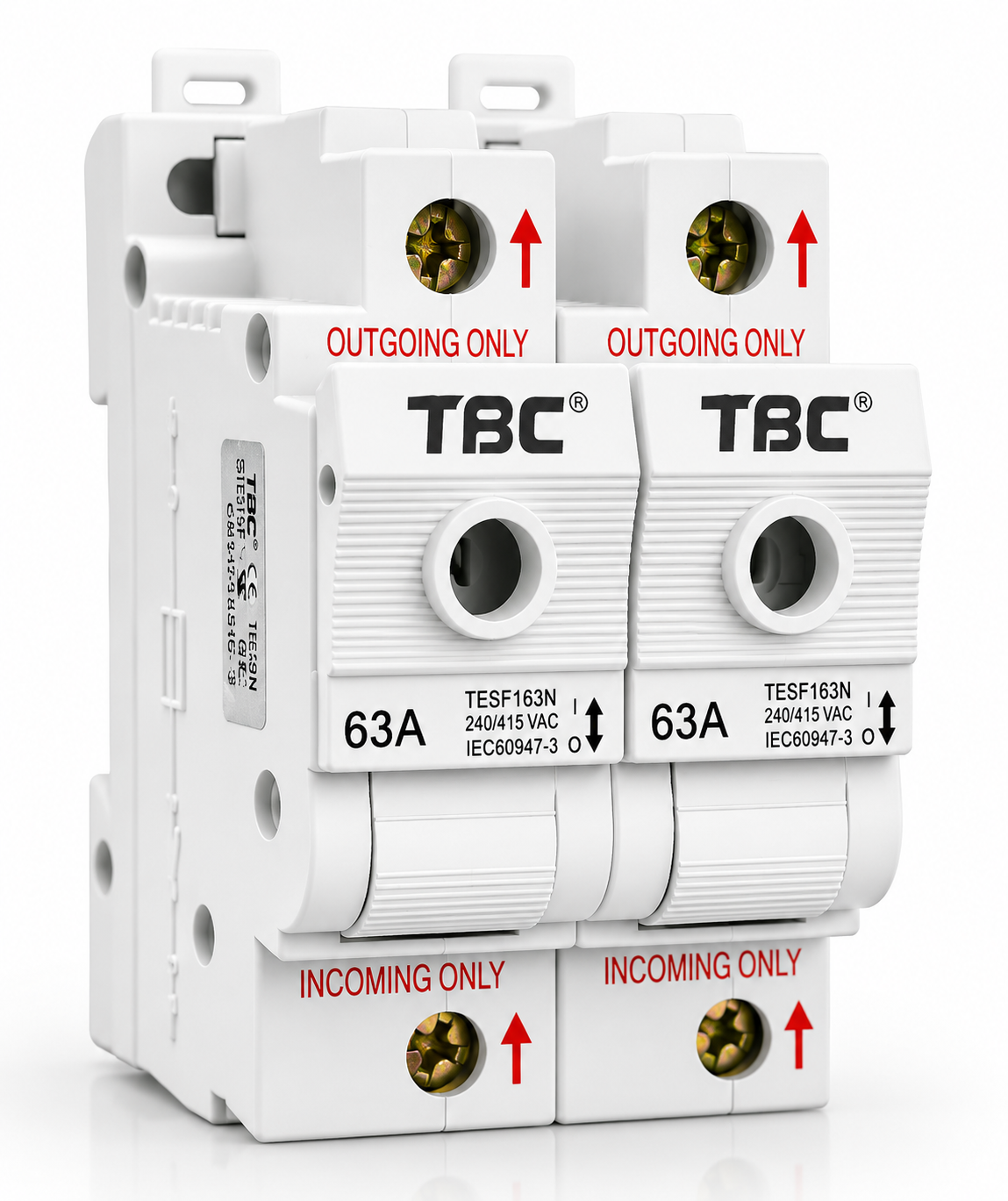

TSF-163N
2-pole 63A switch fuse with 50kA breaking capacity, compatible with Neozed DO2 fuse links for reliab...
View Details

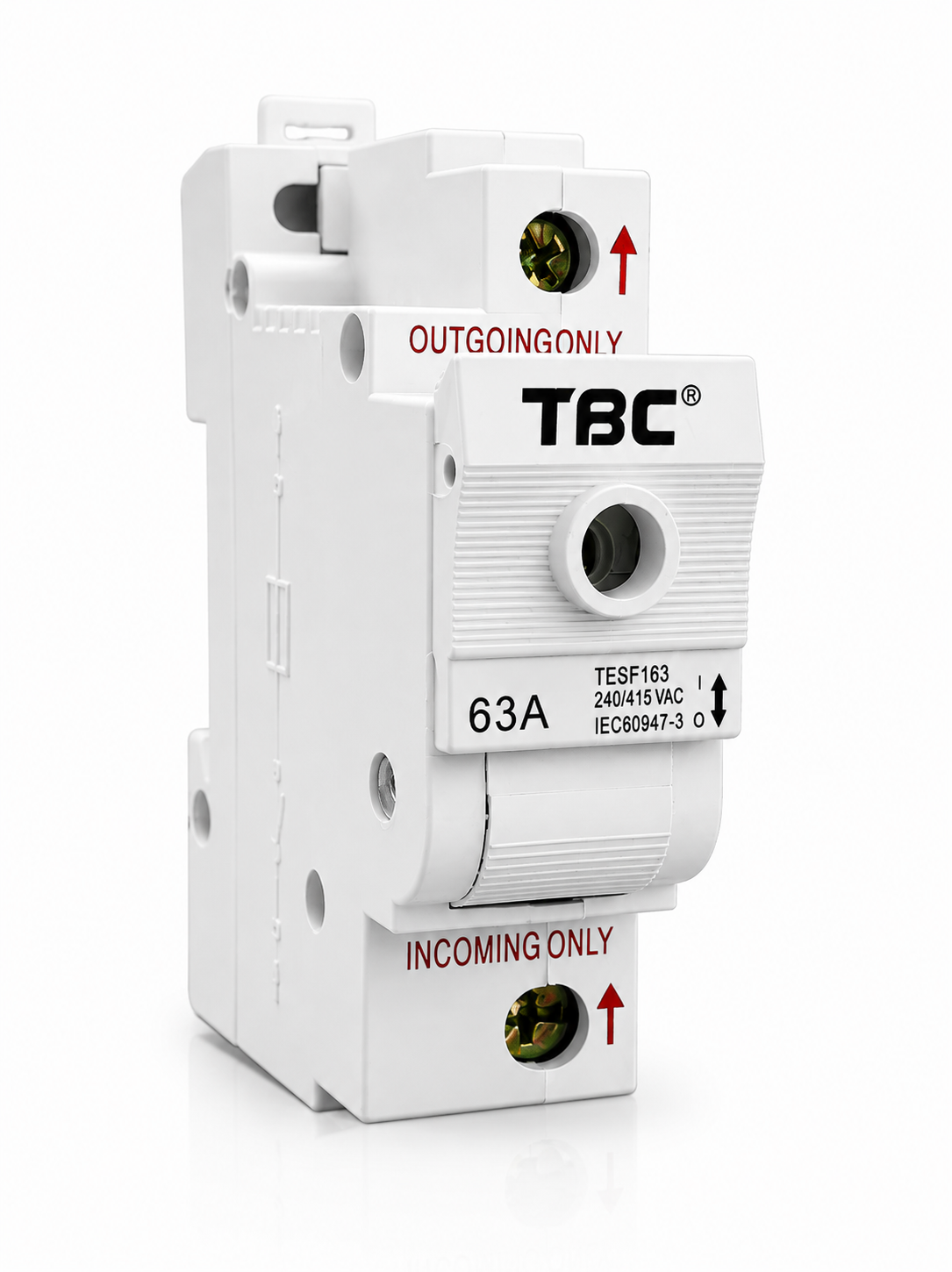

TSF-163
