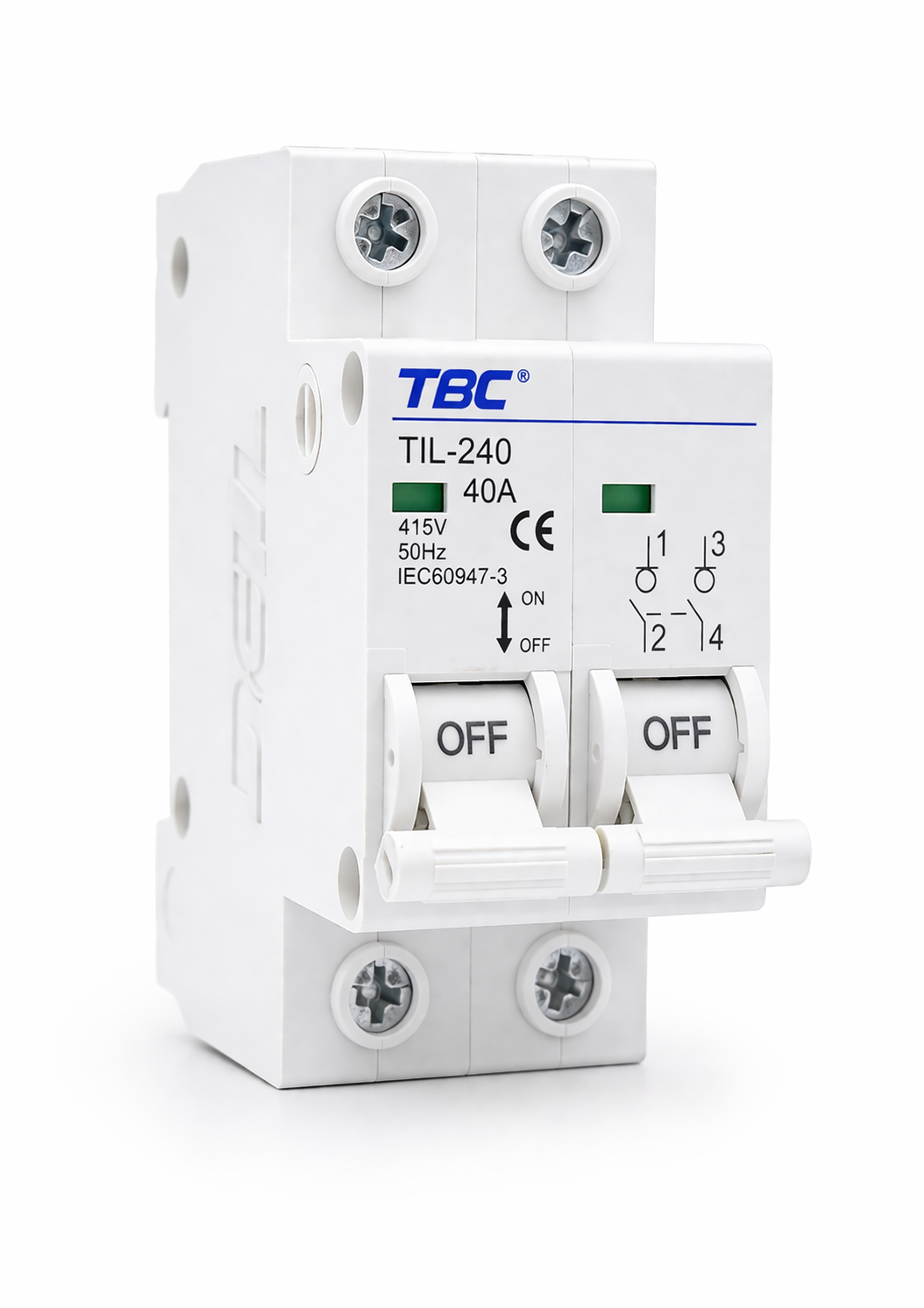

The TBC TIL-240 is a professional-grade 2-pole circuit isolating device engineered for reliable manual disconnection in low-voltage distribution systems. Rated at 40A and 415V~, this compact isolator provides safe electrical isolation for maintenance, servicing, and emergency shutdown applications across residential, commercial, and industrial installations.
The TIL-240 circuit isolating device delivers dependable electrical isolation for low-voltage distribution systems. Its robust 2-pole design ensures complete circuit disconnection, making it ideal for maintenance procedures and emergency isolation requirements.
Engineered with thermal-magnetic trip unit technology, this isolator combines compact dimensions with reliable performance. The 2-module width (36mm) allows for efficient space utilization in distribution boards while maintaining full 40A current handling capability.
The toggle control mechanism provides clear ON/OFF indication and positive contact separation, ensuring operator safety during maintenance operations. Built to withstand demanding environmental conditions, the TIL-240 operates reliably across temperatures from -35°C to +70°C with humidity tolerance up to 95% non-condensing.
Compliance with IEC 60947-3 standards and CE marking guarantees that this isolator meets international safety and performance requirements for circuit isolating devices in professional electrical installations.
Electrical Performance: The TIL-240 is rated for 40A continuous current at 415V AC, 50Hz network frequency. The thermal-magnetic trip unit technology provides reliable overcurrent protection while maintaining manual isolation capability.
Construction: Compact modular design occupying 2 modules (36mm width) on standard DIN rail. Physical dimensions of 82mm height × 36mm width × 74mm depth enable installation in space-constrained distribution boards.
Protection Class: IP20 degree of protection suitable for indoor installation within electrical enclosures. The isolator is designed for vertical mounting position on standard 35mm DIN rail.
Environmental Capability: Operates across extended temperature range from -35°C to +70°C, with relative humidity tolerance of 0-95% non-condensing conditions, ensuring reliable performance in diverse installation environments.
Contact System: 2-pole switching configuration provides clear contact separation for safe isolation. The toggle mechanism ensures positive ON/OFF indication and is designed for frequent switching operations throughout the product lifecycle.
| Parameter | Specification |
|---|---|
| Model Number | TIL-240 |
| Product Type | Circuit Isolating Device |
| Number of Poles | 2P |
| Rated Current (In) | 40A |
| Rated Voltage (Ue) | 415V~ |
| Frequency | 50Hz |
| Network Type | AC |
| Control Type | Toggle |
| Trip Unit Technology | Thermal-Magnetic |
| Mounting Type | DIN Rail (35mm) |
| Module Width | 2 Modules (36mm) |
| Degree of Protection | IP20 |
| Operating Temperature | -35°C to +70°C |
| Relative Humidity | 0-95% (Non-condensing) |
| Height | 82 mm |
| Width | 36 mm |
| Depth | 74 mm |
| Installation Position | Vertical |
| Standard Compliance | IEC 60947-3 |
| Certification | CE Marked |
