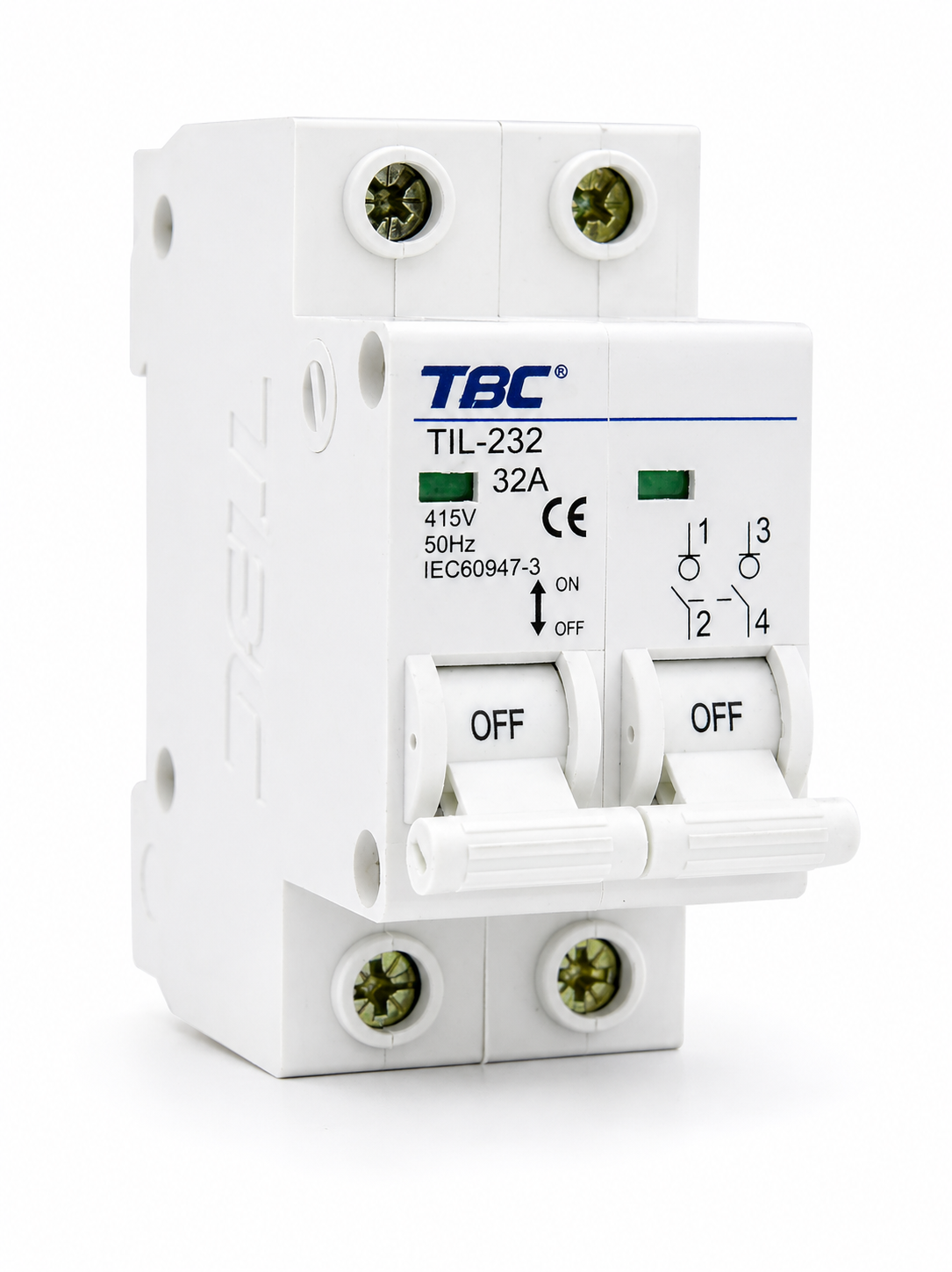

The TIL-232 is a robust 2-pole circuit isolating device engineered for safe and reliable electrical isolation in low-voltage distribution systems. Rated at 32A and 415V~, this isolator provides manual disconnection capabilities essential for residential, commercial, and industrial applications. Designed to meet IEC 60947-3 standards, the TIL-232 ensures compliance with international safety requirements while delivering dependable performance in demanding electrical environments.
The TIL-232 circuit isolating device is specifically designed to provide safe electrical isolation in power distribution systems. As a critical safety component, this 2-pole isolator enables maintenance personnel and operators to safely disconnect electrical circuits for servicing, maintenance, or emergency shutdown procedures.
Featuring thermal-magnetic trip unit technology, the TIL-232 offers dual protection against both overload and short-circuit conditions. The toggle control mechanism ensures intuitive operation, allowing users to quickly and confidently isolate circuits when needed.
Built to withstand harsh environmental conditions, this isolator operates reliably across a wide temperature range from -35°C to +70°C and tolerates relative humidity levels up to 95%. The compact footprint and DIN rail mounting capability make it ideal for installation in distribution boards, control panels, and sub-distribution systems where space optimization is essential.
Manufactured in accordance with IEC 60947-3 international standards and bearing CE marking, the TIL-232 meets stringent safety and quality requirements, providing peace of mind for electrical contractors, facility managers, and end users.
Electrical Characteristics:
The TIL-232 is rated for 32A continuous current at 415V~ AC voltage, operating at 50Hz frequency. The thermal-magnetic trip unit technology provides comprehensive protection by combining thermal elements that respond to sustained overloads with magnetic elements that react instantly to short-circuit conditions.
Mechanical Design:
The isolator features a toggle-type control mechanism that provides clear ON/OFF indication. The 2-pole design ensures complete circuit isolation by simultaneously disconnecting both live conductors. DIN rail mounting enables tool-free installation and removal, facilitating quick deployment and maintenance.
Protection & Safety:
With an IP20 degree of protection, the TIL-232 is protected against solid objects greater than 12.5mm in diameter, making it suitable for installation in enclosed electrical panels and distribution boards. The device is designed to prevent accidental contact with live parts during normal operation.
Environmental Performance:
Engineered to operate in extreme conditions, the TIL-232 functions reliably across an ambient temperature range of -35°C to +70°C, making it suitable for both indoor and temperature-controlled outdoor applications. The device maintains performance in high-humidity environments up to 95% relative humidity.
Compliance & Standards:
The TIL-232 is designed and manufactured in accordance with IEC 60947-3 standards for low-voltage switchgear and controlgear. CE marking confirms conformity with European safety, health, and environmental protection requirements.
| Parameter | Specification |
|---|---|
| Product Type | Circuit Isolating Device |
| Model Number | TIL-232 |
| Poles Description | 2P |
| Rated Current (In) | 32A |
| Rated Voltage (Ue) | 415V~ |
| Frequency | 50Hz |
| Network Type | AC |
| Trip Unit Technology | Thermal-Magnetic |
| Control Type | Toggle |
| Mounting Type | DIN Rail |
| Degree of Protection | IP20 |
| Height | 82 mm |
| Width | 36 mm |
| Depth | 74 mm |
| Ambient Air Temperature | -35°C to +70°C |
| Relative Humidity | 0 – 95% |
| Standards Compliance | IEC 60947-3 |
| Certification | CE Marking |
| Product Application | Power Distribution |
