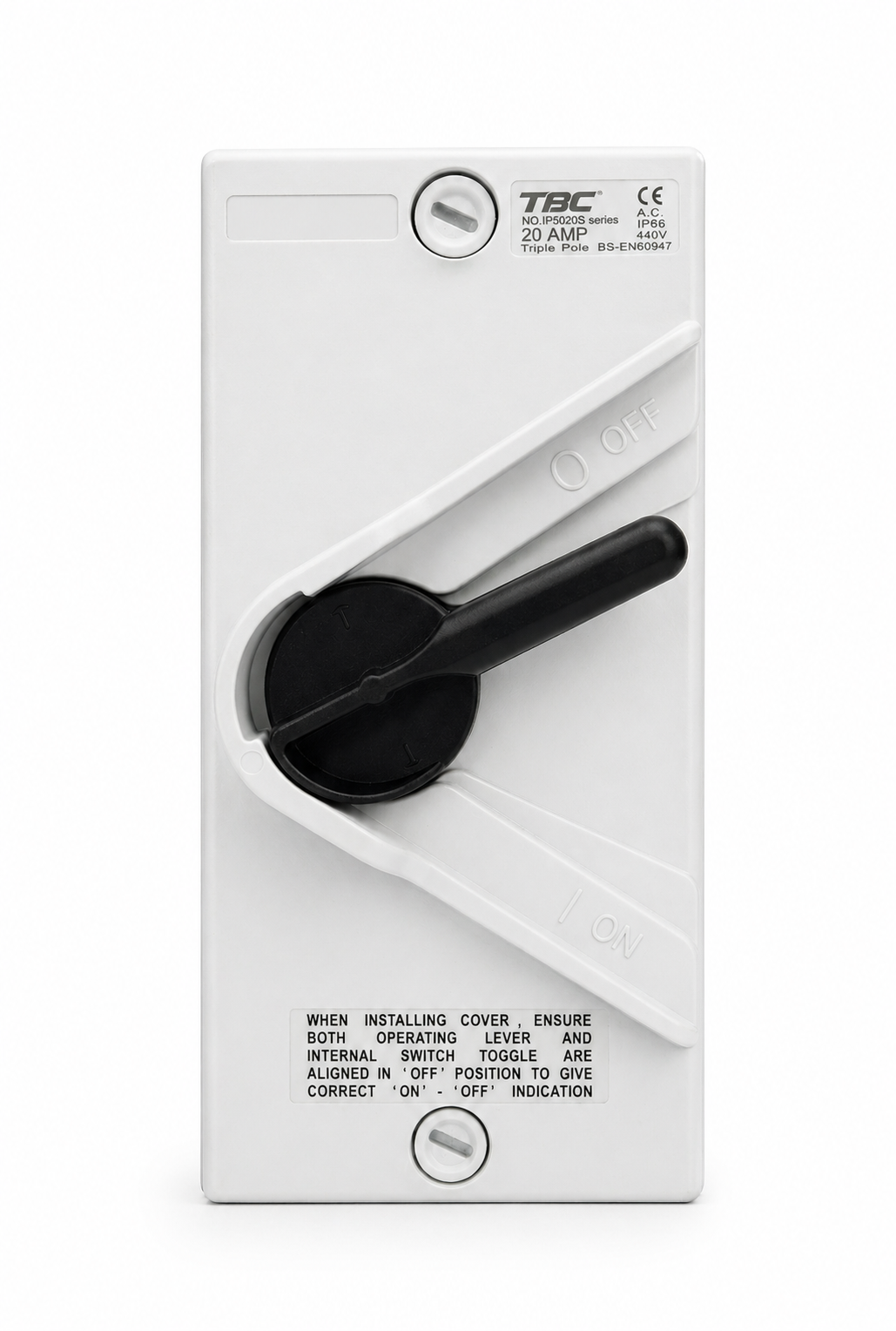

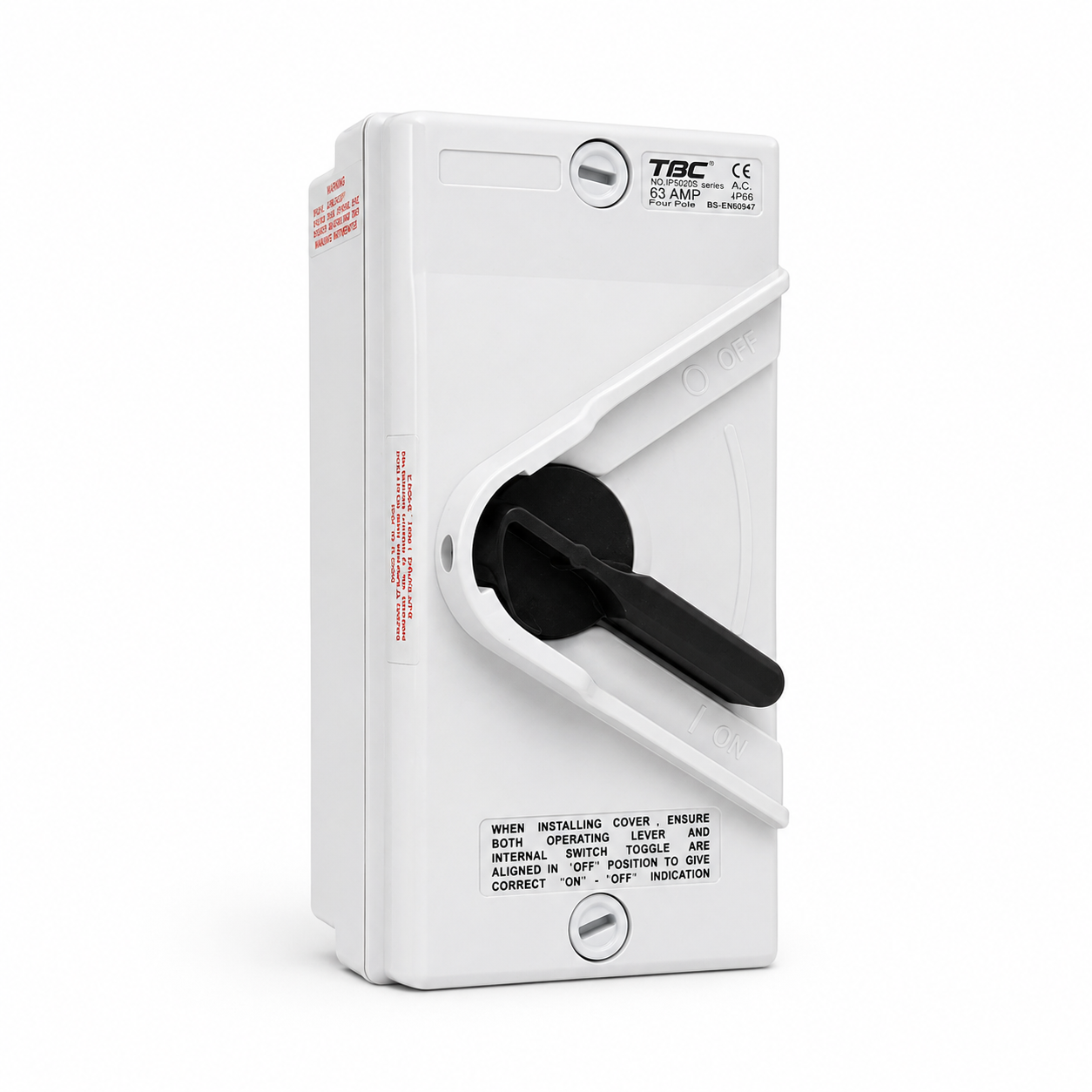

The TBC Weatherproof Isolator (IP66) is engineered to deliver reliable electrical isolation in the most demanding outdoor and industrial environments. Built with a robust Polyvinyl Chloride (PVC) enclosure, this isolator switch combines superior protection against dust and water ingress with long-lasting durability and operational safety. Ideal for applications requiring dependable switching performance in harsh weather conditions.
The TBC Weatherproof Isolator (IP66) represents a premium solution for electrical isolation in challenging environments where conventional switches would fail. This industrial-grade isolator switch is specifically designed to protect electrical circuits and equipment in outdoor installations, industrial facilities, and construction sites.
Featuring a robust PVC enclosure with IP66 protection, this isolator provides complete defense against dust ingress and powerful water jets, making it ideal for exposed locations subject to harsh weather conditions. The secure sealing system ensures long-term reliability even in the presence of rain, humidity, and corrosive atmospheres.
Available in 3-pole configurations with current ratings of 20A, 35A, and 63A, the TBC Weatherproof Isolator accommodates a wide range of electrical loads. The ergonomic handle design enables easy operation while providing clear visual indication of the switch position, enhancing both convenience and safety during maintenance procedures.
Engineered for surface mounting, this isolator switch simplifies installation while maintaining the highest standards of electrical safety. The optional lockable handle feature adds an extra layer of security, preventing unauthorized access and accidental operation in critical applications.
Construction & Materials: The isolator features a high-quality Polyvinyl Chloride (PVC) enclosure engineered for superior mechanical strength and environmental resistance. The material provides excellent insulation properties, UV stability, and resistance to chemical corrosion, ensuring long service life in outdoor applications.
Protection Rating: With IP66 certification, the unit offers complete protection against dust ingress (dust-tight) and protection against powerful water jets from any direction. This makes it suitable for installation in locations exposed to heavy rain, wash-down environments, and dusty industrial settings.
Electrical Performance: Designed to EN 60947 standards, the isolator provides reliable switching performance across a voltage range of 240V to 415V AC at 50/60 Hz frequency. The AC-22A application category rating ensures suitability for typical isolation switching duties in motor control and general industrial applications.
Operating Conditions: The isolator is rated for operation in ambient temperatures ranging from -5°C to +40°C, covering most outdoor and industrial environment conditions. The robust construction maintains performance integrity across this temperature range.
Safety Features: The isolator incorporates clear ON/OFF position indication, secure contact isolation, and optional lockable handle mechanism. These features ensure safe isolation of electrical circuits during maintenance, preventing accidental energization and unauthorized operation.
| Parameter | Specification |
|---|---|
| Product Type | Weatherproof Isolator Switch |
| Standard Compliance | EN 60947 |
| Rated Current Options | 20A / 35A / 63A |
| Number of Poles | 3 Pole |
| Rated Voltage | 240V – 415V AC |
| Frequency | 50/60 Hz |
| Protection Degree | IP66 (Dust-tight, Water Jet Protected) |
| Enclosure Material | Polyvinyl Chloride (PVC) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -5°C to +40°C |
| Application Category | AC-22A (Typical Isolation Switching) |
| Contact Material | Silver Alloy (Typical) |
| Handle Type | Ergonomic Rotary Handle with Position Indication |
| Lockable Feature | Optional (Model Dependent) |
| Terminal Type | Screw Terminals |
| Color | Grey (Standard) |
