TBC-WD18 18 Way Waterproof Distribution Box

The TBC-WD18 enclosure is constructed around a rigid flame-retardant thermoplastic body rated to IP65 in accordance with standard ingress protection classifications, providing a sealed environment for up to five modular DIN-rail devices. The 35 mm DIN rail is factory-fitted within the enclosure, offering a secure and standardised mounting platform compatible with the full range of modular circuit protection devices. Cable entry is facilitated through dedicated knock-out or pre-formed entry points positioned to allow clean, strain-relieved cable routing into the enclosure interior.

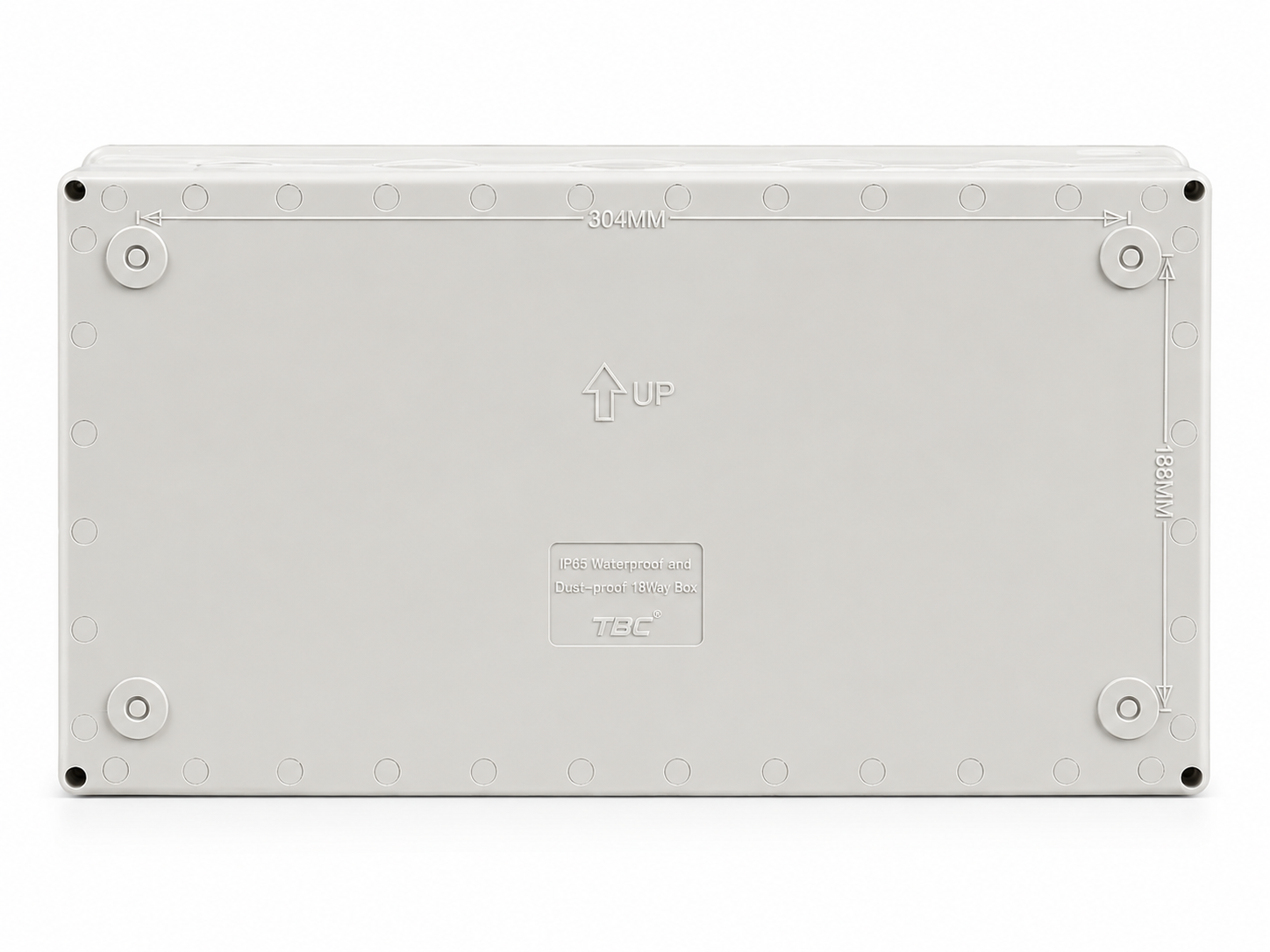

The UV-stabilised housing compound is selected to withstand prolonged outdoor exposure without significant mechanical or aesthetic degradation. The transparent cover is retained by a robust locking latch system that maintains the IP65 seal integrity when closed, ensuring that the enclosure continues to meet its rated protection level throughout its operational life. Dimensions of 188 × 90 × 356 mm have been optimised to balance internal device capacity with an externally compact footprint.

• Residential Buildings: Surface-mounted sub-distribution point for garden circuits, outdoor lighting, and external power outlets at domestic properties.
• Commercial Buildings: Weatherproof circuit protection enclosure for rooftop plant areas, car park lighting circuits, and external signage power supplies.
• Outdoor Electrical Systems: General-purpose weatherproof housing for circuit breakers serving any exposed outdoor electrical installation.
• Garden and Landscape Lighting: Compact distribution point for controlling and protecting multiple garden lighting circuits from a single weatherproof enclosure.
• Solar PV Systems: Housing for DC or AC circuit breakers within small-scale solar photovoltaic installations requiring outdoor-rated enclosures.
• Industrial Control Panels: Supplementary weatherproof enclosure for auxiliary control circuits in light industrial or process environments.
• Water Pump Control: Protective housing for circuit breakers and control devices associated with irrigation pumps, borehole pumps, and water feature systems.
• Distribution Boards: Sub-enclosure or satellite distribution point feeding branch circuits from a main distribution board in multi-zone installations.
