The TBC TS-5-18W Distribution Board is a robust, high-capacity electrical distribution solution engineered for demanding low-voltage applications. Featuring a 5-row configuration supporting up to 18 outgoing ways, this distribution board delivers organized circuit management and superior protection for larger residential, commercial, and light industrial installations. Built with a heavy-duty steel enclosure and equipped with DIN rail mounting, it ensures reliable performance and professional-grade installation quality.
The TBC TS-5-18W Distribution Board represents a professional-grade solution for electrical distribution in applications requiring higher circuit capacity and organized power management. Its 5-row, 18-way configuration makes it ideal for larger installations where multiple circuits need to be managed efficiently and safely.

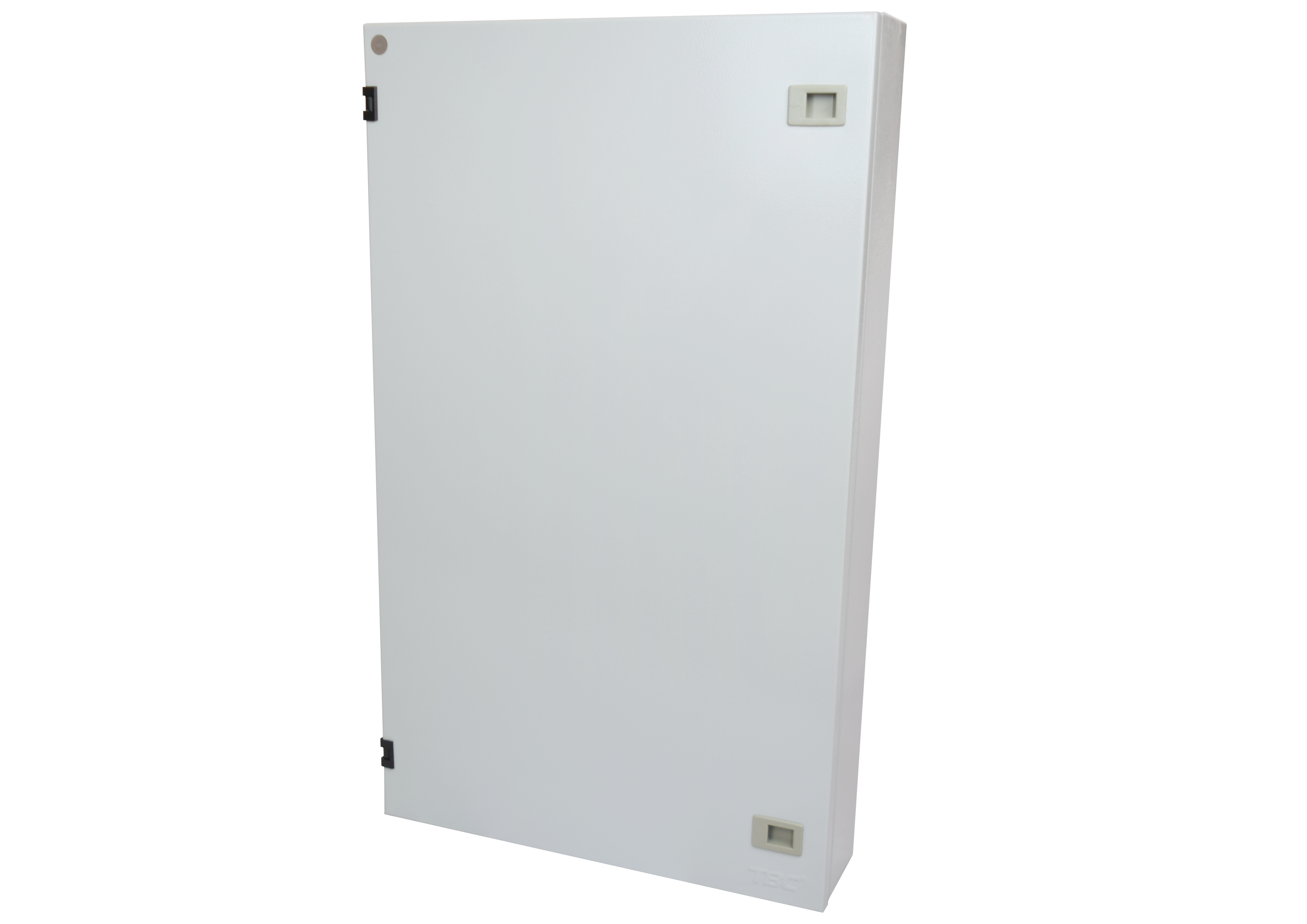

Constructed from heavy-duty steel with a durable powder-coated finish, this distribution board provides excellent mechanical protection for installed protective devices while maintaining a clean, professional appearance. The removable metal door ensures secure access control while facilitating easy maintenance and circuit modifications.

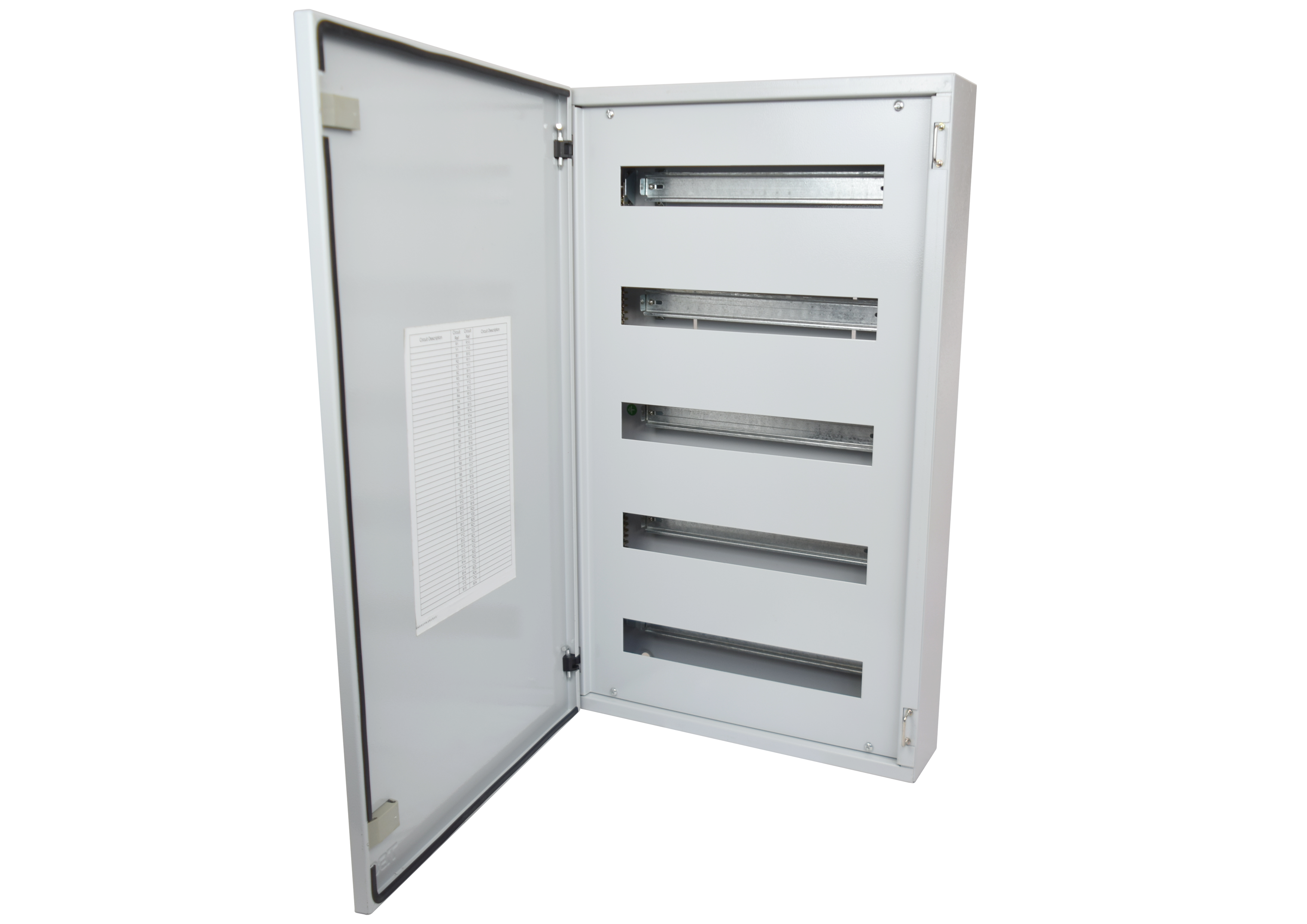

The board's internal layout features standard DIN rail mounting, allowing for flexible installation of various protective devices including miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), and residual current breaker with overcurrent protection (RCBOs). Top and bottom cable entry points provide installation flexibility to accommodate different site conditions and wiring requirements.
Designed for indoor applications, the TS-5-18W is suitable for a wide range of environments including large residential properties, commercial buildings, retail complexes, and light industrial facilities where reliable electrical distribution is critical.
Construction: The distribution board features a robust steel enclosure with a light grey powder-coated finish, providing excellent corrosion resistance and durability. The removable metal door is secured with appropriate fastening mechanisms for safe access control.
Mounting System: Internal DIN rail mounting system accommodates standard modular protective devices. The 5-row configuration allows for organized circuit arrangement and clear labeling of individual ways.
Cable Management: Top and bottom cable entry points facilitate flexible wiring arrangements. The internal layout provides adequate space for cable routing and termination, ensuring compliance with wiring regulations and professional installation standards.

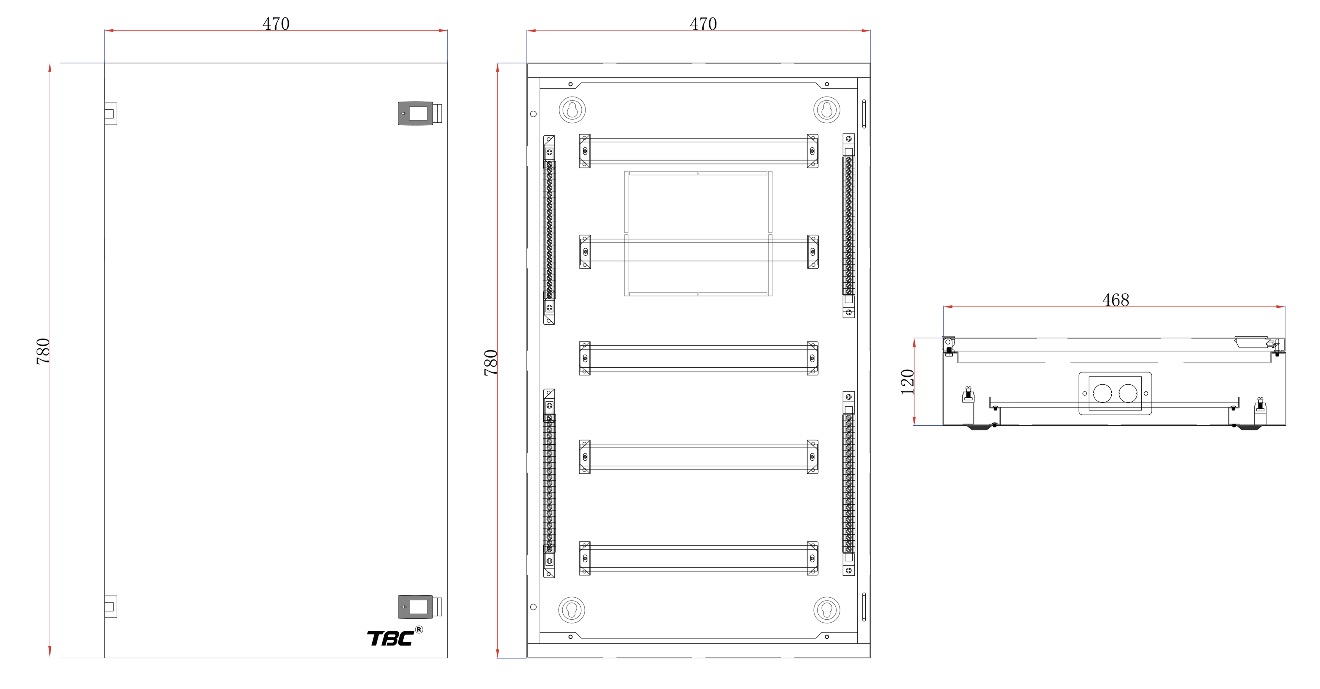

Dimensions: With overall dimensions of 780mm (H) × 470mm (W) × 120mm (D), the board provides substantial internal space while maintaining a compact footprint suitable for surface mounting in various locations.
Installation Requirements: Surface mount installation requires appropriate wall fixings suitable for the total load of the board and installed devices. Adequate clearance must be maintained around the board for ventilation, access, and compliance with electrical safety regulations.
Compliance: Installation and wiring must be carried out by qualified electrical personnel in accordance with local electrical codes and regulations. Final configuration depends on the specific protective devices installed and the application requirements.
| Item | Specification |
|---|---|
| Product Type | Distribution Board |
| Model | TS-5-18W |
| Number of Rows | 5 |
| Number of Ways | 18 Ways |
| Mounting Type | Surface Mount |
| Enclosure Material | Steel |
| Door Type | Metal Door (Removable) |
| Colour | Light Grey |
| Internal Rail | DIN Rail |
| Cable Entry | Top & Bottom |
| Application | Indoor |
| Height | 780mm |
| Width | 470mm |
| Depth | 120mm |
| Device Compatibility | MCB, RCCB, RCBO |
| Installation | Qualified Personnel Required |
