TBC TS-5-15W Distribution Board – 5 Rows 15 Ways

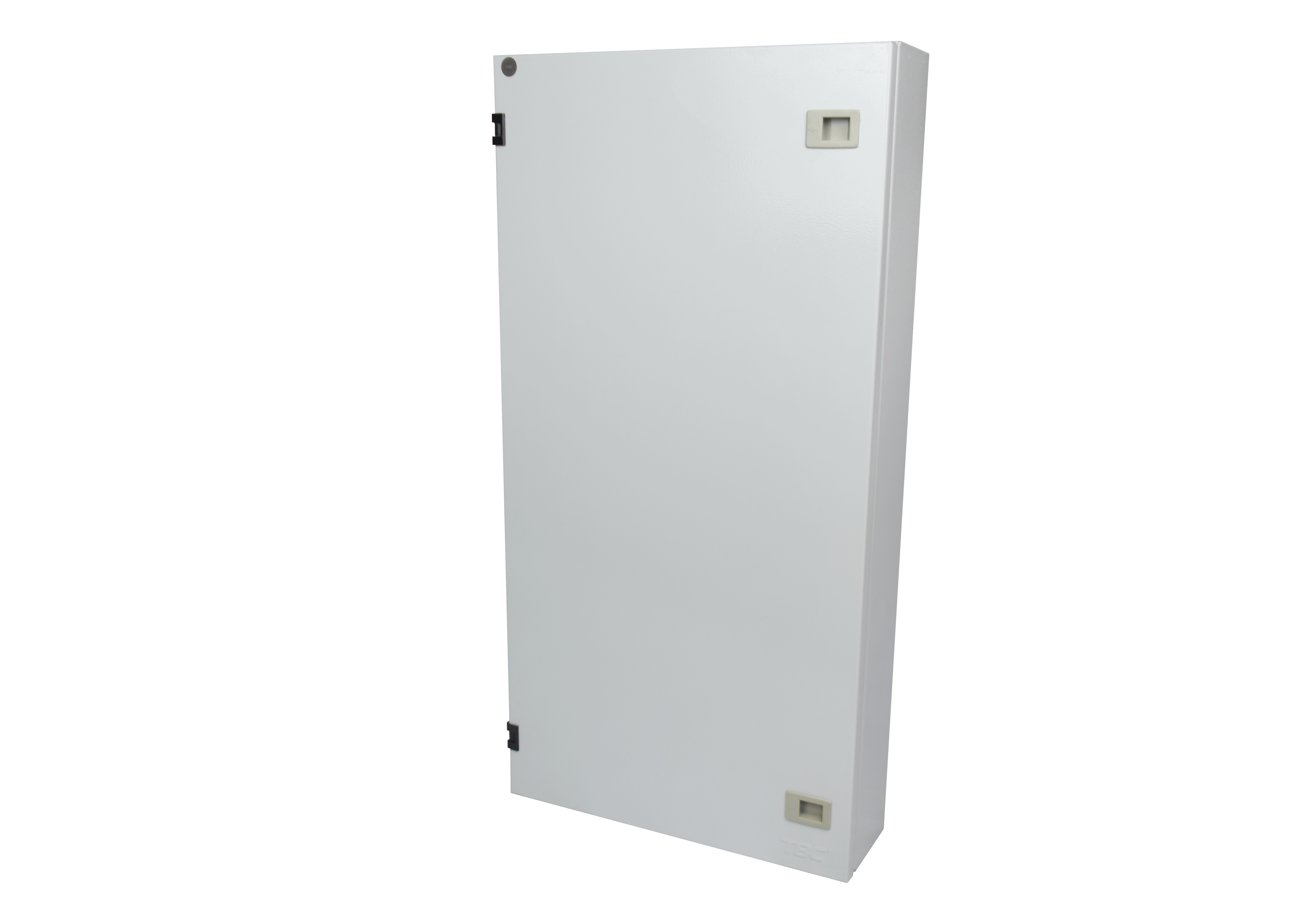

Construction: The TS-5-15W features a heavy-duty steel enclosure with a light grey powder-coated finish, providing excellent corrosion resistance and durability. The enclosure is designed for surface mounting and includes a removable metal door secured with appropriate fastening mechanisms.

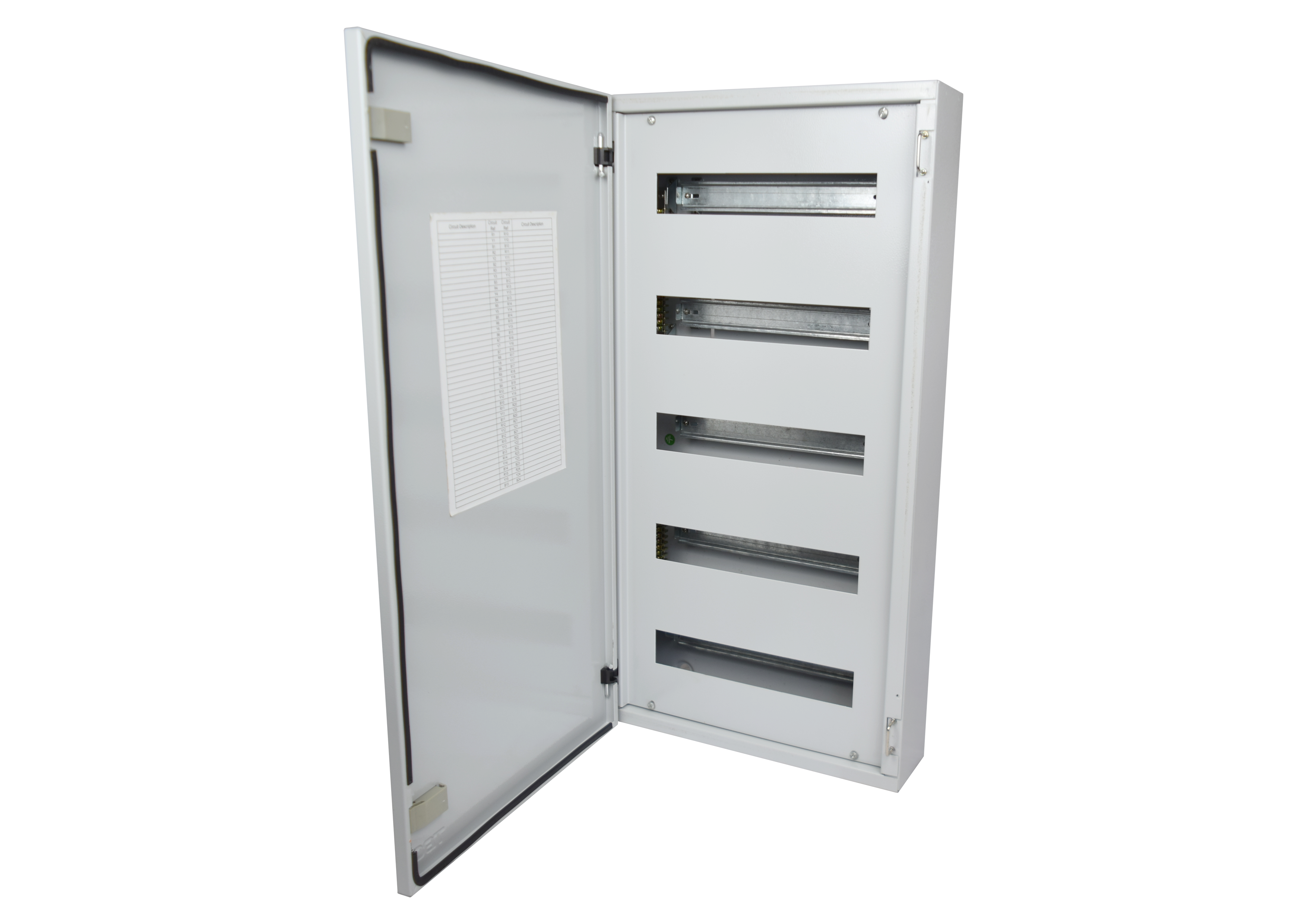

Internal Configuration: The distribution board is equipped with standard DIN rail mounting systems arranged in five horizontal rows, allowing for systematic installation of modular protective devices. The internal layout is optimized for cable management and device spacing to ensure adequate clearance and heat dissipation.

Cable Entry: Both top and bottom cable entry points are provided, offering flexibility in wiring design and accommodating various installation scenarios. Cable entry points are designed to accept appropriate cable glands or grommets as per installation requirements.

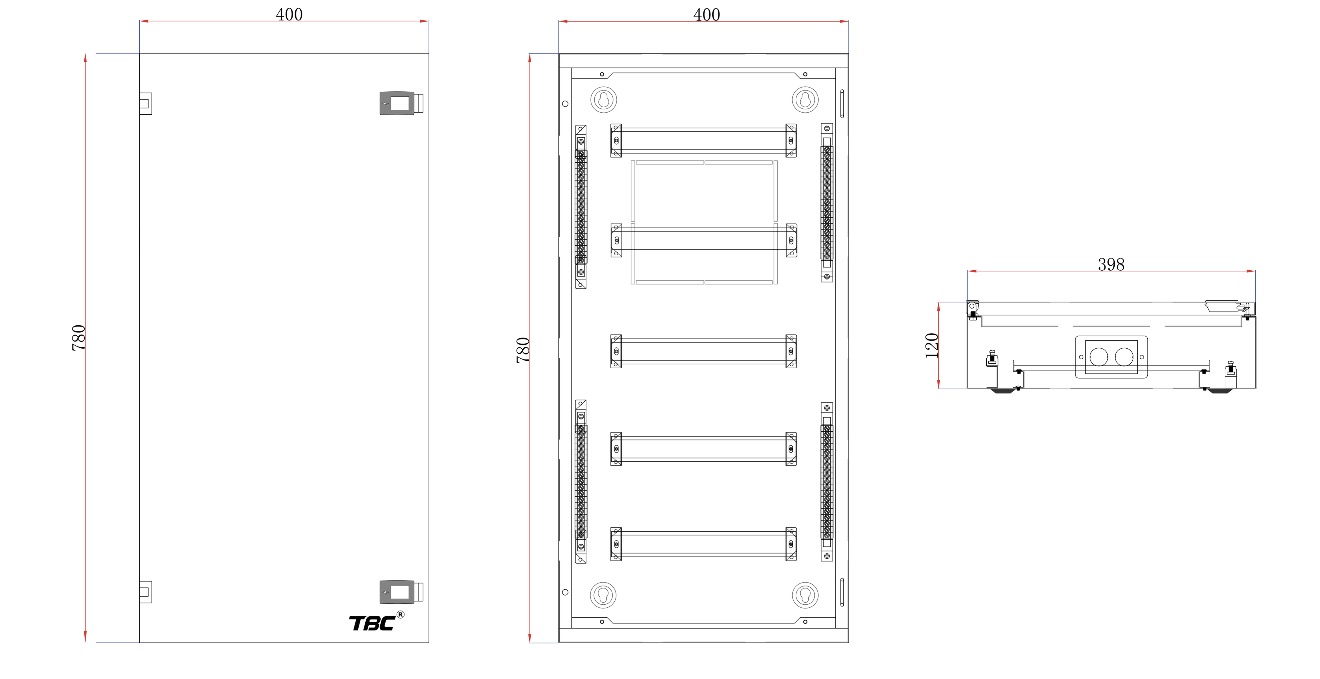

Dimensions: With overall dimensions of 780mm (H) × 400mm (W) × 120mm (D), the TS-5-15W provides substantial internal space while maintaining a compact footprint suitable for most installation environments.

Compliance: Installation must be carried out by qualified electrical personnel in accordance with local electrical codes and regulations. All wiring and protective device selection must comply with applicable standards and load requirements.

• Large residential properties and multi-unit dwellings requiring comprehensive circuit distribution
• Commercial buildings and office complexes with multiple electrical zones
• Retail complexes, shopping centers, and shoplots with diverse electrical loads
• Light industrial facilities and workshops requiring organized power distribution
• Educational institutions and public buildings with extensive electrical systems
• Hospitality facilities including hotels and serviced apartments
• Healthcare facilities and clinics requiring reliable electrical distribution
• Renovation and upgrade projects requiring expanded circuit capacity
