The TBC TS-4-18W Distribution Board is a robust and professionally designed electrical enclosure engineered for low-voltage power distribution in residential, commercial, and light industrial environments. Featuring a 4-row configuration with 18 outgoing ways, this distribution board offers enhanced circuit capacity and superior organization in a compact, durable steel housing. Its versatile design accommodates MCBs, RCCBs, and RCBOs, making it an ideal solution for modern electrical installations requiring reliability, safety, and ease of maintenance.
The TBC TS-4-18W Distribution Board represents a professional-grade solution for electrical power distribution across a wide range of applications. Its 4-row, 18-way design strikes an optimal balance between circuit capacity and physical footprint, making it particularly suitable for installations where space is at a premium but circuit density is essential.

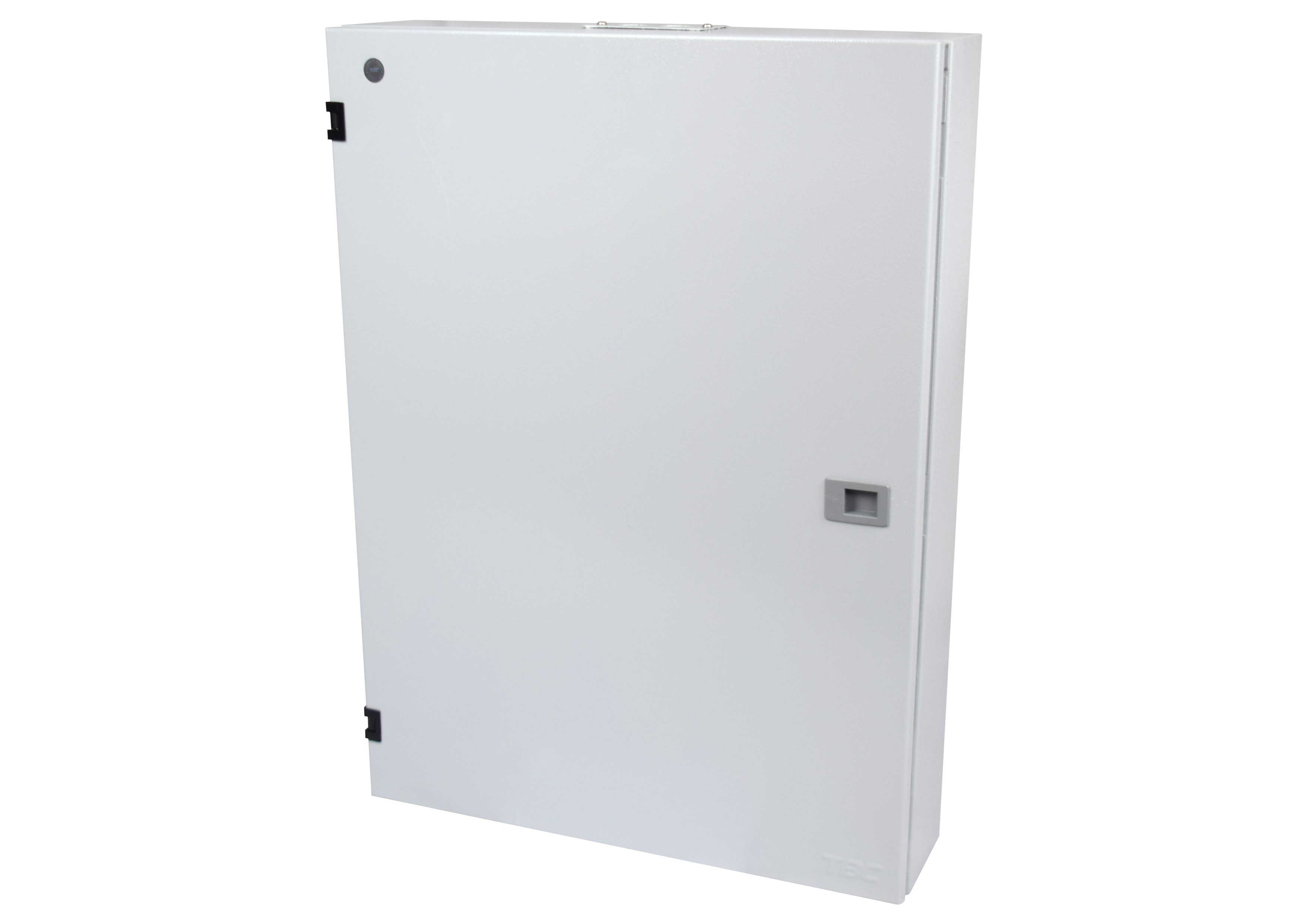

Constructed from high-quality steel with a durable powder-coated finish, this distribution board is built to withstand the demands of daily use in residential, commercial, and light industrial settings. The removable metal door provides secure protection while allowing quick access for installation, inspection, and maintenance activities.
The internal layout features standard DIN rail mounting, ensuring compatibility with a comprehensive range of circuit protection devices including miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), and residual current breaker with overcurrent protection (RCBOs). The dual cable entry configuration—both top and bottom—offers installers maximum flexibility in routing incoming and outgoing cables, simplifying installation and improving overall system aesthetics.
Designed for indoor applications, the TS-4-18W meets the requirements of modern electrical installations where safety, organization, and accessibility are paramount. Its clean internal layout facilitates professional workmanship and simplifies future modifications or expansions.
Construction & Materials:
The distribution board enclosure is manufactured from cold-rolled steel with a light grey powder-coated finish, providing excellent mechanical strength and corrosion resistance. The metal door is secured with robust hinges and locking mechanism for enhanced security and durability.
Internal Configuration:

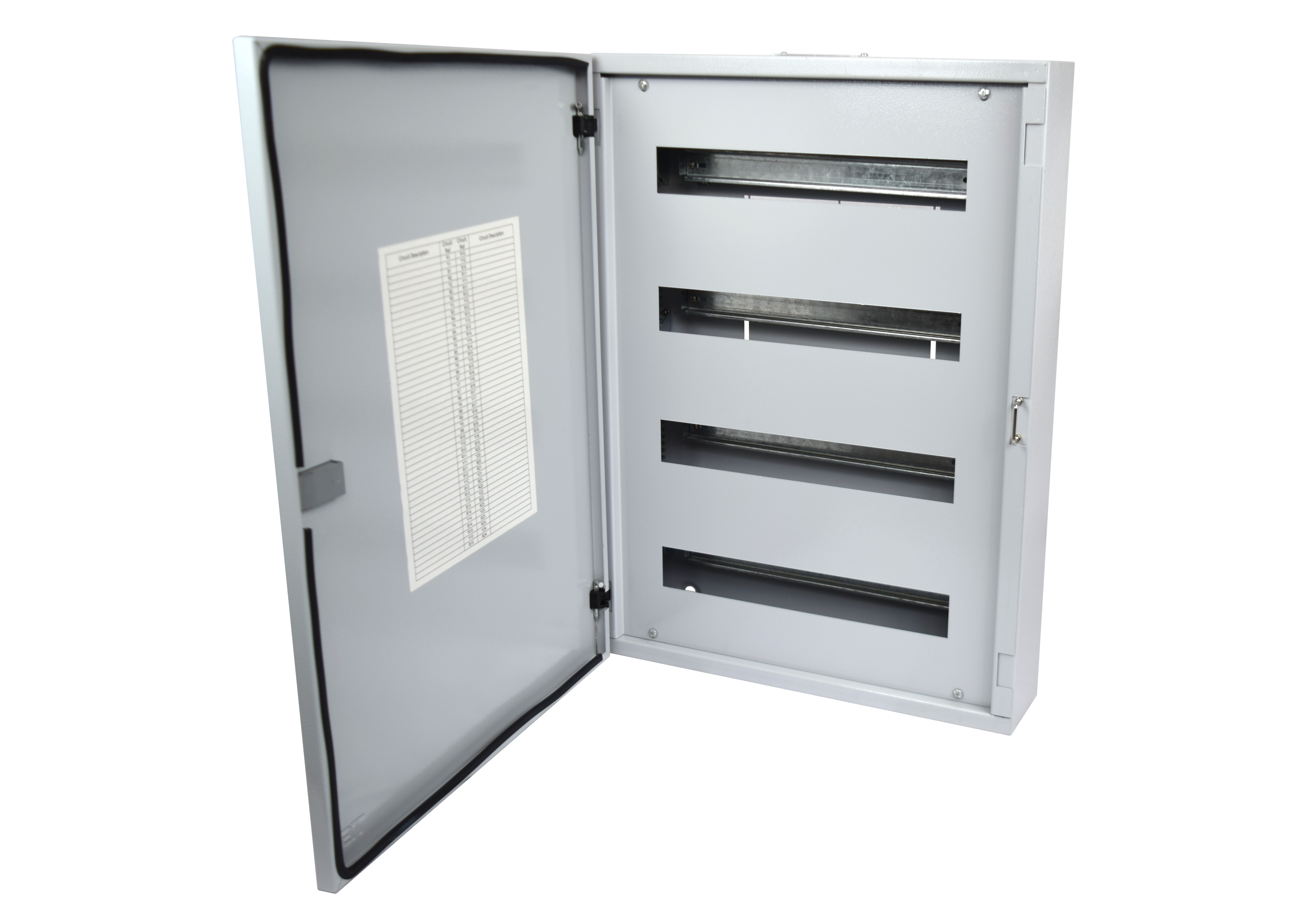

The board features four horizontal DIN rails arranged in rows, accommodating standard 35mm DIN rail-mounted devices. The 18-way capacity allows for flexible circuit distribution and future expansion. Internal wiring space is optimized for neat cable management and compliance with wiring regulations.
Cable Entry:
Pre-punched knockouts are provided at both top and bottom of the enclosure, allowing flexible cable entry options. This dual-entry design accommodates various installation scenarios and simplifies cable routing in different mounting locations.
Mounting:
Surface mount design with pre-drilled fixing holes for secure wall installation. The enclosure depth of 120mm provides adequate space for device installation and cable termination while maintaining a relatively low profile.
Standards & Compliance:
Designed to accommodate protective devices compliant with relevant IEC standards. Installation must be carried out in accordance with local electrical codes and regulations. All work should be performed by qualified and licensed electrical personnel.
Environmental Conditions:
Suitable for indoor use in dry locations. Operating temperature range and IP rating should be confirmed based on specific installation environment requirements.
| Item | Specification |
|---|---|
| Product Type | Distribution Board |
| Model Number | TS-4-18W |
| Number of Rows | 4 Rows |
| Number of Ways | 18 Ways |
| Mounting Type | Surface Mount |
| Enclosure Material | Steel |
| Door Type | Metal Door (Removable) |
| Colour | Light Grey |
| Internal Rail | DIN Rail (35mm) |
| Cable Entry | Top & Bottom |
| Application | Indoor |

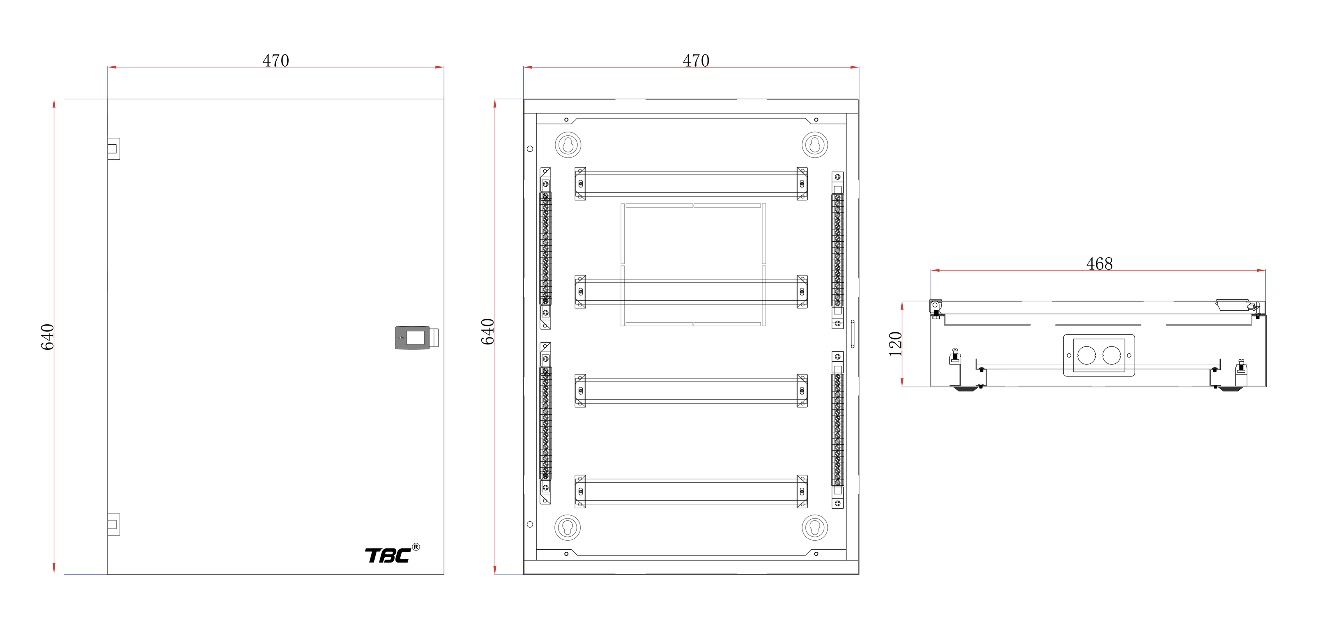

| Height | 640mm |
| Width | 470mm |
| Depth | 120mm |
| Device Compatibility | MCB, RCCB, RCBO |
| Installation | Qualified Personnel Required |
