The TBC TS-3-18W Distribution Board is a robust and professionally designed solution for low-voltage electrical distribution in residential, commercial, and light industrial installations. Featuring a three-row configuration with 18 outgoing ways, this distribution board offers superior circuit capacity and organized circuit separation within a compact, durable steel enclosure. Engineered for DIN-rail mounted protective devices, it ensures reliable performance and ease of installation.
The TBC TS-3-18W Distribution Board is engineered to meet the demanding requirements of modern electrical installations. Its three-row design maximizes circuit capacity while maintaining a compact footprint, making it ideal for space-conscious installations that require multiple circuit protection devices.

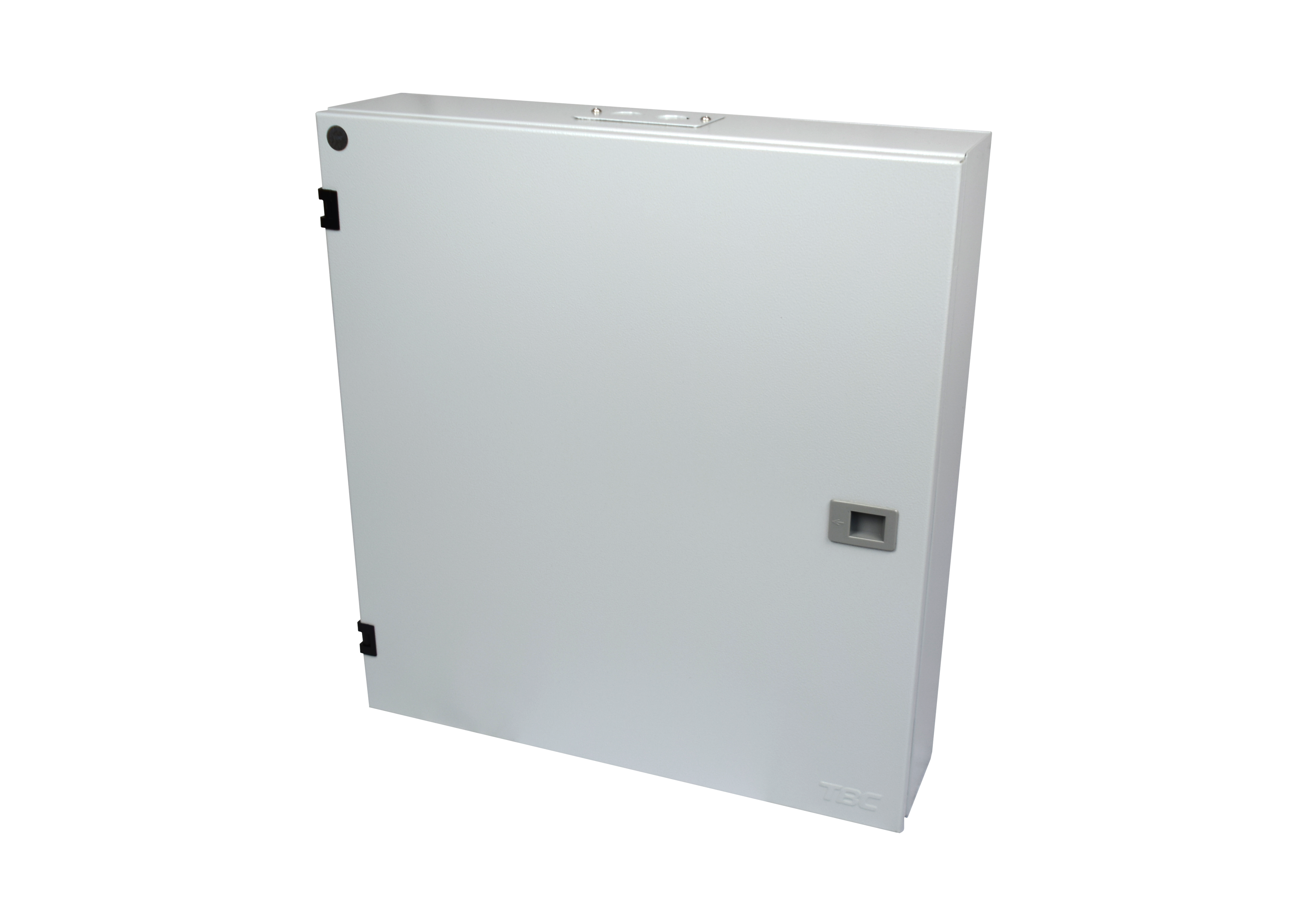

Constructed from high-quality steel, the enclosure provides excellent mechanical protection and long-term durability. The removable metal door ensures secure access for installation and maintenance activities, while the light grey finish complements standard electrical installation aesthetics.
The board features both top and bottom cable entry points, offering installers maximum flexibility in cable routing and connection. The internal DIN rail configuration supports a wide range of protective devices including miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), and residual current breaker with overcurrent protection (RCBOs), making it a versatile solution for diverse electrical protection requirements.
Designed for indoor surface mounting, the TBC TS-3-18W is suitable for residential homes, commercial buildings, retail spaces, and light industrial facilities where reliable electrical distribution is essential.
Construction: The distribution board features a robust steel enclosure with a removable metal door, providing excellent mechanical protection and secure access. The light grey powder-coated finish ensures corrosion resistance and professional appearance.

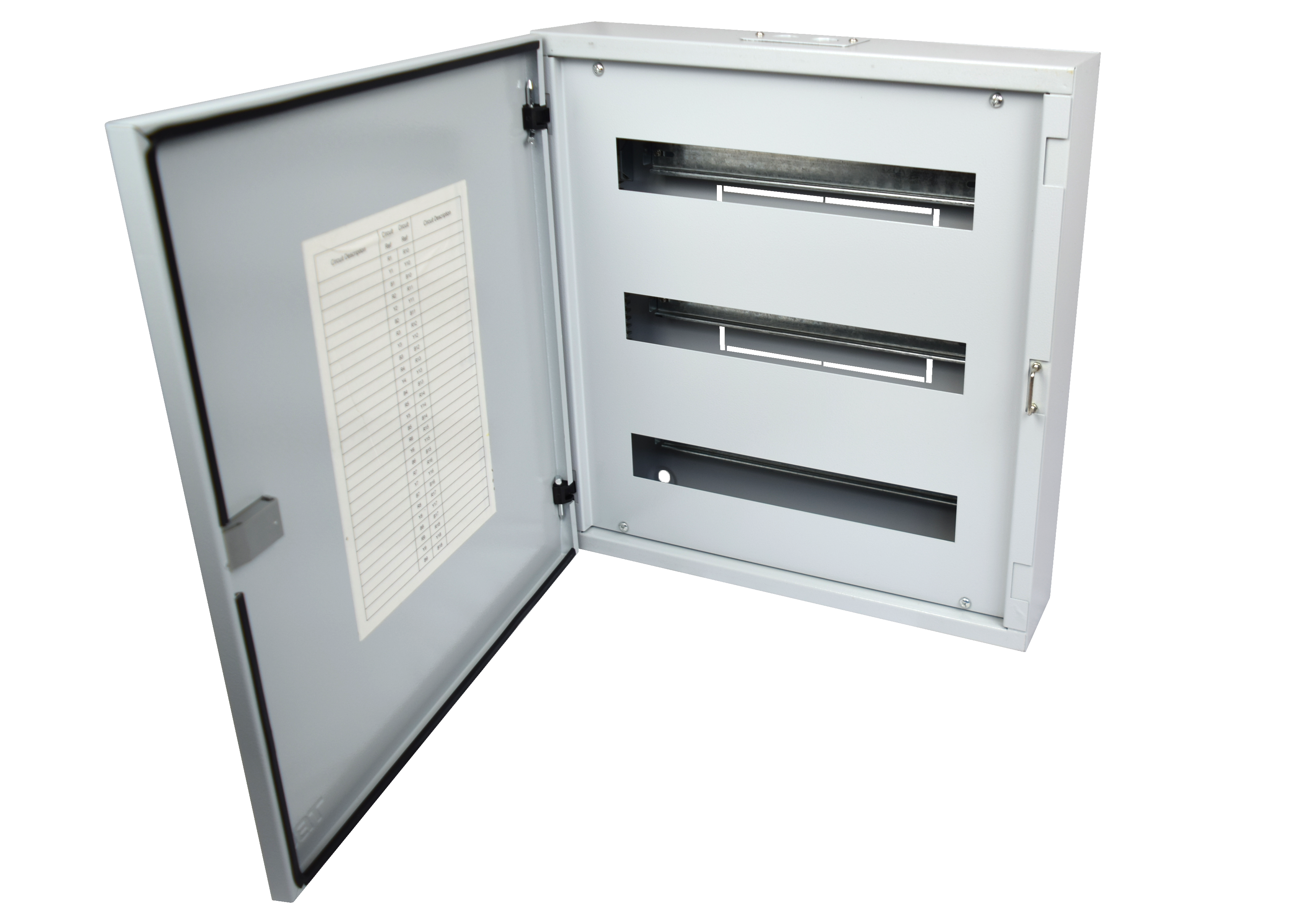

Internal Configuration: Equipped with DIN rail mounting system across three rows, accommodating up to 18 modular protective devices. The clean internal layout facilitates organized wiring and professional installation practices.
Cable Entry: Dual cable entry points (top and bottom) allow flexible wiring arrangements to suit various installation scenarios and site conditions.

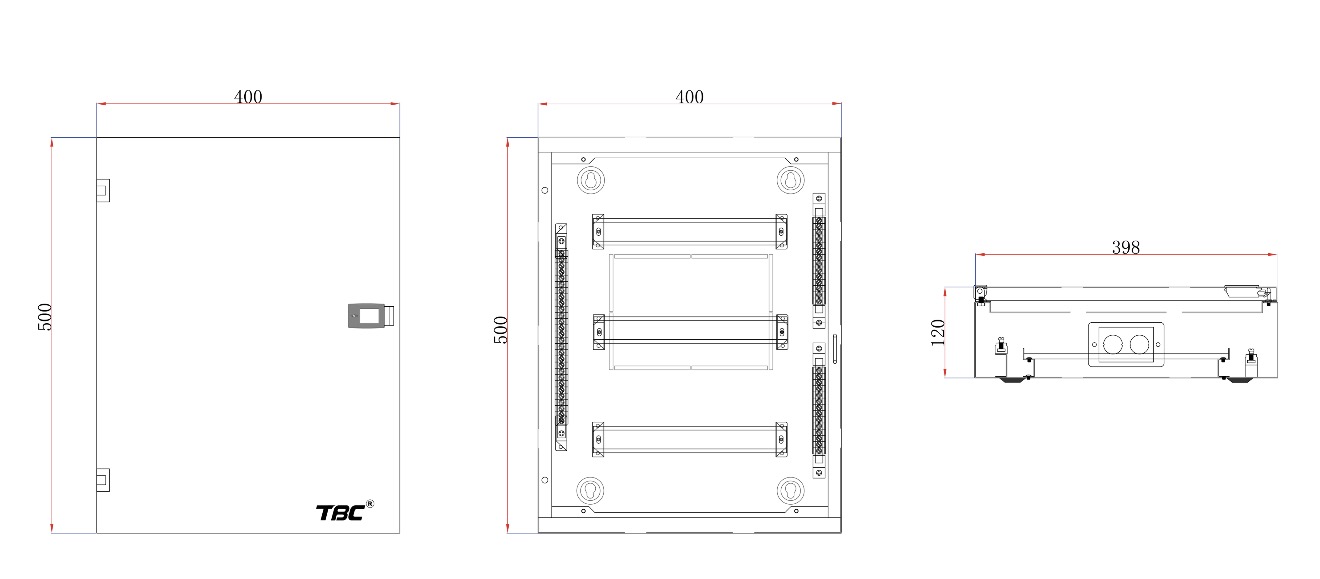

Mounting: Surface mount design with pre-drilled fixing points for secure wall installation. Compact dimensions (500mm H × 470mm W × 120mm D) optimize space utilization.
Compliance: Installation must comply with local electrical regulations and standards. All work must be performed by qualified electrical personnel.
| Item | Specification |
|---|---|
| Product Type | Distribution Board |
| Model | TS-3-18W |
| Number of Rows | 3 |
| Number of Ways | 18 Ways |
| Mounting Type | Surface Mount |
| Enclosure Material | Steel |
| Door Type | Metal Door (Removable) |
| Colour | Light Grey |
| Internal Rail | DIN Rail |
| Cable Entry | Top & Bottom |
| Application | Indoor |
| Height | 500mm |
| Width | 470mm |
| Depth | 120mm |
| Compatible Devices | MCB, RCCB, RCBO |
