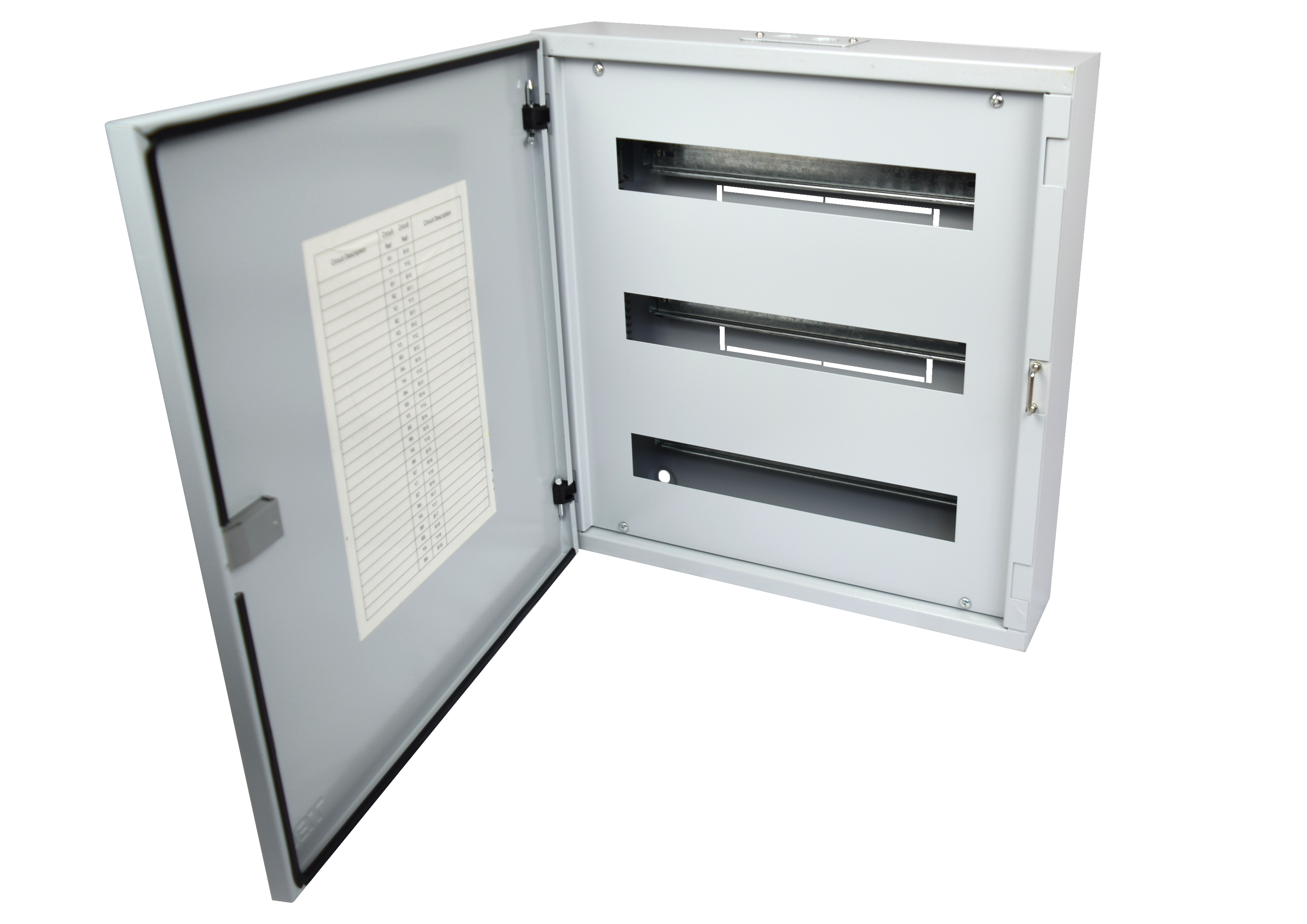

TBC TS-3-15W Distribution Board – 3 Rows 15 Ways

Construction & Materials:

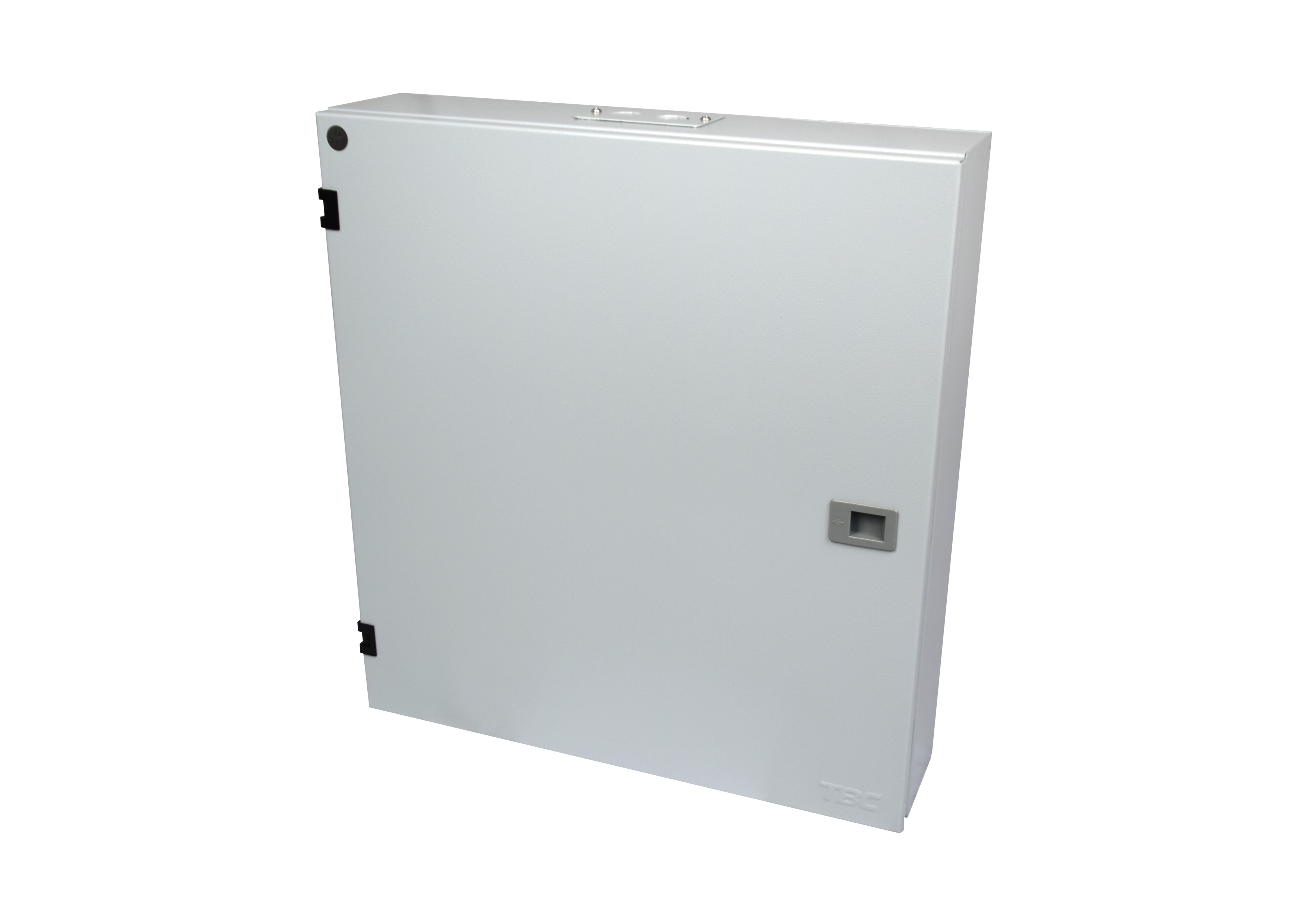

The distribution board features a robust steel enclosure with a light grey powder-coated finish, providing excellent durability and corrosion resistance. The metal door is removable for convenient access during installation and maintenance procedures.

Mounting & Configuration:
Designed for surface mounting, the board incorporates standard DIN rail mounting for protective devices. The three-row configuration accommodates up to 15 ways, allowing for flexible circuit arrangement and future expansion.

Cable Management:
Top and bottom cable entry points facilitate flexible wiring layouts and accommodate various installation scenarios. The internal arrangement is optimized for neat cable routing and professional presentation.

Compatibility:
The board is compatible with standard DIN-rail mounted devices including miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), and residual current breaker with overcurrent protection (RCBOs) from the TBC range and other manufacturers conforming to standard dimensions.

Installation Requirements:

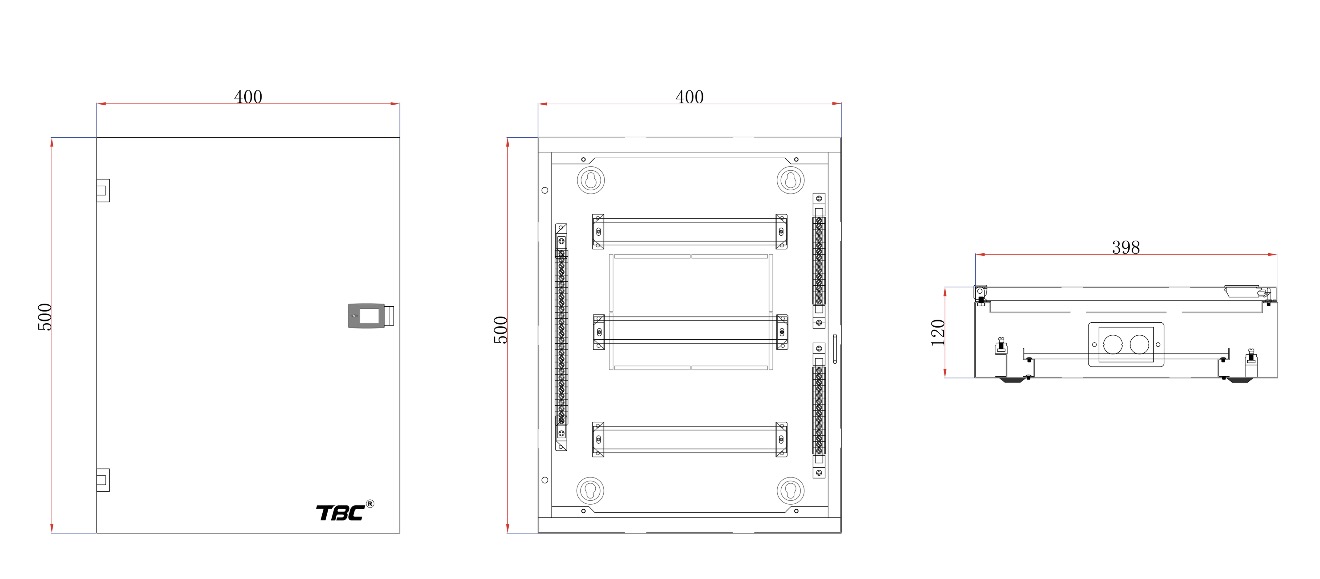

Installation must be performed by qualified electrical personnel in accordance with local electrical codes and regulations. Adequate clearance should be maintained around the enclosure for ventilation and access. Refer to the dimensional drawing for exact installation clearance requirements.

Environmental Conditions:
Suitable for indoor applications in dry environments. Not suitable for outdoor or wet location installations unless additional protection is provided.

• Residential electrical distribution systems and consumer units
• Commercial buildings and office complexes
• Retail units and shopping centers
• Shoplot and shophouse electrical installations
• Light industrial facilities and workshops
• Educational institutions and schools
• Healthcare facilities and clinics
• Hospitality sector installations
• Renovation and retrofit projects
• New construction electrical distribution
