TBC TS-2-15W Distribution Board – 2 Rows 15 Ways

Construction & Materials:

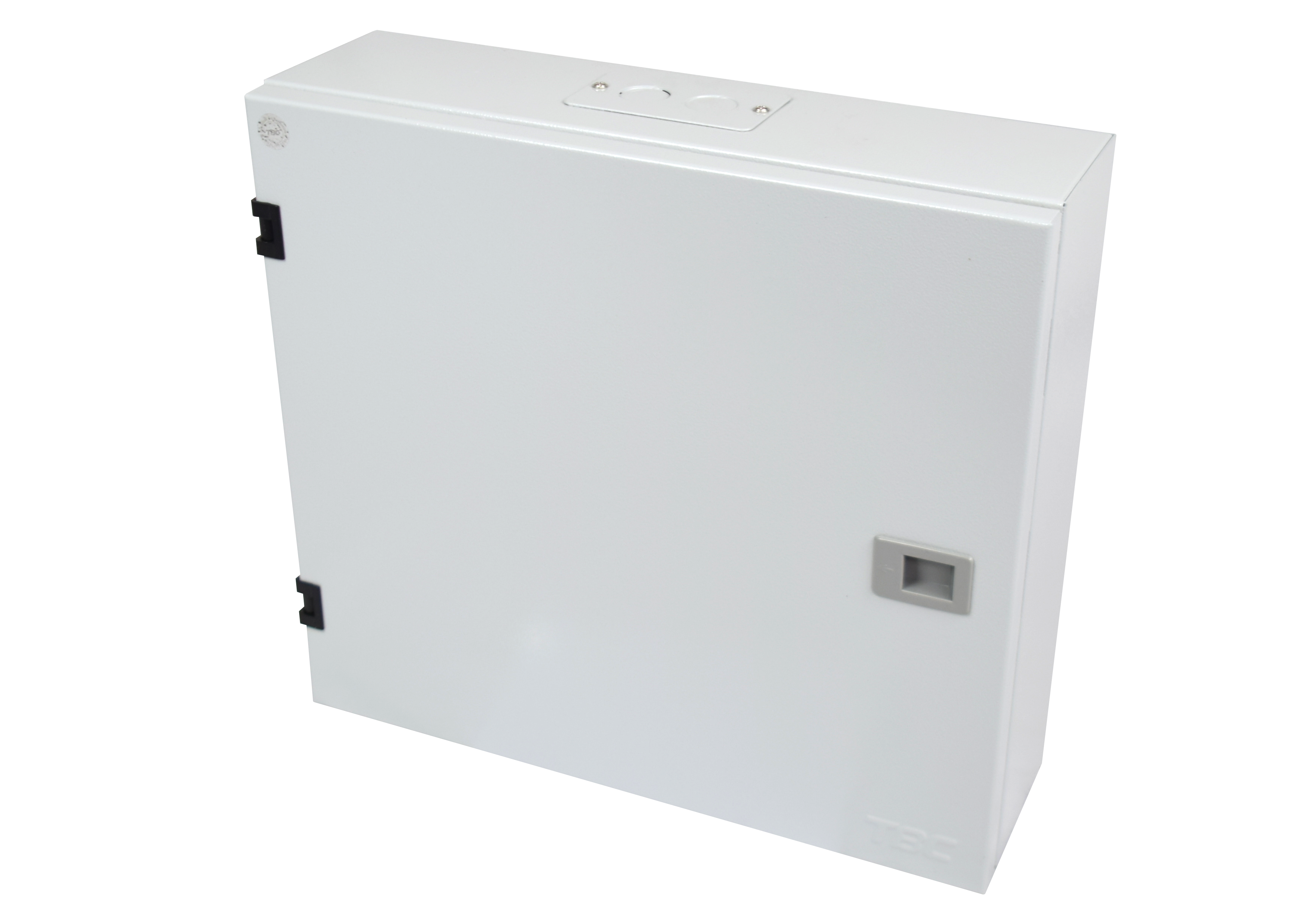

The distribution board features a robust steel enclosure with a light grey powder-coated finish, providing excellent protection against physical damage and environmental factors in indoor applications. The metal construction ensures superior fire resistance and long-term structural integrity.

Internal Configuration:

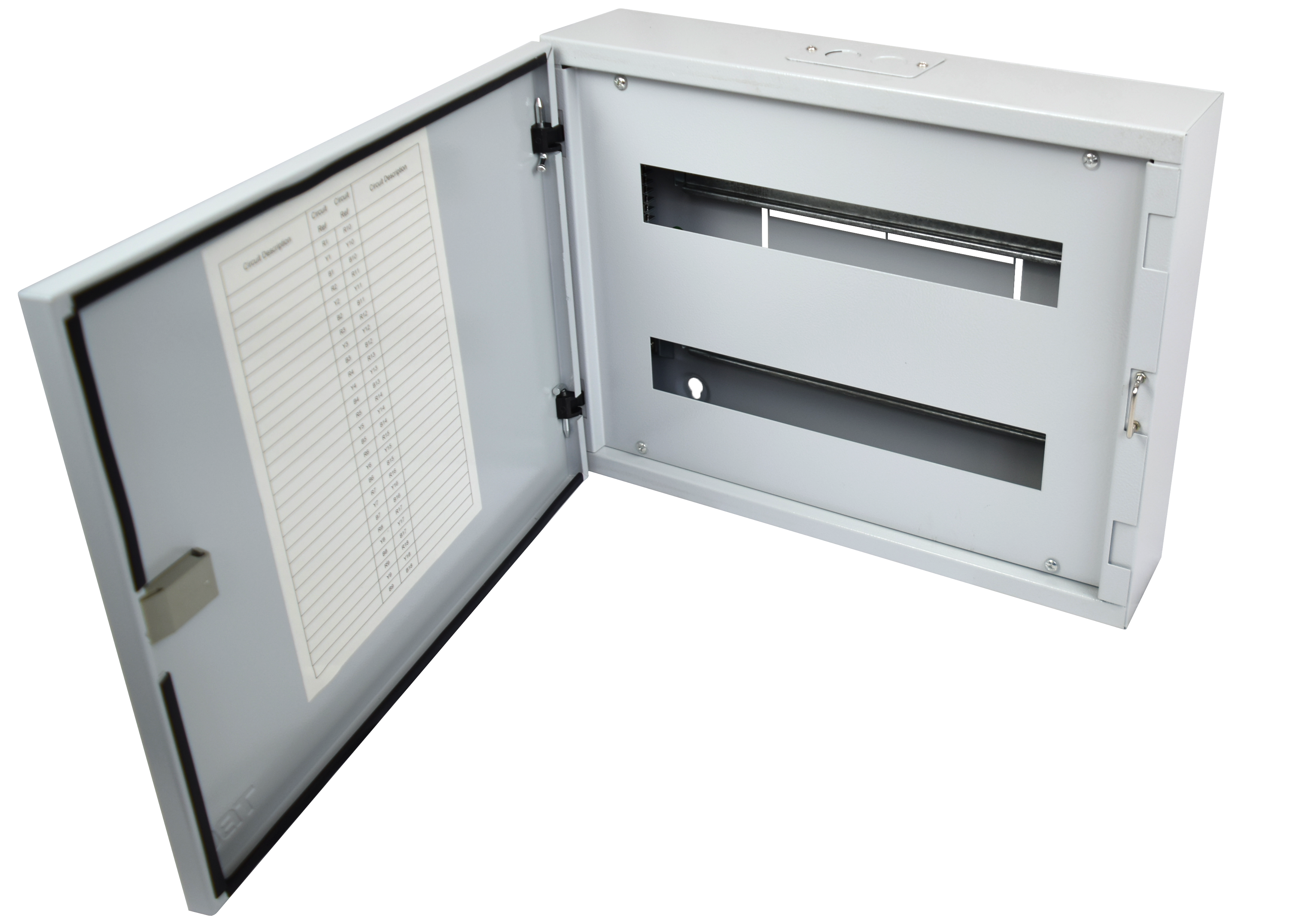

Equipped with standard DIN rail mounting system, the board accommodates a wide range of protective devices including miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), and residual current breaker with overcurrent protection (RCBOs). The two-row layout optimizes space utilization while maintaining clear circuit identification and accessibility.

Cable Management:
Top and bottom cable entry points provide flexibility for incoming supply and outgoing circuit wiring. The internal layout is designed to support neat cable routing and termination, facilitating professional installations that meet regulatory standards.

Dimensions & Mounting:

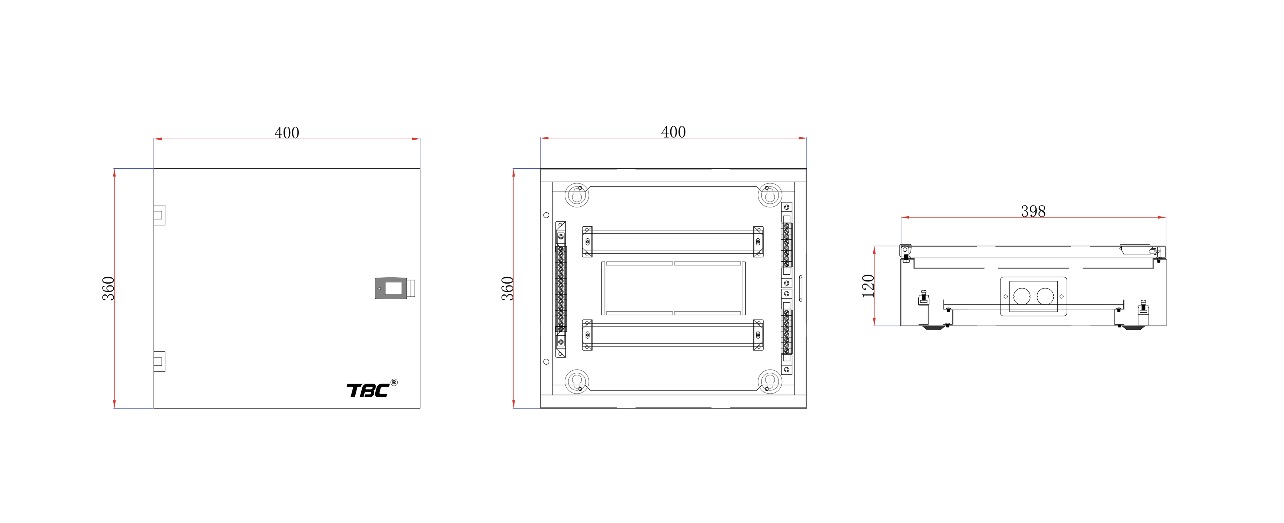

With dimensions of 360mm (H) × 400mm (W) × 120mm (D), the board offers a compact profile suitable for surface mounting in various locations. The size is optimized to balance capacity with space efficiency.

Compliance:
Designed for indoor applications and intended for installation in accordance with local electrical codes and standards. All installation work must be performed by qualified electrical personnel.

• Residential distribution boards for houses, apartments, and condominiums
• Commercial buildings including offices, retail spaces, and business centers
• Retail outlets, shophouses, and shoplot electrical installations
• Light industrial facilities and workshops
• Educational institutions and public buildings
• Hospitality sector including hotels and serviced apartments
• Healthcare facilities and clinics
• Renovation and electrical upgrade projects
• New construction electrical installations
• Electrical sub-distribution panels in larger facilities
