TBC TS-1-22W Distribution Board – 1 Row 22 Ways

Construction & Materials:

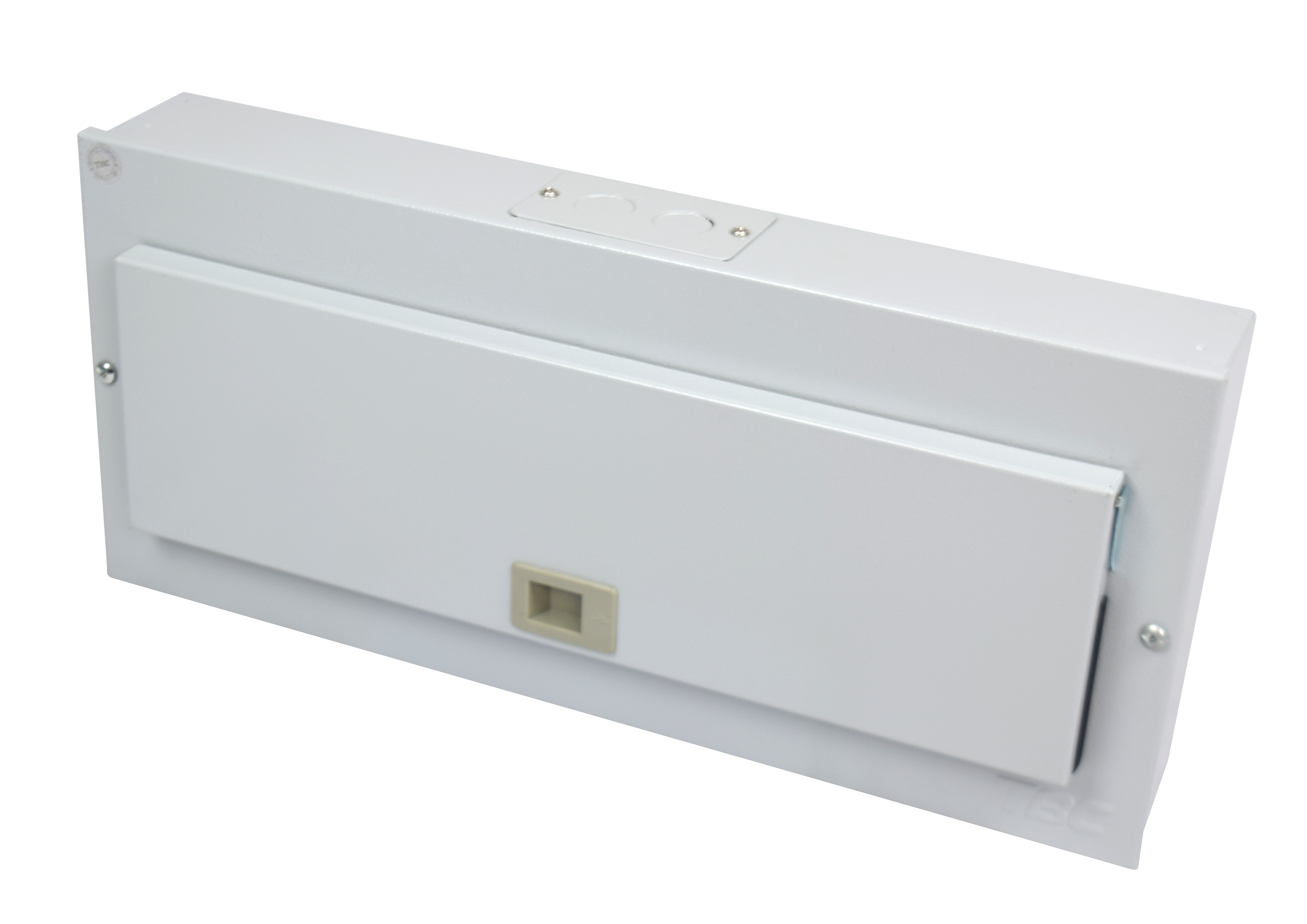

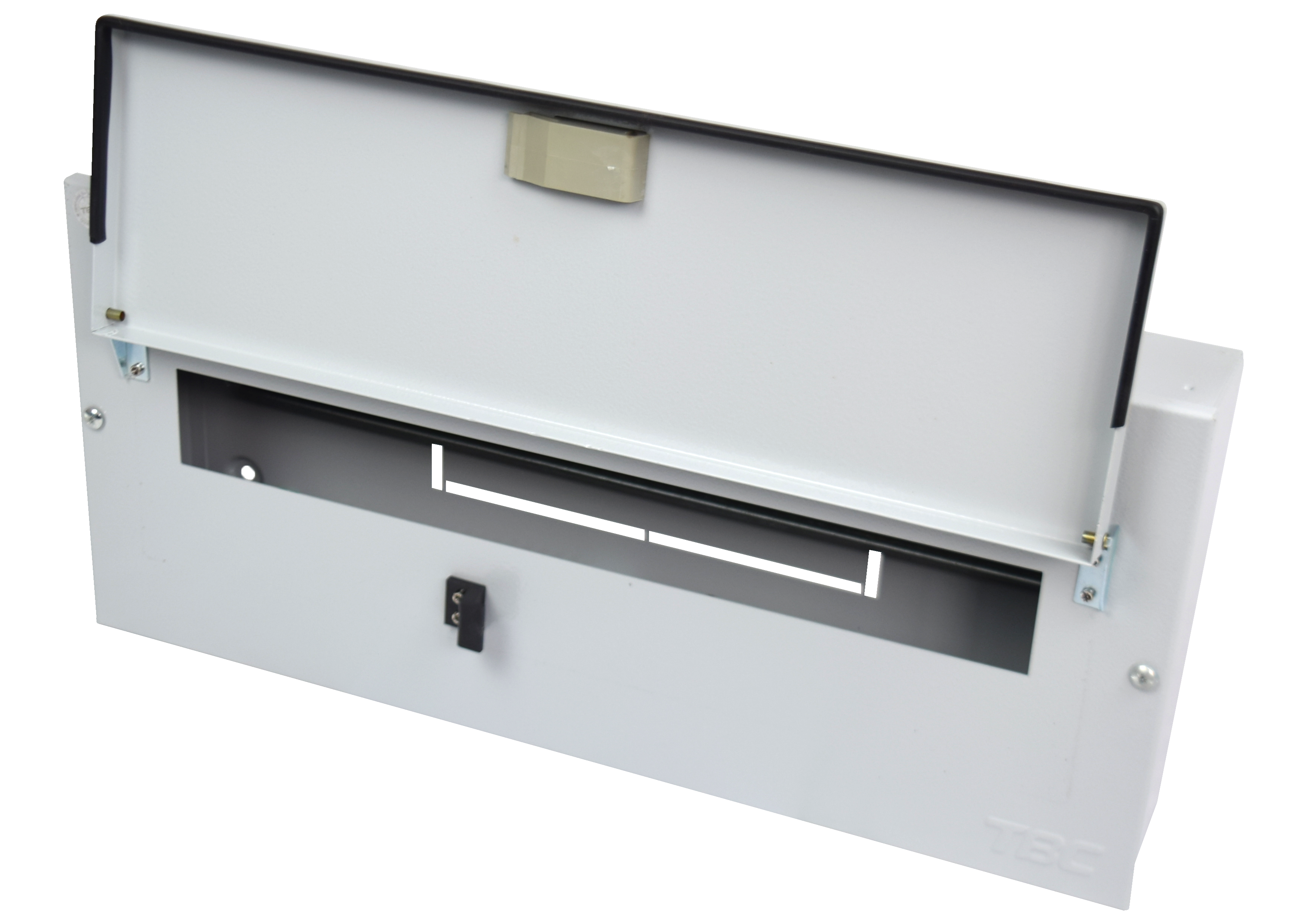

The TS-1-22W features a robust steel enclosure with a light grey powder-coated finish, providing excellent corrosion resistance and aesthetic appeal. The metal door construction ensures durability and secure closure, while the internal DIN rail system allows for standardized mounting of protective devices.

Electrical Configuration:

This single-row distribution board accommodates up to 22 modular devices on standard 35mm DIN rail. The board is designed to accept various protective device combinations including MCBs, RCCBs, and RCBOs, allowing for flexible circuit protection configurations based on specific installation requirements.

Cable Management:

The distribution board features both top and bottom cable entry points, providing installers with maximum flexibility in routing incoming and outgoing cables. The internal layout is optimized for organized cable management, ensuring neat and professional installations that facilitate future maintenance and modifications.

Installation Requirements:

Surface mounting design allows for straightforward installation on walls or other suitable surfaces. All installation work must be performed by qualified electrical personnel in accordance with local electrical codes and regulations. Proper earthing and bonding must be established as per applicable standards.

Environmental Considerations:

Designed for indoor use in dry locations. The steel enclosure provides IP-rated protection (refer to product marking for specific IP rating). Operating temperature range and environmental conditions should comply with the specifications of installed protective devices.

• Residential buildings and apartment complexes requiring multi-circuit distribution
• Commercial office buildings and business centers
• Retail shops and shopping centers
• Shoplot developments and mixed-use commercial properties
• Light industrial facilities and workshops
• Educational institutions and training centers
• Healthcare facilities and clinics
• Hospitality establishments including hotels and restaurants
• Renovation and upgrade projects requiring expanded circuit capacity
• New construction projects with moderate to high circuit requirements
