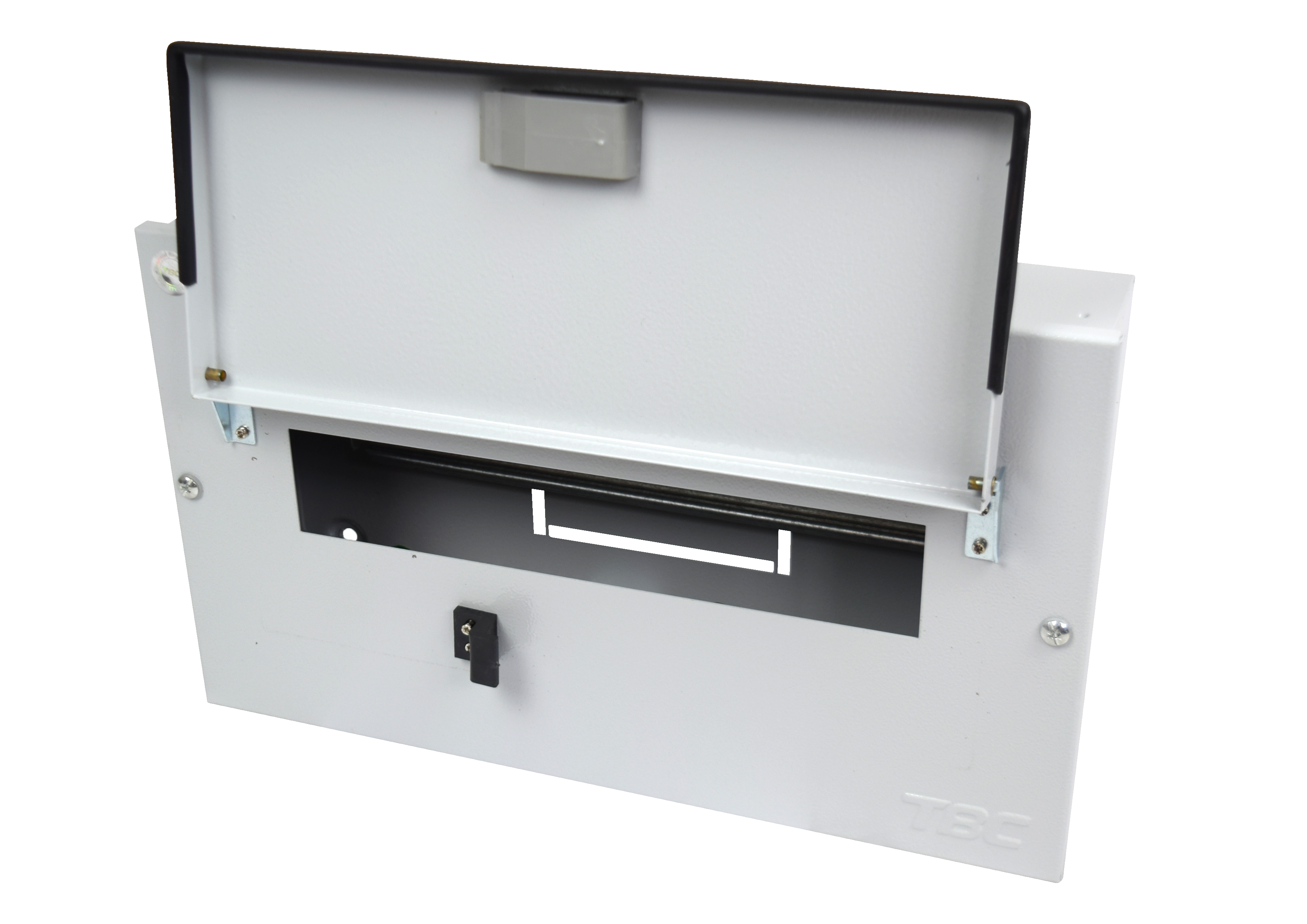

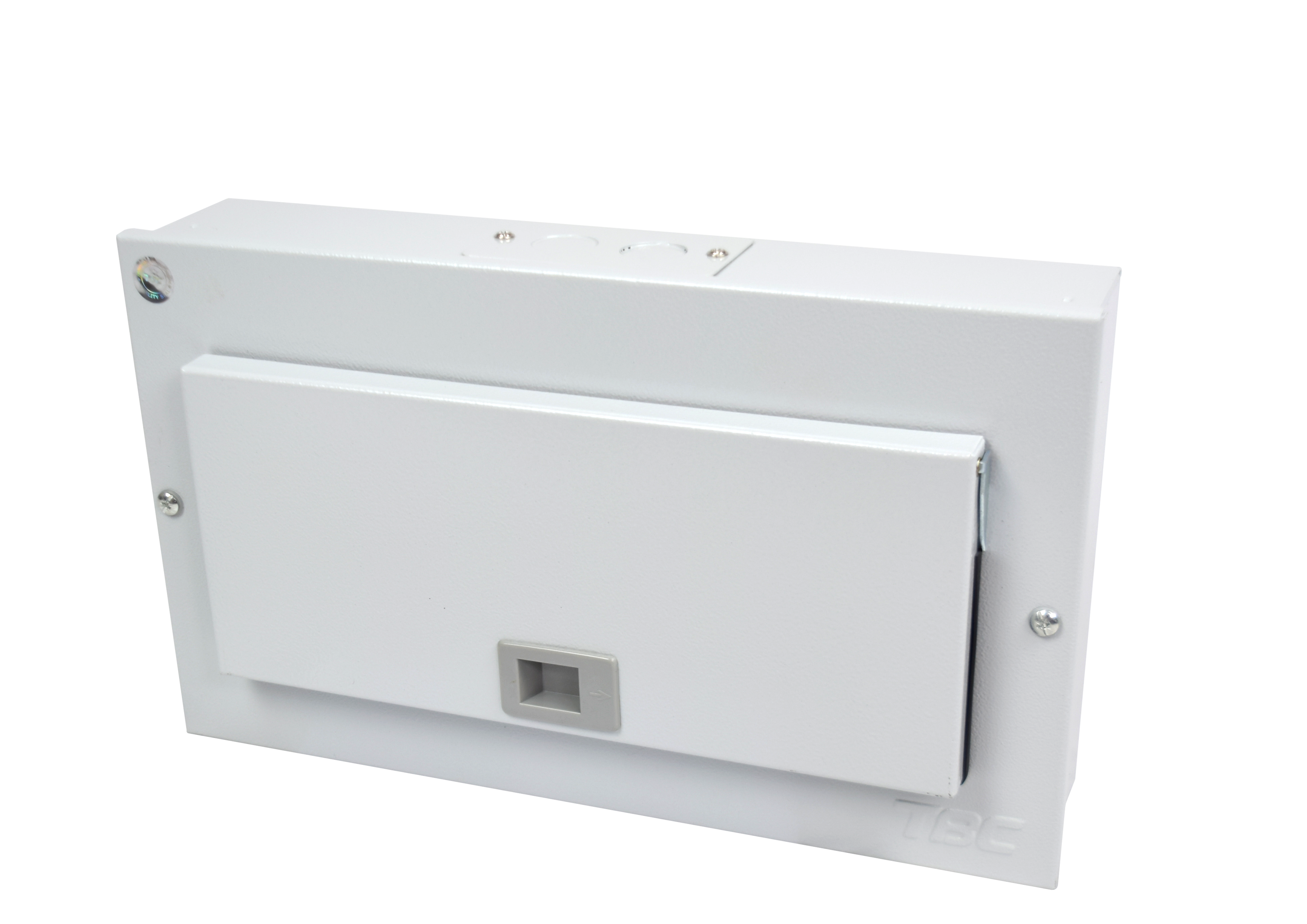

The TBC TS-1-14W Distribution Board is a robust and compact solution designed for low-voltage electrical distribution in residential, commercial, and light industrial installations. Engineered with a rigid steel enclosure and professional internal layout, it provides a safe and organized platform for mounting MCBs, RCCBs, and RCBOs on standard DIN rail.
The TBC TS-1-14W is a professionally engineered distribution board that combines durability, functionality, and ease of installation. Its compact 1-row design accommodates up to 14 ways, making it ideal for medium-sized electrical distribution requirements.
Constructed from high-quality steel with a protective powder-coated finish, this distribution board is built to withstand the demands of daily use in various environments. The removable metal door provides secure protection while allowing quick access for maintenance and circuit modifications.
The internal DIN rail mounting system ensures compatibility with a wide range of standard protective devices, while the top and bottom cable entry options provide installers with maximum flexibility during installation. The thoughtfully designed internal layout promotes neat cable management and professional-looking installations.
Construction: The TS-1-14W features a robust steel enclosure with a light grey powder-coated finish, providing excellent protection against corrosion and mechanical damage. The removable metal door is secured with reliable fasteners for easy access.
Mounting System: Equipped with standard 35mm DIN rail for mounting circuit protection devices. The rail is securely fixed within the enclosure to ensure stable device installation.
Cable Management: Designed with both top and bottom cable entry points, allowing flexible wiring configurations to suit different installation requirements. Internal space is optimized for neat cable routing and termination.
Installation: Surface mount configuration suitable for indoor applications. Installation must be performed by qualified electrical personnel in accordance with local electrical codes and regulations.
Compliance: Manufactured to meet international quality standards for electrical distribution equipment. Final installation must comply with applicable local electrical regulations.
| Item | Specification |
|---|---|
| Product Type | Distribution Board |
| Model | TS-1-14W |
| Number of Rows | 1 |
| Number of Ways | 14 Ways |
| Mounting Type | Surface Mount |
| Enclosure Material | Steel |
| Door Type | Metal Door (Removable) |
| Colour | Light Grey |
| Internal Rail | DIN Rail (35mm) |
| Cable Entry | Top & Bottom |
| Application | Indoor |

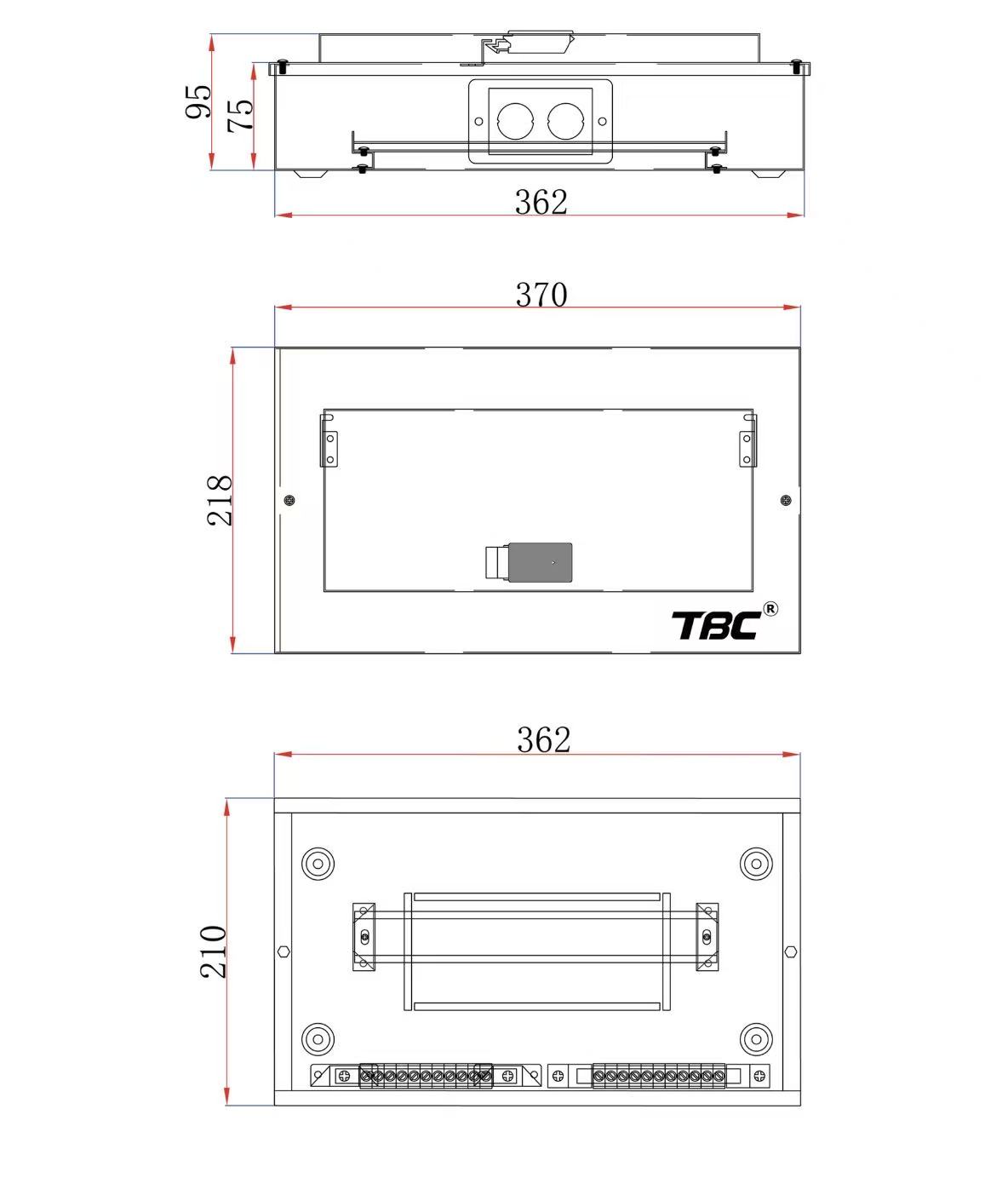

| Height | 370mm |
| Width | 218mm |
| Depth | 95mm |
| Device Compatibility | MCB, RCCB, RCBO |
| Installation | Qualified Personnel Required |
