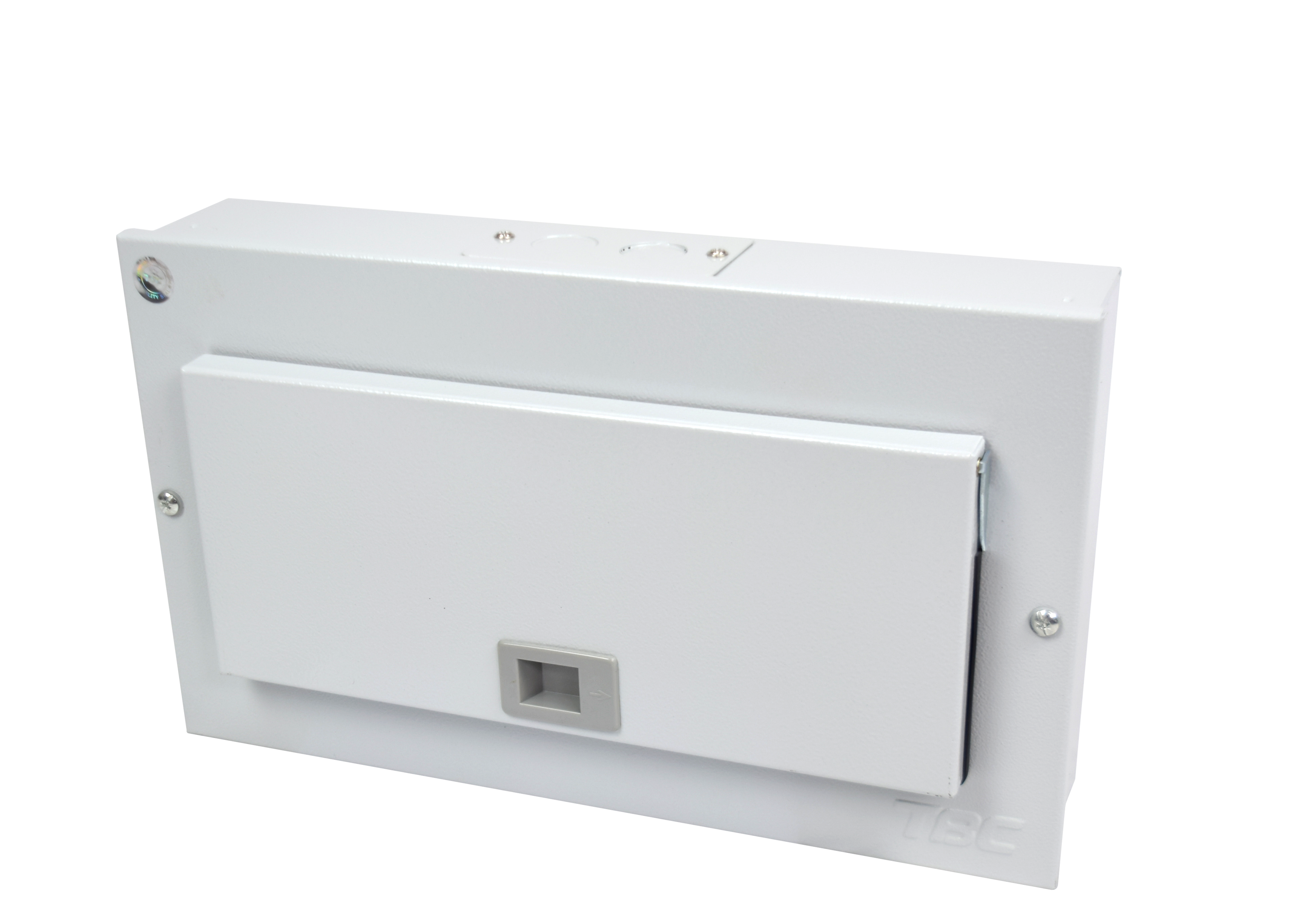

The TBC TS-1-10W Distribution Board is a robust and compact solution designed for low-voltage electrical distribution in residential, commercial, and light industrial environments. Engineered to accommodate up to 10 outgoing ways on a single DIN rail, this distribution board provides a reliable enclosure for MCBs, RCCBs, and other protective devices. Its steel construction ensures mechanical strength and long-term durability, while the removable metal door allows for easy access during installation and maintenance.
The TBC TS-1-10W Distribution Board offers a professional and space-efficient solution for electrical power distribution across a wide range of applications. Its single-row configuration with 10 ways provides ample capacity for typical residential and small commercial installations, while maintaining a compact footprint.
Constructed from high-quality steel, the enclosure delivers excellent mechanical protection and long service life. The integrated DIN rail allows for quick and secure mounting of circuit breakers and other modular devices. The board's design emphasizes ease of installation with dual cable entry options (top and bottom) and a well-organized internal layout that simplifies wiring work and ensures a neat, professional finish.

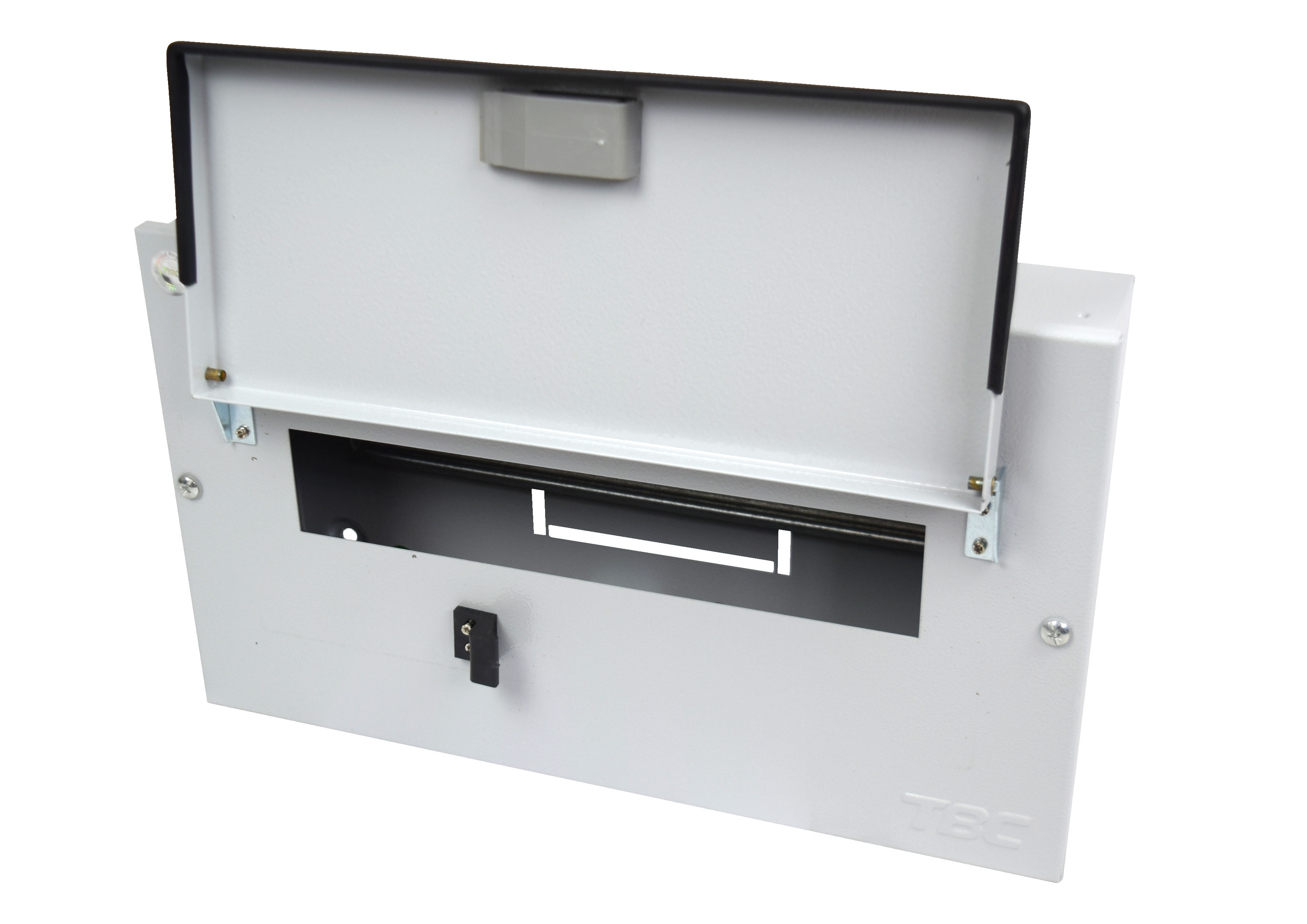

The removable metal door provides secure closure while allowing authorized personnel quick access for circuit modifications or maintenance. The light grey finish complements standard electrical installation aesthetics and provides corrosion resistance for extended operational life.
Construction: The TS-1-10W features a steel enclosure with a powder-coated light grey finish, providing both mechanical strength and corrosion resistance. The enclosure is designed for surface mounting and includes pre-drilled mounting points for secure installation.
Internal Configuration: The distribution board is equipped with a standard 35mm DIN rail capable of accommodating up to 10 modular devices (based on standard 18mm module width). The internal layout is optimized for clean cable routing and professional termination.
Cable Entry: Top and bottom cable entry points allow flexible installation options to suit various site conditions. Cable entry knockouts can be configured according to installation requirements.
Door and Access: The removable metal door is secured with standard fixings and can be easily removed for installation work or maintenance activities. The door design ensures the enclosure maintains its IP rating when properly closed.
Compliance: Installation must be carried out by qualified electrical personnel in accordance with local electrical codes and regulations. All wiring and protective device selection must comply with applicable standards.

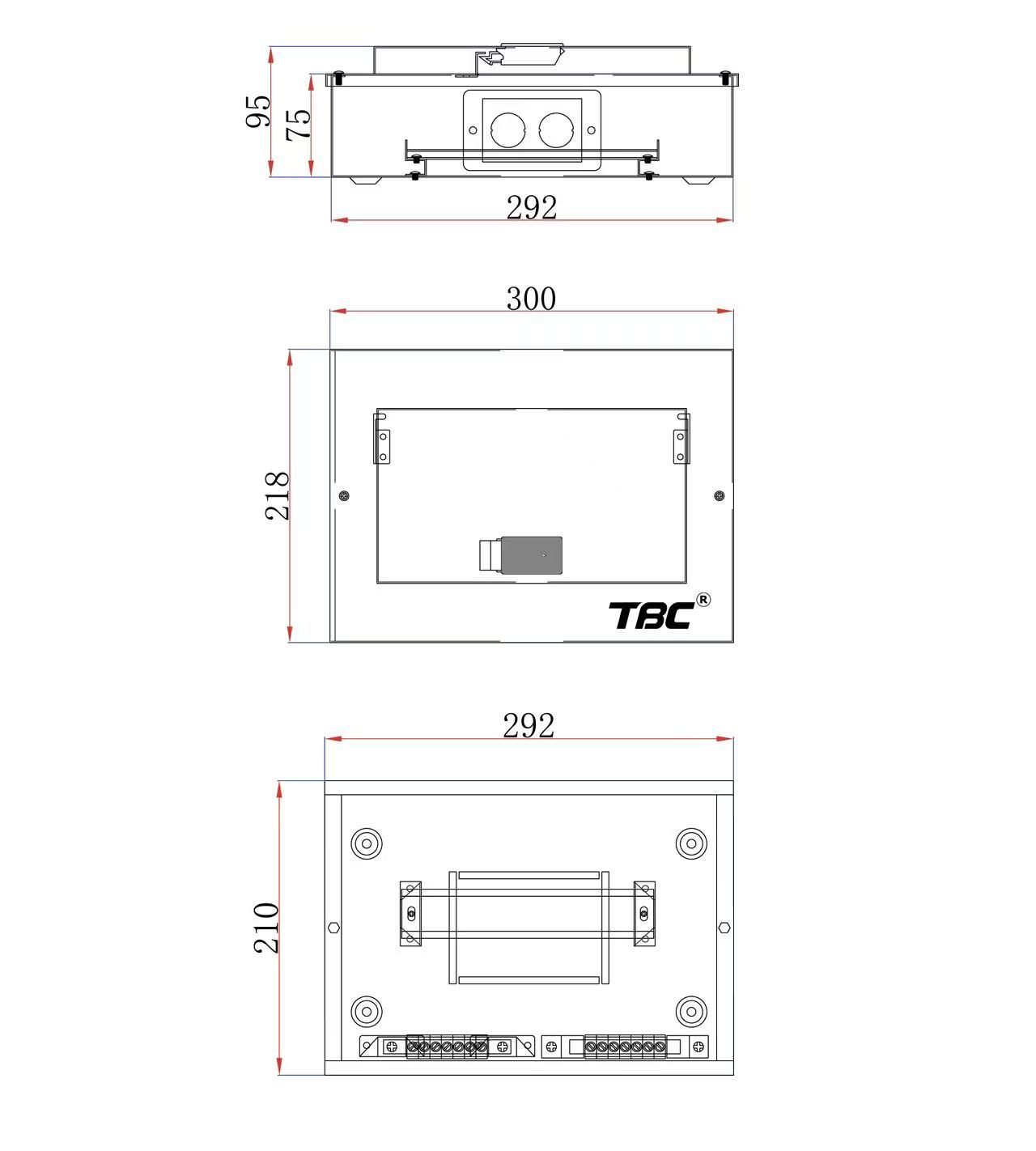

| Specification | Value |
|---|---|
| Product Type | Distribution Board |
| Model Number | TS-1-10W |
| Number of Rows | 1 Row |
| Number of Ways | 10 Ways |
| Mounting Type | Surface Mount |
| Enclosure Material | Steel |
| Door Type | Metal Door (Removable) |
| Colour | Light Grey |
| Internal Rail | DIN Rail (35mm) |
| Cable Entry | Top & Bottom |
| Application | Indoor |
| Height | 300mm |
| Width | 218mm |
| Depth | 95mm |
| Device Compatibility | MCB, RCCB, RCBO |
| Installation | Qualified Personnel Required |
