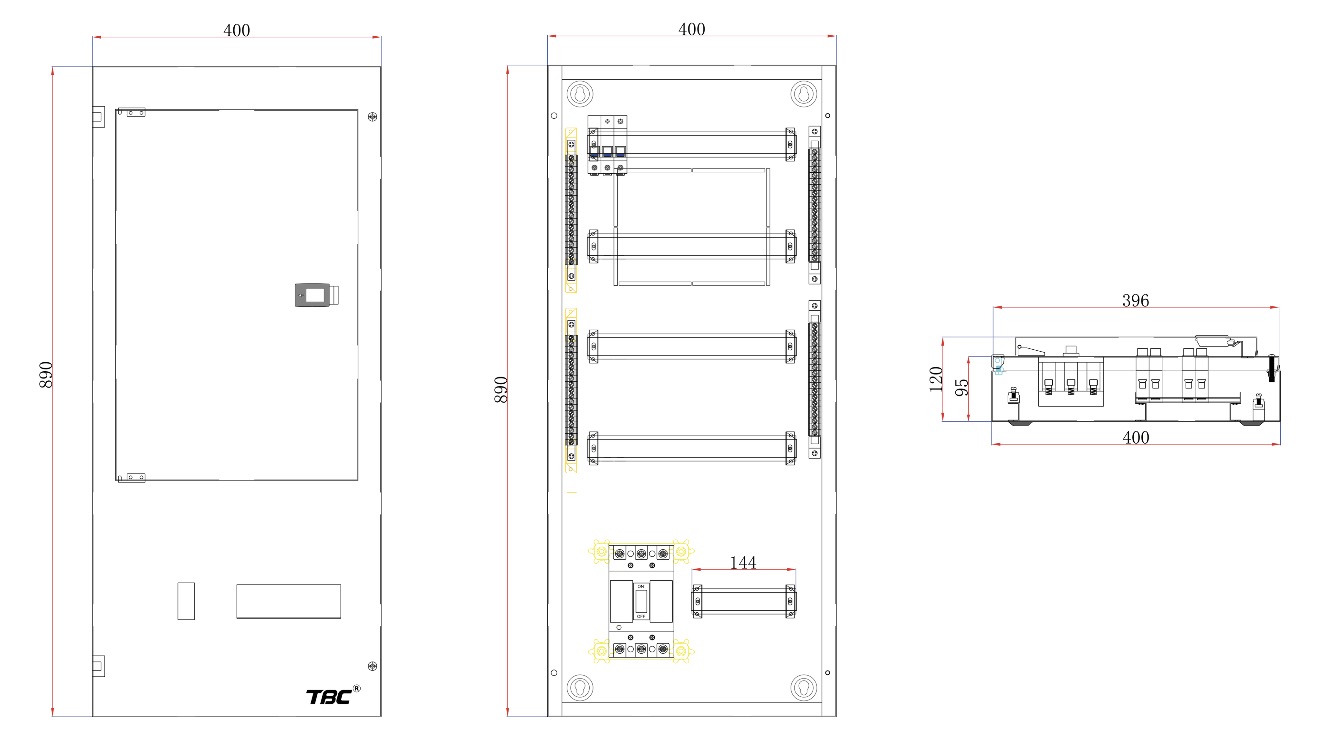

TBC TM-4M-16W MCCB Distribution Board – 4 Rows 16 Ways

Construction & Materials:
The TM-4M-16W features a robust steel enclosure with powder-coated light grey finish, providing excellent mechanical protection and corrosion resistance. The removable metal door is secured with appropriate fastening mechanisms to ensure safety and security while allowing easy access when required.

Internal Configuration:

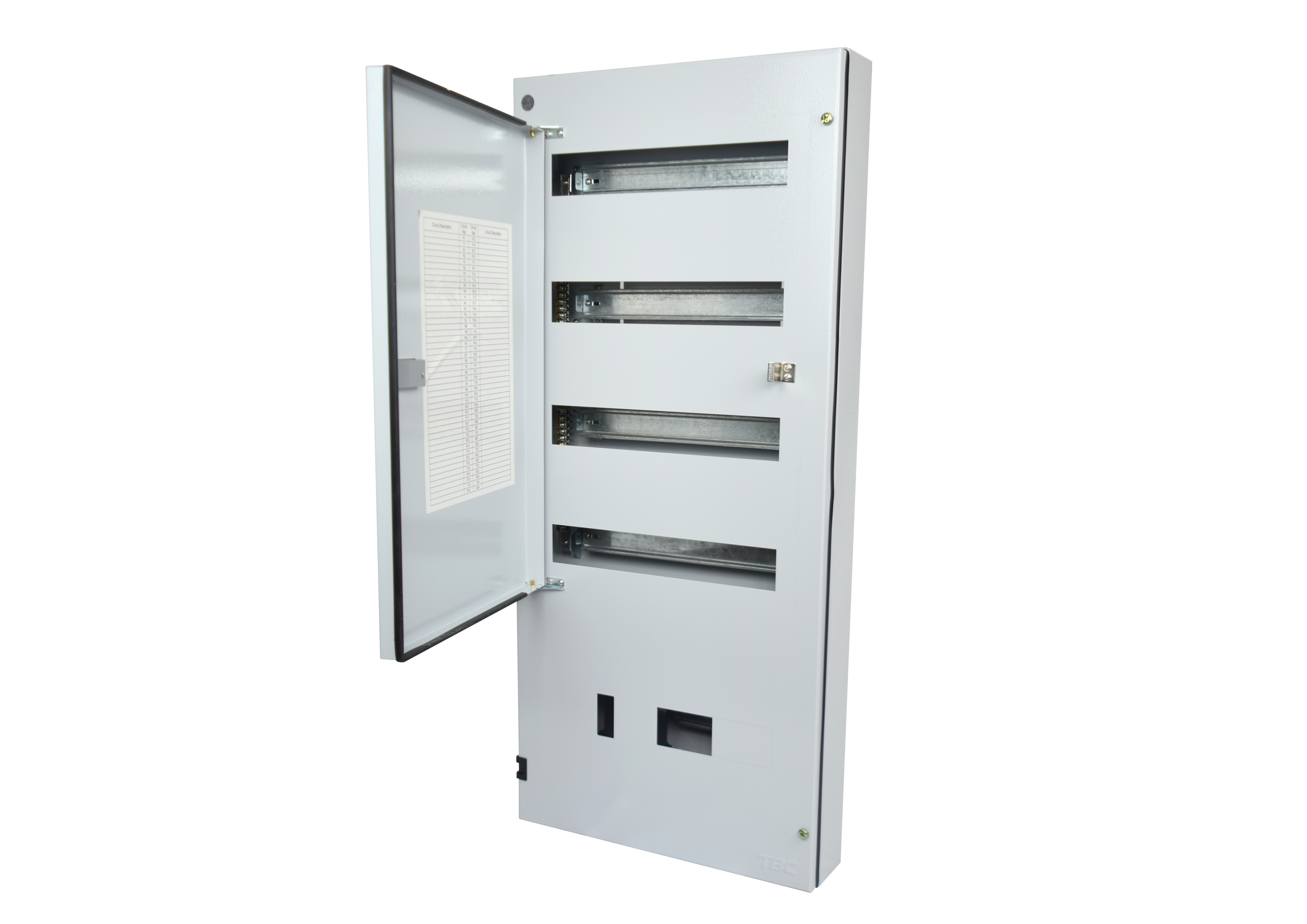

Four horizontal DIN rails are mounted internally to accommodate up to 16 ways of protective devices. The organized layout ensures proper spacing between devices for heat dissipation and ease of wiring. The main MCCB incomer position is clearly designated for straightforward installation.

Cable Management:
Both top and bottom cable entry points are provided, allowing flexibility in cable routing based on installation requirements. Adequate internal space is allocated for cable termination and management, ensuring compliance with wiring regulations and professional installation standards.

Installation Requirements:
Surface mounting design allows installation on solid walls or structural supports. Adequate clearance must be maintained around the enclosure for ventilation, door operation, and maintenance access. All installation work must be performed by qualified electrical personnel in accordance with local electrical codes and regulations.

Environmental Suitability:
Designed for indoor installation in dry environments. The enclosure provides appropriate IP rating protection for typical indoor electrical room conditions. Not suitable for outdoor or wet location applications without additional protective measures.

• Commercial building electrical distribution systems
• Industrial sub-distribution panels for factory installations
• Warehouse and logistics facility power distribution
• Electrical rooms requiring MCCB main incomer protection
• Retail and shopping center electrical infrastructure
• Office building floor-level distribution boards
• Light industrial manufacturing facility power distribution
• Educational institution electrical distribution systems
• Healthcare facility non-critical power distribution
• Hospitality sector electrical sub-distribution applications
