TBC TM-3M-16W MCCB Distribution Board – 3 Rows 16 Ways

Construction & Materials:

The TM-3M-16W features a robust steel enclosure designed for surface mounting in indoor environments. The heavy-duty construction ensures long-term reliability and protection of internal components. The light grey powder-coated finish provides corrosion resistance and a professional appearance suitable for visible installations.

Internal Configuration:

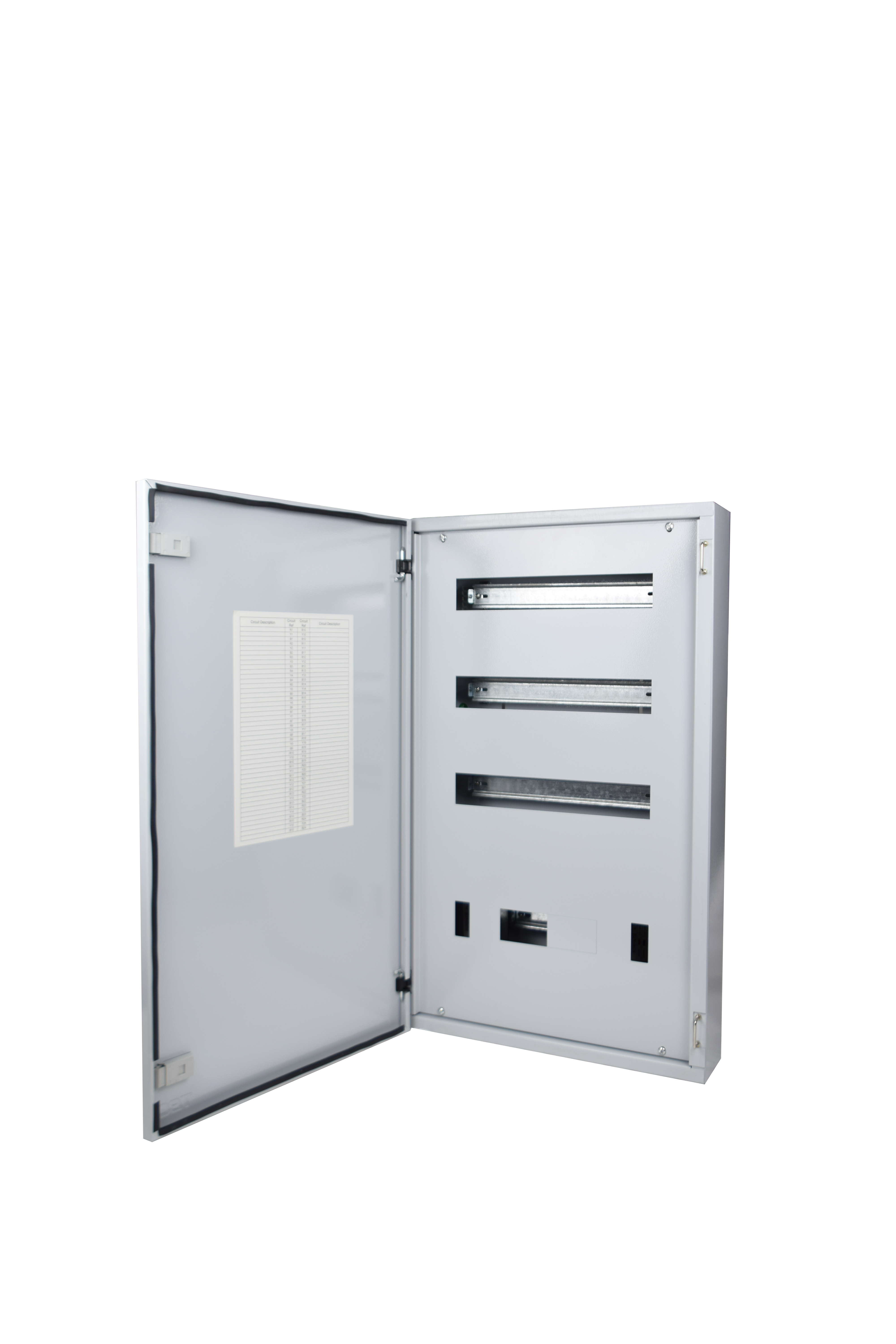

The distribution board is equipped with three rows of DIN rail, allowing for organized installation of up to 16 outgoing protective devices. The main incomer section is designed to accommodate an MCCB (Molded Case Circuit Breaker) for primary overcurrent protection and isolation. The clean internal layout facilitates neat wiring and simplifies troubleshooting.

Cable Management:

Both top and bottom cable entry points are provided, offering maximum flexibility for incoming supply and outgoing circuit cables. This dual-entry design accommodates various installation requirements and helps maintain a tidy, professional appearance.

Installation Requirements:

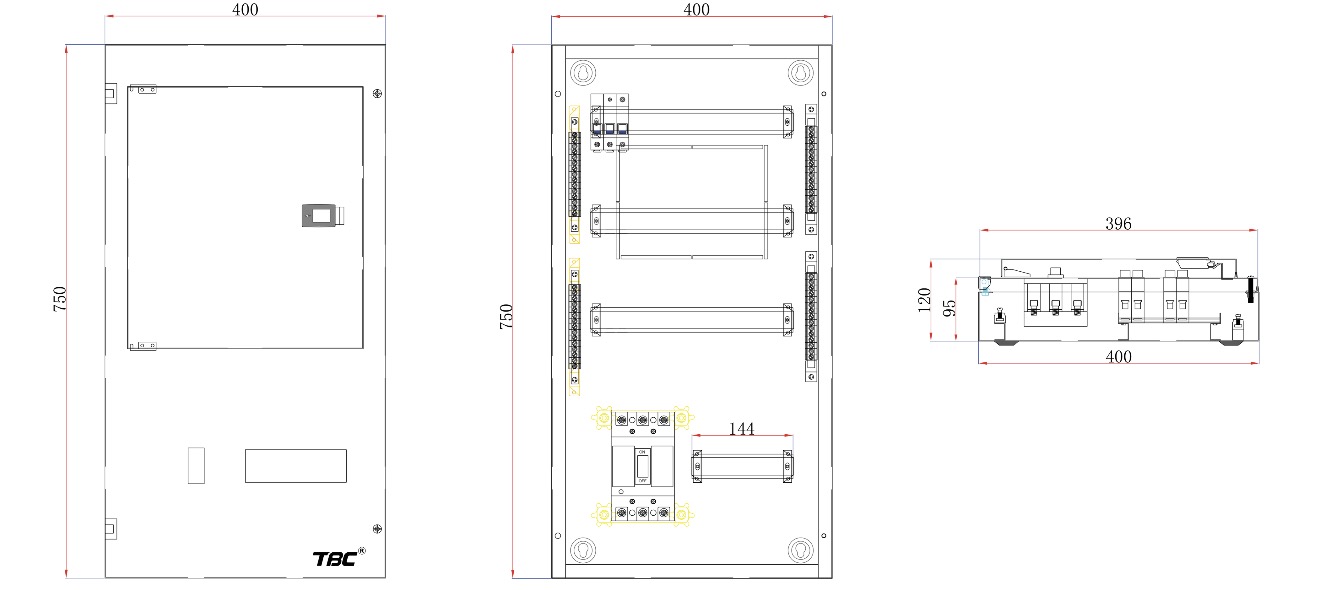

Installation must be carried out by qualified electrical personnel in accordance with local electrical codes and regulations. MCCB rating and protective device configuration should be determined based on specific project load requirements and electrical design specifications. Refer to dimensional drawings for exact installation clearances and mounting requirements.

• Commercial distribution boards for office buildings and retail spaces
• Industrial sub-distribution panels for manufacturing facilities
• Factory and warehouse electrical distribution systems
• Electrical rooms requiring MCCB incomer protection
• Light industrial installations with multiple circuit requirements
• Building services and facility management applications
• Retrofit and upgrade projects requiring organized circuit distribution
• Multi-tenant commercial buildings requiring circuit segregation
