TBC TM-2M-16W MCCB Distribution Board – 2 Rows 16 Ways

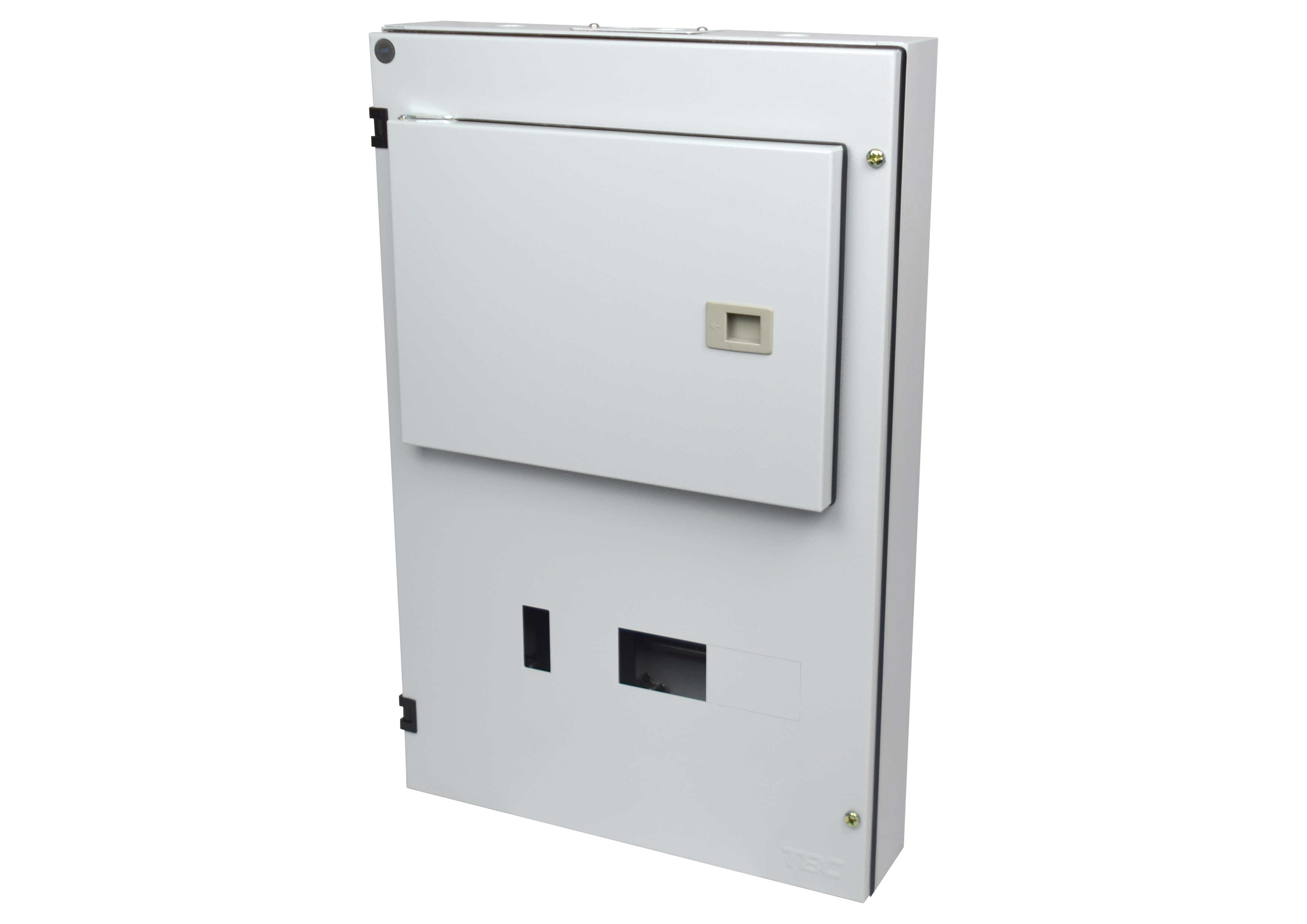

Construction: The TM-2M-16W features a robust steel enclosure with a powder-coated light grey finish, providing excellent corrosion resistance and mechanical protection. The removable metal door is secured with appropriate fastening mechanisms for safe access control.

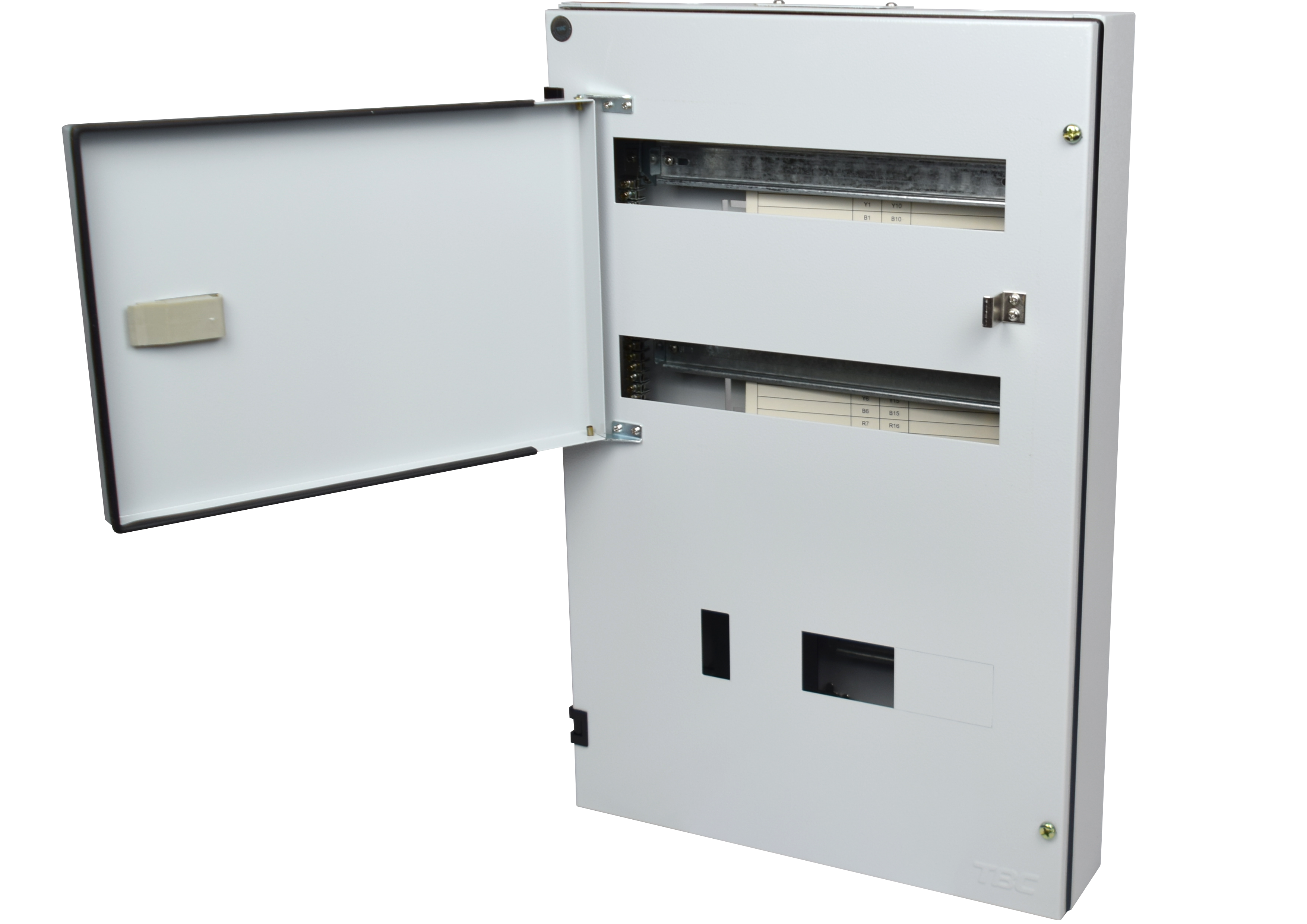

Internal Configuration: The board is equipped with DIN rails arranged in two rows, allowing for systematic organization of up to 16 outgoing protective devices. The main incomer section is designed to accommodate MCCB devices of appropriate ratings as per project specifications.

Cable Management: Top and bottom cable entry points are provided to facilitate flexible wiring arrangements. Internal cable management features ensure organized routing of conductors for professional installation standards.

Mounting: Surface mount design allows for straightforward installation on walls or structural supports. Mounting provisions are integrated into the enclosure design for secure fixing.

Standards Compliance: Installation and use must comply with local electrical regulations and standards. All work should be performed by qualified electrical personnel in accordance with applicable codes.

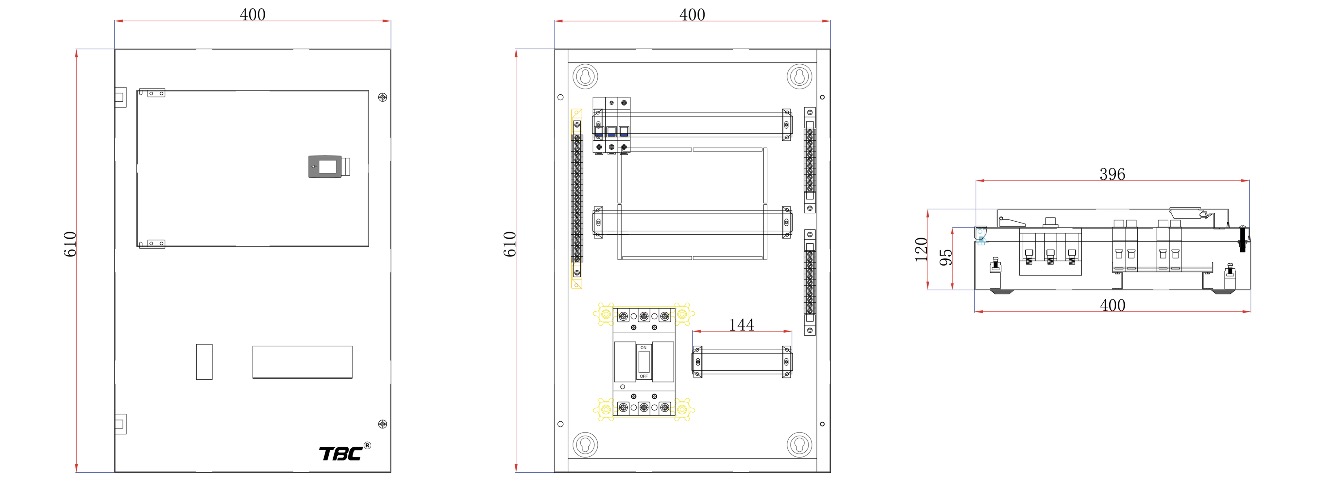

Note: Exact dimensions and clearance requirements should be verified from the manufacturer's dimensional drawings prior to installation planning.

• Commercial building electrical distribution systems
• Industrial sub-distribution panels for factory installations
• Warehouse and manufacturing facility power distribution
• Electrical rooms requiring MCCB main incomer protection
• Retail and office building distribution boards
• Light industrial process equipment power distribution
• Multi-tenant commercial building sub-panels
• Educational facility electrical distribution
• Healthcare facility non-critical power distribution
• Hospitality sector electrical installations
