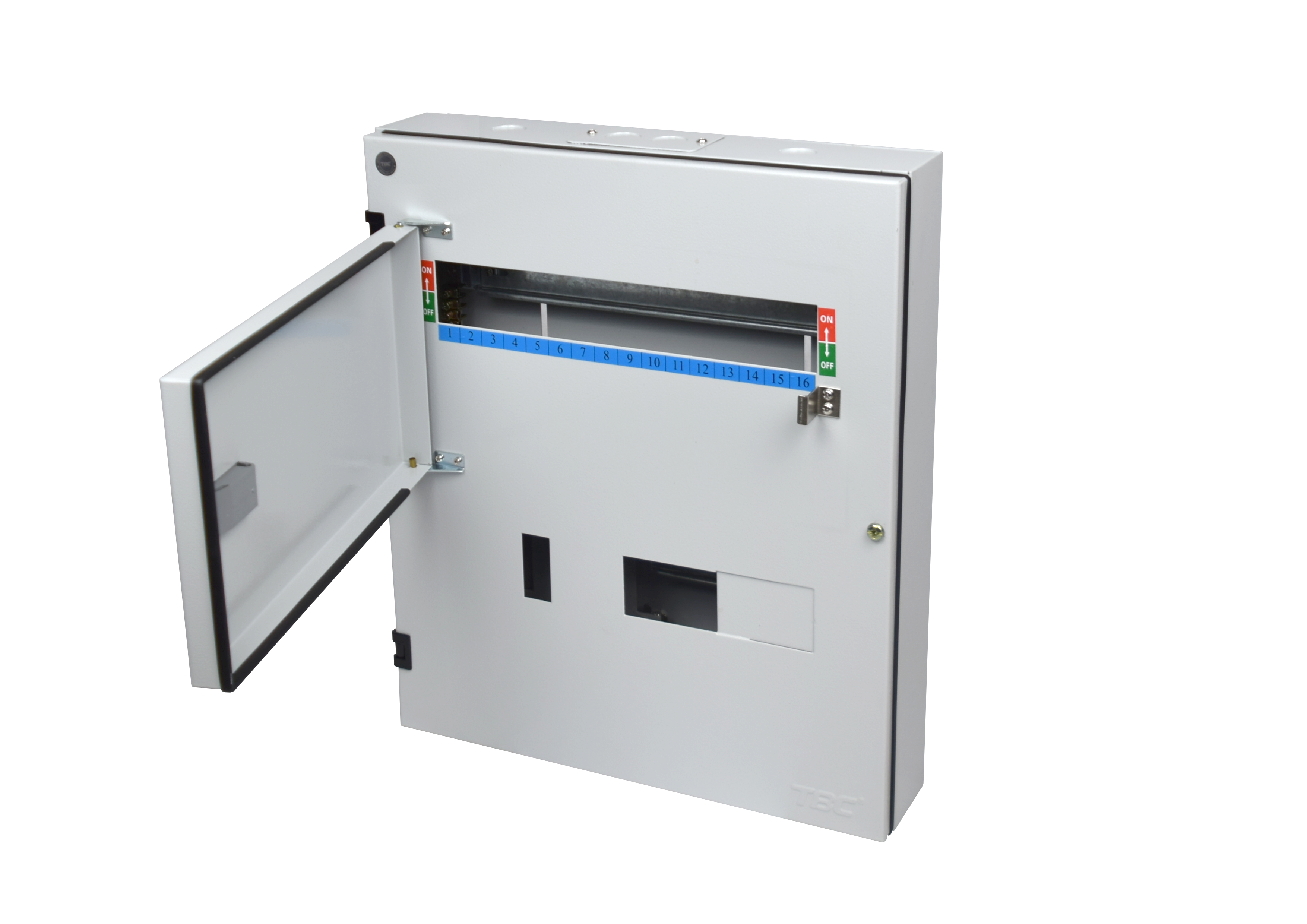

TBC TM-1M-16W MCCB Distribution Board – 1 Row 16 Ways

Construction: The TM-1M-16W features a robust steel enclosure with a light grey powder-coated finish, providing excellent mechanical strength and corrosion resistance. The removable metal door ensures secure access while facilitating easy maintenance and inspection activities.

Internal Configuration: The distribution board is equipped with DIN rail mounting to accommodate up to 16 outgoing protective devices. The main incomer section is designed specifically for MCCB installation, allowing for higher current ratings and enhanced protection capabilities compared to standard MCB boards.

Cable Management: Top and bottom cable entry points provide flexible wiring options, enabling installers to adapt to various site conditions and maintain neat, organized cable routing. The internal layout is optimized for clean, professional installation work.

Mounting: Surface mount design allows for straightforward installation on walls or structural surfaces. The board is rated for indoor applications in commercial and light industrial environments.

Compliance: Installation must be carried out by qualified electrical personnel in accordance with local electrical regulations and standards. MCCB rating and protective device configuration should be determined based on specific project load requirements and electrical design specifications.

• Commercial distribution boards for office buildings and retail spaces
• Industrial sub-distribution panels for manufacturing facilities
• Shoplot and factory main or sub-distribution installations
• Electrical rooms and plant rooms requiring MCCB incomer protection
• Light industrial facilities with higher current demand
• Workshop and warehouse electrical distribution systems
• Building services and mechanical plant distribution
• Upgrade and retrofit projects requiring enhanced protection
