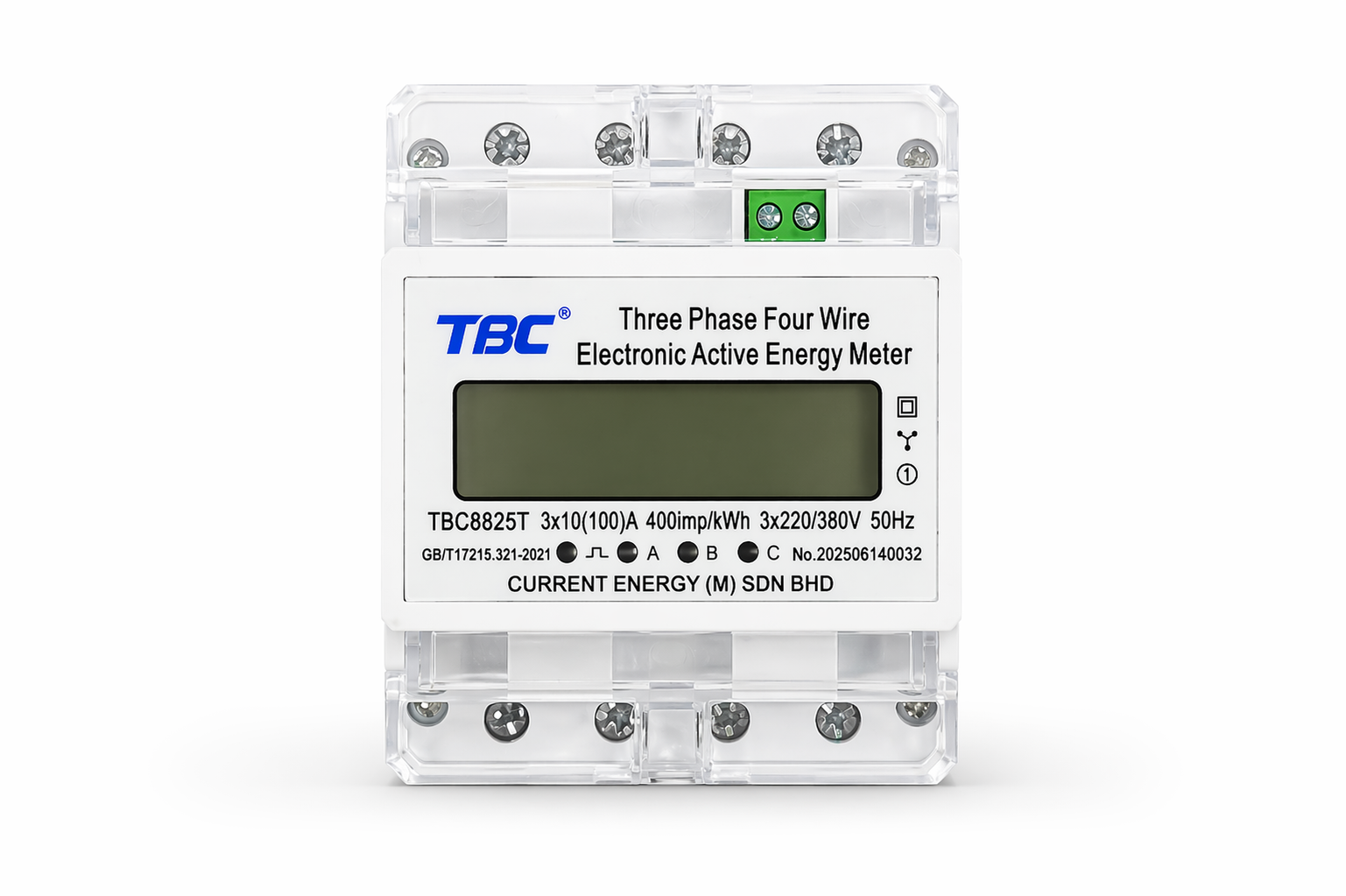

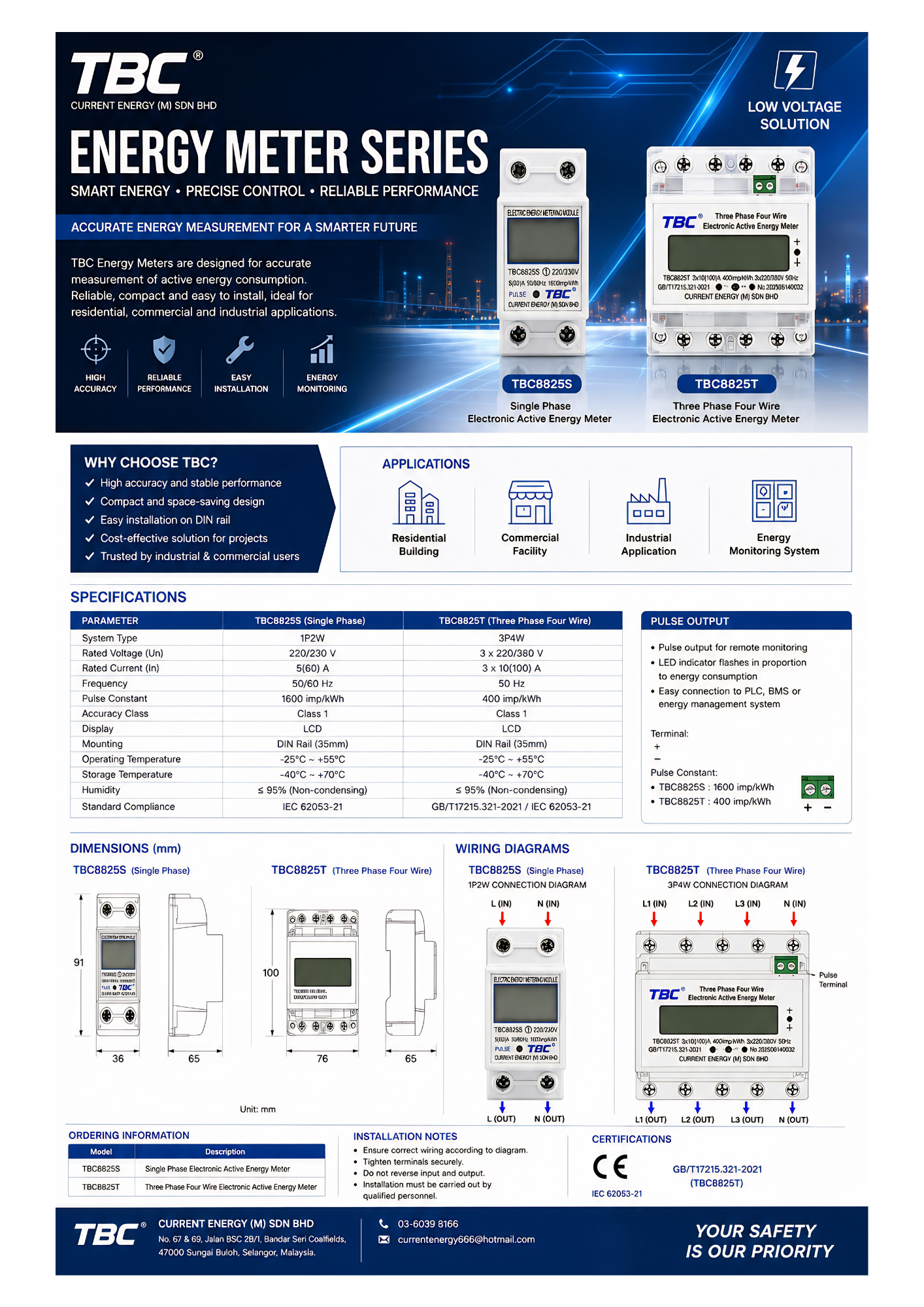

TBC Three Phase Four Wire Energy Meter

Name: TBC Three Phase Four Wire Energy Meter
Brand: TBC
SKU: TBC8825T

TBC8825T

The TBC Three Phase Four Wire Energy Meter is engineered for accurate and reliable measurement of electrical energy consumption in demanding commercial and industrial environments. Featuring Class 1 accuracy, direct connection capability up to 100A, and optional MODBUS-RTU communication, this meter provides comprehensive energy monitoring and management solutions for modern electrical installations.

Key Features

LCD digital display for clear, easy-to-read energy consumption data
Three-phase four-wire measurement capability for comprehensive monitoring
High accuracy Class 1 performance ensures reliable energy data
Pulse output (400 imp/kWh) for integration with external monitoring systems
Data retention function maintains records even after power loss
Direct connection up to 100A eliminates need for external current transformers in many applications
Compact DIN rail mounting for easy installation in distribution boards
Optional RS485 communication with MODBUS-RTU protocol for remote monitoring
Low power consumption (≤2W) for efficient operation
Wide operating temperature range (-20°C to +55°C) for diverse environments

Request Quote

The TBC8825T Three Phase Energy Meter represents a professional-grade solution for energy measurement and monitoring in three-phase electrical systems. Designed specifically for commercial and industrial applications, this meter combines precision measurement technology with practical features that simplify installation and operation.

Built to handle rated currents of 3 × 10(100)A with direct connection, the meter eliminates complexity while maintaining accuracy. The integrated LCD display provides instant visibility of energy consumption, while the pulse output feature enables seamless integration with building management systems and energy monitoring platforms.

The optional RS485 communication interface with MODBUS-RTU protocol allows for remote data collection and integration into SCADA systems, making it ideal for facilities requiring centralized energy management. Data retention capability ensures that critical consumption information is preserved even during power interruptions.

Engineered for reliability and longevity, the TBC8825T operates efficiently across a wide temperature range and features robust construction suitable for industrial environments. DIN rail mounting ensures quick, secure installation in standard electrical enclosures.

Measurement Technology: The TBC8825T employs advanced digital sampling technology to measure voltage and current in three-phase four-wire systems. Voltage and current signals are simultaneously sampled through precision sensing circuits, then processed through high-resolution analog-to-digital converters.

Signal Processing: The digital signal processor calculates active energy consumption with Class 1 accuracy, ensuring measurement errors remain within ±1% under rated conditions. The meter continuously monitors all three phases independently while calculating total energy consumption.

Display and Output: Energy data is presented on a high-contrast LCD display, showing cumulative kWh consumption. The pulse output generates 400 impulses per kilowatt-hour, providing a standardized signal for external monitoring equipment, data loggers, or building automation systems.

Communication Protocol: When equipped with the optional RS485 interface, the meter supports MODBUS-RTU protocol, enabling remote reading of energy data, instantaneous power, voltage, current, and other electrical parameters. This facilitates integration with energy management software and SCADA systems.

Data Integrity: Non-volatile memory ensures that accumulated energy data is retained during power outages, maintaining accurate long-term consumption records without the need for battery backup.

Installation Requirements: The meter requires standard three-phase four-wire connection (3 × 220/380V, 50Hz). DIN rail mounting allows installation in distribution boards with minimal space requirements. Proper sizing of upstream protection devices and wiring according to the 100A maximum current rating is essential.

Commercial buildings and office complexes for tenant energy billing and monitoring
Industrial facilities requiring accurate energy consumption tracking for cost allocation
Manufacturing plants for production line energy analysis and optimization
Shopping centers and retail facilities for departmental energy management
Hotels and hospitality facilities for floor or zone-based energy monitoring
Educational institutions for building-level energy consumption tracking
Data centers for power distribution unit (PDU) monitoring
Warehouses and logistics facilities for operational energy management
Healthcare facilities for departmental energy cost allocation
Multi-tenant industrial parks for individual tenant metering and billing
Energy management systems requiring pulse output integration
Building automation systems with MODBUS-RTU communication requirements

Parameter	Specification
Model Number	TBC8825T
Meter Type	Three Phase Energy Meter
Wiring Configuration	3 Phase 4 Wire
Rated Voltage	3 × 220/380V
Frequency	50 Hz
Rated Current	3 × 10(100)A
Accuracy Class	Class 1
Pulse Output	400 imp/kWh
Display Type	LCD
Mounting Method	DIN Rail (35mm)
Power Consumption	≤ 2W
Operating Temperature	-20°C to +55°C
Storage Temperature	-30°C to +70°C
Communication Interface	Optional RS485 (MODBUS-RTU)
Data Retention	Non-volatile memory
Protection Rating	IP20 (when installed in enclosure)
