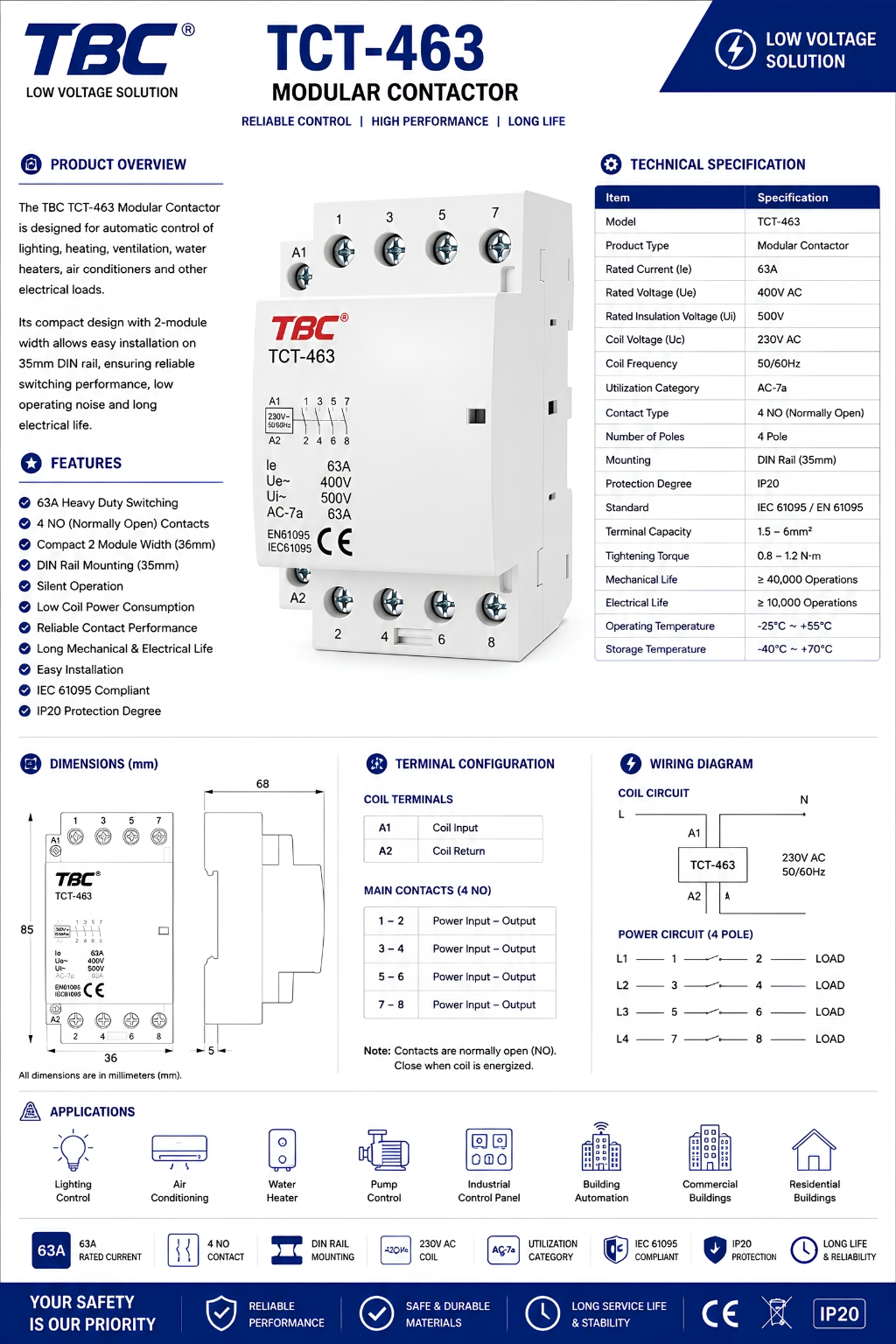

TBC TCT-463 Modular Contactor 4-Pole 63A 400V AC

Electrical Performance:

The TCT-463 is rated for continuous operation at 63A with a maximum operational voltage of 400V AC. The rated insulation voltage of 500V AC provides adequate safety margin for standard low-voltage installations. The AC-7a utilization category makes it particularly suitable for resistive and slightly inductive loads including lighting circuits, heating elements, and auxiliary equipment.

Control Circuit:

The electromagnetic coil operates on 230V AC at 50/60 Hz, compatible with most standard control circuits. The A1-A2 terminals accept control signals from switches, timers, building automation systems, or other control devices. The coil design ensures reliable operation across the specified frequency range.

Contact Configuration:

Four normally open (NO) poles provide independent switching for three-phase plus neutral, or multiple independent circuits. Each pole is rated for the full 63A capacity. Contact terminals are designed for secure connection of conductors and feature clear numbering for easy identification.

Mechanical Design:

The compact modular design occupies 4 standard DIN-rail modules (72mm width), allowing efficient use of panel space. The snap-on mounting mechanism ensures quick installation and removal from standard 35mm DIN rails. The flame-retardant thermoplastic housing meets modern fire safety requirements and provides IP20 ingress protection suitable for enclosed distribution boards.

Standards Compliance:

Manufactured in accordance with IEC/EN 61095 standards for contactors and motor-starters. CE marking confirms conformity with applicable European directives for safety and electromagnetic compatibility.

• Three-Phase Lighting Control: Centralized switching of high-power commercial and industrial lighting systems including warehouses, factories, and outdoor area lighting
• HVAC Systems: Remote control of air-conditioning units, ventilation fans, and climate control equipment in commercial buildings
• Pump Control: Automatic and manual switching of water pumps, circulation pumps, and irrigation systems
• Motor Control: Switching control for auxiliary motors and industrial equipment (when used with appropriate overload protection)
• Building Automation: Integration with building management systems (BMS) for centralized control of electrical loads
• Distribution Boards: Main switching component in commercial and industrial distribution panels for load management
• Heating Systems: Control of electric heating elements and thermal management equipment
• Energy Management: Load shedding and demand control applications in commercial facilities
• Agricultural Applications: Control of irrigation systems, ventilation, and lighting in agricultural facilities
• Scheduled Switching: Time-based control when combined with timer relays for automated on/off scheduling
