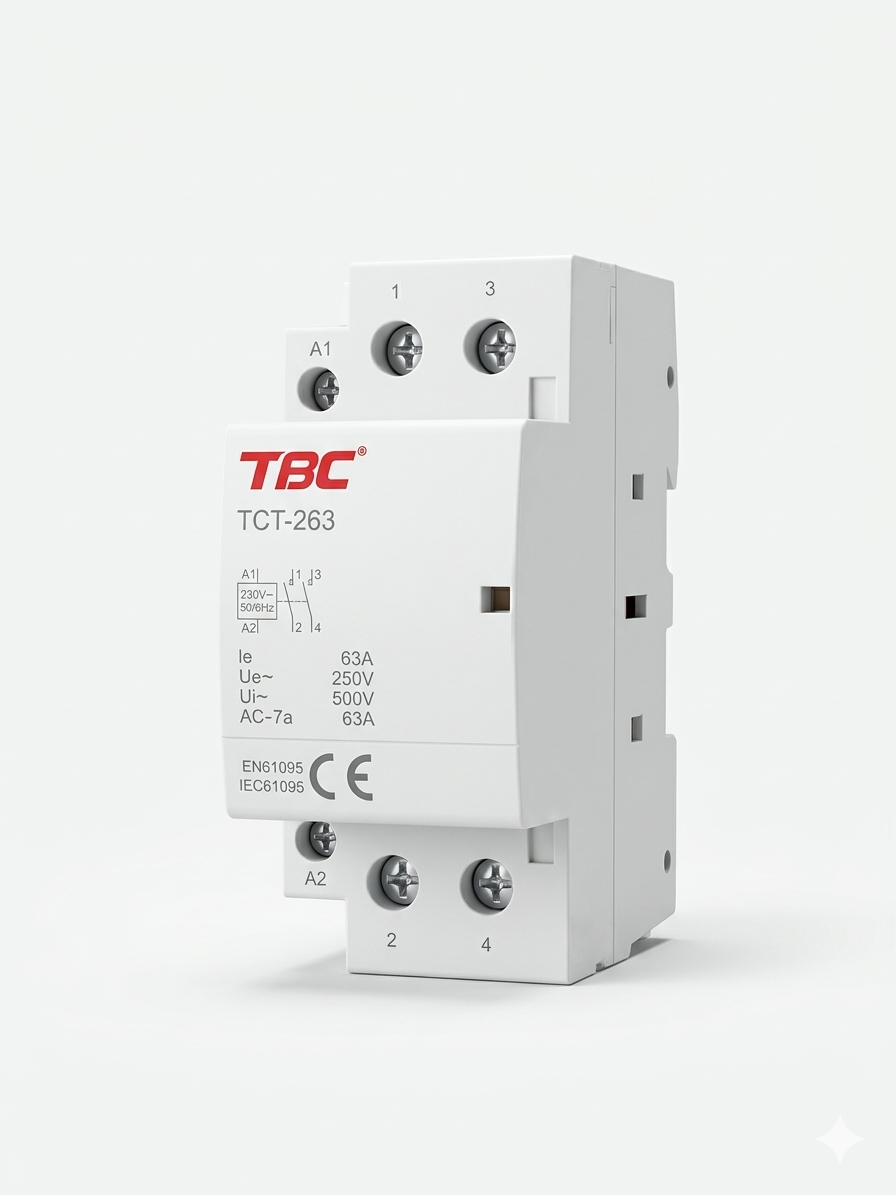

TBC TCT-263 Modular Contactor 63A 2 Pole 230V AC Coil

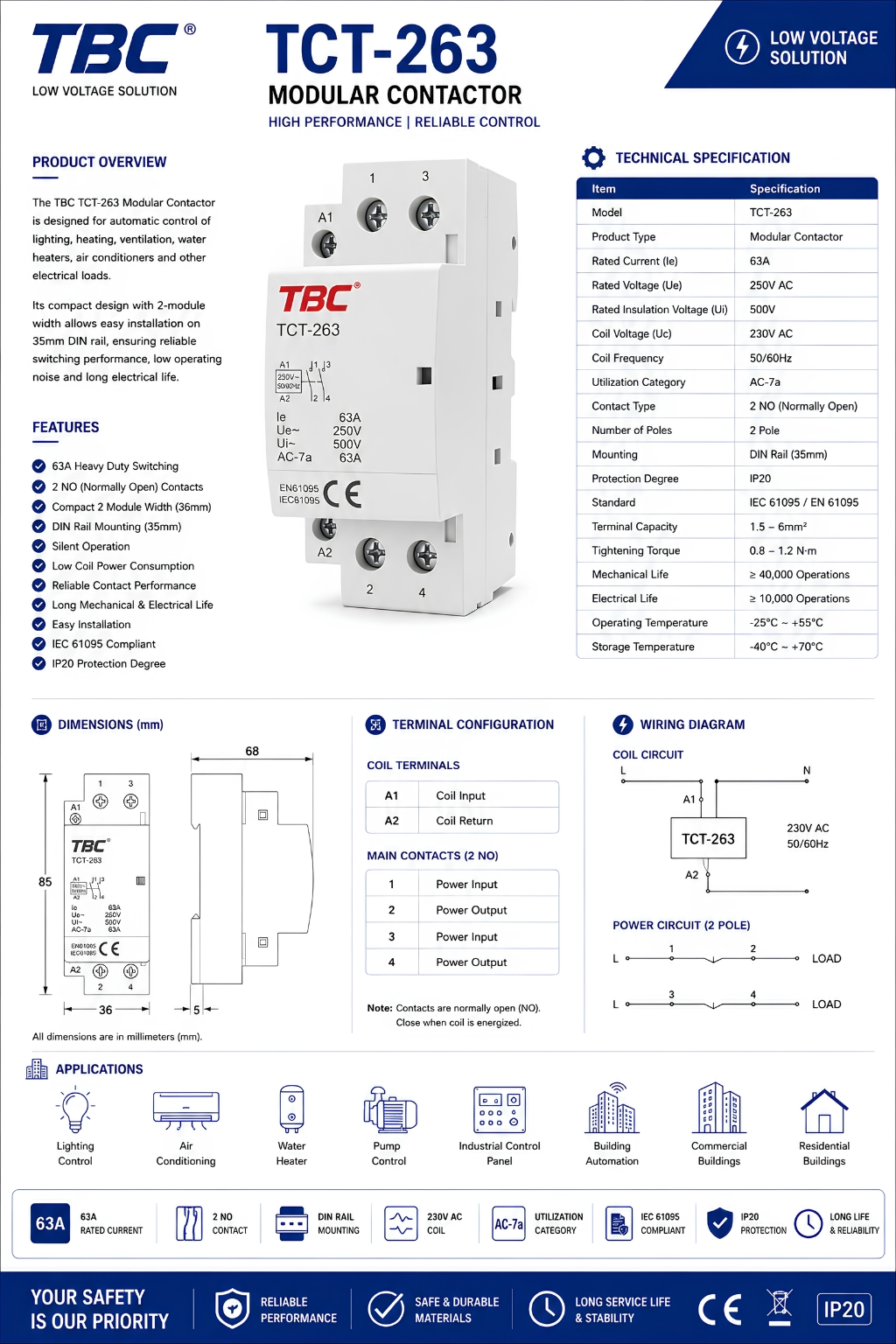

Electrical Performance: The TCT-263 is rated for 63A operational current at 250V AC, with a rated insulation voltage of 500V AC providing robust electrical isolation. The contactor features a 230V AC control coil operating at 50/60 Hz, suitable for standard control voltage applications. Classified under utilization category AC-7a, it is optimized for switching resistive loads such as lighting and heating elements.

Construction & Materials: The contactor housing is manufactured from flame-retardant thermoplastic material, ensuring fire safety and long-term durability. The compact design measures 85mm (H) × 36mm (W) × 68mm (D), occupying just 2 modules on a standard DIN rail. The IP20 protection degree provides adequate protection against solid objects larger than 12.5mm, suitable for installation within enclosed distribution boards and control panels.

Contact Configuration: The 2-pole design provides two independent switching contacts (terminals 1-2 and 3-4), allowing simultaneous control of both line and neutral conductors or two separate circuits. The control coil terminals (A1-A2) accept standard control voltages for integration with manual switches, timers, sensors, or automation systems.

Standards Compliance: Manufactured in accordance with IEC/EN 61095 standards for AC contactors and motor-starters, the TCT-263 carries CE marking, confirming compliance with European safety and performance directives. This ensures reliable operation and compatibility with modern electrical installations worldwide.

Installation Requirements: The contactor mounts on standard 35mm DIN rail (EN 60715) and requires adequate ventilation within the enclosure. Ambient operating temperature should be maintained within standard limits (-5°C to +40°C typical). The device must be protected by appropriately rated overcurrent protection devices (MCB, MCCB, or fuses) and should not be used as a primary safety disconnect or isolation device.

• High-Power Lighting Control: Centralized switching of large lighting installations in commercial buildings, warehouses, parking facilities, and outdoor area lighting
• Water Heating Systems: Remote control of electric water heaters, instant water heaters, and storage tank heating elements in residential and commercial applications
• HVAC Equipment: Switching control for heating, ventilation, and air conditioning systems including electric heaters, fan units, and auxiliary equipment
• Pump Control: Auxiliary switching for water pumps, circulation pumps, and irrigation systems when used with appropriate motor protection
• Timer & Automation Integration: Integration with time switches, astronomical timers, and building management systems for scheduled load control
• Residential Distribution Boards: Main switching for high-current circuits in modern residential installations with centralized control requirements
• Commercial Distribution Systems: Load management and remote switching in commercial and light industrial electrical distribution panels
• Energy Management: Peak load management and demand response applications requiring remote switching capability
• Photocell Control: Automatic lighting control when integrated with photocell sensors for dusk-to-dawn operation
• Safety & Emergency Systems: Non-critical switching applications in conjunction with manual override controls and proper protection devices

Important Note: This contactor provides switching control only and must be used together with suitable overcurrent protection devices such as MCB, ELCB, or MCCB. It is not a substitute for isolation devices or safety disconnects.
