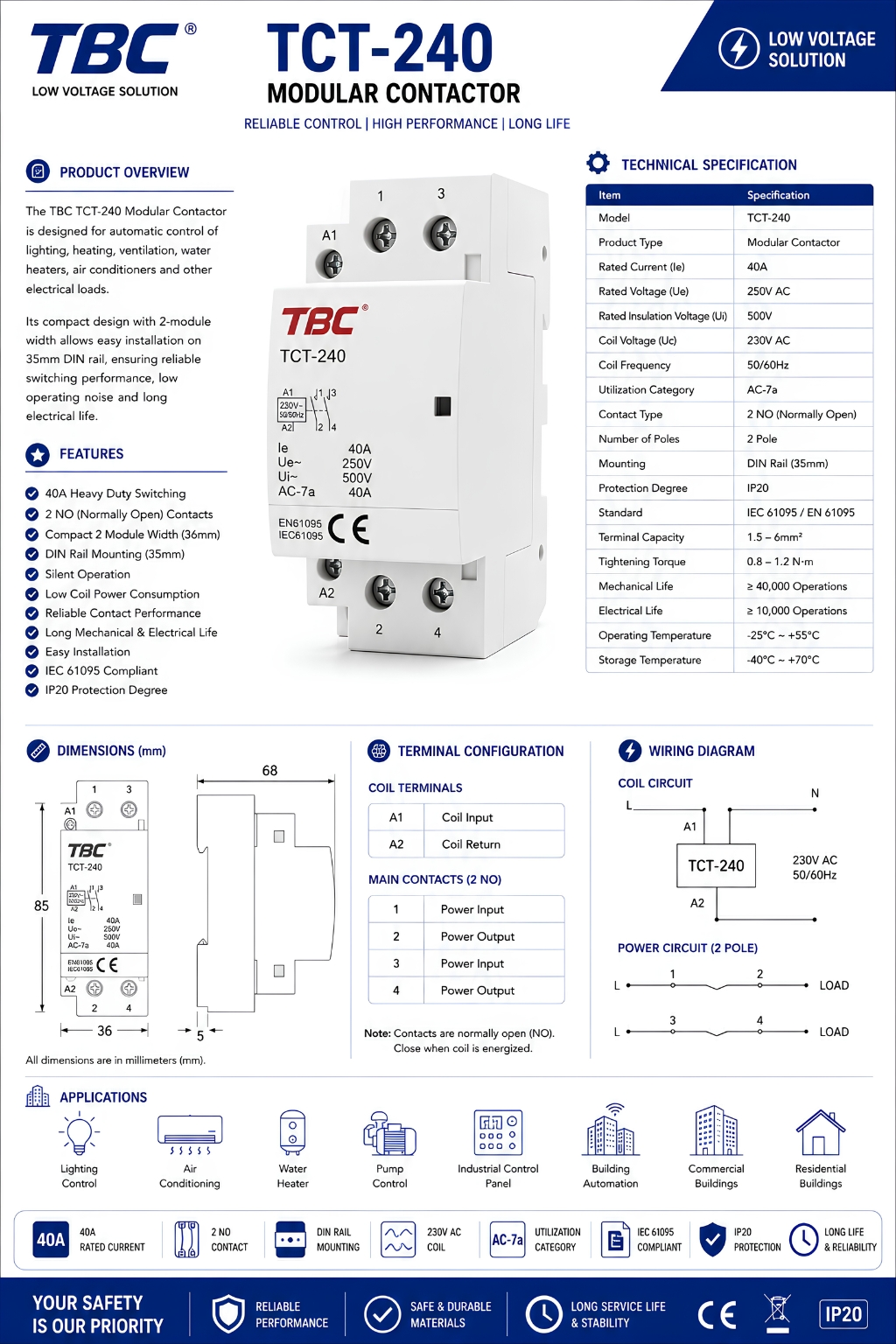

TBC TCT-240 Modular Contactor 40A 2 Pole 230V AC

Operating Principle:
The TBC TCT-240 is an electromagnetically operated contactor. When voltage is applied to the control coil terminals (A1-A2), the electromagnetic coil energizes and closes the main contacts (1-2 / 3-4), allowing current to flow through the controlled circuit. When the coil is de-energized, a spring mechanism returns the contacts to their normally open position, interrupting the circuit.

Control Circuit:
The control coil operates at 230V AC (50/60 Hz) and is connected to terminals A1 and A2. The main switching contacts are arranged in 2 poles, with terminals 1-2 forming the first pole and terminals 3-4 forming the second pole. Each pole can switch up to 40A at 250V AC.

Installation Requirements:
The contactor must be mounted on a standard 35mm DIN rail in a vertical position within an electrical enclosure providing at least IP20 protection. Adequate ventilation should be provided, and the ambient temperature should be maintained within the specified operating range. All connections must be made using appropriately sized conductors and tightened to the recommended torque specifications.

Wiring Considerations:
Control wiring should be kept separate from power wiring where possible to minimize electromagnetic interference. When integrating with timers, photocells, or building management systems, ensure that the control device output is compatible with the 230V AC coil voltage requirement.

Safety Notes:
Always disconnect power before installation or maintenance. This device does not provide overcurrent or earth leakage protection and must be used with appropriate protective devices. Ensure proper sizing of upstream protection devices according to the load characteristics and installation requirements.

• Lighting Control Systems: Centralized switching of lighting circuits in commercial buildings, warehouses, parking facilities, and outdoor lighting installations
• Water Heater Control: Automatic control of electric water heaters with timer or thermostat integration for energy management
• HVAC Systems: Switching control for heating elements, ventilation fans, and air conditioning equipment
• Timer-Controlled Circuits: Integration with time switches for scheduled operation of equipment and lighting
• Building Management Systems (BMS): Remote switching control as part of automated building control and energy management systems
• Residential Distribution Boards: Centralized control of high-current circuits such as electric heating and water heating
• Commercial Distribution Boards: Load management and remote switching in retail, office, and hospitality environments
• Industrial Control Panels: Switching control for resistive heating loads and lighting in manufacturing facilities
• Agricultural Applications: Control of heating lamps, ventilation systems, and water heating in agricultural buildings
• Swimming Pool Equipment: Switching control for pool heating systems and filtration pumps
