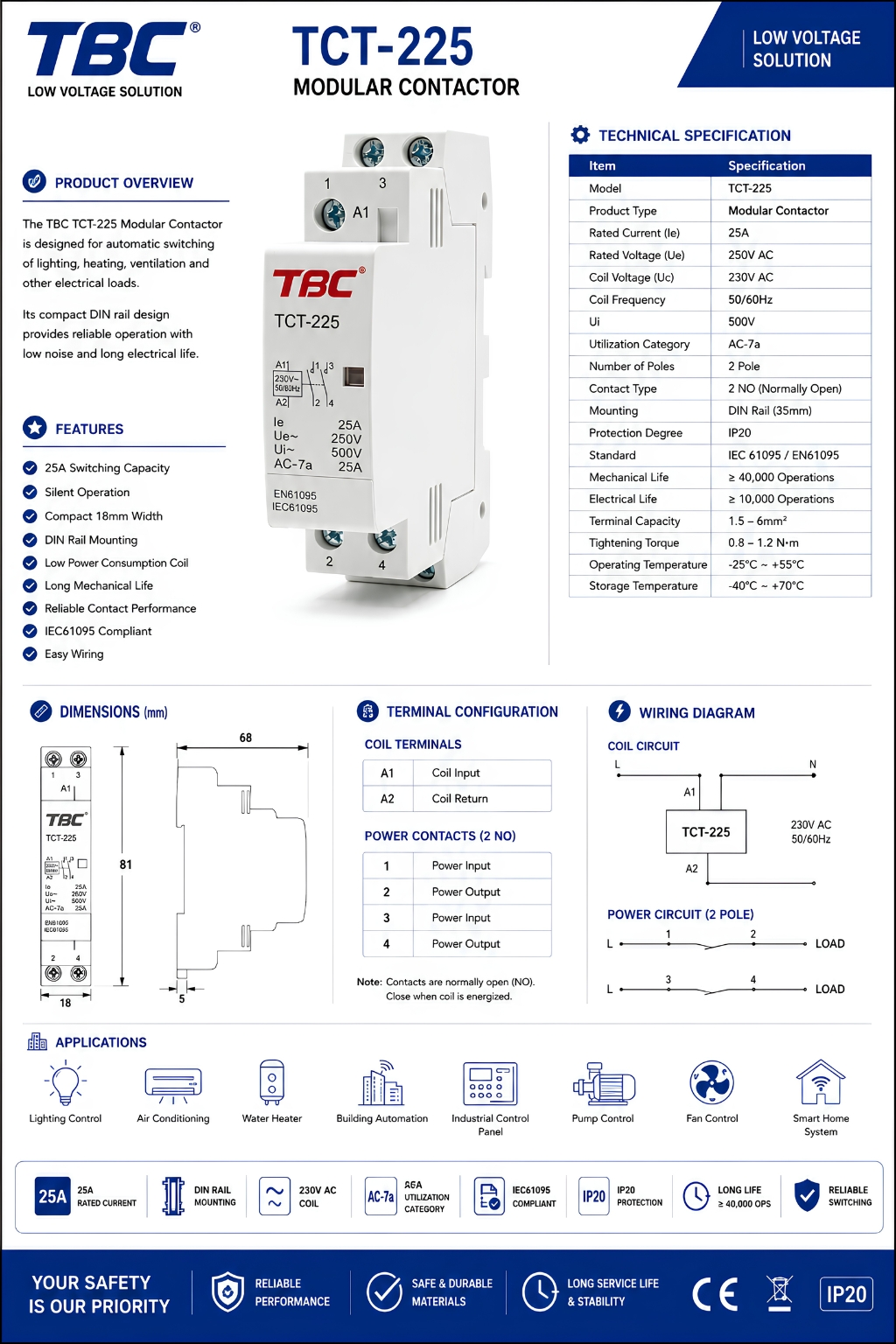

The TBC TCT Series Modular Contactor is engineered for reliable remote and automatic switching of electrical circuits in residential, commercial, and building management systems. Designed to IEC/EN 61095 standards, the TCT-225 offers robust electromagnetic control for lighting, heating, and general-purpose loads with low power consumption and long operational life.
The TCT-225 Modular Contactor is a professional-grade switching device designed for integration into modern electrical distribution systems. Its electromagnetic operating principle ensures reliable, silent operation ideal for building automation and remote control applications.
With a utilization category of AC-7a, this contactor is specifically suited for low inductive loads such as lighting circuits, heating elements, and general residential or commercial applications. The compact 1-module width allows for space-efficient installation in crowded distribution boards.
The device features clearly marked terminals (1-2 / 3-4 for main contacts, A1-A2 for coil) for straightforward wiring and maintenance. Its continuous duty control method ensures stable performance in demanding applications requiring frequent switching operations.
Important: This modular contactor does not provide overload or short-circuit protection and must be used in combination with appropriate protective devices such as MCBs, MCCBs, or ELCBs.
Operating Principle: The TCT-225 operates on an electromagnetic principle where energizing the control coil (A1-A2) with 230V AC creates a magnetic field that closes the main contacts, allowing current flow through the load circuit. De-energizing the coil releases the contacts to their normally open state.
Electrical Characteristics: The contactor is rated for 25A operational current at 250V AC with a rated insulation voltage of 500V AC, providing adequate safety margins for typical residential and commercial applications. It operates on standard 50/60 Hz frequency systems.
Contact Configuration: Features 2 normally open (NO) main contacts with integrated auxiliary contacts (model dependent). Terminal markings follow standard conventions for easy identification during installation and maintenance.
Mechanical Performance: Engineered for durability with a mechanical life exceeding 1 million operations and electrical life of over 100,000 operations. Suitable for switching frequencies up to 100 operations per hour, making it ideal for automated control systems.
Environmental Ratings: IP20 protection rating suitable for indoor distribution board installation. Operating temperature range of -5°C to +40°C covers most indoor environments, with storage capability from -25°C to +70°C.
Installation: Mounts on standard 35mm DIN rail per EN 60715. Vertical installation position is recommended for optimal performance. Compact dimensions (81mm H × 18mm W × 68mm D) allow efficient use of panel space.
| Parameter | Specification |
|---|---|
| General Information | |
| Product Type | Modular Contactor |
| Series | TCT |
| Model | TCT-225 |
| Function | Remote switching & control |
| Mounting | 35mm DIN Rail (EN 60715) |
| Operating Principle | Electromagnetic |
| Installation Location | Distribution boards |
| Electrical Characteristics | |
| Rated Operational Current (Ie) | 25A |
| Rated Operational Voltage (Ue) | 250V AC |
| Rated Insulation Voltage (Ui) | 500V AC |
| Frequency | 50 / 60 Hz |
| Utilization Category | AC-7a |
| Number of Poles | 2 Pole |
| Switching Type | Normally Open (NO) |
| Control Circuit | |
| Coil Terminals | A1 – A2 |
| Rated Control Voltage | 230V AC |
| Control Frequency | 50 / 60 Hz |
| Control Power Consumption | Low power consumption |
| Control Method | Continuous duty |
| Contacts Configuration | |
| Main Contacts | 2 NO |
| Terminal Marking | 1 – 2 / 3 – 4 |
| Auxiliary Contacts | Integrated (as per model) |
| Mechanical Characteristics | |
| Mechanical Life | ≥ 1,000,000 operations |
| Electrical Life | ≥ 100,000 operations |
| Switching Frequency | Up to 100 operations/hour |
| Operating Temperature | -5°C to +40°C |
| Storage Temperature | -25°C to +70°C |
| Degree of Protection | IP20 |
| Dimensions & Installation | |
| Height (H) | 81 mm |
| Width (W) | 18 mm (1 Module) |
| Depth (D) | 68 mm |
| Installation Position | Vertical recommended |
| Standards & Compliance | |
| Standards | IEC / EN 61095 |
| Certification | CE Marking |
| Environmental | RoHS Compliant |
