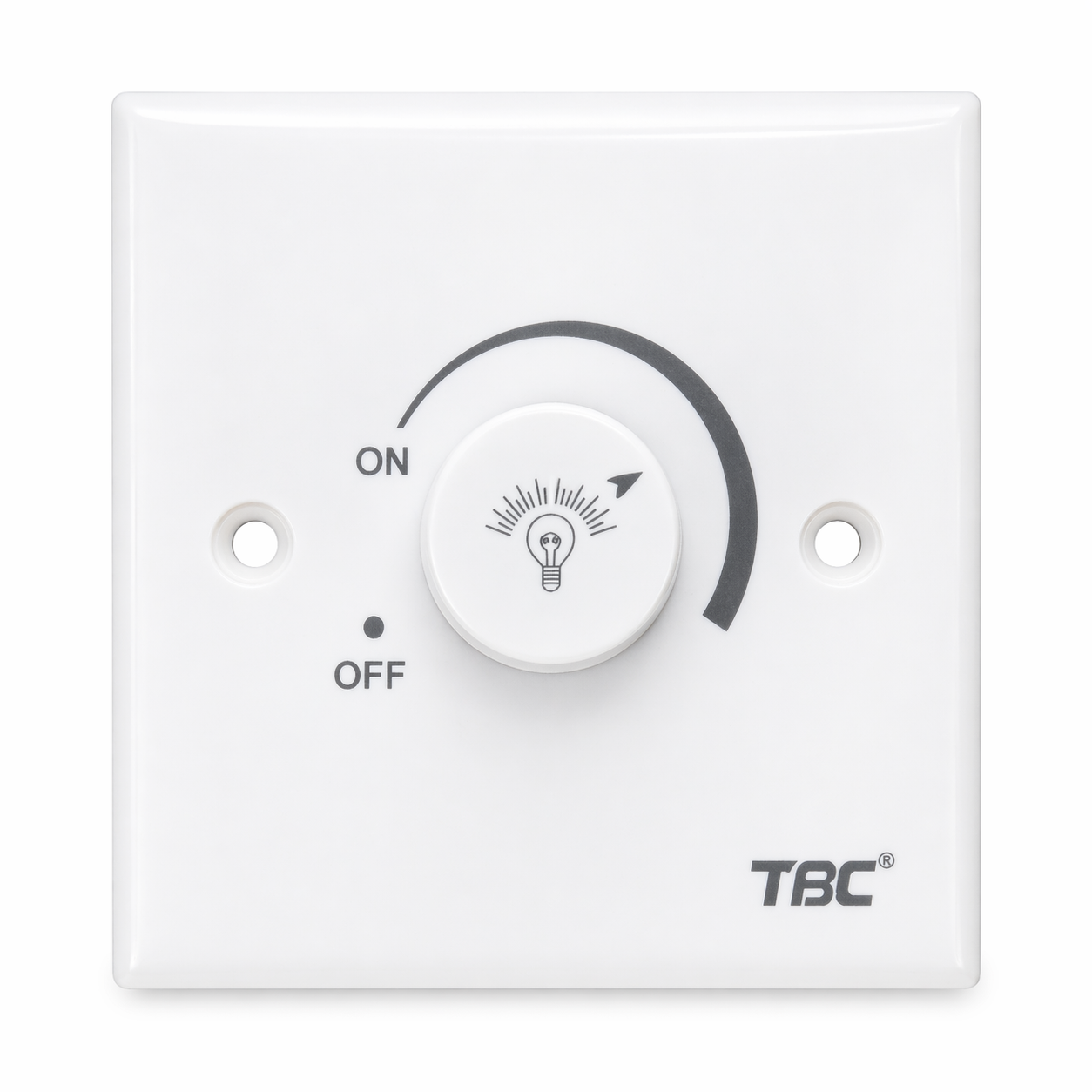

The TBC T6318 Light Dimmer is a premium rotary control switch engineered for smooth and precise brightness adjustment of lighting systems. Combining intuitive rotary dimming with integrated push ON/OFF functionality, this dimmer delivers efficient and reliable lighting control for both residential and commercial applications. With wide load compatibility and robust construction, the T6318 ensures stable performance across multiple lamp types up to 630W capacity.
The TBC T6318 Light Dimmer represents a sophisticated solution for modern lighting control requirements. This 1-gang dimmer switch combines the convenience of rotary brightness adjustment with the practicality of push-button ON/OFF operation, making it ideal for applications where mood lighting and ambiance control are essential.
Designed for professional installation in residential and commercial settings, the T6318 offers exceptional versatility through its compatibility with multiple lamp types including incandescent, LED, halogen, and low voltage halogen with transformer. The smooth dimming control allows users to create the perfect lighting atmosphere while the integrated push function provides instant power control without disturbing the preset brightness level.
Built with high-quality thermoplastic materials and featuring brass and phosphor bronze contacts, the T6318 ensures reliable long-term performance. The screw terminal design accommodates flexible connection options (2 × 1.5 mm² or 1 × 2.5 mm²), while the IP20 protection rating makes it suitable for indoor environments. Whether installed in bedrooms, living rooms, restaurants, hotels, or mood lighting systems, the TBC T6318 delivers consistent and dependable lighting control.
The TBC T6318 Light Dimmer operates on 250V AC at 50Hz frequency with a rated current of 10A, providing a maximum load capacity of 630W. The device features a 1-pole 1-way operation configuration, utilizing rotary control for brightness adjustment combined with push-button switching for ON/OFF functionality.
The dimmer employs screw terminal connections clearly marked as IN/OUT, with connection capacity supporting either 2 × 1.5 mm² or 1 × 2.5 mm² conductors. The internal switching mechanism utilizes brass and phosphor bronze contacts to ensure reliable electrical performance and extended operational life.
Constructed with thermoplastic materials for both the front plate and control knob, the T6318 is designed to withstand operating temperatures ranging from -5°C to +40°C and humidity levels up to 95%. The IP20 protection degree makes it suitable for indoor installation in dry or normal humidity conditions.
The dimmer's load compatibility extends across multiple lamp technologies including traditional incandescent bulbs, modern LED lamps, halogen lamps, and low voltage halogen systems when used with appropriate transformers. This versatility ensures the T6318 can be integrated into both legacy and contemporary lighting installations.
Manufactured in compliance with international standards IEC 60669-1 and IEC 60669-2-1, the T6318 meets stringent safety and performance requirements for household and similar electrical installations.
| Parameter | Specification |
|---|---|
| Model Number | T6318 |
| Product Type | Light Dimmer |
| Control Type | Rotary + Push Switch |
| Rated Voltage | 250V AC |
| Rated Current | 10A |
| Rated Power | 630W |
| Frequency | 50Hz |
| Number of Gangs | 1 Gang |
| Operation Type | 1-Pole 1-Way |
| Mounting Type | Surface / Flush |
| Protection Degree | IP20 |
| Terminal Type | Screw Terminal |
| Terminal Marking | IN / OUT |
| Connection Capacity | 2 × 1.5 mm² / 1 × 2.5 mm² |
| Front Plate Material | Thermoplastic |
| Knob Material | Thermoplastic |
| Contact Material | Brass & Phosphor Bronze |
| Operating Temperature | -5°C to +40°C |
| Humidity | Up to 95% |
| Usage Environment | Indoor |
| Load Compatibility | Incandescent, LED, Halogen, Low Voltage Halogen (with transformer) |
| Standards Compliance | IEC 60669-1, IEC 60669-2-1 |
