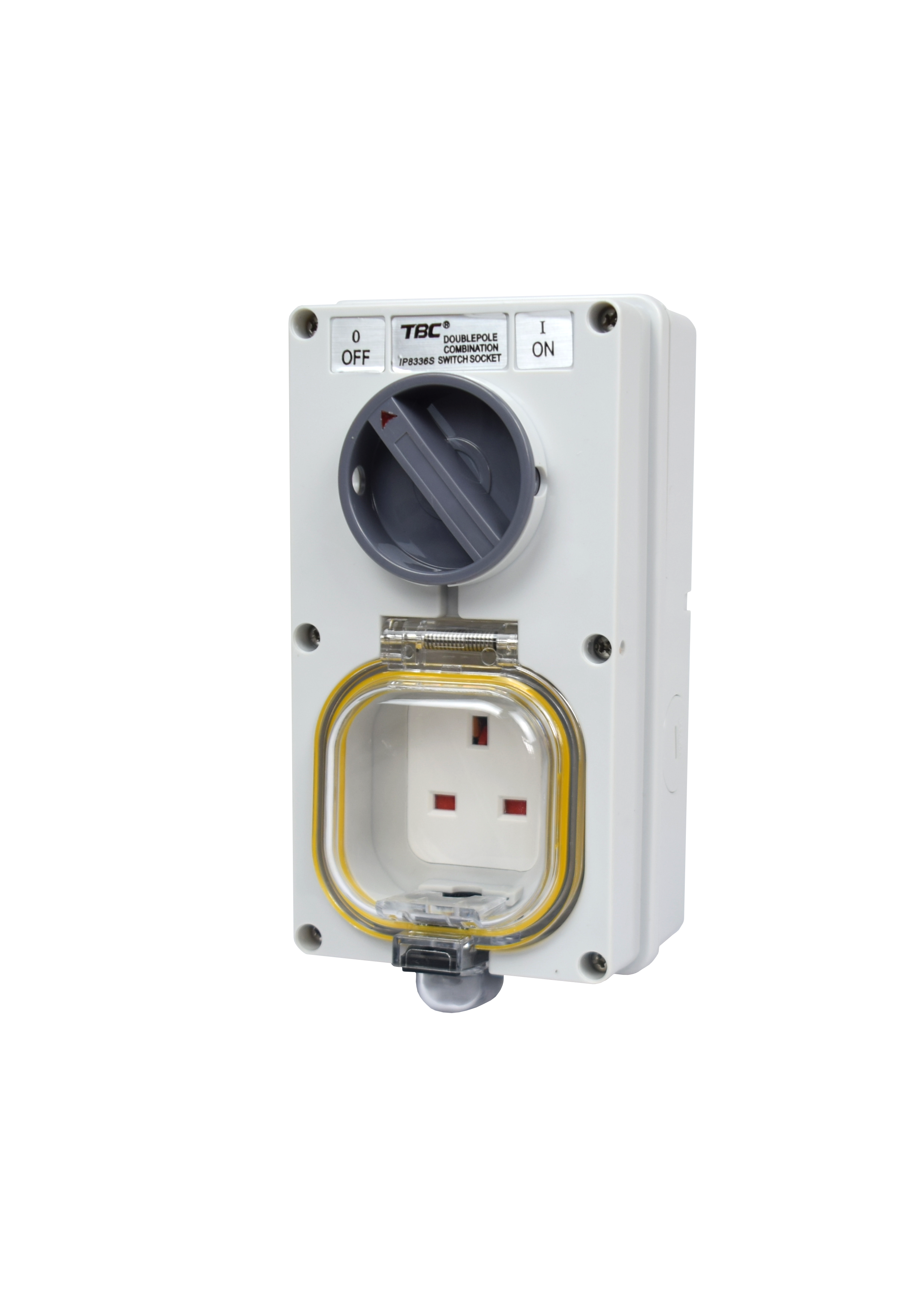

The TBC IP8336S Weatherproof Switch Socket Outlet is a heavy-duty outdoor power solution combining a 13A socket outlet with integrated double pole isolator. Designed for maximum safety and durability, it ensures secure power control in harsh and wet environments with IP66 protection against dust and water ingress.
The TBC IP8336S represents the ideal solution for outdoor power distribution where safety, durability, and weather resistance are paramount. This weatherproof switch socket outlet combines a standard 13A socket with an integrated double pole isolator, providing complete control and isolation in a single compact unit.
Engineered to withstand the harshest environmental conditions, the IP8336S features IP66-rated protection, making it completely dust-tight and resistant to powerful water jets. The UV-stabilised enclosure ensures long-term performance even under direct sunlight exposure, while the neoprene waterproof seal maintains integrity against moisture ingress.
The integrated rotary isolator provides a critical safety advantage, allowing users to completely disconnect power before performing maintenance or connecting equipment. This feature significantly reduces the risk of electric shock, particularly in wet environments where standard sockets would pose serious hazards.
Designed for professional installation, the IP8336S features screw terminals accommodating cable sizes from 2.5mm² to 4mm², ensuring secure and reliable connections. The surface mount design allows for straightforward installation on walls or suitable outdoor surfaces.
Electrical Ratings: The IP8336S is rated for 13A at 250V AC, 50/60Hz, conforming to BS 1363 standards. The outlet configuration is 2P + E (two poles plus earth) providing safe grounding for connected equipment.
Protection & Enclosure: With IP66 protection degree, the unit is completely sealed against dust ingress (6) and protected against powerful water jets from any direction (6). The housing is manufactured from UV-stabilised PVC, while the plate and dolly utilize high-grade polycarbonate for superior impact resistance. The cover features UV-resistant PVC with a neoprene waterproof seal ensuring long-term environmental protection.
Control Mechanism: The unit features dual control elements: a rotary isolator for main power disconnection and a rocker switch integrated into the socket for individual outlet control. This dual-control design provides maximum flexibility and safety.
Contact Materials: Electrical contacts are manufactured from brass and phosphor bronze, materials selected for their excellent conductivity, corrosion resistance, and mechanical durability in outdoor applications.
Terminal Specifications: Screw-type terminals accommodate conductor sizes from 2.5mm² to 4mm², suitable for standard outdoor-rated cables. Proper cable gland installation is essential to maintain IP66 rating.
Environmental Performance: Operating temperature range of -5°C to +40°C with humidity tolerance up to 95% ensures reliable performance across diverse climatic conditions.
| Parameter | Specification |
|---|---|
| Model Number | IP8336S |
| Product Type | Weatherproof Switch Socket with Isolator |
| Standard | BS 1363 |
| Rated Current | 13A |
| Rated Voltage | 250V AC |
| Frequency | 50/60 Hz |
| Outlet Configuration | 2P + E |
| Number of Gangs | 1 Gang |
| Protection Degree | IP66 |
| Mounting Type | Surface Mount |
| Control Type | Rotary Isolator + Rocker Socket |
| Terminal Type | Screw Terminal |
| Terminal Capacity | 2.5mm² – 4mm² |
| Housing Material | UV Stabilised PVC |
| Plate & Dolly Material | Polycarbonate (PC) |
| Cover Material | UV Resistant PVC |
| Seal Material | Neoprene Waterproof Seal |
| Contact Material | Brass & Phosphor Bronze |
| Operating Temperature | -5°C to +40°C |
| Humidity Tolerance | Up to 95% |
| Usage Environment | Outdoor |

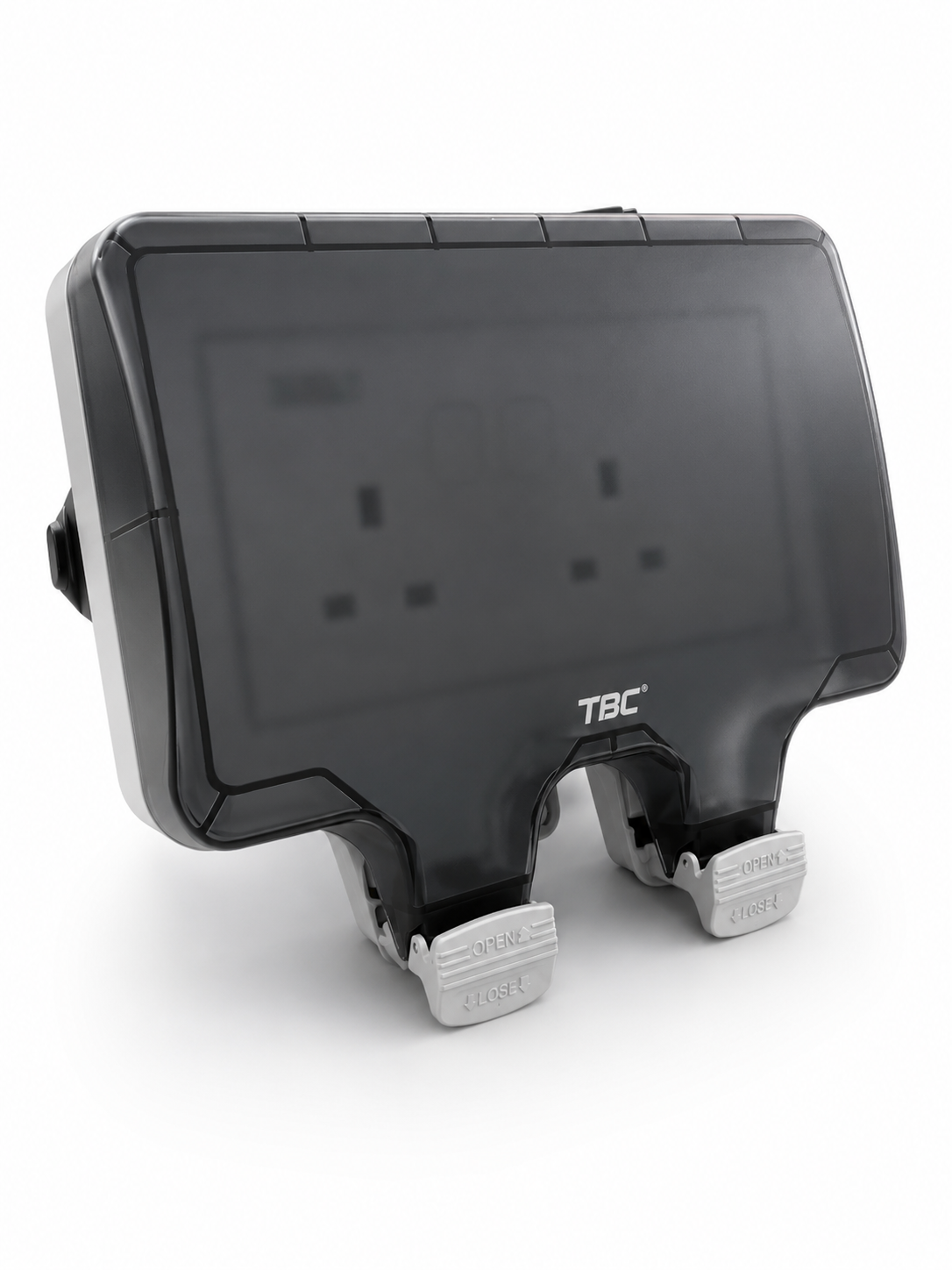

TIP-213NM
The TIP-213NM is a 13A switched weatherproof socket outlet featuring IP66 protection and UV-stabilis...
View Details

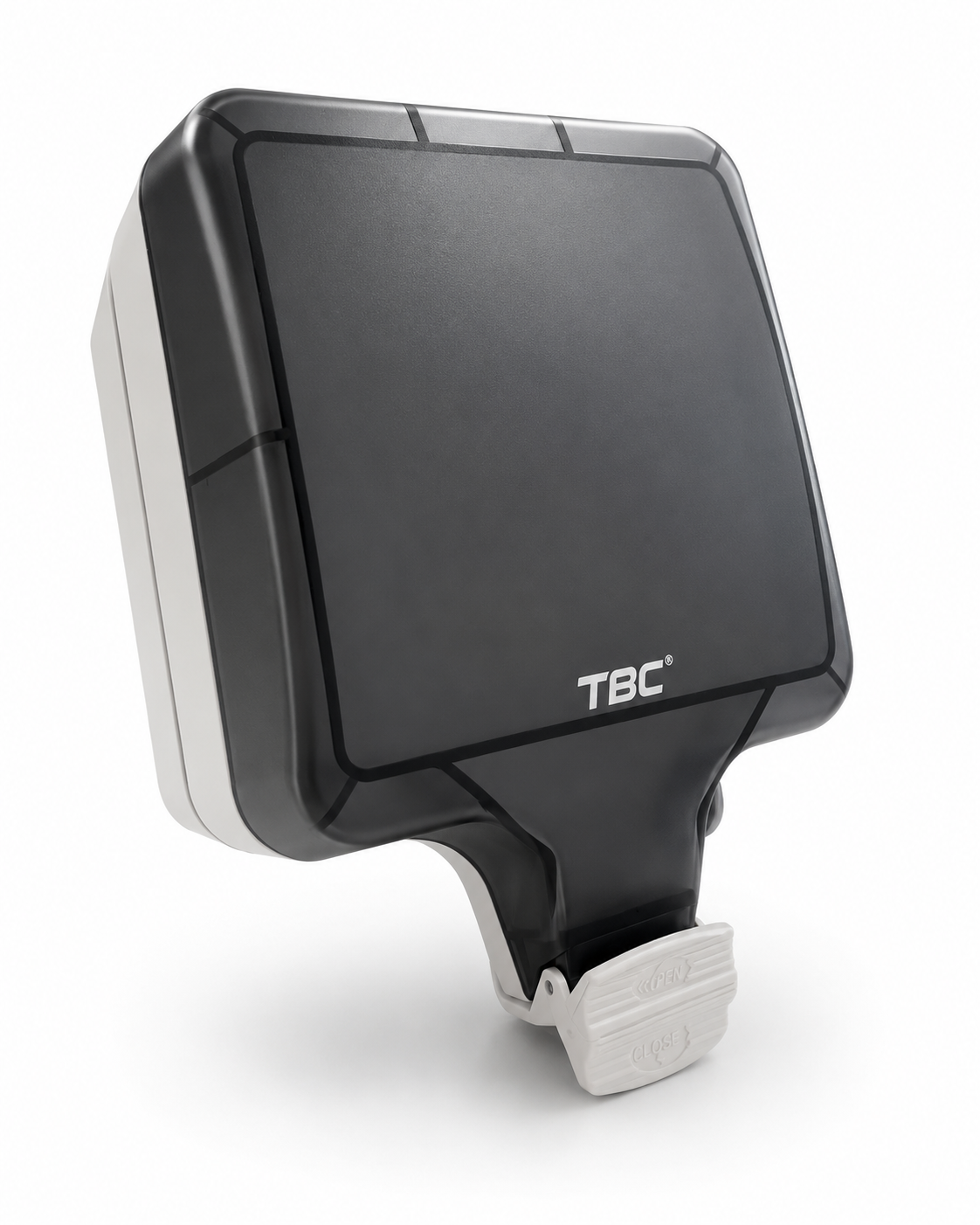

TIP-113NM
The TIP-113NM is a 13A switched weatherproof socket outlet featuring IP66 protection and UV-stabilis...
View Details

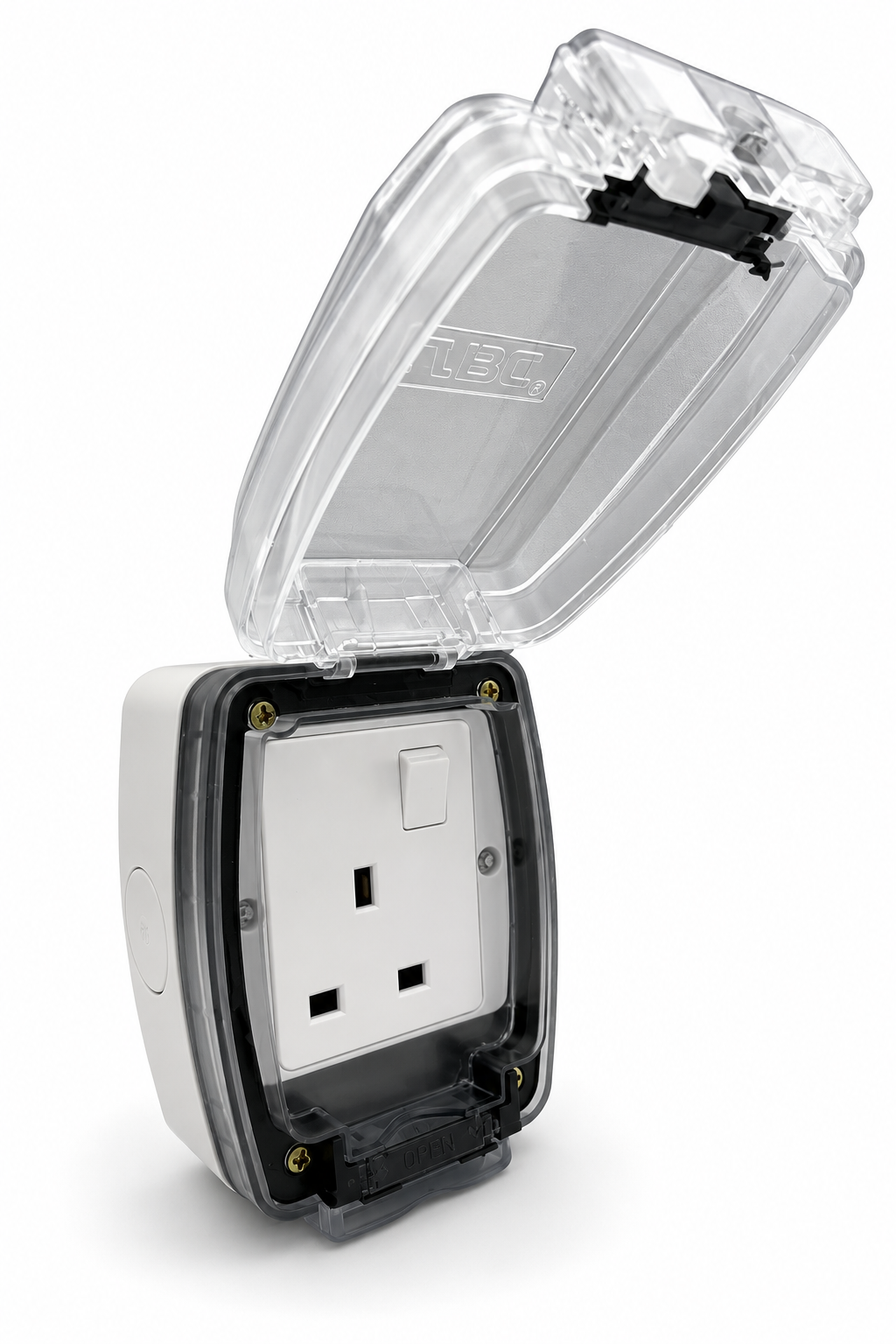

IP9336S
