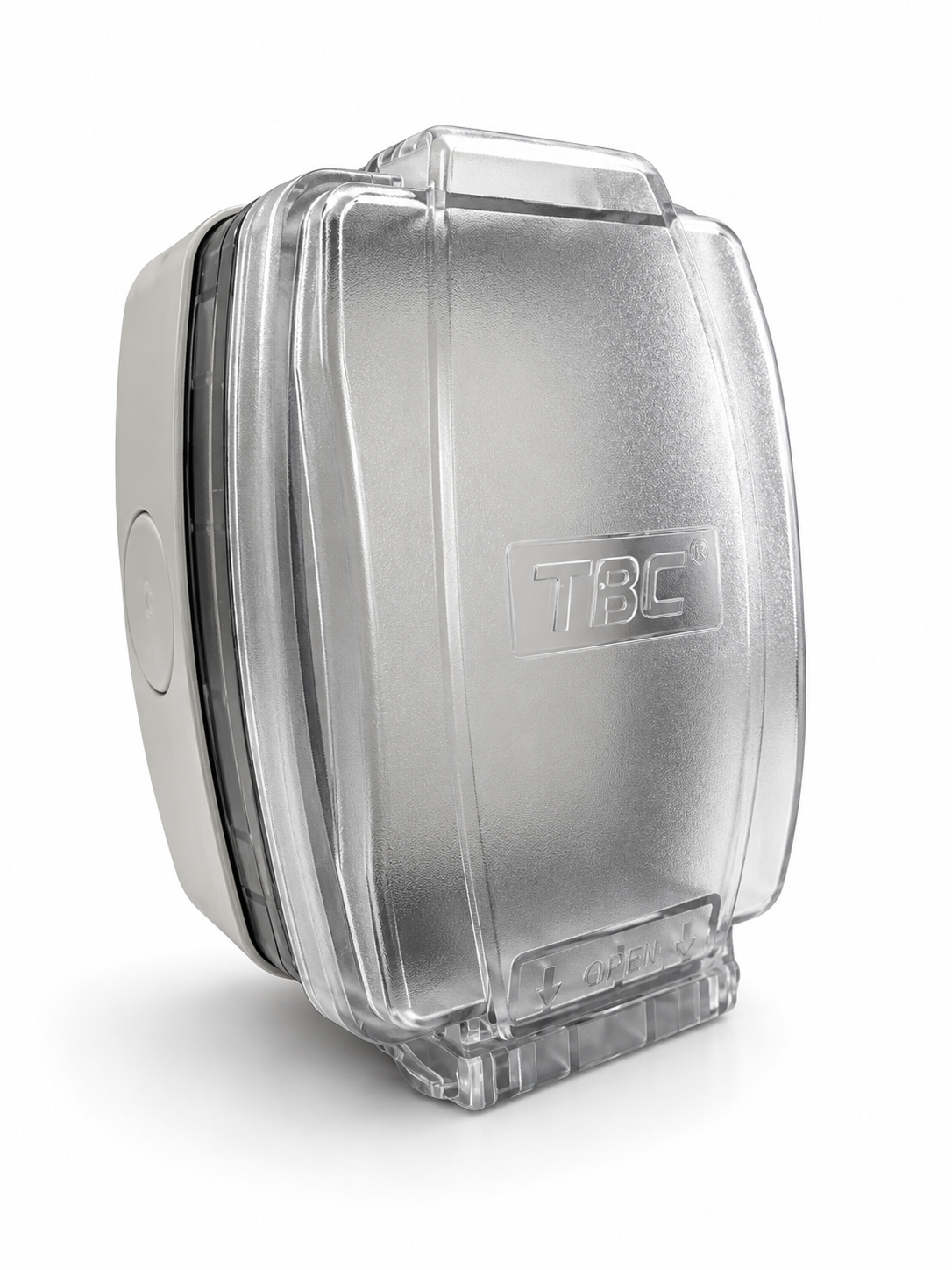

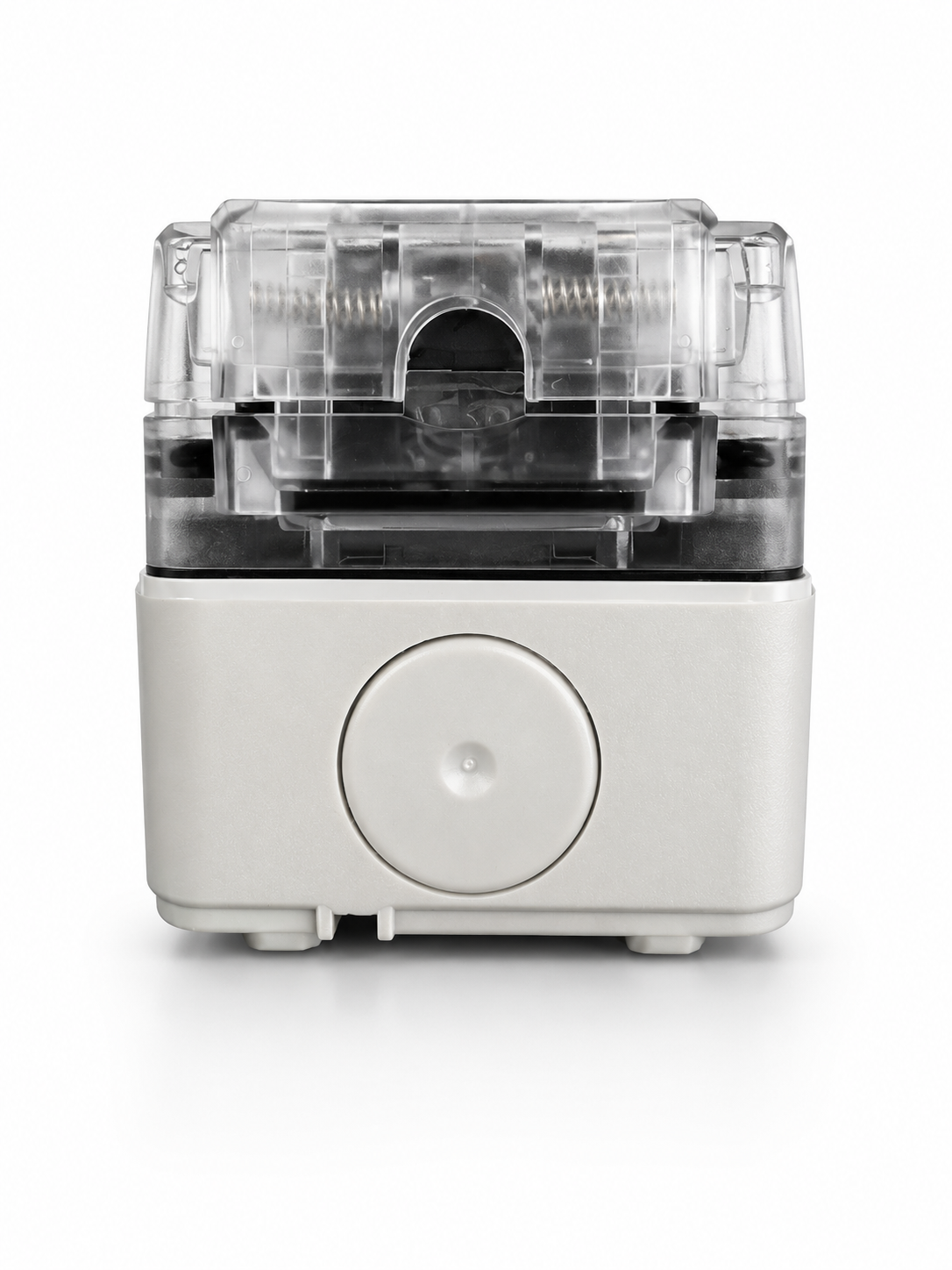

The TBC IP66 Weatherproof Socket Outlet (13A, 1 Gang) is engineered for safe and reliable power access in outdoor and harsh environments. Built with UV-stabilised materials and sealed protection, it ensures long-term durability against water, dust, and environmental exposure. Compliant with BS 1363 standards, this weatherproof socket outlet delivers robust performance for residential, commercial, and industrial outdoor applications.
The TBC IP9336S Weatherproof Socket Outlet is the ideal solution for outdoor power distribution where protection against water and dust is critical. This 13A, 1-gang socket outlet features a robust IP66-rated enclosure that provides complete protection against dust ingress and powerful water jets from any direction.
Constructed with UV-stabilised PVC housing and polycarbonate components, this weatherproof socket is designed to withstand prolonged exposure to sunlight, rain, and harsh environmental conditions without degradation. The integrated rocker switch allows for convenient control of connected equipment, while the secure protective cover with neoprene gasket ensures reliable waterproof performance.
The socket outlet features high-quality brass and phosphor bronze contacts for stable electrical performance and long service life. Screw terminals accommodate cable sizes from 2.5mm² to 4mm², providing flexible installation options. The surface mount design enables quick and easy installation on walls or other suitable surfaces.
Rated for 250V AC at 50/60 Hz, this weatherproof socket outlet is suitable for a wide range of outdoor applications including gardens, construction sites, industrial workshops, commercial buildings, and wet areas. Operating reliably in temperatures from -5°C to +40°C and humidity up to 95%, it delivers consistent performance in challenging conditions.
Electrical Ratings: The IP9336S is rated for 13A at 250V AC, 50/60 Hz, providing reliable power delivery for outdoor equipment and tools. The 2P + E outlet configuration ensures proper earthing for safety.
Protection Rating: IP66 protection degree ensures complete dust-tight sealing and protection against powerful water jets (12.5 liters/min) from any direction, making it suitable for exposed outdoor locations.
Material Construction: The housing is manufactured from UV-stabilised PVC that resists degradation from sunlight exposure. Internal components including the plate and dolly are made from high-grade polycarbonate for superior impact resistance. The protective cover features UV-stabilised PVC construction with a neoprene seal for waterproof integrity.
Contact System: Brass and phosphor bronze contacts ensure excellent electrical conductivity, low contact resistance, and long-term reliability. The contact system is designed for stable performance over thousands of switching cycles.
Terminal Configuration: Screw terminals accept conductor sizes from 2.5mm² to 4mm², accommodating standard outdoor wiring requirements. Proper cable gland installation is required to maintain IP66 protection.
Environmental Performance: Operating temperature range of -5°C to +40°C covers typical outdoor conditions. Humidity tolerance up to 95% ensures reliable operation in high-moisture environments.
Standards Compliance: Manufactured to BS 1363 standards, ensuring compatibility with UK-style plugs and adherence to safety requirements for socket outlets.
| Parameter | Specification |
|---|---|
| Model Number | IP9336S |
| Product Type | Weatherproof Socket Outlet |
| Standard | BS 1363 |
| Rated Current | 13A |
| Rated Voltage | 250V AC |
| Frequency | 50/60 Hz |
| Number of Gangs | 1 Gang |
| Outlet Type | 2P + E |
| Protection Degree | IP66 |
| Mounting Type | Surface Mount |
| Switch Type | Rocker Switch |
| Terminal Type | Screw Terminal |
| Terminal Capacity | 2.5 mm² – 4 mm² |
| Housing Material | UV Stabilised PVC |
| Plate & Dolly Material | Polycarbonate (PC) |
| Cover Material | UV Stabilised PVC |
| Seal Material | Neoprene (Waterproof) |
| Contact Material | Brass & Phosphor Bronze |
| Operating Temperature | -5°C to +40°C |
| Humidity | Up to 95% |
| Usage Environment | Outdoor |
