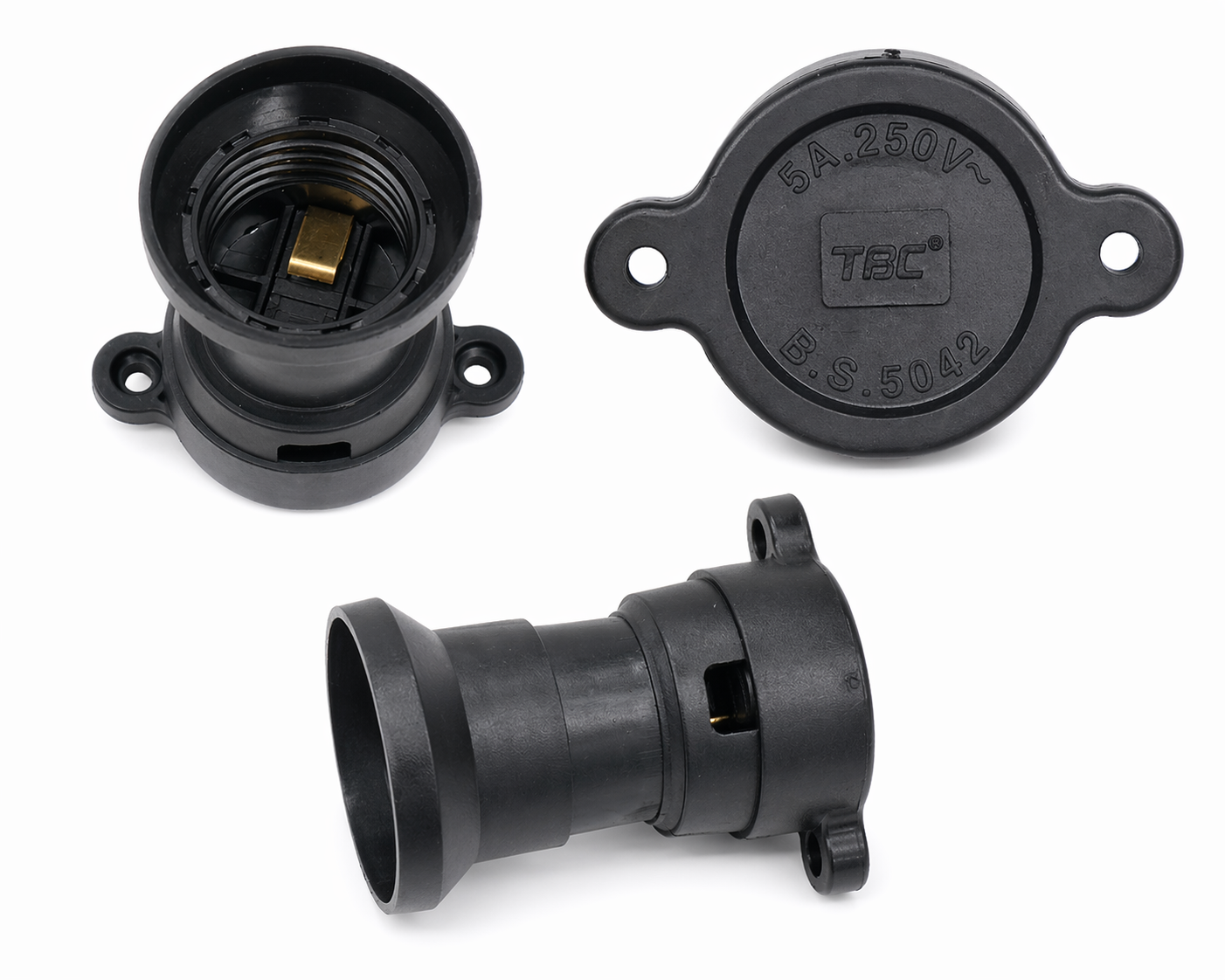

The TBC E383 E27 Wedge Type Lampholder is a compact and efficient lighting connector designed for quick installation and reliable performance. Combining a standard E27 screw interface with a wedge-type mounting structure, it offers flexibility and ease of use for various indoor lighting applications. Built with heat-resistant bakelite and brass contacts, this lampholder ensures safe and durable operation in residential, commercial, and utility environments.
The TBC E383 E27 Wedge Type Lampholder represents a practical solution for indoor lighting installations where speed, reliability, and ease of use are essential. This lampholder features the globally recognized E27 screw cap interface, ensuring compatibility with a wide range of standard light bulbs available worldwide.
The innovative wedge-type mounting structure allows for rapid installation without complex tools or procedures, making it ideal for both professional electricians and DIY applications. The heat-resistant bakelite body provides excellent thermal management, while the brass contact terminals ensure stable electrical connection and long service life.
Designed for indoor use with IP20 protection, this lampholder is suitable for residential lighting, commercial spaces, temporary installations, and utility areas. Its compact form factor and lightweight construction make it easy to handle and install in various configurations, while maintaining robust performance under normal operating conditions.
Electrical Characteristics: The E383 lampholder is rated for 5A at 250V AC, providing adequate capacity for standard incandescent, CFL, and LED bulbs with E27 base. The brass contact system ensures low resistance connection and minimal heat generation during operation.
Construction Materials: The body is manufactured from high-quality bakelite, a thermosetting plastic known for its excellent heat resistance, electrical insulation properties, and dimensional stability. The contact terminals are made from brass, offering superior electrical conductivity and corrosion resistance.
Environmental Performance: Designed for indoor use with an operating temperature range of -5°C to +40°C and humidity tolerance up to 95%. The IP20 protection degree provides protection against solid objects larger than 12.5mm, suitable for standard indoor environments.
Installation Method: The wedge-type design allows for surface mounting and quick-fit installation, reducing installation time and labor costs. The secure lamp holding mechanism ensures bulbs remain firmly seated during operation.
| Parameter | Specification |
|---|---|
| Model Number | E383 |
| Product Type | Lampholder (Wedge Type) |
| Cap Type | E27 (Screw Type) |
| Rated Current | 5A |
| Rated Voltage | 250V AC |
| Mounting Type | Surface / Quick Fit |
| Protection Degree | IP20 |
| Application | Indoor Lighting |
| Body Material | Bakelite |
| Contact Material | Brass |
| Housing Color | Black |
| Operating Temperature | -5°C to +40°C |
| Humidity Tolerance | Up to 95% |
| Installation Method | Wedge Type Quick Installation |
| Usage Environment | Indoor Only |
