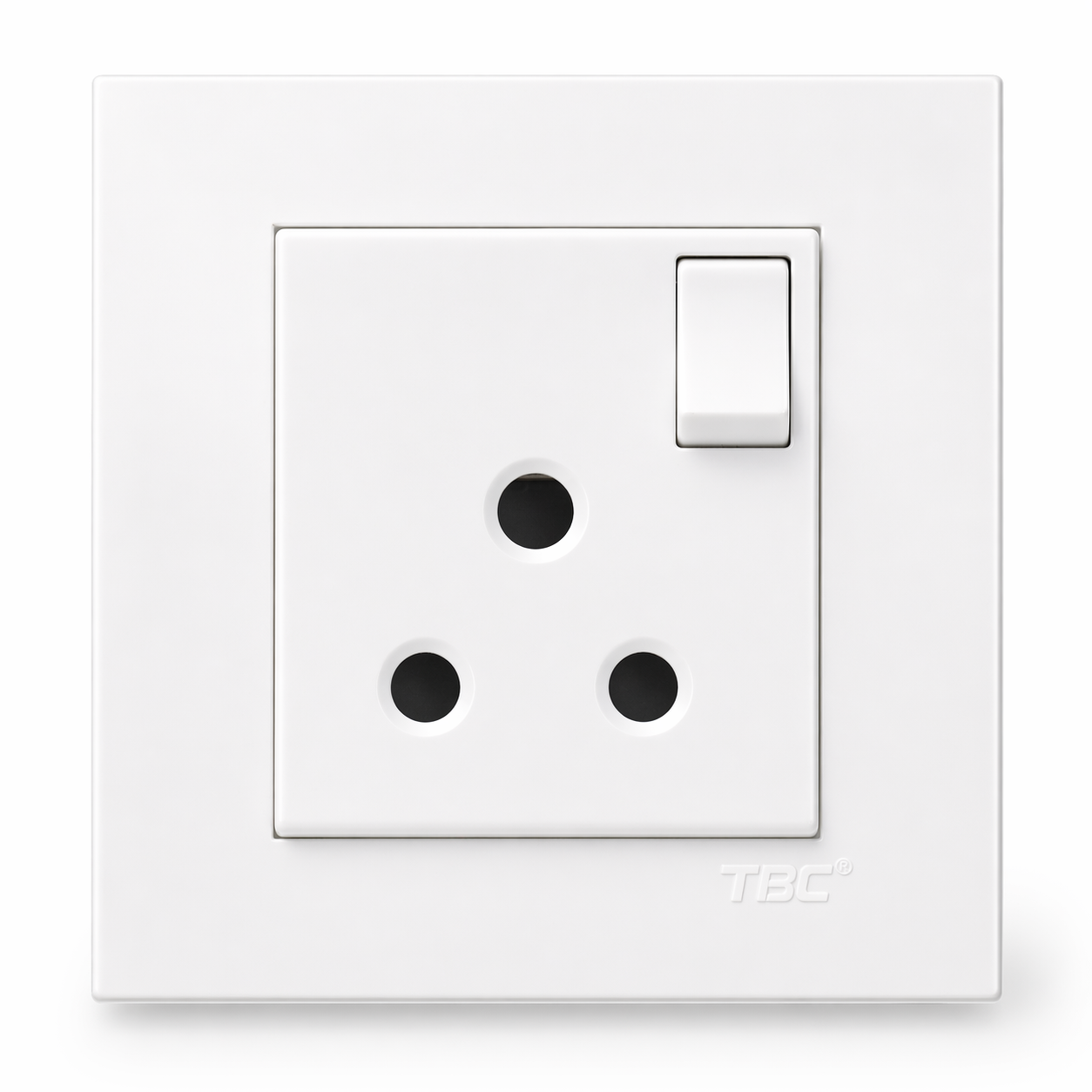

TBC B8-115 1 Gang 15A Switch Socket B-Series

The B8-115 operates on a rocker switching mechanism in which the dolly pivots about a central axis to open or close the internal contact bridge. The contact assembly pairs a brass fixed contact with a phosphor bronze moving contact element, the latter providing the spring force necessary to maintain reliable contact pressure in the closed position and to achieve a clean, rapid break on switching. This contact geometry minimises arcing duration and reduces contact erosion over repeated switching cycles.

The pillar-type terminal design clamps conductors securely without requiring specialist tooling, accommodating solid or stranded conductors up to 2.5 mm². The flame-retardant PC body material limits flame propagation in fault conditions, and the overall construction is aligned with the requirements of MS 1577 for general-purpose switches intended for household and similar fixed electrical installations.

• Residential homes – lighting circuit control in living rooms, bedrooms, hallways, and kitchens.
• Office buildings – switching of general lighting and low-power electrical loads at workstations and common areas.
• Commercial buildings – retail, hospitality, and service environments requiring reliable and aesthetically consistent switching solutions.
• Indoor electrical distribution boards and local switching panels in light commercial fit-outs.
• Hotel rooms and serviced apartments where a clean, modern switch aesthetic is specified by interior designers.
• Educational facilities including classrooms and administrative offices requiring durable, long-service switching devices.
• Healthcare facilities such as clinics and administrative areas where reliable switching and clean surfaces are required.
