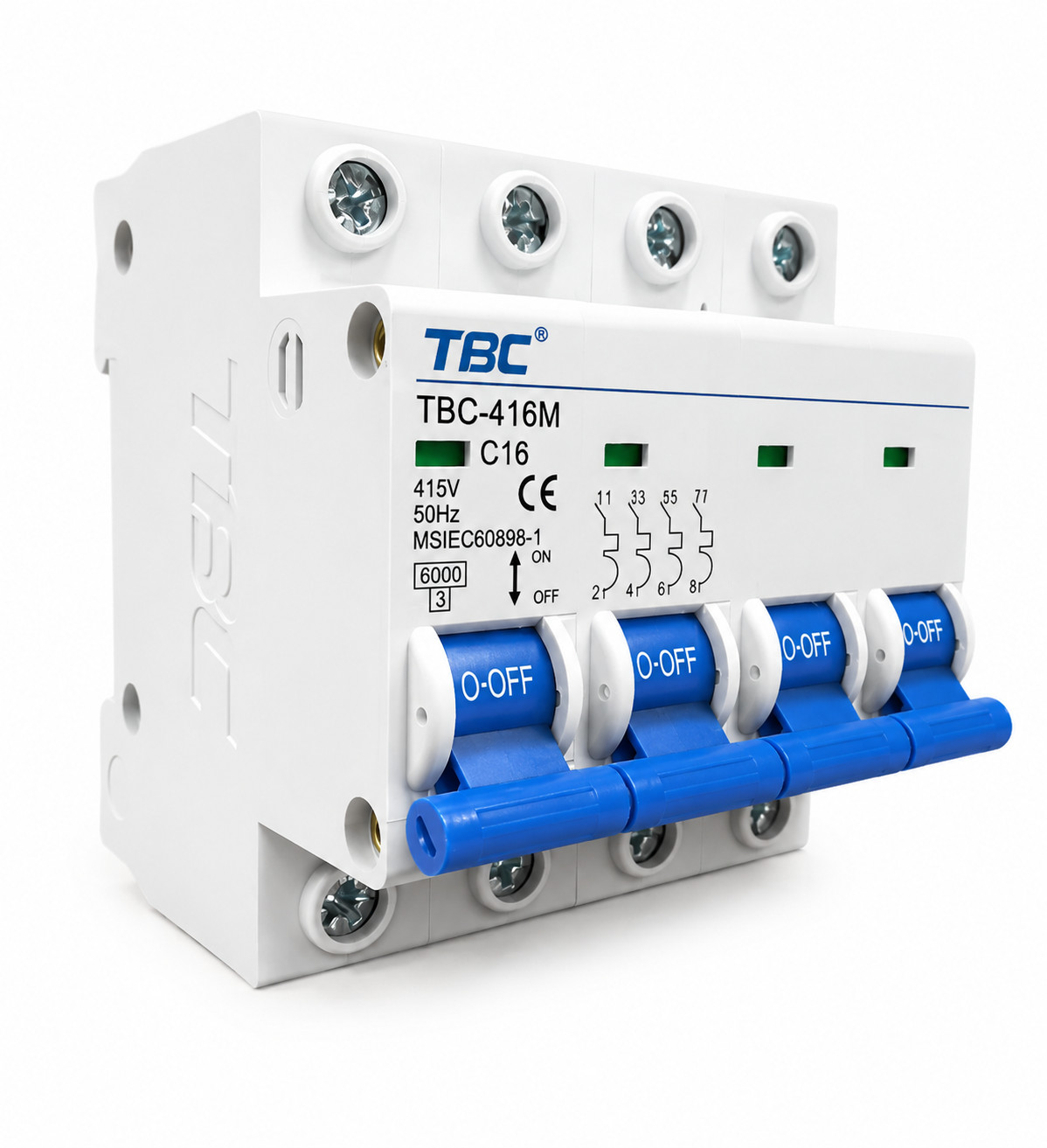

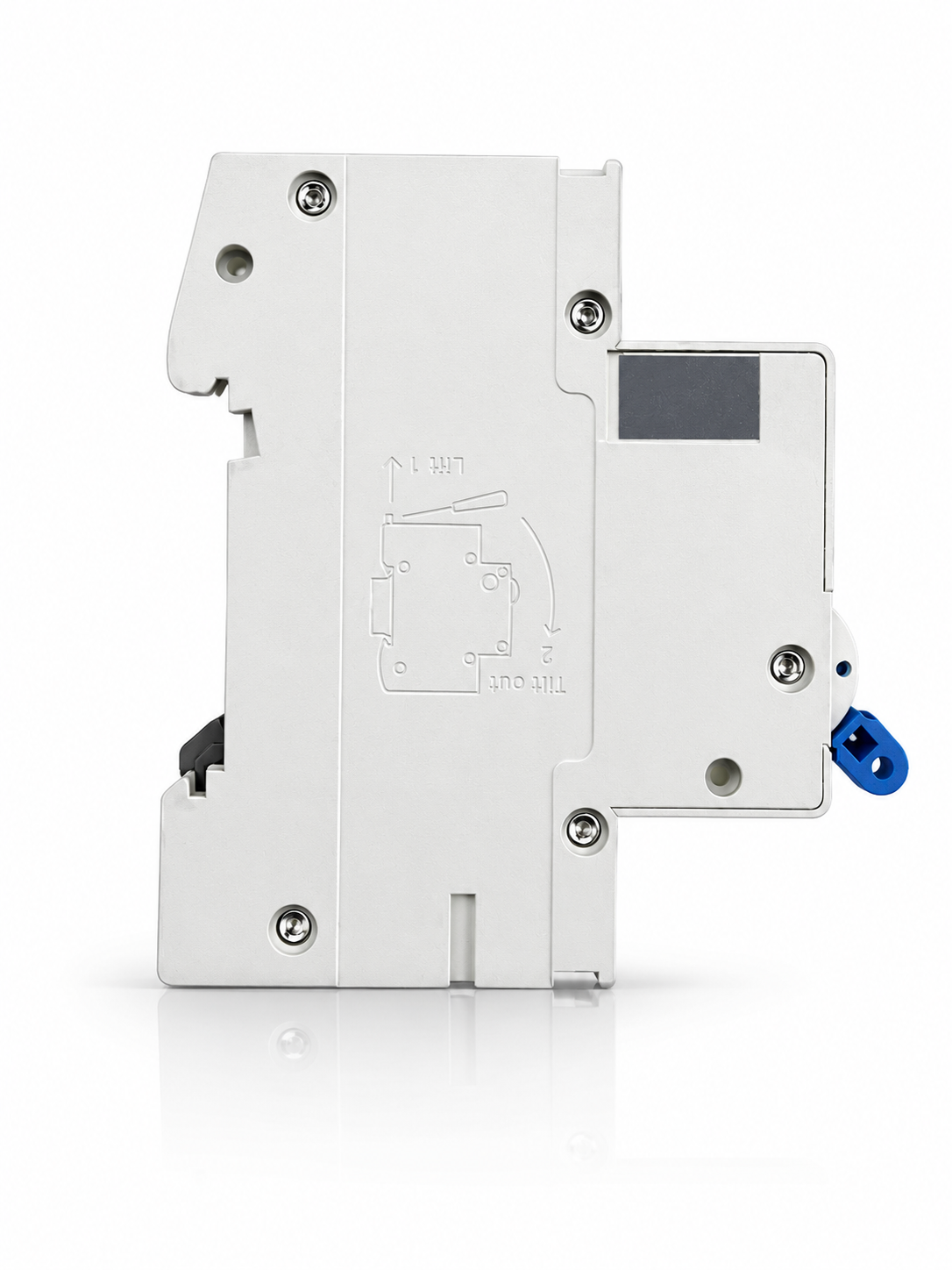

TBC-416M Miniature Circuit Breaker (MCB) 4P 16A 6kA

Name: TBC-416M Miniature Circuit Breaker (MCB) 4P 16A 6kA
Brand: TBC
SKU: TBC-416M

TBC-416M

The TBC-416M is a professional-grade 4-pole miniature circuit breaker engineered to deliver dependable overload and short-circuit protection in low-voltage electrical distribution networks. Featuring advanced thermal-magnetic trip technology with Type C characteristics, this MCB is ideal for residential, commercial, and light industrial applications where reliable circuit protection is essential.

Key Features

4-pole configuration for comprehensive three-phase and neutral protection
16A rated current capacity suitable for medium-load circuits
Type C tripping curve optimized for inductive loads and motor circuits
6kA breaking capacity for effective short-circuit interruption
Thermal-magnetic trip technology for dual protection against overloads and short circuits
Fast tripping time of less than 0.1 seconds for enhanced safety
DIN rail mounting (35mm) for quick and easy installation
Wide operating temperature range from -35°C to +70°C
High mechanical durability rated for 20,000 switching cycles
Compliant with IEC 60898-1 international standards
CE, CB, and TÜV certified for quality assurance
Compact design with IP20 degree of protection

Request Quote

The TBC-416M miniature circuit breaker represents a robust solution for protecting electrical circuits in diverse environments. Its 4-pole design ensures complete protection across all phases and the neutral conductor, making it particularly suitable for three-phase installations.

Equipped with thermal-magnetic trip technology, the TBC-416M provides dual-mode protection: the thermal element guards against sustained overloads, while the magnetic element responds instantly to short-circuit conditions. The Type C tripping characteristic makes this MCB especially well-suited for circuits with moderate inrush currents, such as those powering fluorescent lighting, small motors, and transformers.

Built to withstand demanding conditions, the TBC-416M operates reliably across a wide temperature range and maintains performance in humidity levels up to 95%. Its DIN rail mounting system ensures straightforward installation in standard distribution boards, while the toggle control mechanism provides clear manual operation and position indication.

With comprehensive international certifications including CE, CB, and TÜV, the TBC-416M meets stringent safety and performance standards, giving installers and end-users confidence in its protective capabilities.

Trip Mechanism: The TBC-416M employs a proven thermal-magnetic trip mechanism. The thermal element consists of a bimetallic strip that bends under sustained overcurrent conditions, triggering the trip mechanism when the rated current is exceeded for a prolonged period. The magnetic element uses an electromagnetic coil that produces instantaneous tripping when short-circuit currents are detected.

Type C Tripping Curve: The Type C characteristic provides tripping between 5 and 10 times the rated current (In), making it ideal for circuits with moderate inductive loads. This curve balances sensitivity to fault conditions with immunity to normal inrush currents experienced during equipment startup.

Breaking Capacity: With a rated breaking capacity of 6kA at 415V AC, the TBC-416M can safely interrupt fault currents up to 6,000 amperes, suitable for most residential and commercial installations where prospective short-circuit currents are within this range.

Construction: The circuit breaker features a robust thermoplastic housing with silver-plated contacts to ensure low contact resistance and long service life. The arc chutes are designed to rapidly extinguish electrical arcs during interruption, protecting internal components and ensuring reliable operation.

Installation: Designed for standard 35mm DIN rail mounting, the TBC-416M integrates seamlessly into modern distribution boards. The 72mm width (equivalent to 4 modular units) accommodates the 4-pole configuration while maintaining compact installation footprint.

Residential distribution boards and consumer units for whole-house or zone protection
Commercial building electrical panels protecting lighting, HVAC, and power circuits
Light industrial installations including workshops, warehouses, and manufacturing facilities
Three-phase motor protection circuits in pumping systems and ventilation equipment
Protection of transformer secondary circuits in distribution networks
Electrical sub-distribution boards in multi-tenant buildings
Retail and hospitality environments requiring reliable circuit protection
Educational facilities and institutional buildings
Agricultural installations and farm electrical systems
General low-voltage protection circuits requiring 4-pole isolation

Parameter	Specification
Electrical Characteristics
Rated Voltage (Un)	415 V AC
Rated Frequency	50 / 60 Hz
Rated Impulse Voltage	4 kV
Network Type	AC
Number of Poles	4P
Rated Current (In)	16 A
Tripping Technology	Thermal-Magnetic
Tripping Curve	Type C
Tripping Time	< 0.1 s
Breaking Capacity	6 kA
Mechanical Characteristics
Control Type	Toggle Switch
Mounting Type	DIN Rail (35 mm)
Mechanical Durability	20,000 cycles
Electrical Durability	4,000 cycles
Physical Dimensions
Height	78 mm
Width	72 mm
Depth	66 mm
Environmental Conditions
Operating Temperature	-35 °C to +70 °C
Relative Humidity	0 – 95 %
Degree of Protection	IP20
Standards & Compliance
Standard	IEC 60898-1
Certifications	CE, CB, TÜV
