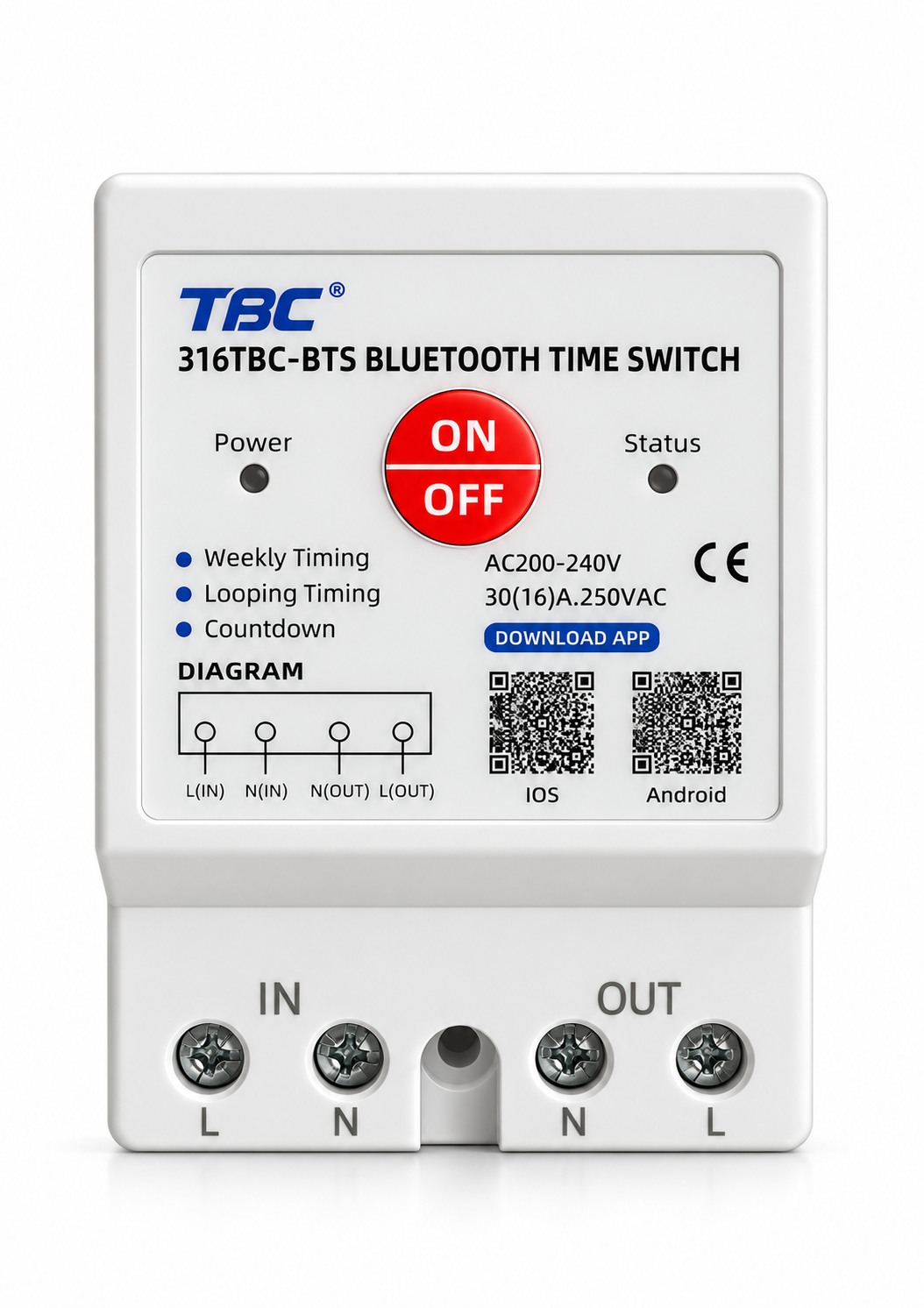

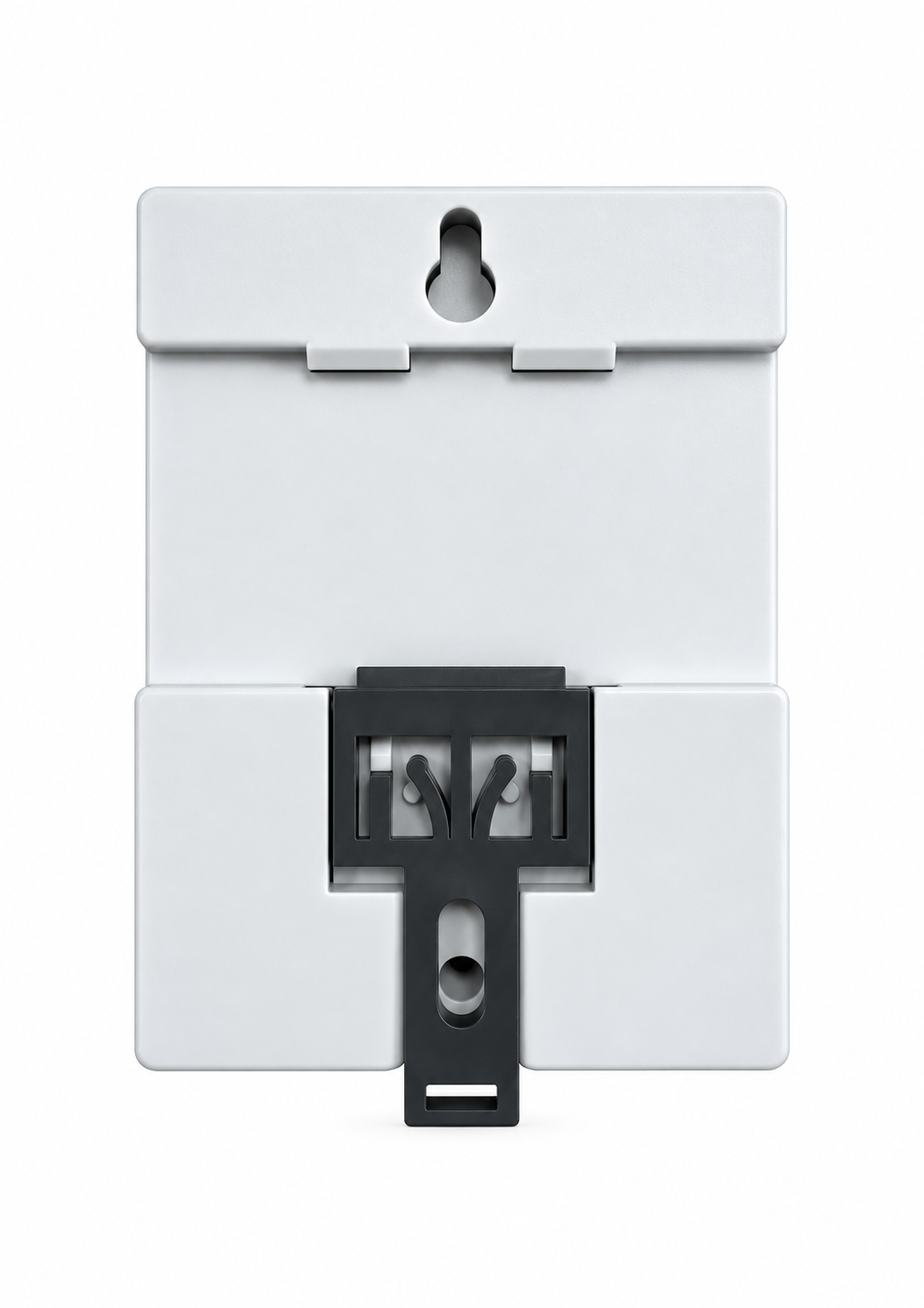

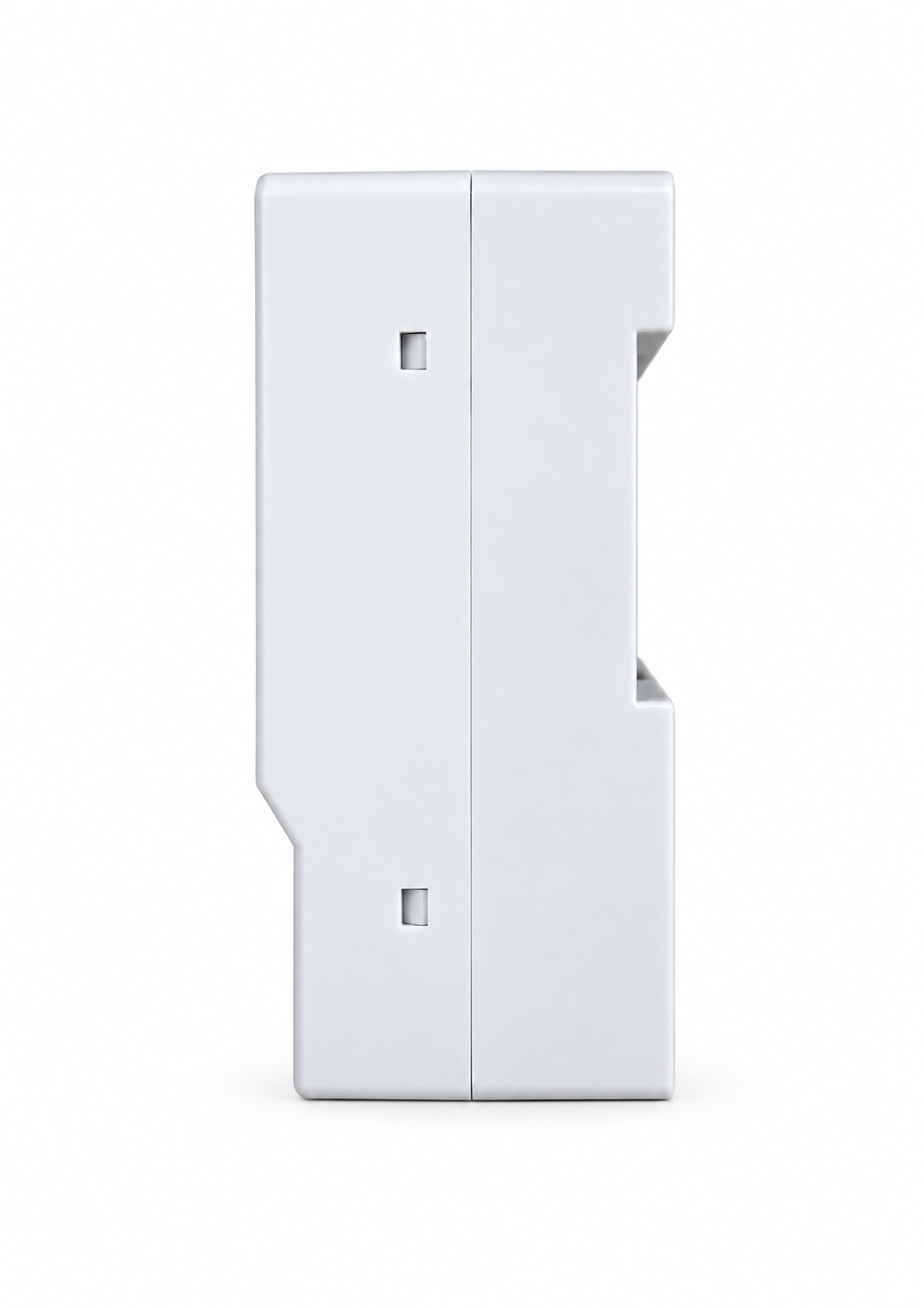

TBC 316TBC Bluetooth Timer

Name: TBC 316TBC Bluetooth Timer
Brand: TBC
SKU: 316TBC TIMER

316TBC TIMER

Key Features

28-Group Programming
Allows multiple ON/OFF schedules to be programmed for flexible automatic operation.

Bluetooth Control
Timer settings can be configured through a compatible mobile application without requiring direct programming at the device.

Weekly Timing
Allows operating schedules to be configured according to selected days of the week.

Looping Timing
Supports repetitive ON/OFF operating cycles for applications requiring recurring control.

Countdown
Provides timed operation based on a preset countdown period.

Manual ON/OFF
The front control button allows direct local switching when required.

Wiring Reference

INPUT: L(IN) / N(IN)
OUTPUT: N(OUT) / L(OUT)

Request Quote

Technical Parameter	Specification
Model	316TBC
Product Type	Bluetooth Programmable Time Switch
Programming Capacity	28 Groups
Rated Operating Voltage	AC 200–240V
Contact Rating	30(16)A, 250VAC
Control Method	Bluetooth / Manual
Weekly Timing	Yes
Looping Timing	Yes
Countdown Function	Yes
Manual ON/OFF	Yes
Power Indicator	Yes
Status Indicator	Yes
Input Terminals	L(IN), N(IN)
Output Terminals	L(OUT), N(OUT)
Height	83 mm
Width	63 mm
Depth	42 mm
Dimensions (H × W × D)	83 × 63 × 42 mm
