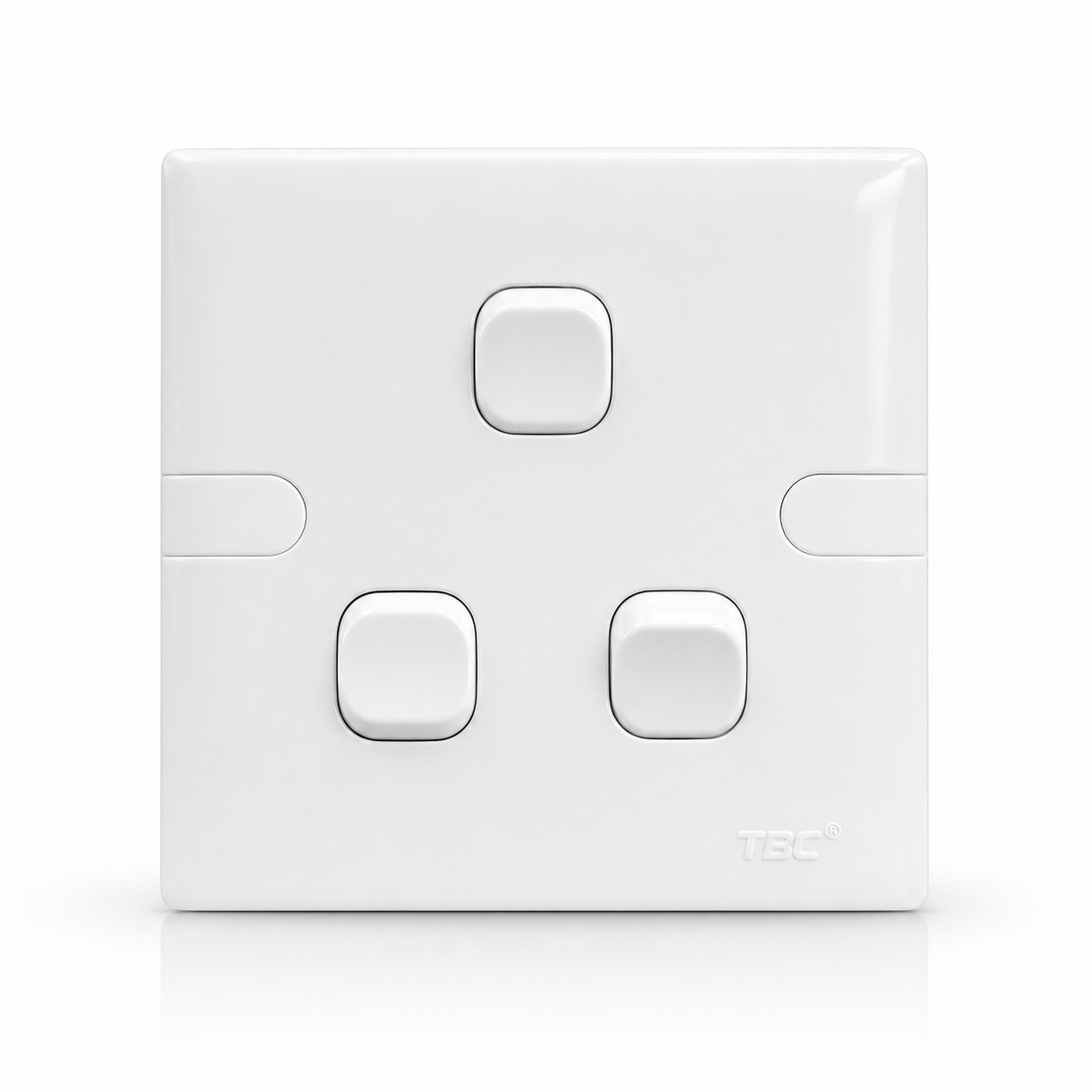

TBC 3 Gang 1 Way Switch ( T1-301 ) T-Series

Electrical Characteristics: The TBC T1-301 is rated for 10A at 250V AC, providing reliable switching capacity for standard lighting circuits. The rocker-style control mechanism ensures smooth operation with positive feedback, while the brass and phosphor bronze contact materials deliver excellent conductivity and long-term reliability.

Construction & Materials: All major components—plate, dolly, and base—are manufactured from high-quality polycarbonate (PC), a thermoplastic known for its impact resistance, dimensional stability, and flame-retardant properties. This material choice ensures the switch maintains its structural integrity and appearance throughout its service life.

Terminal Configuration: The switch features pillar-type terminals clearly marked as COM and L1, accommodating conductors up to 2.5 mm² in cross-section. This terminal design facilitates secure connections and simplifies installation and maintenance procedures.

Environmental Performance: With an IP20 protection rating, the T1-301 is protected against solid objects greater than 12.5mm and is suitable for indoor use. The switch operates reliably across a temperature range of -5°C to +40°C and can withstand humidity levels up to 95%, making it appropriate for typical indoor environmental conditions.

Standards Compliance: The T1-301 is manufactured in accordance with IEC 60669-1, the international standard for switches for household and similar fixed electrical installations, ensuring compliance with safety, performance, and durability requirements.

• Residential lighting control in homes, apartments, and condominiums
• Shoplots and commercial retail units for general lighting switching
• Office buildings and corporate facilities for workspace illumination control
• Renovation and refurbishment projects requiring modern, reliable switches
• General electrical installations in hotels, schools, and institutional buildings
• New construction projects requiring code-compliant switching devices
• Replacement of outdated or damaged switches in existing installations
• Interior lighting control in showrooms and exhibition spaces
