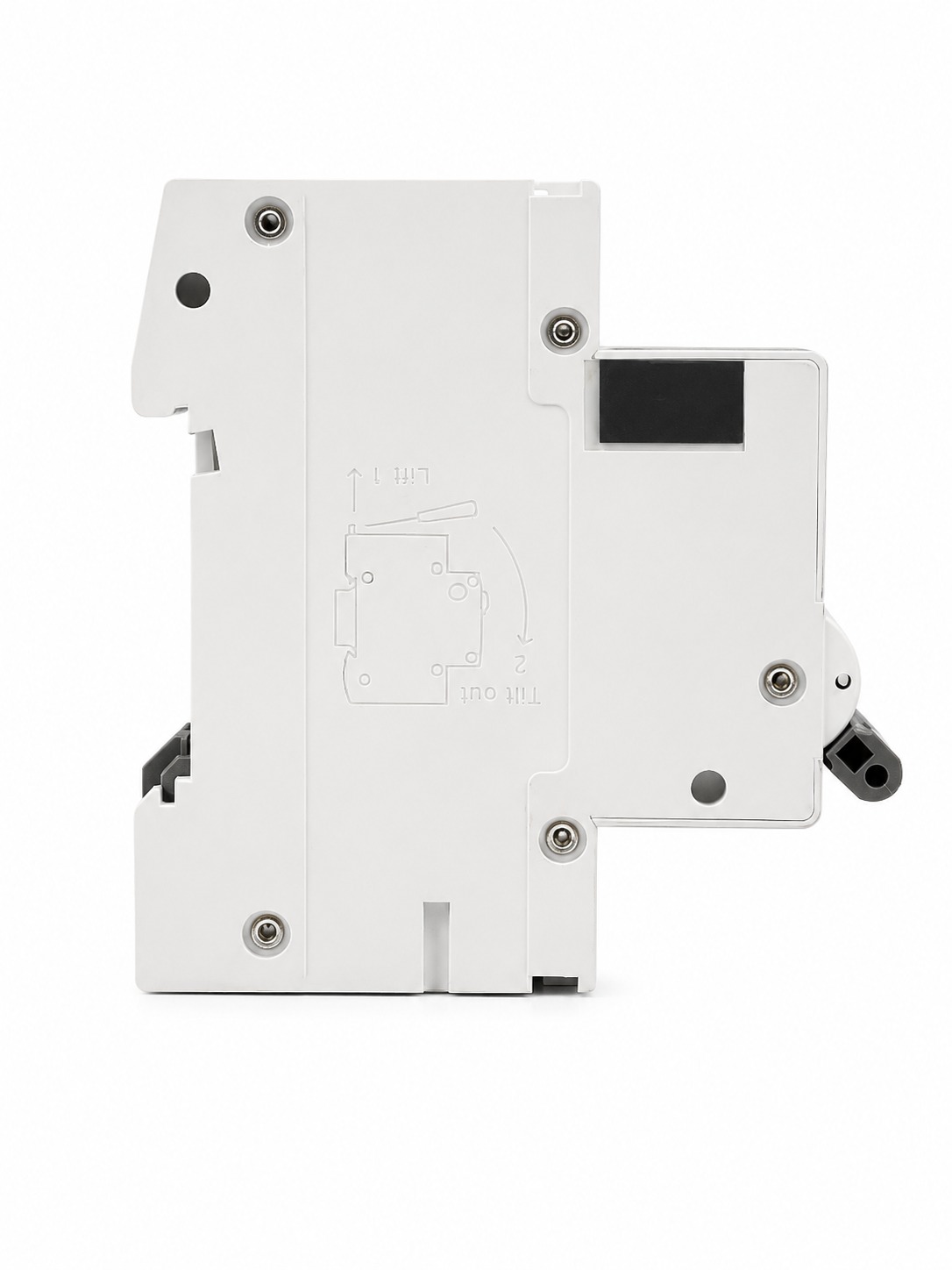

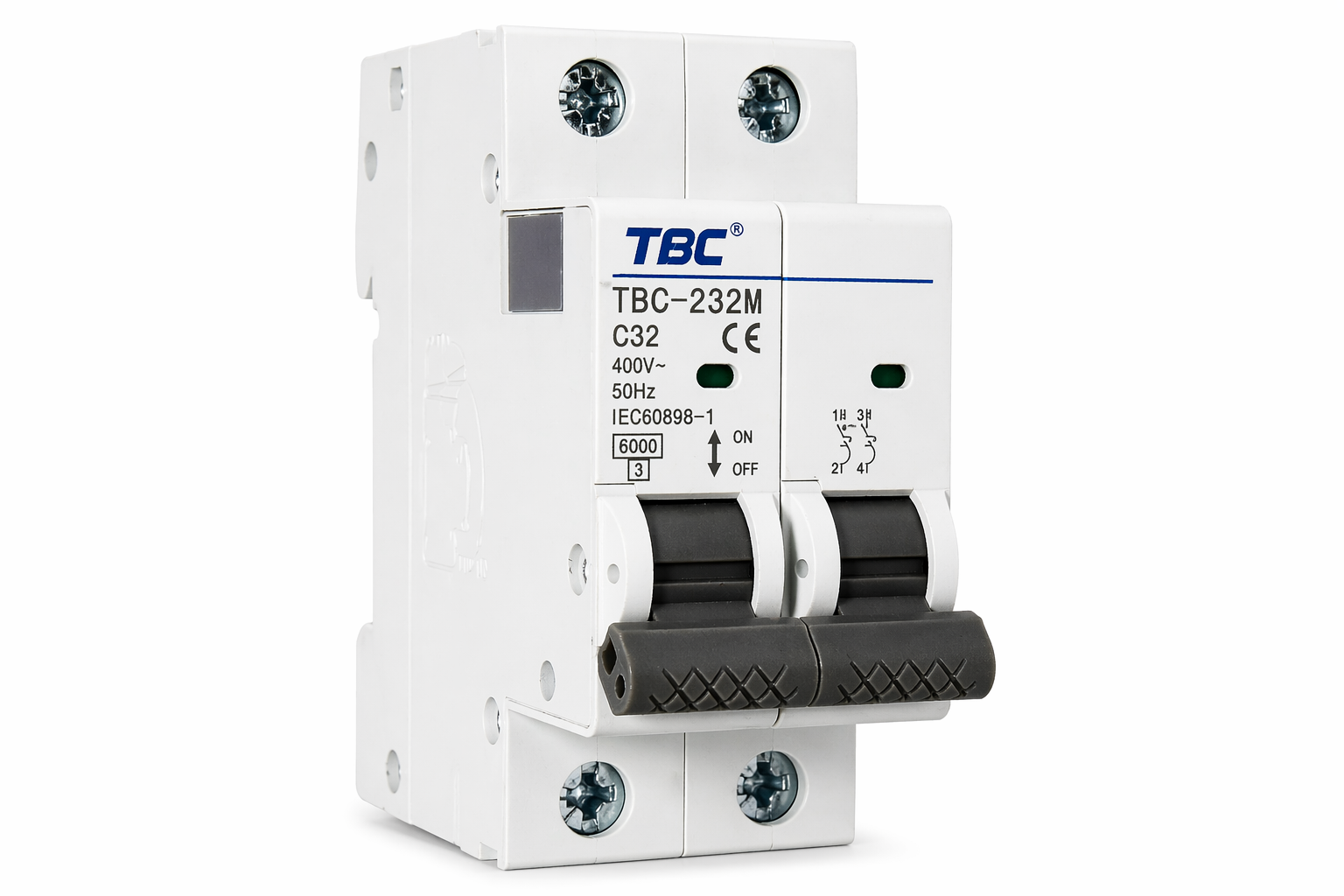

TBC-232M Miniature Circuit Breaker (MCB) 2P 32A 6kA

Tripping Technology: The TBC-232M employs thermal-magnetic tripping technology, combining a bimetallic thermal element for overload protection with an electromagnetic release for short-circuit protection. The Type C characteristic provides tripping at 5-10 times the rated current, making it ideal for general-purpose applications with moderate inrush currents.

Breaking Capacity: With a rated breaking capacity of 6kA at 415V AC, this MCB can safely interrupt fault currents up to 6,000 amperes, providing adequate protection for most residential and commercial installations.

Electrical Performance: Rated for 32A continuous current at 415V AC (50/60 Hz), the device features a rated impulse voltage withstand of 4kV, ensuring protection against transient overvoltages. The ultra-fast tripping time of less than 0.1 seconds minimizes potential damage during fault conditions.

Mechanical Design: The toggle control mechanism provides clear ON/OFF indication and manual operation. DIN rail mounting (35mm standard) enables quick installation and removal. The device offers exceptional durability with 20,000 mechanical operations and 4,000 electrical operations under load.

Environmental Protection: Constructed with IP20 degree of protection, the TBC-232M is suitable for indoor installation in dry or controlled environments. The wide operating temperature range (-35°C to +70°C) and humidity tolerance (0-95%) ensure reliable performance across diverse climatic conditions.

Standards Compliance: Manufactured in accordance with IEC 60898-1 international standard for miniature circuit breakers, ensuring consistent performance and safety. CB CERT, CE marking, and TÜV certification validate compliance with European and international safety requirements.

• Residential distribution boards and consumer units
• Commercial building electrical installations
• Light industrial electrical distribution systems
• Office buildings and retail facilities
• Educational institutions and healthcare facilities
• Lighting circuits and general power distribution
• HVAC system protection circuits
• Motor control and protection applications
• Electrical panel boards and sub-distribution boards
• Renovation and retrofit projects
• New construction electrical installations
• General low-voltage protection circuits up to 415V AC
