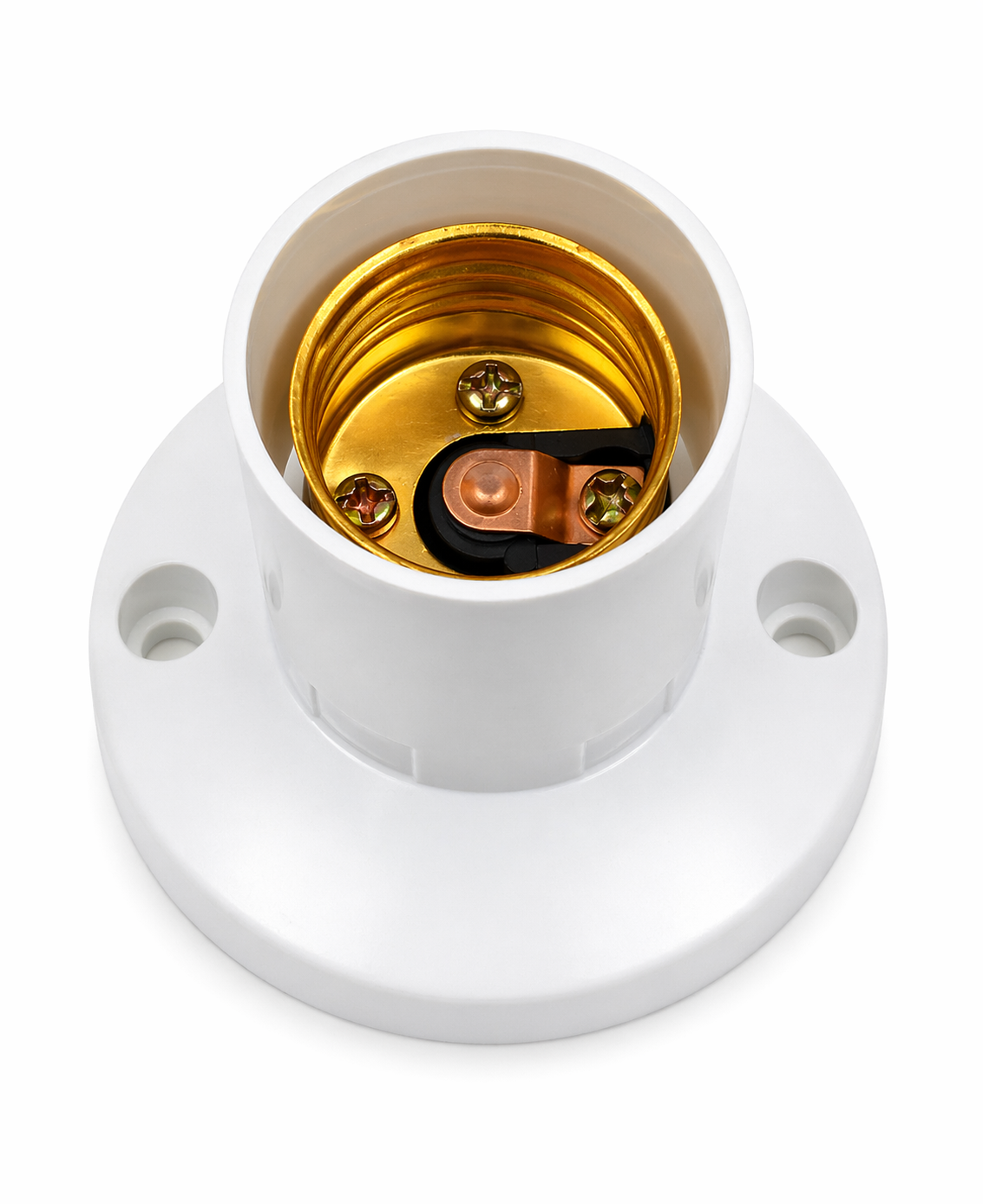

The TBC 220E E27 Lampholder is a reliable and widely compatible lighting solution designed for indoor applications. With its screw-type E27 interface and durable bakelite construction, it provides secure lamp installation and long-lasting performance in residential, commercial, and utility environments.
The TBC 220E E27 Lampholder offers a dependable lighting solution for a wide range of indoor applications. Engineered with a heat-resistant bakelite body and precision brass contacts, this lampholder ensures safe and stable operation in residential and commercial settings.
Featuring the globally recognized E27 screw-type interface, the 220E provides universal compatibility with standard light bulbs. Its surface mount design allows for straightforward installation on walls or ceilings, making it ideal for utility rooms, shoplots, residential spaces, and temporary lighting setups.
Built to withstand operating temperatures from -5°C to +40°C and humidity levels up to 95%, this lampholder delivers consistent performance in typical indoor environments. The white bakelite housing combines aesthetic appeal with functional durability, while the gold-finished internal threading ensures optimal electrical conductivity.
With a rated capacity of 5A at 250V AC and support for bulbs up to 60W, the TBC 220E strikes the perfect balance between versatility and safety for everyday lighting needs.
Electrical Ratings: The TBC 220E is rated for 5A current at 250V AC, supporting bulbs up to 60W maximum wattage. The E27 screw-type cap interface provides secure mechanical and electrical connection with standard Edison screw bulbs.
Construction Materials: The lampholder body is manufactured from heat-resistant bakelite, a thermosetting plastic known for its excellent insulation properties and thermal stability. Electrical contacts are made from brass with a gold finish to ensure superior conductivity and corrosion resistance.
Environmental Performance: Designed for indoor use with IP20 protection rating, the lampholder operates reliably in temperatures ranging from -5°C to +40°C and humidity levels up to 95%. The heat-resistant construction minimizes thermal degradation during extended operation.
Installation Method: Surface mount configuration allows for direct installation on walls, ceilings, or other flat surfaces. The compact design facilitates easy integration into various lighting fixtures and applications.
Safety Features: The bakelite housing provides electrical insulation and heat resistance, while the stable contact design ensures consistent electrical connection, reducing the risk of arcing or overheating.
| Parameter | Specification |
|---|---|
| Model Number | 220E |
| Product Type | Lampholder / Light Socket |
| Cap Type | E27 (Edison Screw Type) |
| Rated Current | 5A |
| Rated Voltage | 250V AC |
| Rated Wattage | 60W Maximum |
| Mounting Type | Surface Mount |
| Protection Degree | IP20 |
| Body Material | Bakelite (Heat Resistant) |
| Contact Material | Brass with Gold Finish |
| Housing Color | White |
| Operating Temperature | -5°C to +40°C |
| Humidity Range | Up to 95% |
| Application | Indoor Lighting |
| Installation | Wall or Ceiling Mount |
