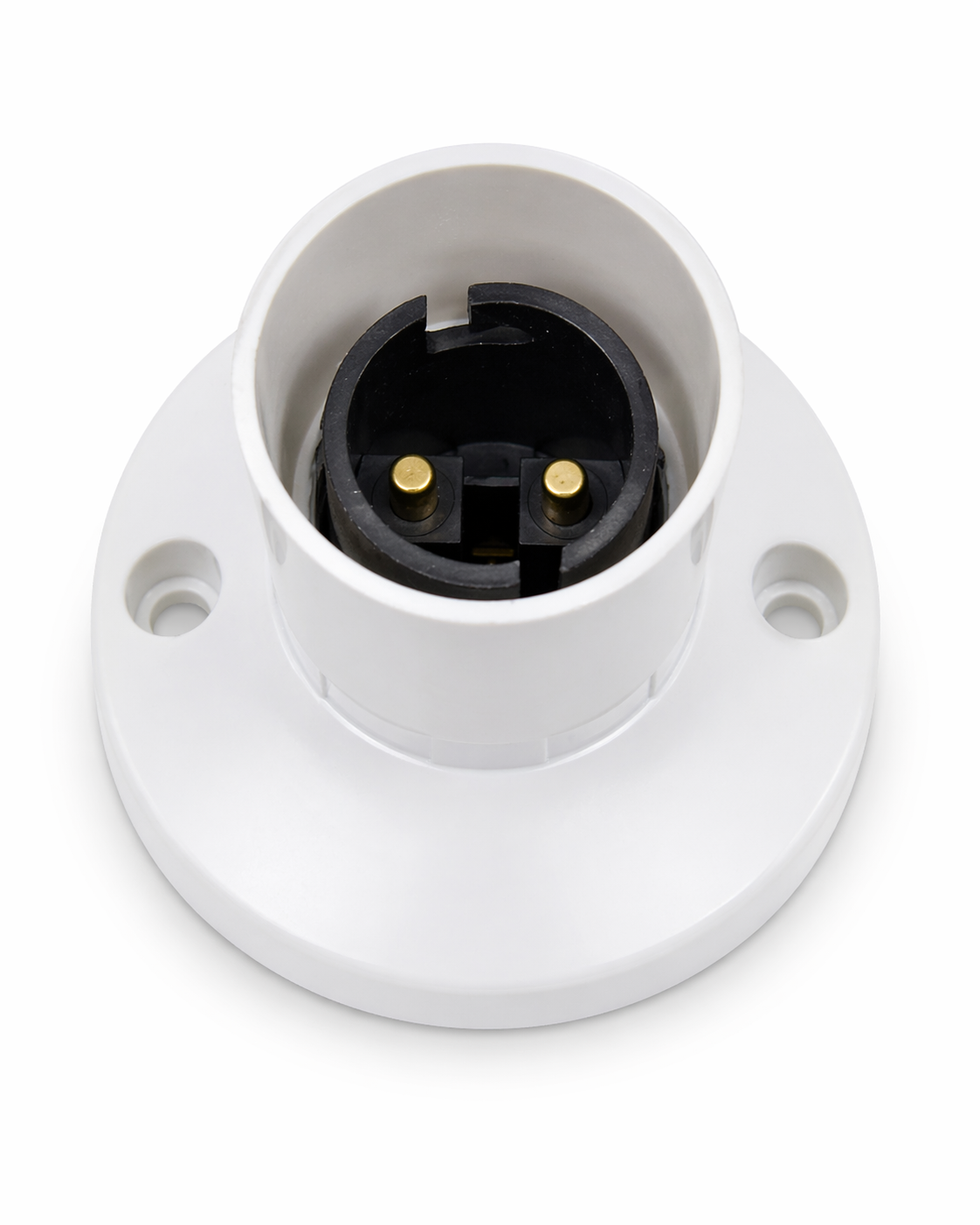

TBC 220BP B22 Bakelite Battern Lamp holder

The TBC 220BP operates as a passive electrical fitting, providing a mechanically secure and electrically insulated interface between the fixed wiring installation and the B22 bayonet-cap lamp. The bakelite housing serves as the primary insulating medium, separating live conductors from accessible surfaces and maintaining dielectric integrity under the thermal and electrical stresses of continuous operation at up to 5A and 250V AC.

Conductor terminations within the lampholder are designed to accept and retain supply conductors securely, ensuring low-resistance electrical contact throughout the service life of the fitting. The bayonet-cap lamp socket mechanism provides positive lamp retention, preventing unintended lamp displacement during normal use. The assembly is rated to a maximum lamp power of 60W, consistent with its thermal design limits.

• Residential Lighting: Suitable for bedroom, living room, hallway, and general domestic lighting circuits using B22 lamps.
• Commercial Premises: Appropriate for offices, retail shops, and showrooms requiring straightforward, cost-effective lamp fittings.
• Corridors and Stairwells: Compact batten design is well suited to narrow or confined indoor passage lighting installations.
• Storerooms and Utility Areas: Provides reliable lighting support in non-hazardous indoor storage and utility spaces.
• Light Industrial Facilities: Applicable in dry indoor areas of workshops or light manufacturing environments where IP20 protection is adequate.
• Hospitality and Accommodation: Used in hotel back-of-house areas, service corridors, and utility rooms requiring simple, maintainable lamp fittings.
• Educational and Institutional Buildings: Suitable for classrooms, administrative offices, and ancillary spaces in schools and public buildings.
