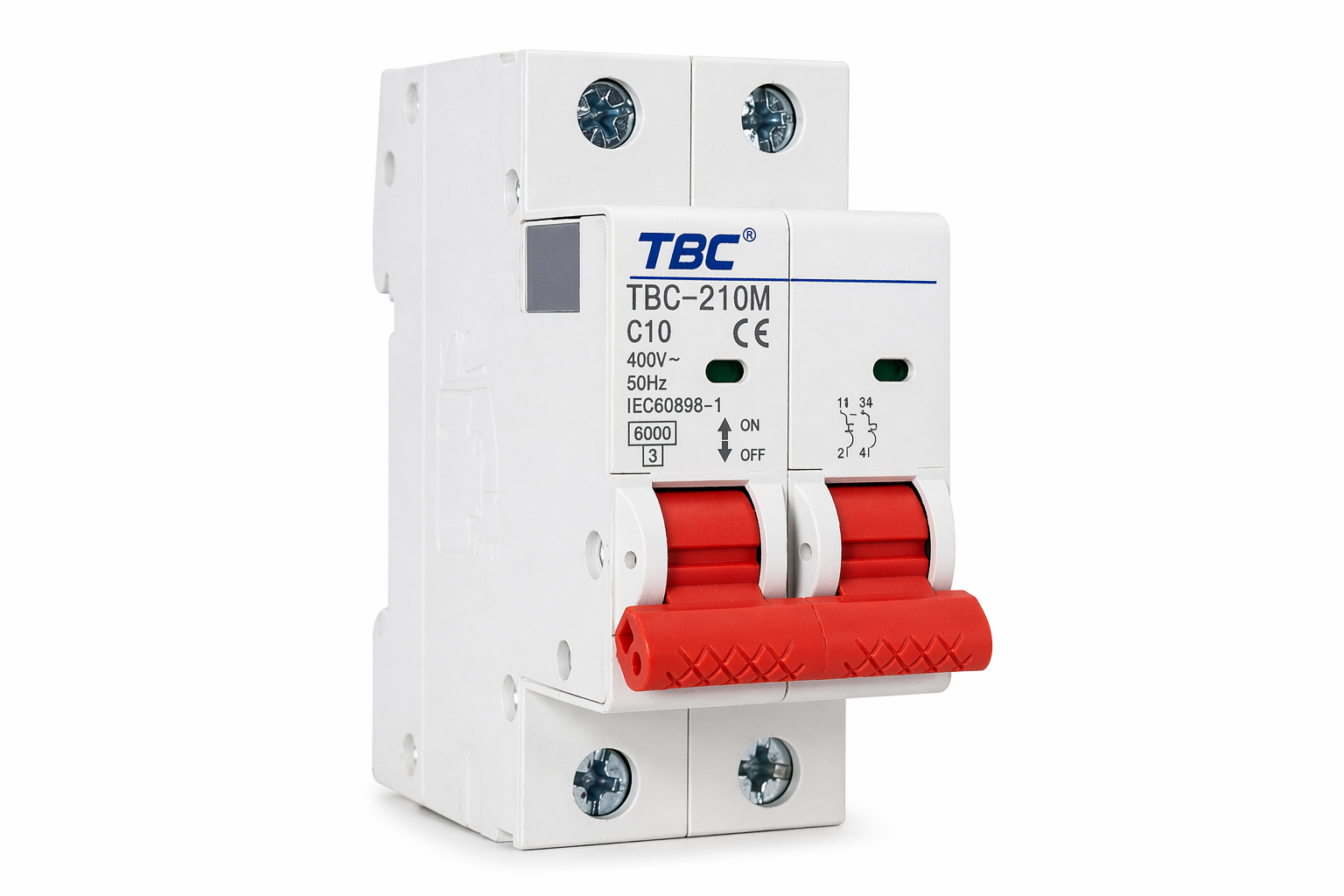

TBC-210M Miniature Circuit Breaker (MCB) 2P 10A 6kA

Name: TBC-210M Miniature Circuit Breaker (MCB) 2P 10A 6kA
Brand: TBC
SKU: TBC-210M

TBC-210M

The TBC-210M is a high-performance 2-pole miniature circuit breaker engineered to deliver dependable protection against overload and short-circuit faults in low-voltage electrical distribution systems. Featuring thermal-magnetic tripping technology with Type C characteristic and 6kA breaking capacity, this MCB is ideal for safeguarding circuits in residential, commercial, and light industrial environments. Compliant with IEC 60898-1 standards and certified by leading international bodies, the TBC-210M ensures reliable operation and long service life.

Key Features

2-pole configuration for comprehensive circuit protection
10A rated current suitable for standard electrical loads
6kA breaking capacity for effective short-circuit interruption
Type C tripping curve optimized for inductive loads and motor circuits
Thermal-magnetic tripping technology for dual protection against overload and short-circuit
Fast tripping time of less than 0.1 seconds for enhanced safety
DIN rail mounting (35mm) for quick and easy installation
Wide operating temperature range from -35°C to +70°C
High mechanical durability with 20,000 operations lifecycle
Compact design: 36mm width for space-efficient panel installation
IP20 degree of protection for standard indoor environments
IEC 60898-1 compliant with CB, CE, and TÜV certifications

Request Quote

The TBC-210M Miniature Circuit Breaker represents a robust solution for protecting electrical circuits in diverse applications. This 2-pole MCB combines advanced thermal-magnetic tripping technology with a Type C characteristic curve, making it particularly suitable for circuits with moderate inductive loads such as lighting systems, small motors, and general power distribution.

Designed to meet the demanding requirements of modern electrical installations, the TBC-210M offers a breaking capacity of 6kA at 415V AC, ensuring reliable interruption of fault currents. The device features a user-friendly toggle control mechanism and standard 35mm DIN rail mounting for seamless integration into existing distribution boards.

Built to withstand harsh environmental conditions, this MCB operates reliably across a temperature range of -35°C to +70°C and tolerates humidity levels up to 95%. With a mechanical durability rating of 20,000 operations and electrical durability of 4,000 operations, the TBC-210M delivers long-term performance and minimal maintenance requirements.

Certified to international standards including IEC 60898-1 and bearing CB, CE, and TÜV marks, the TBC-210M provides assurance of quality, safety, and regulatory compliance for professional electrical installations worldwide.

Tripping Technology: The TBC-210M employs thermal-magnetic tripping technology, combining a bimetallic thermal element for overload protection with an electromagnetic release for short-circuit protection. The Type C characteristic provides tripping at 5-10 times the rated current, making it ideal for circuits with moderate inductive loads.

Breaking Capacity: With a rated breaking capacity of 6kA at 415V AC, this MCB can safely interrupt fault currents up to 6,000 amperes, providing adequate protection for residential and light commercial installations.

Electrical Ratings: The device is rated for 10A continuous current at 415V AC, suitable for both 50Hz and 60Hz systems. It features a rated impulse voltage withstand of 4kV, ensuring protection against transient overvoltages.

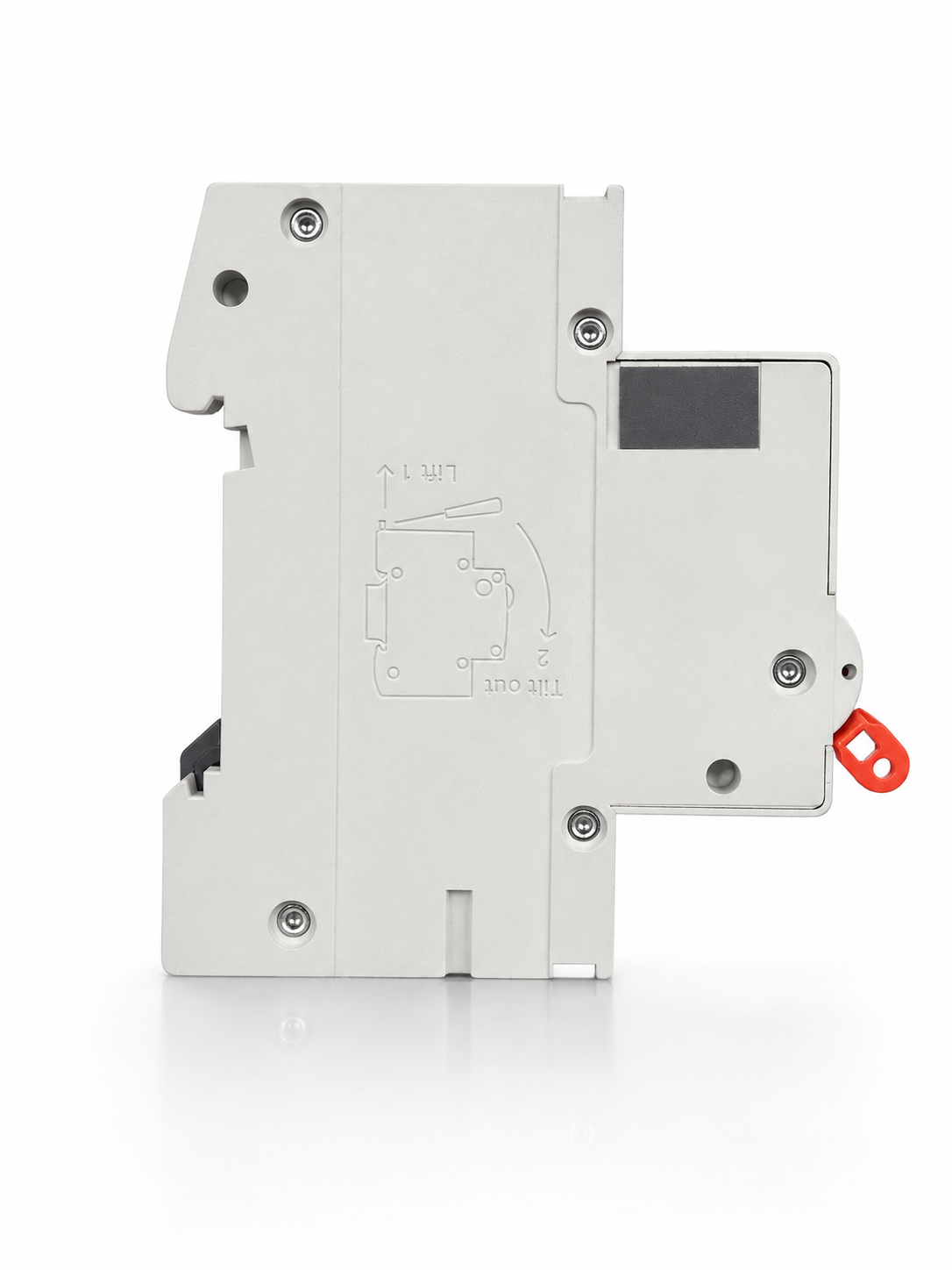

Mechanical Design: The compact housing measures 78mm (H) × 36mm (W) × 66mm (D), occupying just 2 modular spaces in a standard distribution board. The robust toggle mechanism provides clear ON/OFF indication and reliable manual operation.

Installation: Standard 35mm DIN rail mounting enables quick installation and removal without tools. The IP20 protection rating makes it suitable for installation in dry indoor environments with protection against solid objects larger than 12.5mm.

Durability: Engineered for long service life with mechanical durability of 20,000 operations and electrical durability of 4,000 operations under load conditions. The wide operating temperature range of -35°C to +70°C ensures reliable performance in various climatic conditions.

Residential distribution boards and consumer units
Commercial building electrical panels and sub-distribution boards
Light industrial electrical systems and machinery circuits
Lighting circuits in offices, retail spaces, and public buildings
Power distribution for HVAC systems and small motors
Protection of socket outlet circuits in commercial installations
Electrical installations in educational facilities and healthcare buildings
General low-voltage protection circuits in mixed-use developments
Renovation and retrofit projects requiring reliable circuit protection
Backup and emergency power distribution systems

Parameter	Specification
Model Number	TBC-210M
Type	Miniature Circuit Breaker (MCB)
Number of Poles	2P
Rated Current (In)	10 A
Rated Voltage (Un)	415 V AC
Rated Frequency	50 / 60 Hz
Rated Impulse Voltage	4 kV
Network Type	AC
Tripping Technology	Thermal-Magnetic
Tripping Curve	Type C
Tripping Time	t < 0.1 s
Breaking Capacity (Icn)	6 kA
Control Type	Toggle
Mounting Type	DIN Rail (35 mm)
Mechanical Durability	20,000 operations
Electrical Durability	4,000 operations
Operating Temperature	−35 °C to +70 °C
Relative Humidity	0 – 95 %
Degree of Protection	IP20
Height	78 mm
Width	36 mm
Depth	66 mm
Standards Compliance	IEC 60898-1
Certifications	CB CERT, CE, TÜV
