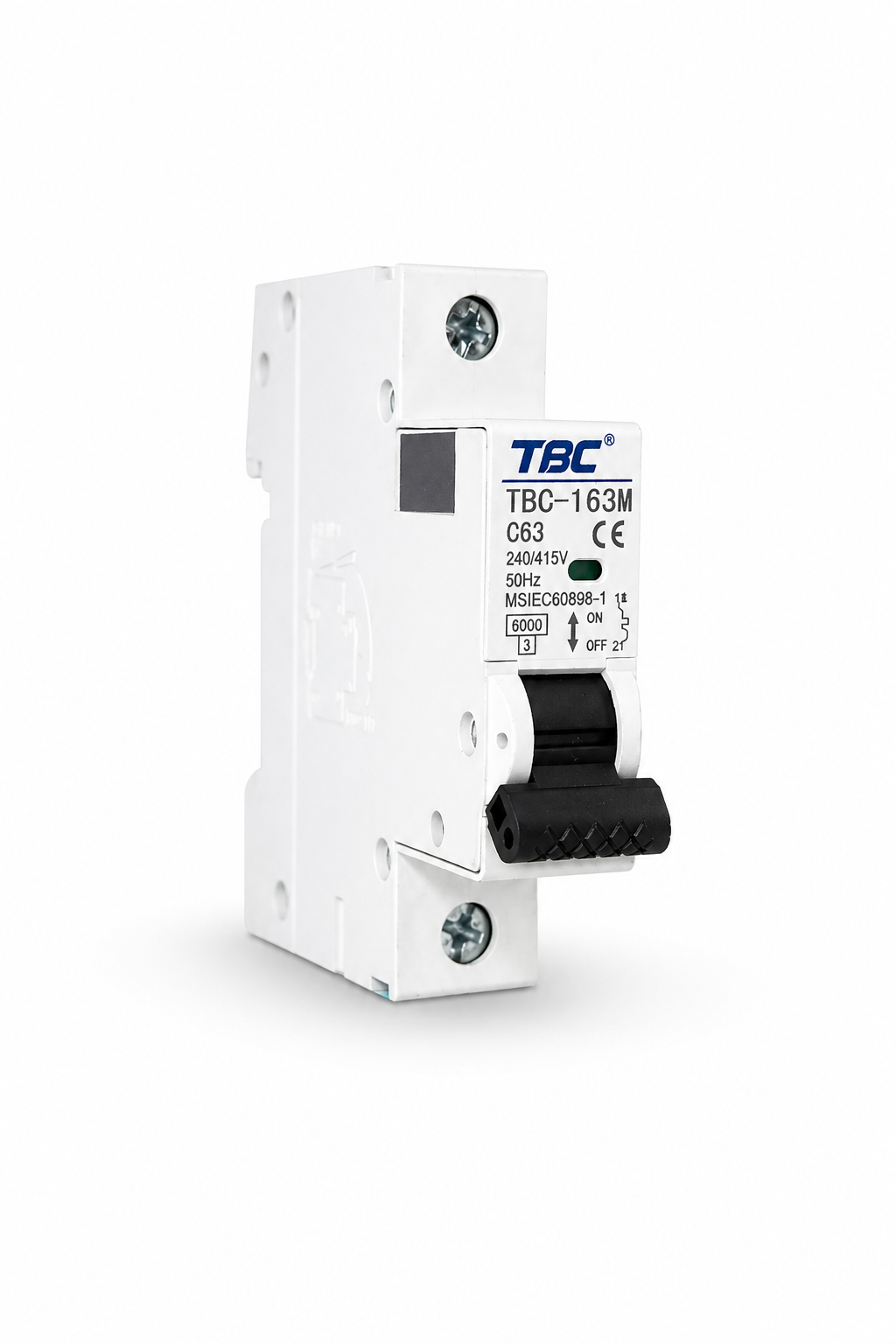

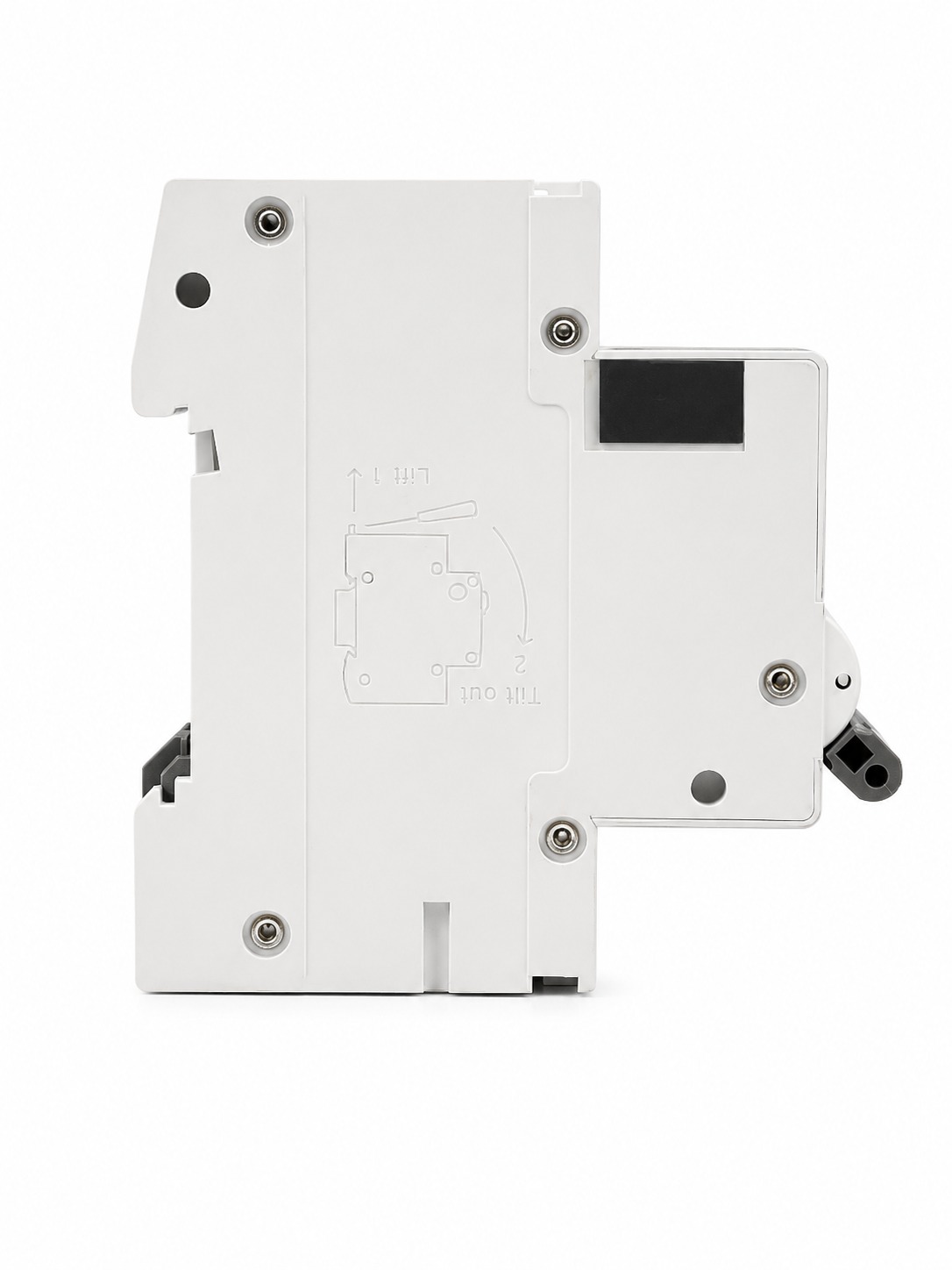

The TBC-163M is a high-performance 1-pole miniature circuit breaker engineered for dependable protection against overload and short-circuit conditions in low-voltage electrical distribution systems. Featuring a proven thermal-magnetic trip mechanism, this MCB ensures fast and safe disconnection to protect your electrical infrastructure and connected equipment.
The TBC-163M miniature circuit breaker is designed to meet the demanding requirements of modern electrical distribution systems. With its 63A rated current capacity and robust 6 kA short-circuit breaking capability, this MCB provides comprehensive protection for residential, commercial, and light industrial applications.
Built with a thermal-magnetic trip unit, the TBC-163M combines thermal protection against sustained overloads with magnetic protection against short-circuit faults. The Type C tripping characteristic makes it ideal for applications with moderate inrush currents, including lighting circuits, socket outlets, and general distribution.
The compact single-module design (18 mm width) maximizes panel space utilization, while the standard DIN-rail mounting ensures compatibility with existing distribution boards. Clear visual indication of the switching position enhances operational safety and simplifies maintenance procedures.
Trip Mechanism: The TBC-163M employs a thermal-magnetic trip unit technology that provides dual protection. The thermal element responds to sustained overload conditions, while the magnetic element provides instantaneous protection against short-circuit currents.
Type C Tripping Curve: The Type C characteristic is optimized for circuits with moderate inrush currents. Magnetic tripping occurs between 5 and 10 times the rated current, making it suitable for general distribution, lighting, and socket circuits.
Breaking Capacity: With a rated short-circuit breaking capacity of 6 kA at 240/415 V AC, the TBC-163M is suitable for most residential and commercial installations where fault levels are within this range.
Environmental Performance: The MCB operates reliably across a wide temperature range (-35 °C to +70 °C) and humidity conditions (0-95% RH), ensuring consistent performance in diverse installation environments.
Standards Compliance: Fully compliant with IEC 60898 international standards and certified by leading certification bodies including CB, CE, and TÜV, ensuring quality, safety, and global acceptance.
| Parameter | Specification |
|---|---|
| Product Type | Miniature Circuit Breaker (MCB) |
| Model Number | TBC-163M |
| Application | Distribution |
| Control Type | Toggle |
| Number of Poles | 1 Pole (1P) |
| Rated Current (In) | 63 A |
| Rated Voltage (Un) | 240 / 415 V AC |
| Rated Impulse Voltage | 4 kV |
| Frequency | 50 / 60 Hz |
| Network Type | AC |
| Trip Unit Technology | Thermal-Magnetic |
| Tripping Curve | Type C |
| Tripping Time | t < 0.1 s |
| Breaking Capacity (Icn) | 6 kA |
| Mounting Type | DIN Rail (35 mm) |
| Mechanical Durability | 20,000 cycles |
| Electrical Durability | 4,000 cycles |
| Height | 78 mm |
| Width | 18 mm (1 Module) |
| Depth | 66 mm |
| Operating Temperature | -35 °C to +70 °C |
| Relative Humidity | 0 – 95 % |
| Degree of Protection | IP20 |
| Standards Compliance | IEC 60898, CB CERT, CE, TÜV |
