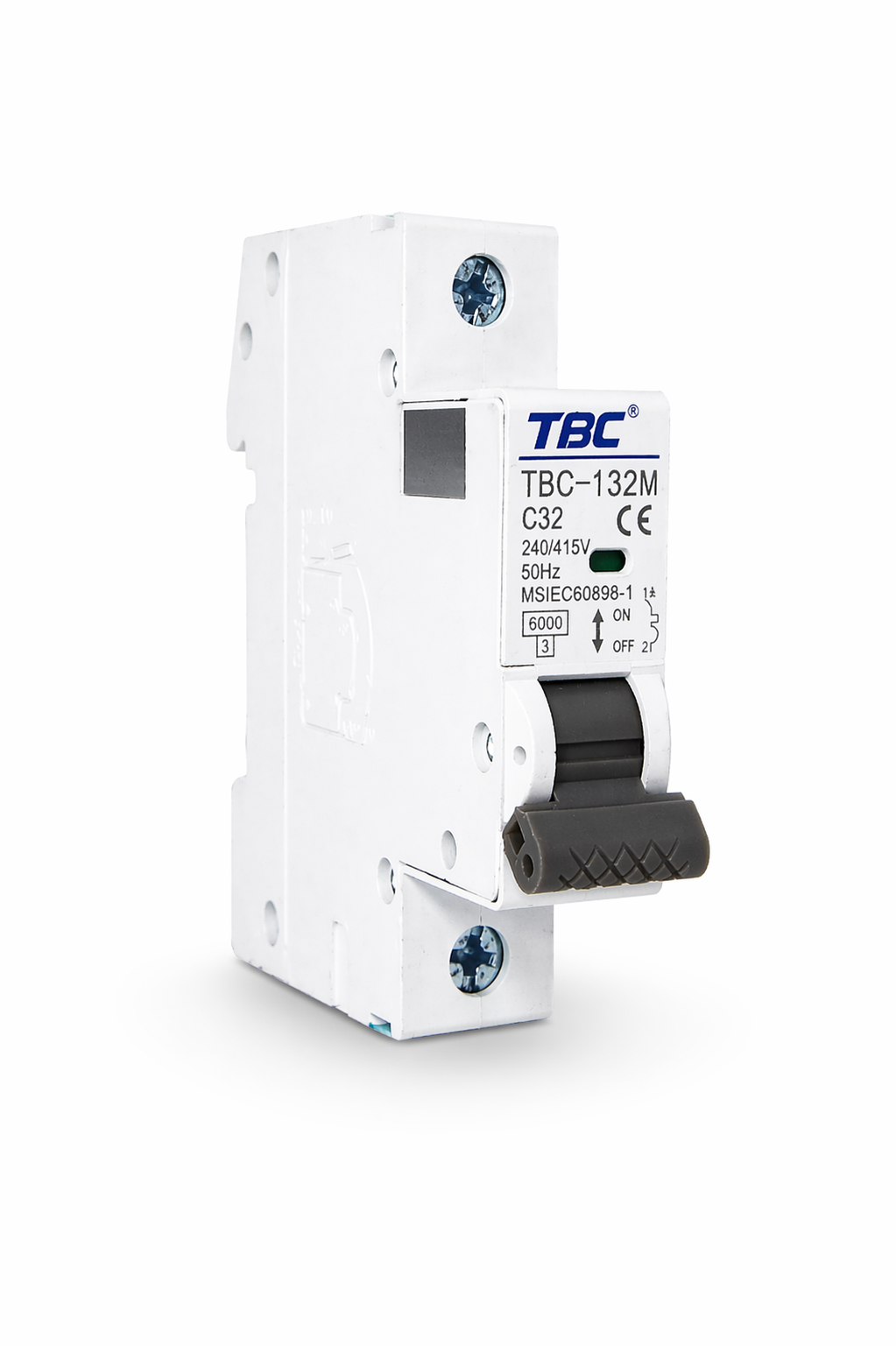

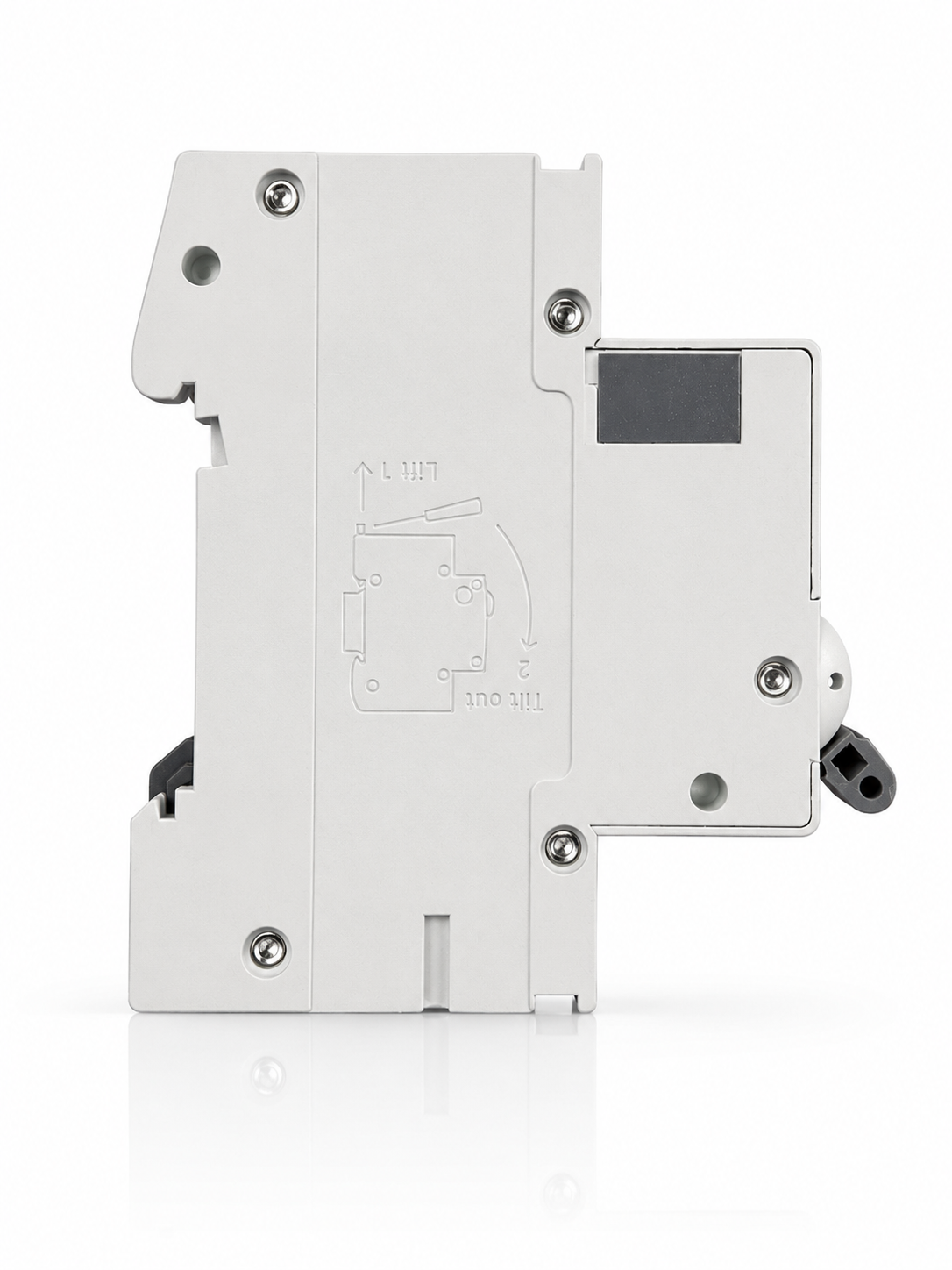

TBC-132M Miniature Circuit Breaker (MCB) 1P 32A 6kA

Trip Mechanism: The TBC-132M employs a thermal-magnetic trip unit that combines a bimetallic thermal element for overload protection with an electromagnetic release for short-circuit protection. The Type C tripping curve provides a tripping range of 5-10 times the rated current, making it suitable for circuits with moderate switching surges.

Breaking Performance: With a rated breaking capacity of 6 kA at 240/415V AC, this MCB can safely interrupt fault currents up to 6,000 amperes. The tripping time of less than 0.1 seconds ensures rapid disconnection to minimize damage to downstream equipment and wiring.

Electrical Ratings: The circuit breaker is rated for 32A continuous current at an ambient temperature of up to 70°C. It operates on both 50 Hz and 60 Hz AC networks and features a rated impulse voltage withstand of 4 kV, providing protection against transient overvoltages.

Construction & Materials: The housing is manufactured from high-quality thermoplastic material with flame-retardant properties. Internal contacts are designed for low contact resistance and high arc extinction capability. The device meets IP20 ingress protection rating, suitable for installation in enclosed distribution boards.

Standards Compliance: Fully compliant with IEC-60898 international standard for miniature circuit breakers. Certified by CB scheme, CE marked for European markets, and TÜV tested for safety and performance.

• Residential distribution boards and consumer units
• Commercial electrical panels and sub-distribution boards
• Lighting circuits in buildings and facilities
• Socket outlet circuits for general-purpose loads
• Small motor and appliance protection
• Office and retail electrical installations
• Educational and institutional buildings
• General low-voltage protection in industrial control panels
• Temporary power distribution systems
• Renovation and retrofit projects
