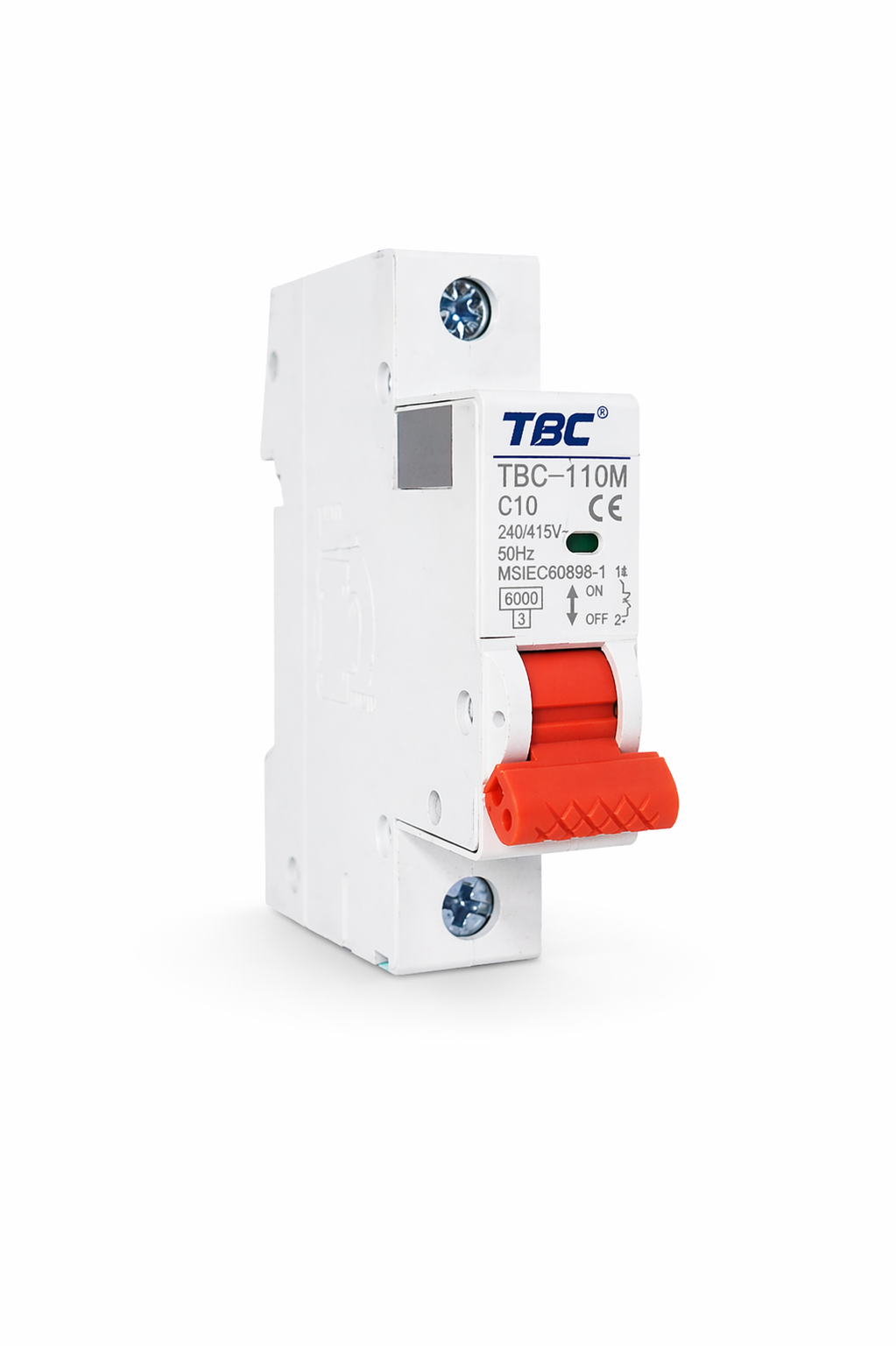

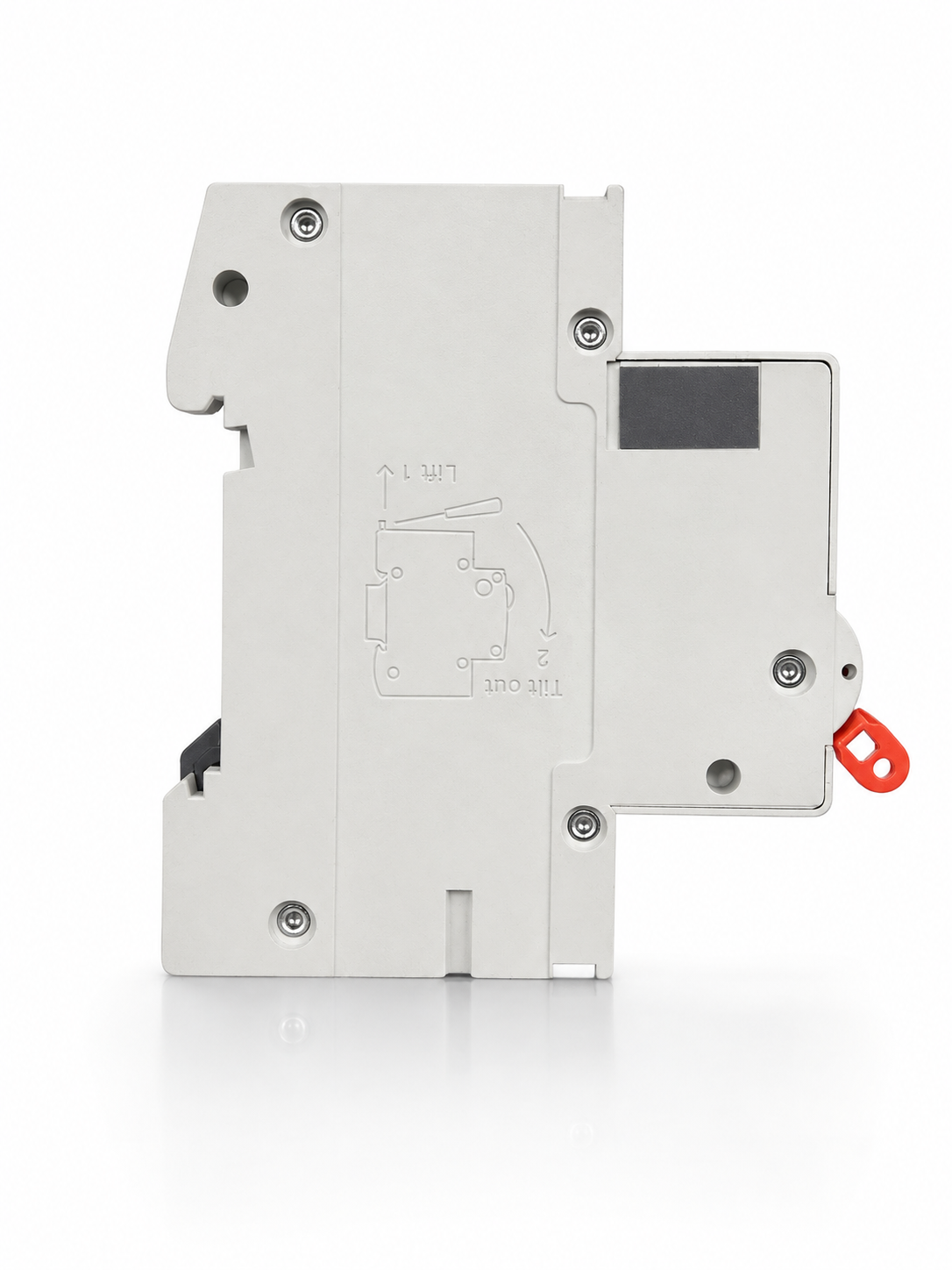

TBC-110M Miniature Circuit Breaker (MCB) 1P 10A 6kA

Trip Mechanism: The TBC-110M employs a thermal-magnetic trip mechanism that combines two protection functions. The thermal element provides time-delayed protection against overload conditions, while the magnetic element offers instantaneous protection against short-circuit faults.

Type C Tripping Curve: With a Type C characteristic, this MCB trips between 5 and 10 times the rated current, making it suitable for circuits with moderate inrush currents such as lighting, socket outlets, and general distribution applications.

Breaking Capacity: The 6 kA breaking capacity (Icn) ensures reliable interruption of fault currents in typical low-voltage distribution networks. The rated impulse withstand voltage of 4 kV provides additional protection against voltage surges.

Durability: Engineered for long service life, the TBC-110M offers mechanical durability of 20,000 operations and electrical durability of 4,000 operations under load conditions.

Environmental Performance: The wide operating temperature range (-35°C to +70°C) and humidity tolerance (0-95% RH) ensure reliable operation in diverse environmental conditions.

• Residential distribution boards and consumer units
• Commercial electrical panels and sub-distribution boards
• Lighting circuits in buildings and facilities
• Socket outlet circuits for general power distribution
• Small appliance and equipment protection
• Retail and office electrical installations
• Educational facilities and institutional buildings
• Light industrial control panels
• General low-voltage circuit protection applications
