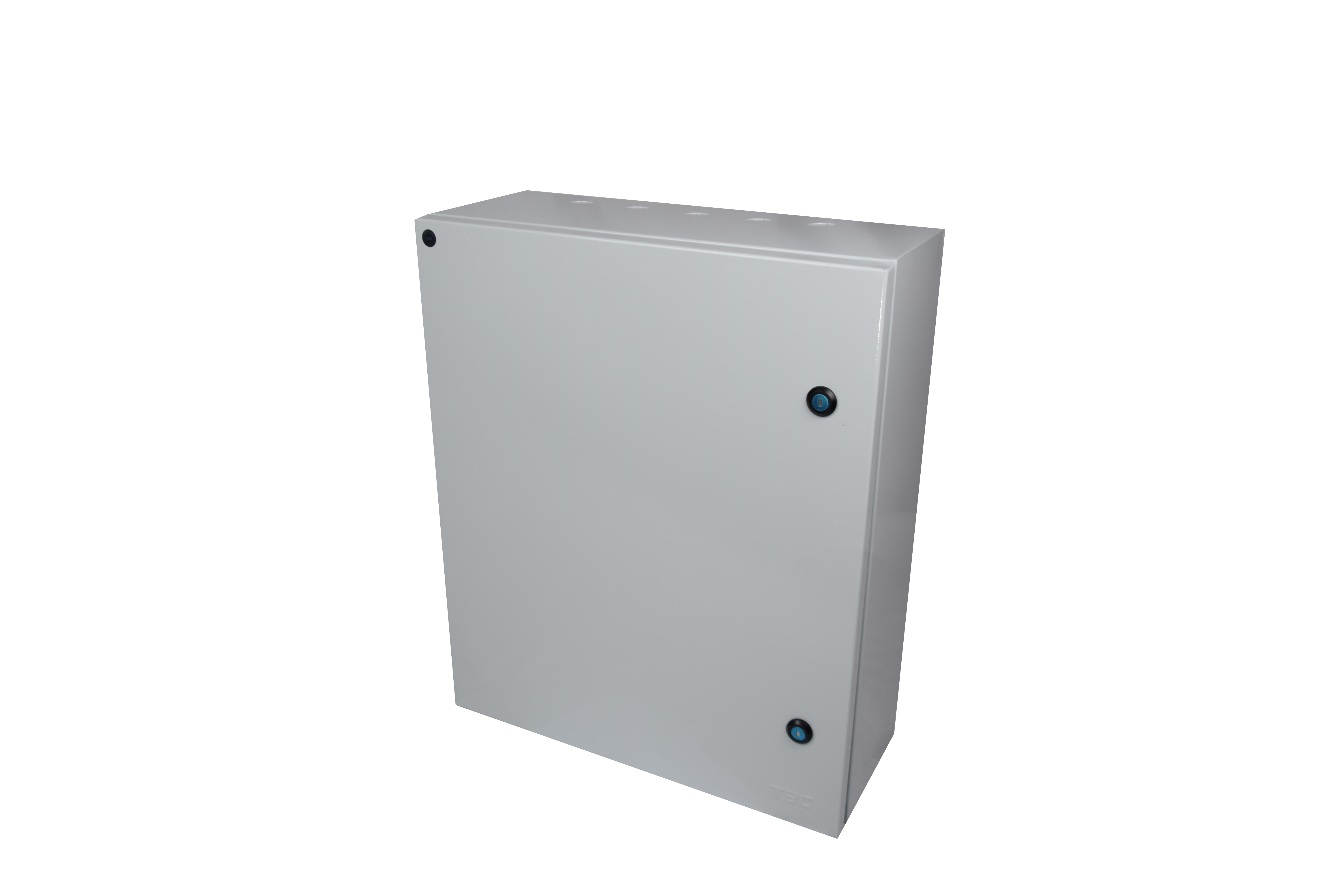

The TBC DB 600 × 500 × 200 Sheet Metal Enclosure Box is designed for reliable protection of electrical and control components in industrial and commercial installations. Manufactured from durable sheet steel, it provides strong mechanical protection and a clean, professional finish suitable for wall-mounted applications.
The DB 600 × 500 × 200 Metal Enclosure Box offers a reliable and professional solution for protecting electrical distribution and control equipment in demanding industrial and commercial environments. Constructed from high-quality sheet steel, this wall-mounted enclosure provides excellent mechanical strength and protection against dust, moisture, and physical impact.

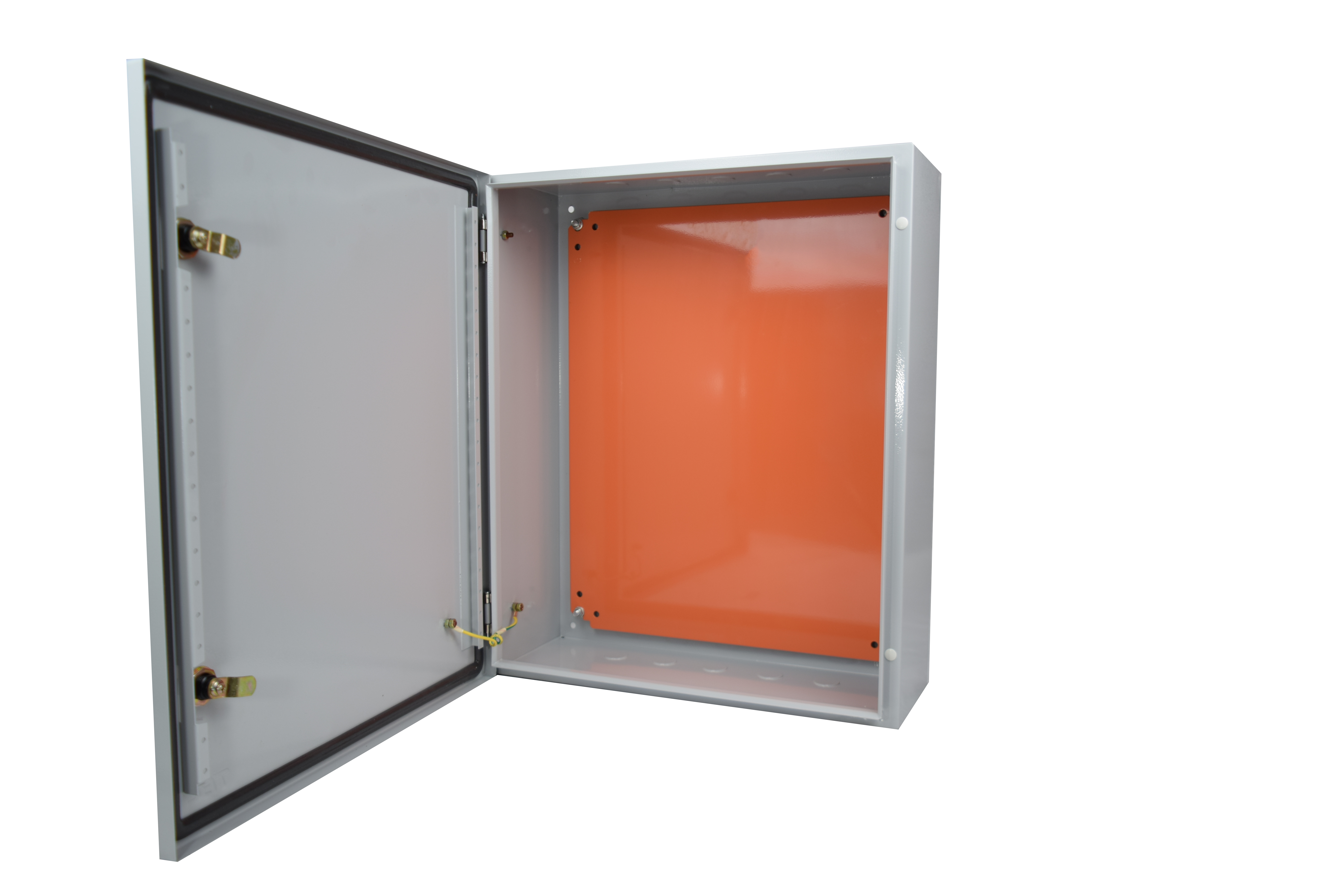

The hinged front door design ensures convenient access for installation, maintenance, and inspection, while the integrated mechanical lock provides security against unauthorized access. Pre-formed knockout entries simplify cable routing and reduce installation time, making it an ideal choice for electricians and system integrators.
With its compact footprint and generous internal space, this enclosure is perfectly suited for housing miniature circuit breakers, earth leakage circuit breakers, RCBOs, terminal blocks, timers, relays, and other control accessories in a wide range of applications including electrical distribution boards, control panels, and industrial automation systems.
Construction: Manufactured from cold-rolled sheet steel with powder-coated finish for enhanced durability and corrosion resistance.
Door Type: Hinged front door with mechanical lock for secure access control.
Mounting: Wall-mounted design with pre-drilled mounting holes for quick and secure installation.
Cable Entry: Pre-formed knockout entries on top, bottom, and sides for flexible cable management.
Protection Rating: Suitable for indoor installation in dry or protected environments.
Material Thickness: TBD
Color: Standard RAL color (typically RAL 7035 light grey or as specified)
Compliance: Manufactured in accordance with international electrical enclosure standards.

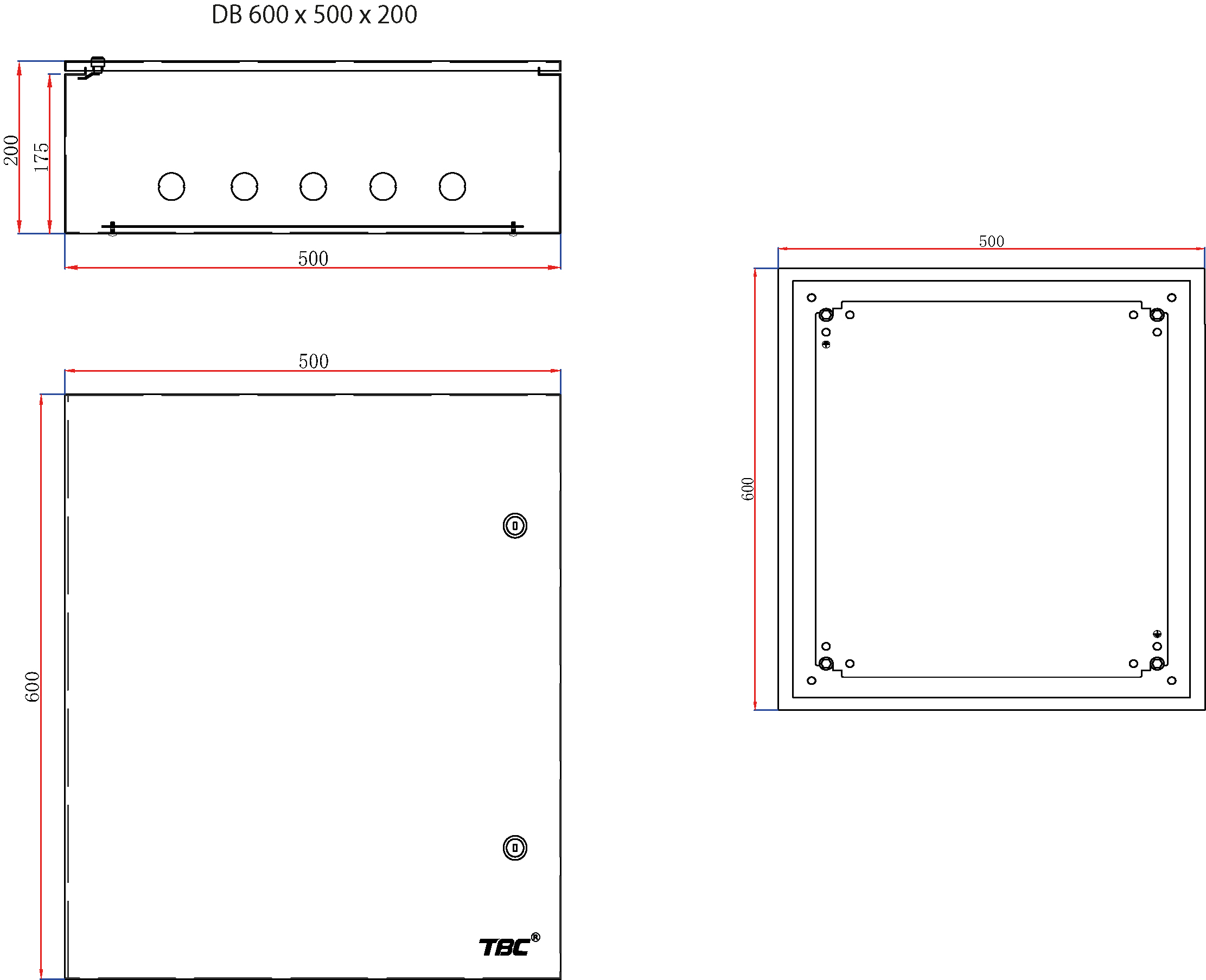

| Specification | Value |
|---|---|
| Model Number | DB 600 × 500 × 200 |
| Enclosure Type | Wall-Mounted Metal Distribution Box |
| Material | Sheet Steel (Cold-Rolled) |
| External Height | 600 mm |
| External Width | 500 mm |
| External Depth | 200 mm |
| Usable Internal Depth | Approx. 170 - 180 mm |
| Door Type | Hinged Front Door |
| Lock Type | Mechanical Lock |
| Cable Entry | Pre-formed Knockout Entries |
| Mounting Type | Wall-Mounted |
| Finish | Powder-Coated |
| Color | ( Light Grey ) |
| Installation Environment | Indoor |
| Suitable Components | MCB, ELCB, RCBO, Terminal Blocks, Timers, Relays |
