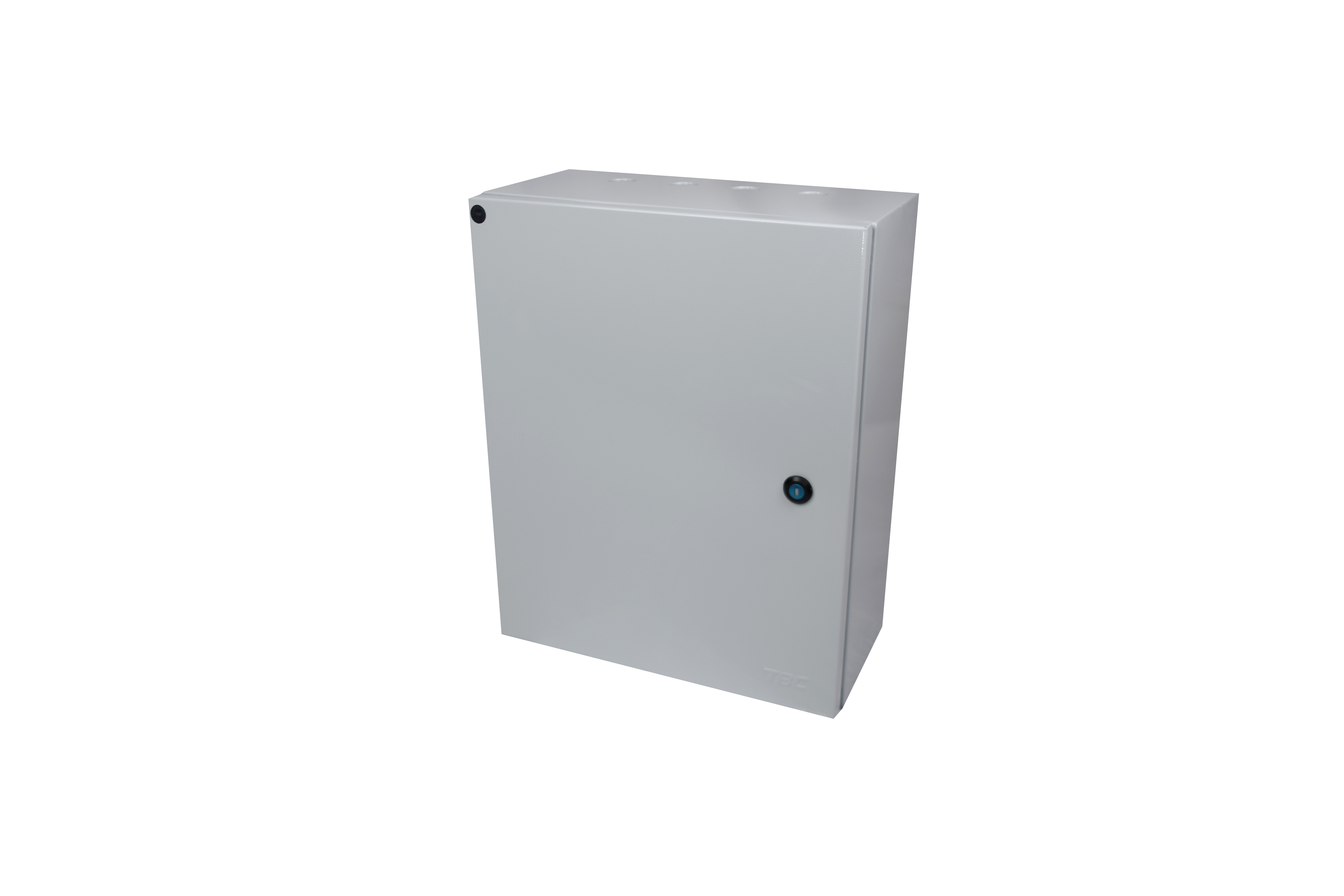

The TBC DB 500 × 400 × 200 Sheet Metal Enclosure Box is designed for reliable protection of electrical and control components in industrial and commercial installations. Manufactured from durable sheet steel, it provides strong mechanical protection and a clean, professional finish suitable for wall-mounted applications.
The TBC Metal Enclosure Box DB 500 × 400 × 200 offers a reliable and professional solution for housing electrical distribution and control equipment in industrial and commercial environments. Constructed from high-quality sheet steel, this enclosure provides excellent mechanical protection against physical damage, dust, and environmental factors.
The wall-mounted design with a hinged front door ensures convenient access for installation, maintenance, and inspection. The integrated mechanical lock provides security and prevents unauthorized access to critical electrical components. Pre-formed knockout entries simplify cable routing and reduce installation time.

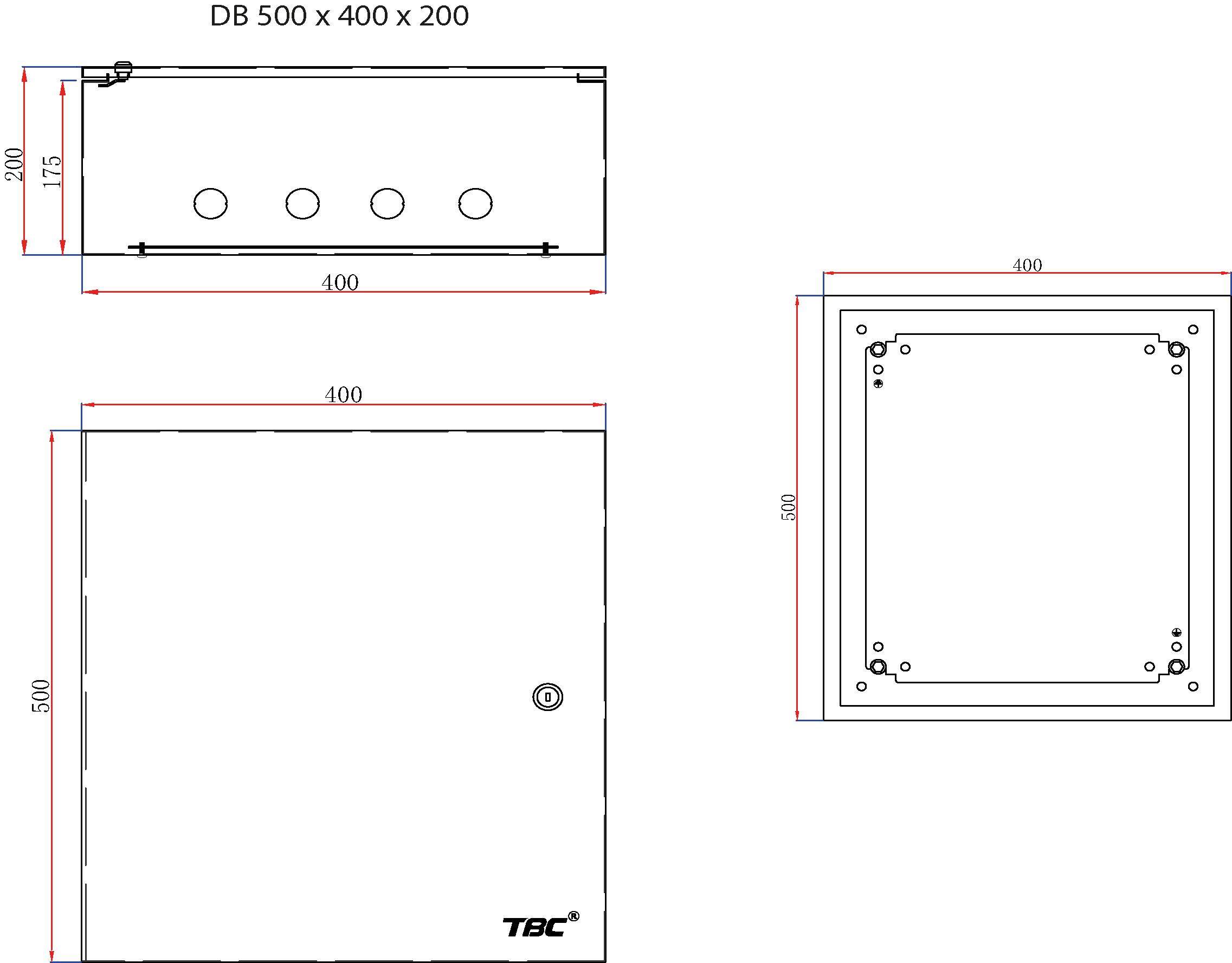

With its compact dimensions of 500 mm (H) × 400 mm (W) × 200 mm (D), this enclosure is ideal for installations where space is limited, while still providing ample internal capacity for a wide range of electrical components including miniature circuit breakers, earth leakage circuit breakers, RCBOs, terminal blocks, timers, relays, and other control accessories.
Construction: Manufactured from cold-rolled sheet steel with a durable powder-coated finish for enhanced corrosion resistance and professional appearance.

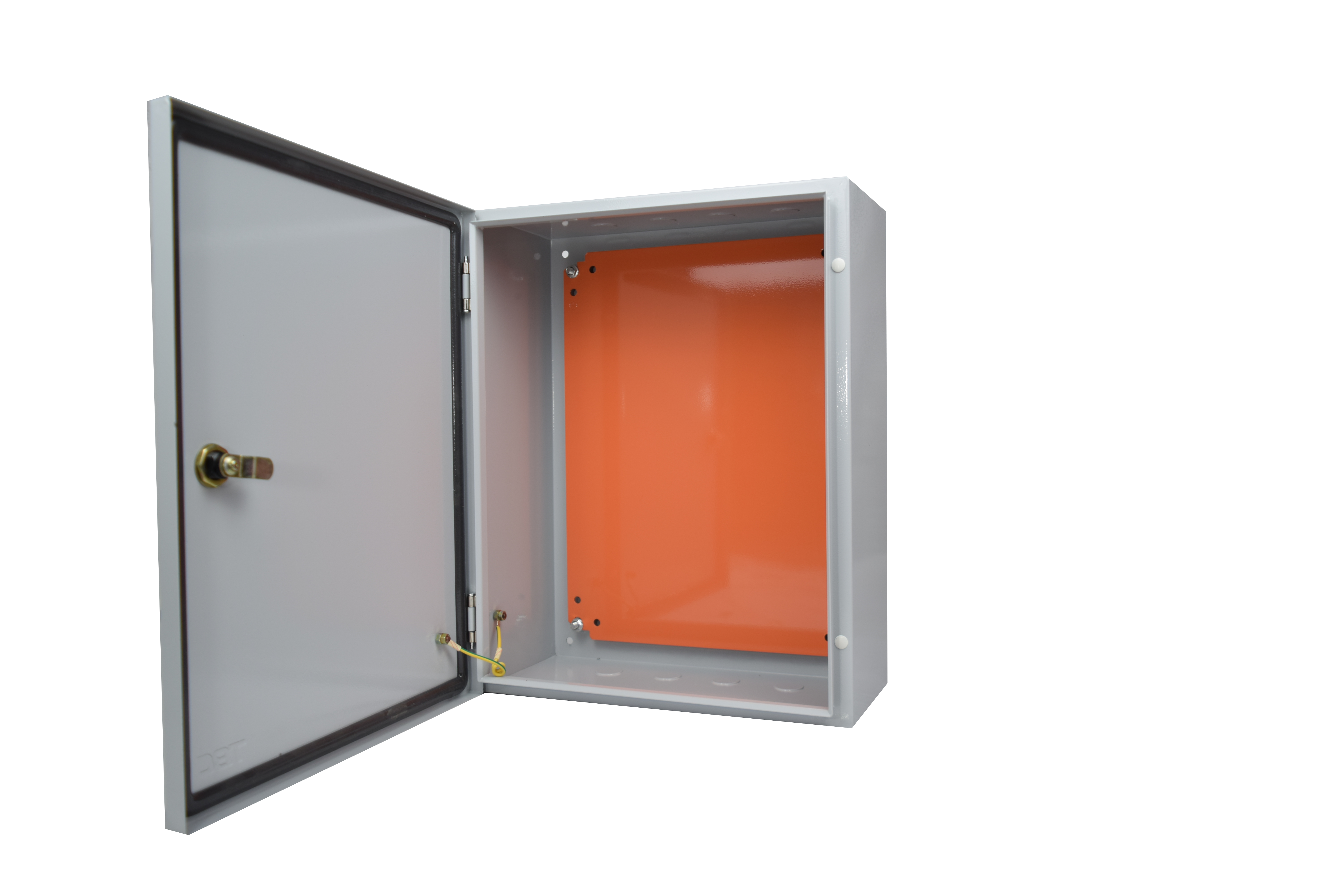

Door Design: Hinged front door with mechanical lock for secure access. Door opens to provide full access to the interior mounting panel.
Cable Entry: Pre-formed knockout entries on top, bottom, and sides for flexible cable routing and simplified installation.
Mounting: Wall-mounted design with pre-drilled mounting holes for quick and secure installation on vertical surfaces.
Internal Configuration: Equipped with a DIN rail mounting panel for easy installation of modular electrical components. Usable internal depth of approximately 125 mm provides adequate space for wiring and component installation.
Protection Rating: Suitable for indoor use in dry environments. Provides IP protection against dust and accidental contact with live parts.
Compliance: Manufactured in accordance with international standards for electrical enclosures and distribution boards.
| Specification | Value |
|---|---|
| Model Number | DB 500 × 400 × 200 |
| Enclosure Type | Wall-Mounted Metal Distribution Box |
| Material | Sheet Steel |
| Finish | Powder-Coated |
| External Height | 500 mm |
| External Width | 400 mm |
| External Depth | 200 mm |
| Usable Internal Depth | Approx. 170 mm - 180 mm |
| Door Type | Hinged Front Door |
| Lock Type | Mechanical Lock |
| Cable Entry | Pre-Formed Knockouts |
| Mounting Type | Wall-Mounted |
| Internal Mounting | DIN Rail Compatible |
| Protection Rating | IP40 (Typical for Indoor Use) |
| Installation Environment | Indoor |
| Suitable Components | MCB, ELCB, RCBO, Terminal Blocks, Timers, Relays |
| Color | (Light Grey) |
