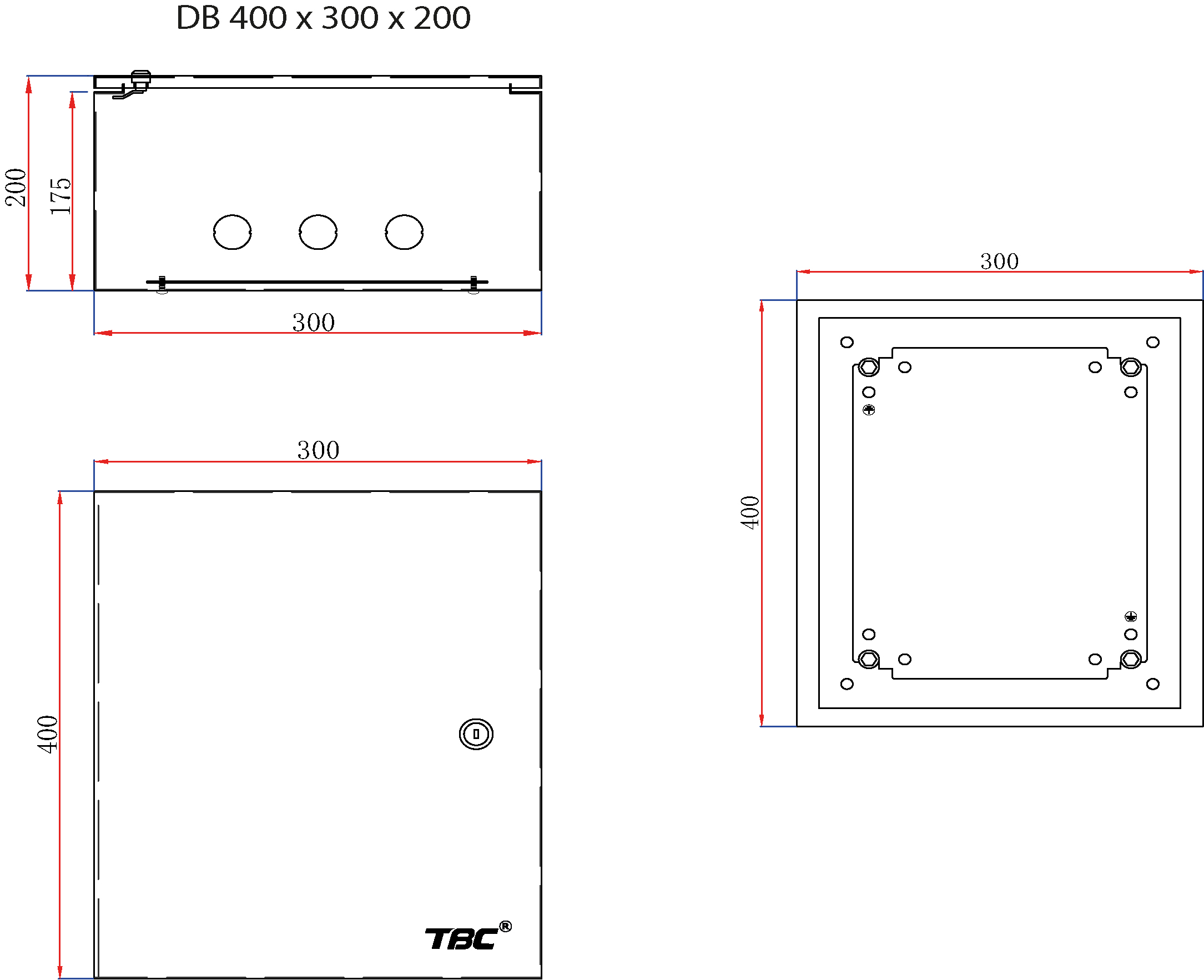

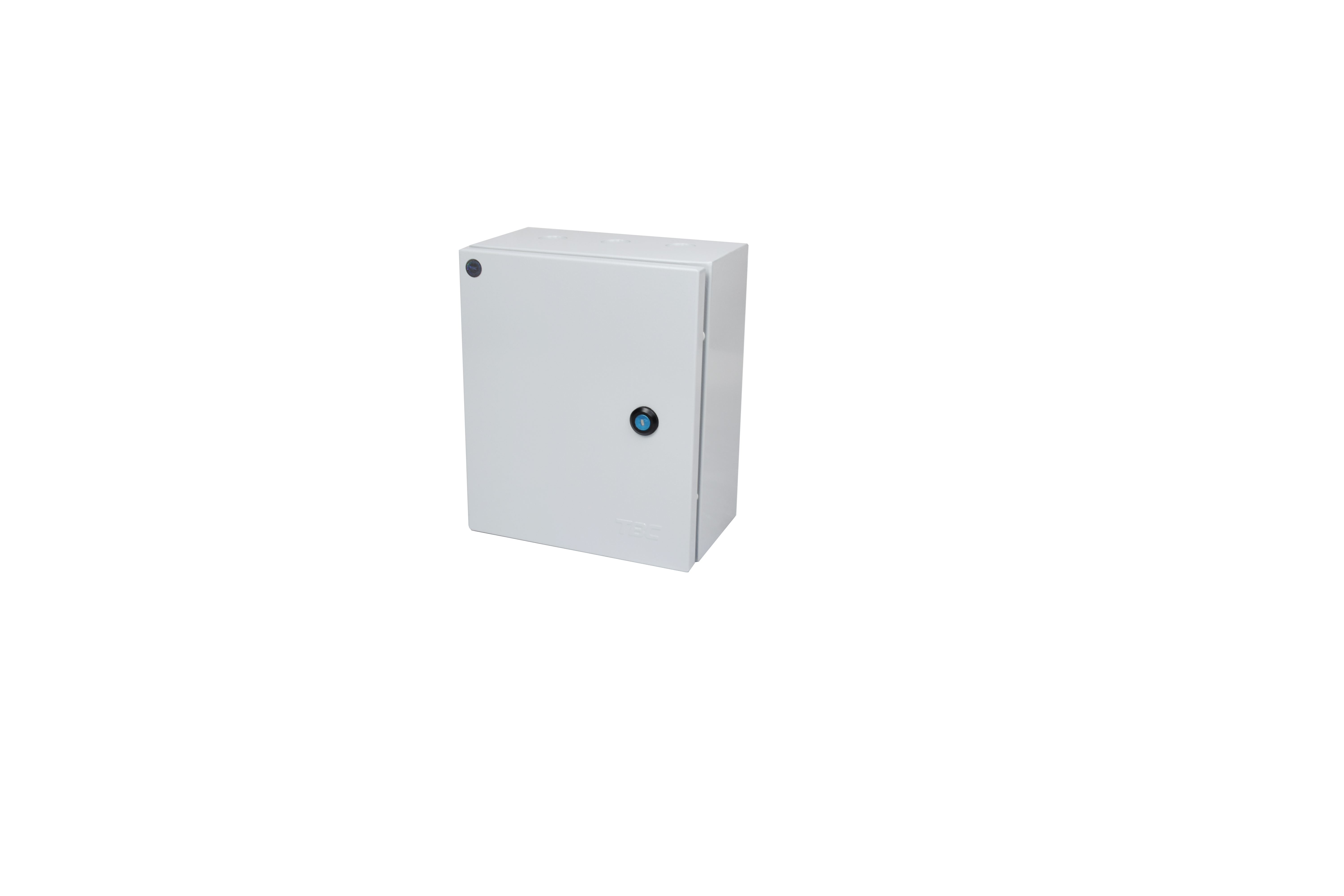

Metal Enclosure Box DB 400 × 300 × 200

Name: Metal Enclosure Box DB 400 × 300 × 200
Brand: TBC
SKU: DB 400 × 300 × 200

DB 400 × 300 × 200

The TBC DB 400 × 300 × 200 Sheet Metal Enclosure Box is designed for reliable protection of electrical and control components in industrial and commercial installations. Manufactured from durable sheet steel, it provides strong mechanical protection and a clean, professional finish suitable for wall-mounted applications.

Key Features

Robust sheet metal construction for long-term durability
Wall-mounted enclosure with hinged front door
Mechanical lock for secure access
Pre-formed knockout entries for easy cable management
Compact size, ideal for limited installation spaces
Professional powder-coated finish for corrosion resistance
Easy installation with pre-drilled mounting holes

Request Quote

The DB 400 × 300 × 200 Metal Enclosure Box offers a reliable and cost-effective solution for housing electrical distribution and control equipment in industrial and commercial environments. Its robust sheet metal construction ensures excellent mechanical protection against physical damage, dust, and environmental factors.

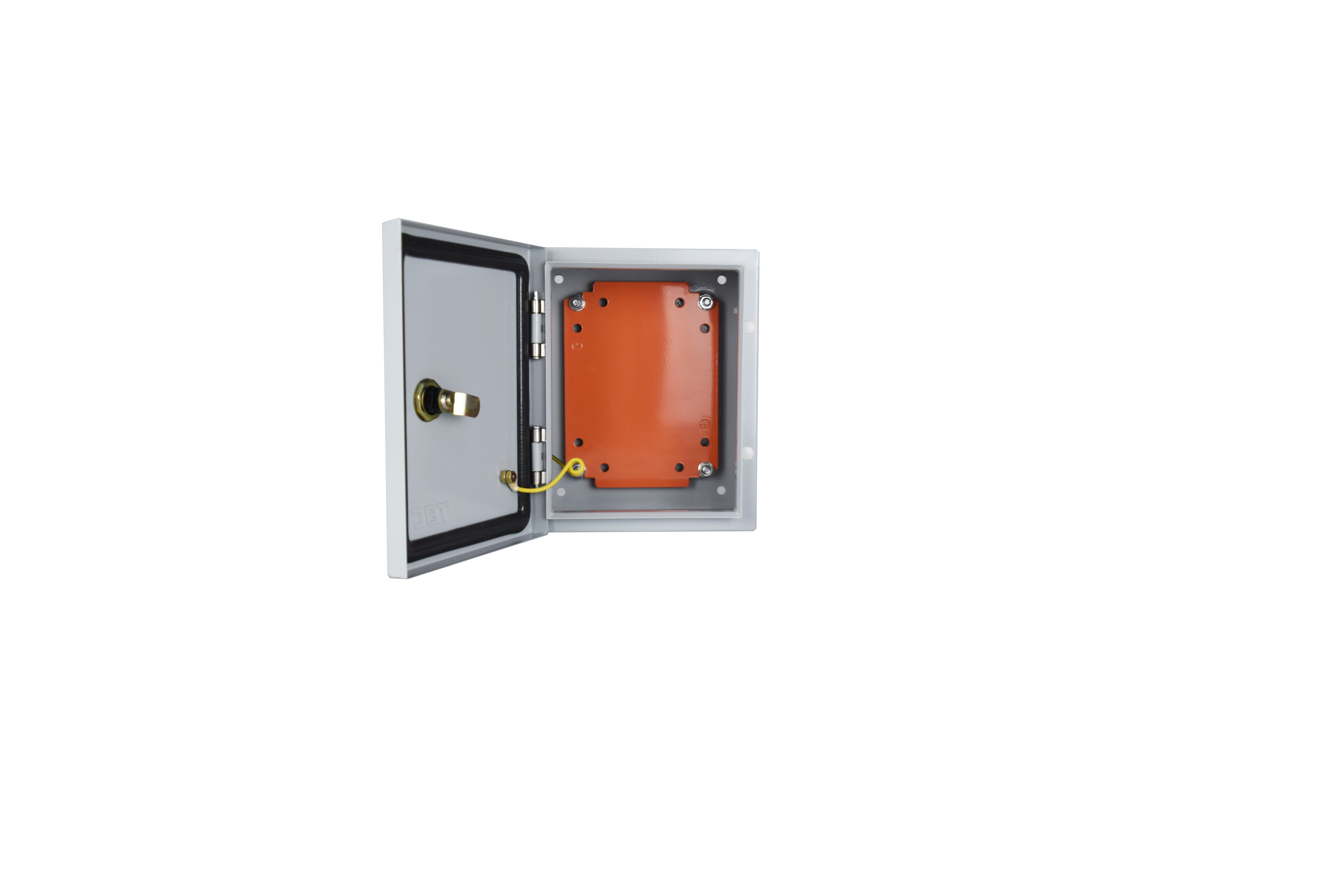

Featuring a hinged front door with mechanical lock, this enclosure provides secure yet convenient access to internal components during installation, maintenance, and inspection. The pre-formed knockout entries simplify cable routing and reduce installation time, making it an ideal choice for electricians and system integrators.

With its compact dimensions and professional finish, this enclosure is perfectly suited for wall-mounted installations where space is limited but reliable protection is essential.

Construction: High-quality sheet steel with powder-coated finish for enhanced durability and corrosion resistance.

Door Type: Hinged front door with mechanical lock for secure access control.

Mounting: Wall-mounted design with pre-drilled mounting holes for quick and easy installation.

Cable Entry: Pre-formed knockout entries on top, bottom, and sides for flexible cable management.

Protection Rating: Suitable for indoor installations, providing protection against dust and accidental contact.

Finish: Professional powder-coated surface in standard RAL color (typically RAL 7035 light grey).

Operating Temperature: -5°C to +40°C

Electrical distribution boards and consumer units
Control panels for industrial automation systems
Commercial electrical installations in offices and retail spaces
Housing for MCBs, ELCBs, and RCBOs
Terminal block and wiring junction enclosures
Timer and relay control systems
Building management system (BMS) components
Motor control centers
HVAC control panels

Specification	Value
Model Number	DB 400 × 300 × 200
External Height	250 mm
External Width	200 mm
External Depth	150 mm
Usable Internal Depth	Approx. 170 mm - 180 mm
Material	Sheet Steel
Finish	Powder Coated
Door Type	Hinged Front Door
Lock Type	Mechanical Lock
Mounting Type	Wall Mounted
Cable Entry	Pre-formed Knockouts
Protection Rating	IP40 (typical)
Operating Temperature	-5°C to +40°C
Installation Environment	Indoor
Color	(Light Grey)
Suitable Components	MCB, ELCB, RCBO, Terminal Blocks, Timers, Relays
