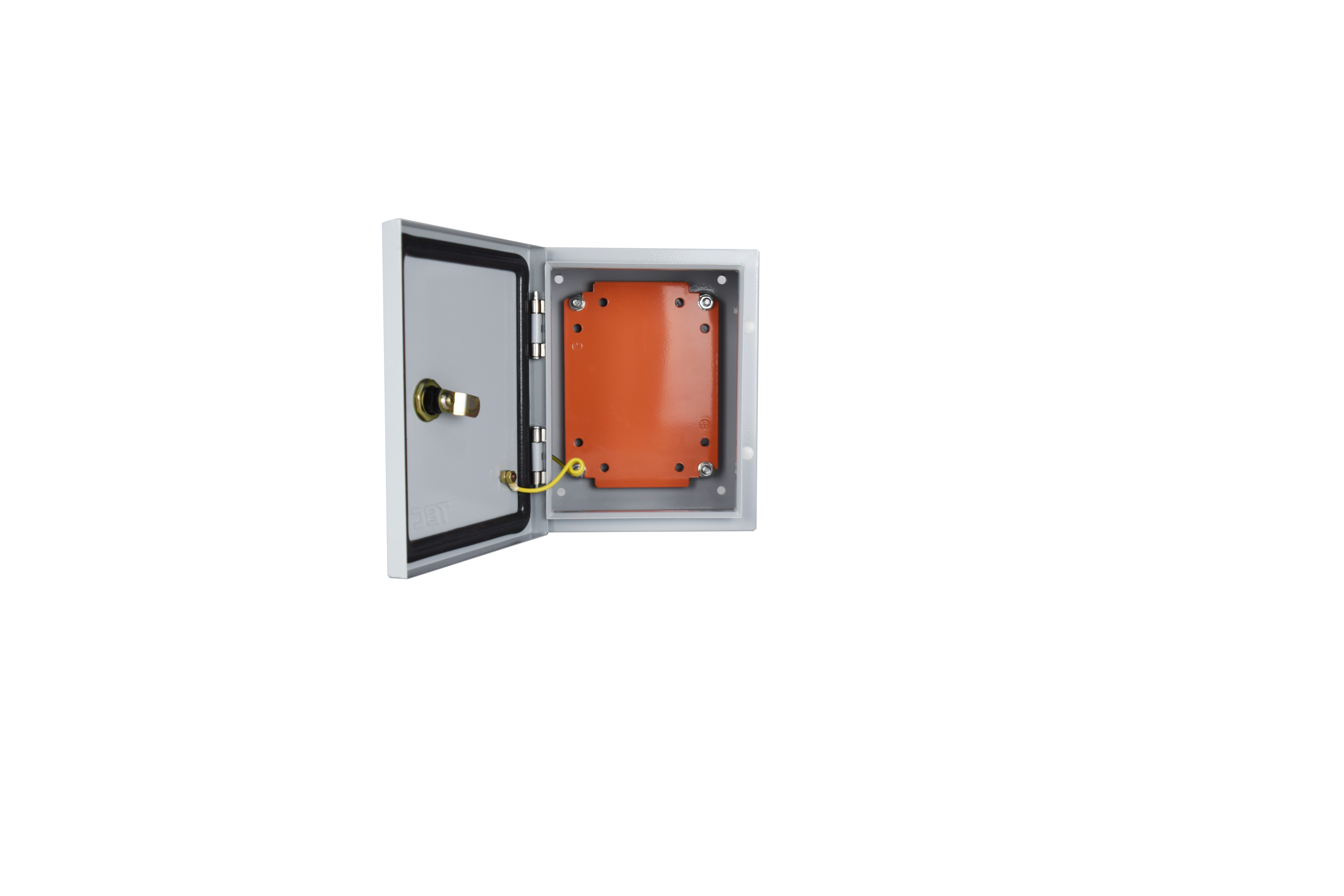

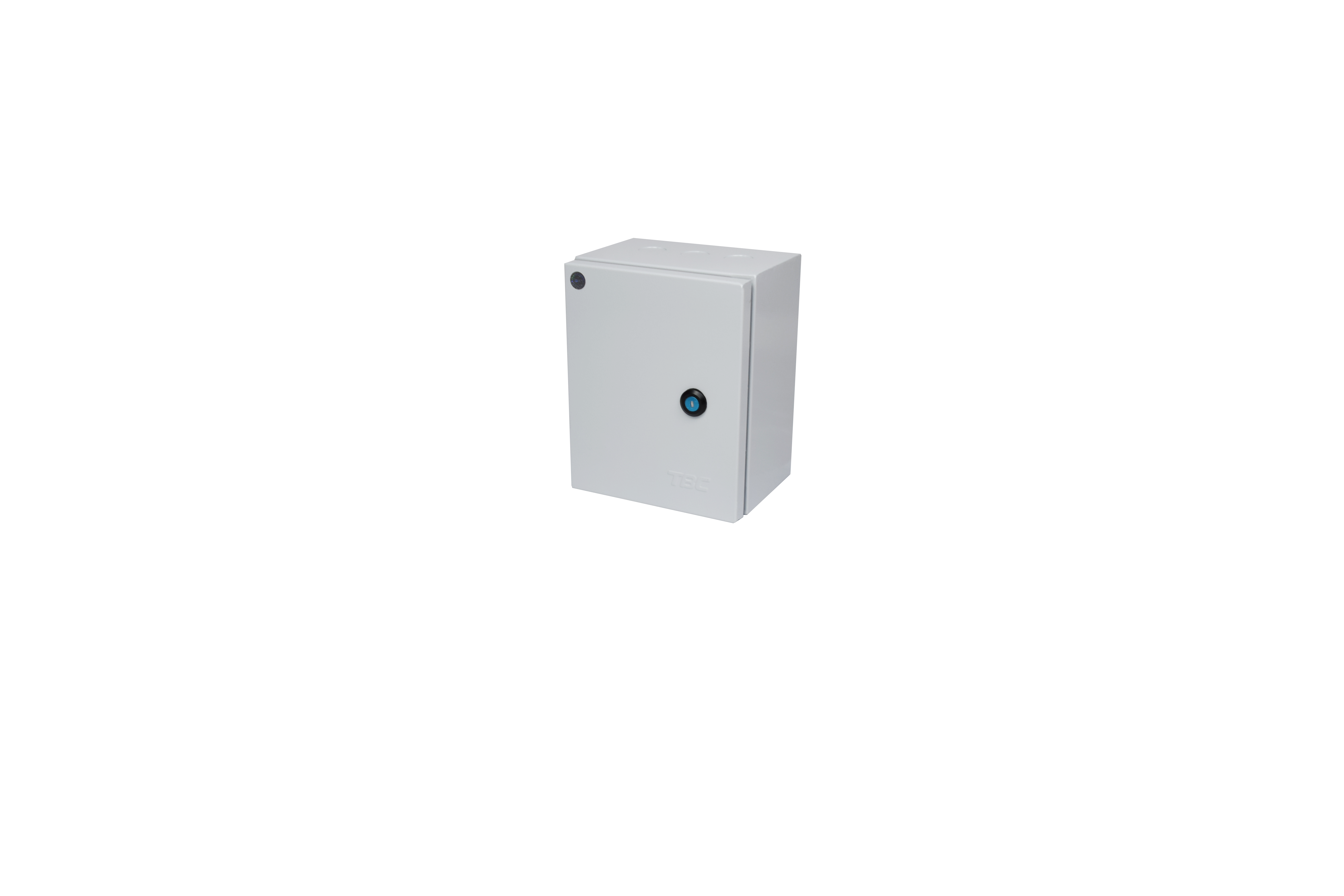

Metal Enclosure Box DB 300 × 250 × 150

Name: Metal Enclosure Box DB 300 × 250 × 150
Brand: TBC
SKU: DB 300 × 250 × 150

DB 300 × 250 × 150

The TBC DB 300 × 250 × 150 Sheet Metal Enclosure Box is designed for reliable protection of electrical and control components in industrial and commercial installations. Manufactured from durable sheet steel, it provides strong mechanical protection and a clean, professional finish suitable for wall-mounted applications.

Key Features

Robust sheet metal construction for long-term durability and mechanical protection
Wall-mounted enclosure with hinged front door for easy access
Integrated mechanical lock for secure access control
Pre-formed knockout entries for simplified cable management and installation
Compact size ideal for limited installation spaces
Professional powder-coated finish for corrosion resistance
Suitable for indoor electrical distribution and control applications

Request Quote

The DB 300 × 250 × 150 Metal Enclosure Box offers a reliable and cost-effective solution for housing electrical distribution and control equipment in industrial and commercial environments. Constructed from high-quality sheet steel, this enclosure provides excellent mechanical protection against physical damage, dust, and environmental factors.

The wall-mounted design with hinged door allows for convenient installation and maintenance access, while the integrated mechanical lock ensures authorized access only. Pre-formed knockout entries simplify cable routing and reduce installation time, making it an ideal choice for electricians and system integrators.

With its compact dimensions and professional finish, this enclosure is perfectly suited for applications where space is limited but reliable protection is essential. The robust construction ensures long service life even in demanding industrial environments.

Construction: Cold-rolled sheet steel with powder-coated finish for enhanced corrosion resistance and professional appearance.

Door Type: Hinged front door with mechanical lock and key for secure access control.

Mounting: Wall-mounted design with pre-drilled mounting holes for quick and secure installation.

Cable Entry: Pre-formed knockout entries on top, bottom, and sides for flexible cable routing and management.

Protection Rating: Suitable for indoor use, providing protection against dust and accidental contact with internal components.

Finish: Durable powder-coated paint finish in standard RAL color (typically RAL 7035 light grey).

Operating Temperature: -5°C to +40°C

Material Thickness: 1.0mm - 1.2mm sheet steel

Electrical distribution boards and consumer units
Control panels for industrial automation systems
Commercial electrical installations in offices and retail spaces
Housing for MCBs, ELCBs, and RCBOs in residential and commercial buildings
Terminal block and junction box installations
Timer and relay control systems
Building management system (BMS) control enclosures
Motor control centers and starter panels
Lighting control and distribution systems

Specification	Value
Model Number	DB 300 × 250 × 150
Overall Height	250 mm
Overall Width	300 mm
Overall Depth	150 mm
Usable Internal Depth	Approx. 120 mm - 130 mm
Material	Cold-rolled sheet steel
Material Thickness	1.0 - 1.2 mm
Finish	Powder-coated
Color	(Light Grey)
Door Type	Hinged front door
Lock Type	Mechanical lock with key
Mounting Type	Wall-mounted
Cable Entry	Pre-formed knockouts
Protection Rating	IP40 (typical for indoor use)
Operating Temperature	-5°C to +40°C
Installation Environment	Indoor
Suitable Components	MCB, ELCB, RCBO, Terminal Blocks, Timers, Relays
