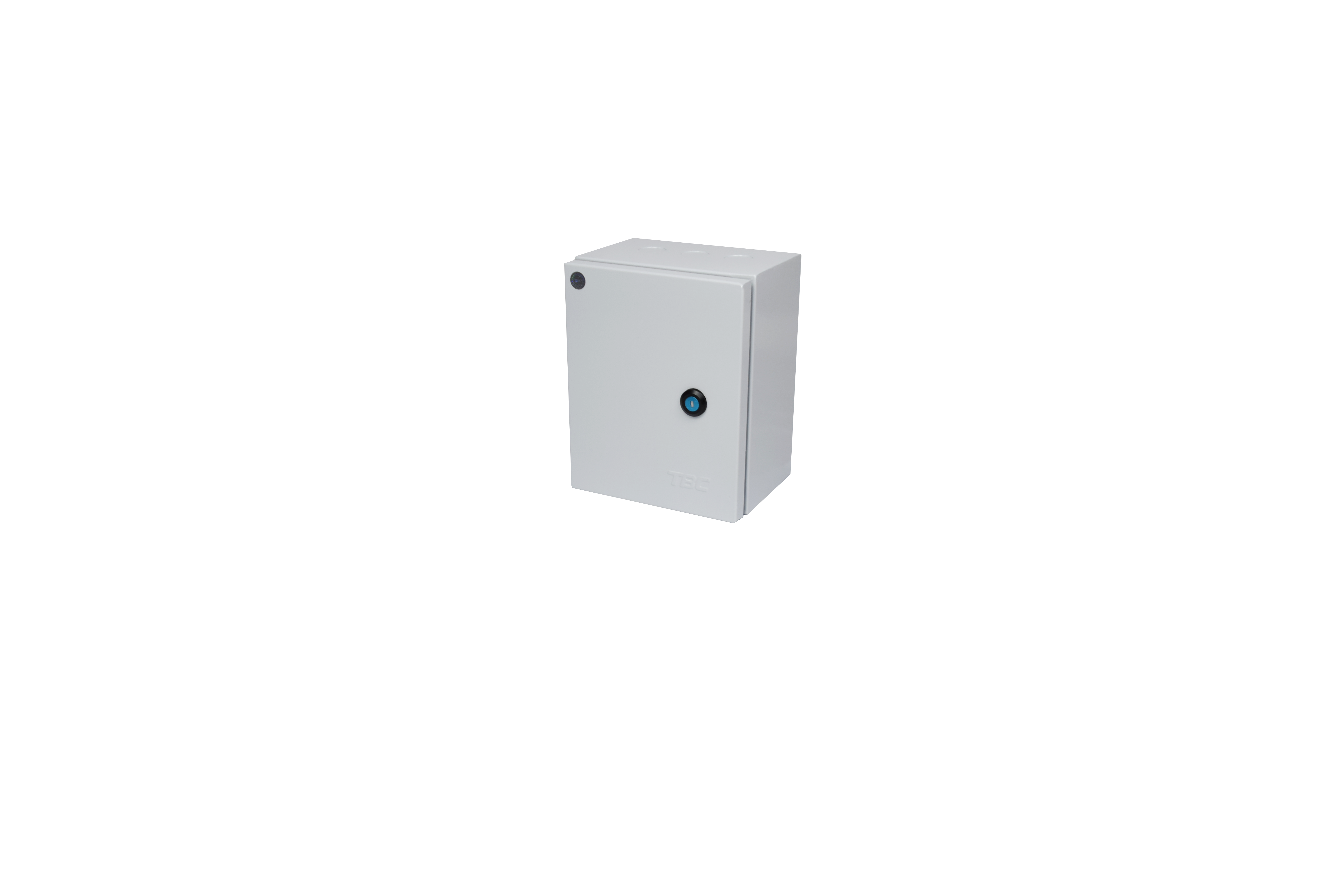

The TBC DB 250 × 200 × 150 Sheet Metal Enclosure Box is designed for reliable protection of electrical and control components in industrial and commercial installations. Manufactured from durable sheet steel, it provides strong mechanical protection and a clean, professional finish suitable for wall-mounted applications.
The DB 250 × 200 × 150 Metal Enclosure Box offers a reliable and cost-effective solution for housing electrical distribution and control equipment in industrial and commercial environments. Constructed from high-quality sheet steel, this enclosure provides excellent mechanical strength and protection against dust, debris, and unauthorized access.

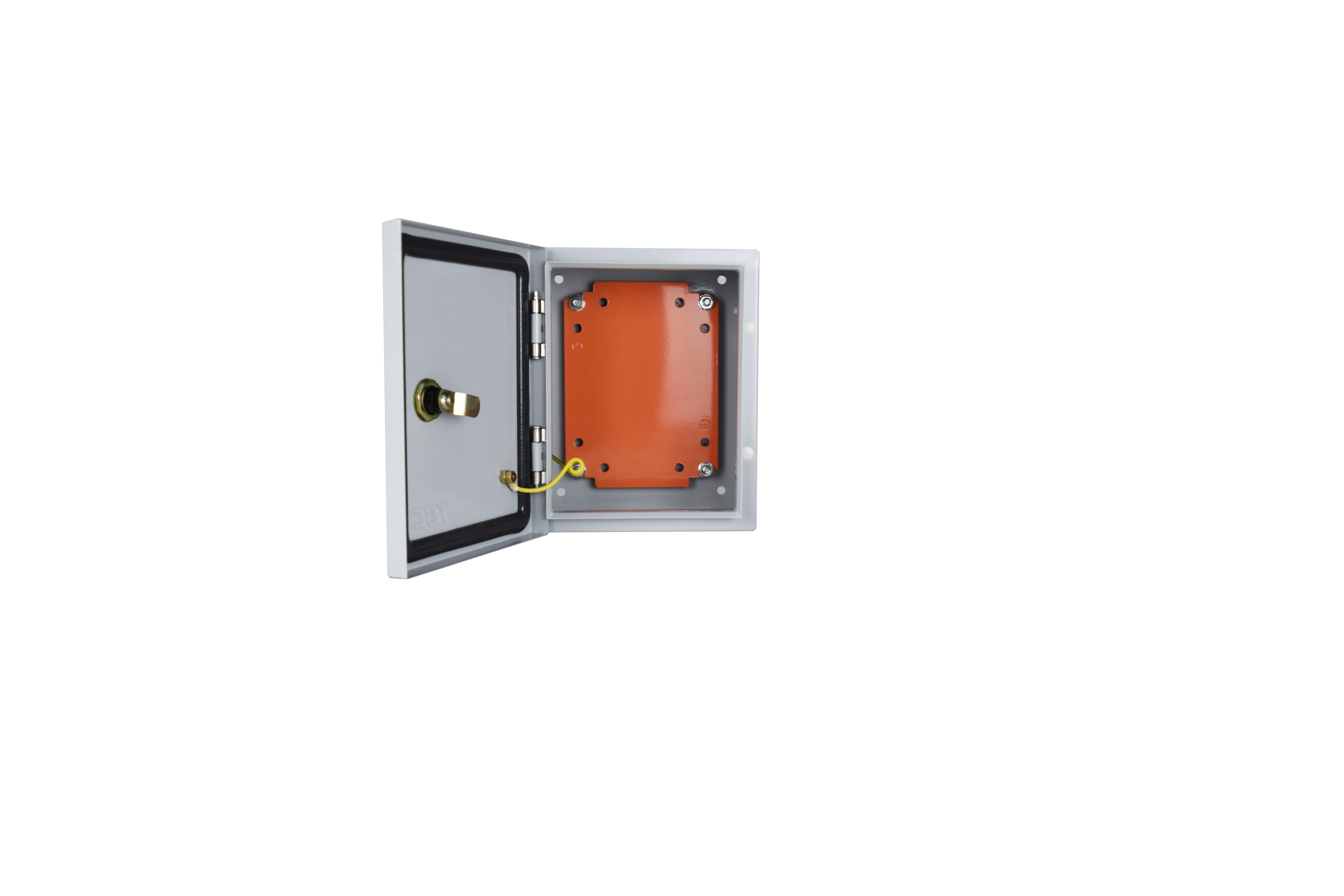

The hinged front door design allows for quick and convenient access to internal components during installation, maintenance, and inspection. The integrated mechanical lock ensures that only authorized personnel can access the electrical equipment, enhancing safety and security in your facility.
With pre-formed knockout entries, cable routing and termination become significantly easier, reducing installation time and labor costs. The compact dimensions make this enclosure ideal for space-constrained locations while still providing adequate internal volume for essential electrical components.
Finished with a durable powder coating, the enclosure resists corrosion and maintains a professional appearance throughout its service life, making it suitable for a wide range of indoor industrial and commercial applications.
Construction: Cold-rolled sheet steel with powder-coated finish
Door Type: Hinged front door with mechanical lock
Mounting: Wall-mounted with pre-drilled mounting holes
Cable Entry: Pre-formed knockout entries on top, bottom, and sides
Protection Rating: IP40 (indoor use)
Material Thickness: 1.2 mm sheet steel
Color: RAL 7035 (Light Grey) standard
Operating Temperature: -5°C to +40°C
Installation Environment: Indoor, dry locations
Compliance: Manufactured to international quality standards

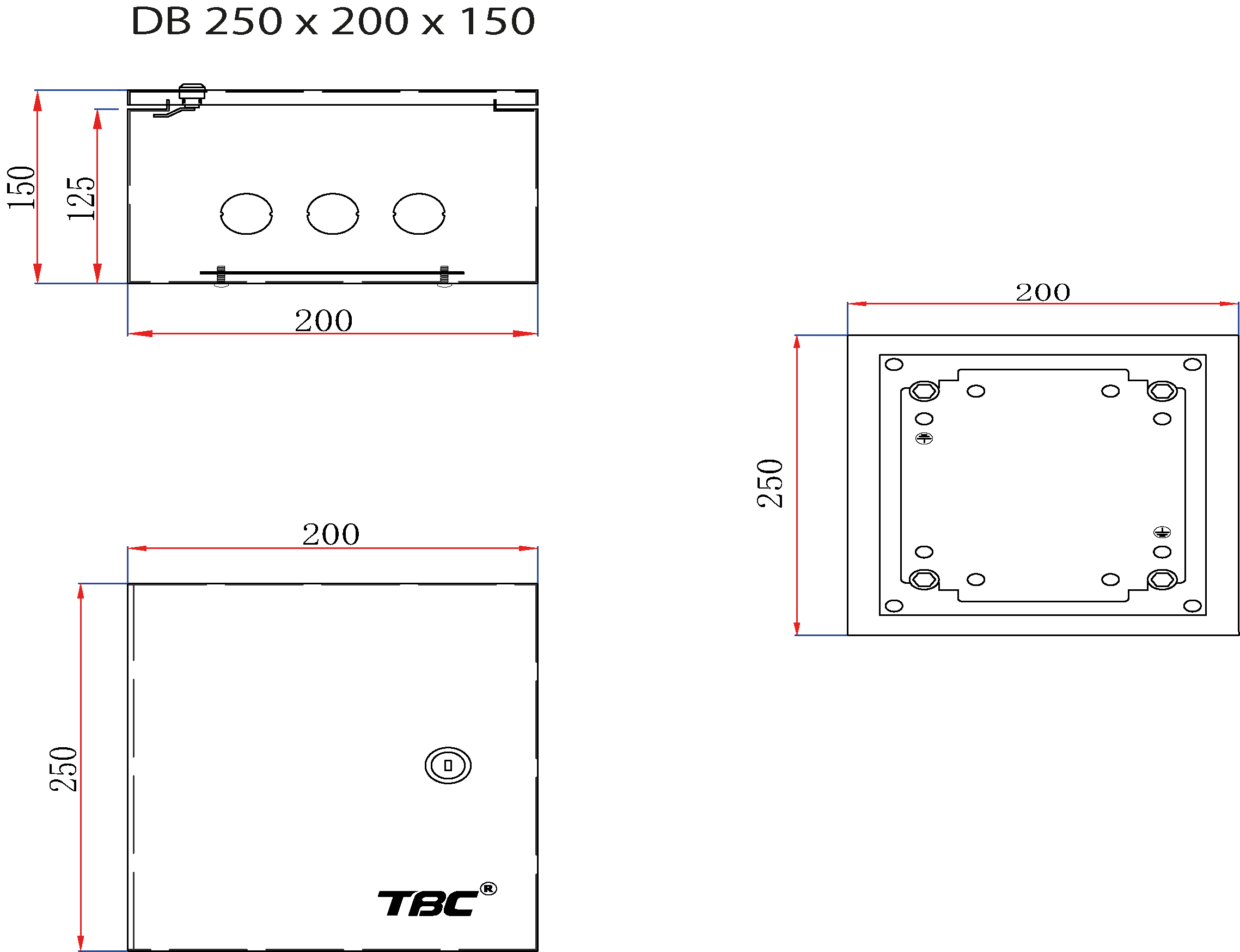

| Specification | Value |
|---|---|
| Model Number | DB 250 × 200 × 150 |
| External Height | 250 mm |
| External Width | 200 mm |
| External Depth | 150 mm |
| Internal Depth (Usable) | Approx. 125 mm |
| Material | Cold-rolled sheet steel |
| Material Thickness | 1.2 mm |
| Finish | Powder-coated |
| Color | RAL 7035 (Light Grey) |
| Door Type | Hinged with mechanical lock |
| Mounting Type | Wall-mounted |
| Cable Entry | Pre-formed knockouts |
| Protection Rating | IP40 |
| Operating Temperature | -5°C to +40°C |
| Installation Location | Indoor |
| Compatible Devices | MCB, ELCB, RCBO, Terminal Blocks, Timers, Relays |
