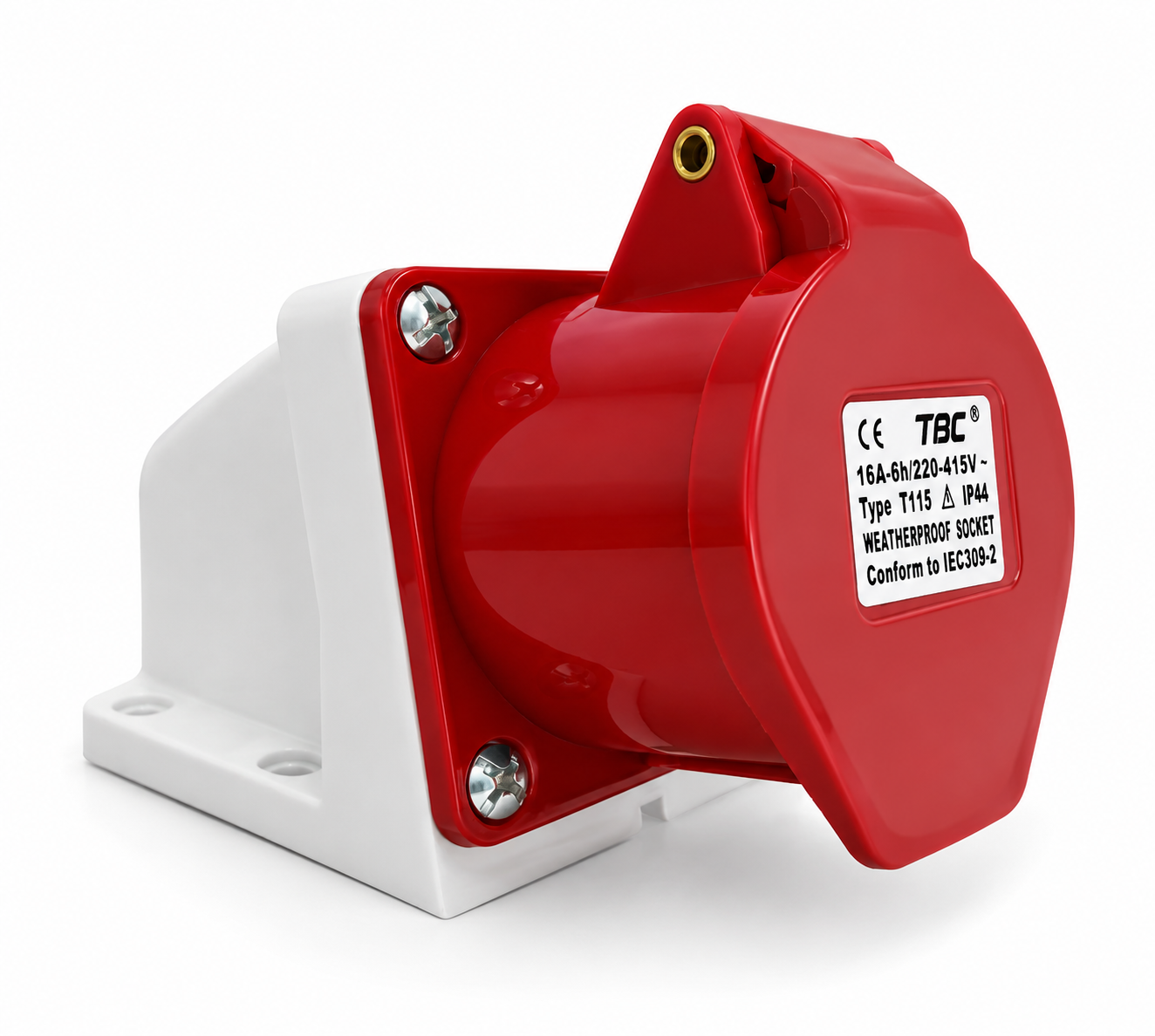

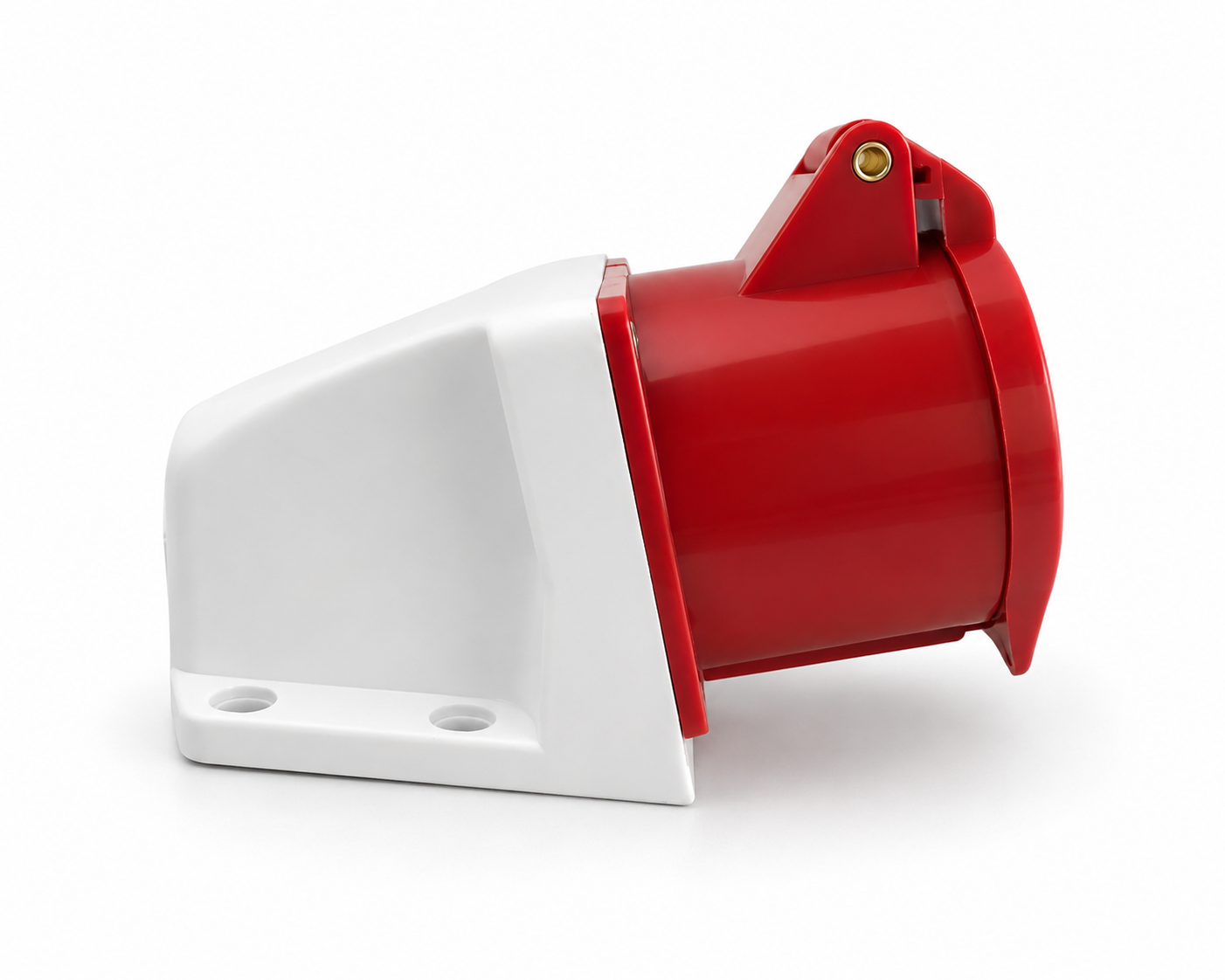

Industrial Weatherproof Socket Outlet 16A/32A 5 Pin 220-415V AC IP44 – Type T115/ T125

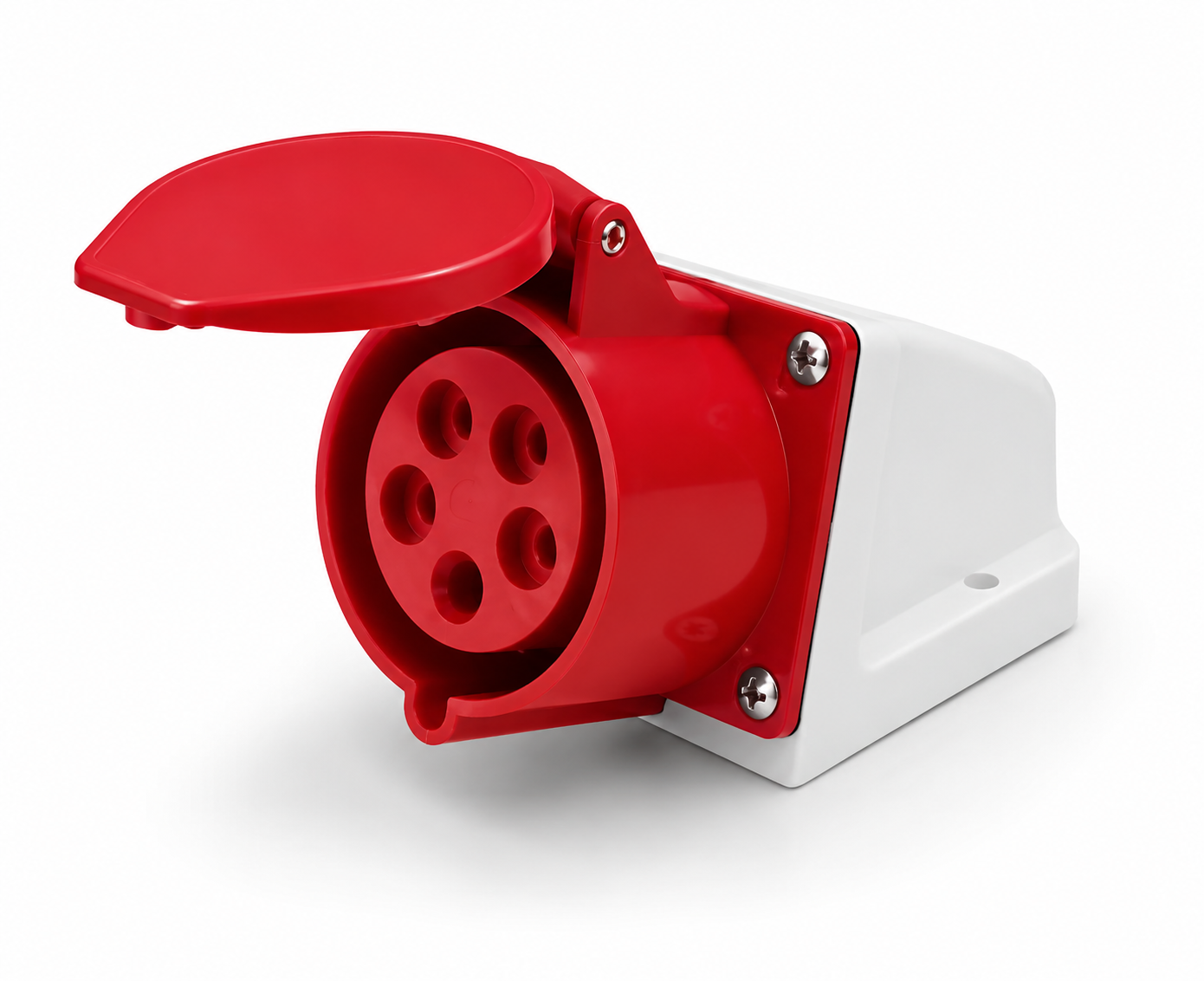

The T115/ T125 operates on a 3P+E contact arrangement with the earth contact positioned at the 6h clock position in accordance with IEC 309-2, ensuring correct phase identification and preventing mismatched connections between incompatible voltage or current ratings. Screw-type terminal connections accommodate standard industrial cable conductors, providing a mechanically secure and electrically stable termination that maintains contact integrity under the thermal expansion and contraction cycles typical of industrial service.

The thermoplastic body material is selected for its dielectric strength, flame-retardant properties, and resistance to UV degradation, while the brass contact material is chosen for its combination of high electrical conductivity, corrosion resistance, and mechanical durability, collectively ensuring that the socket maintains its rated performance characteristics throughout its operational service life.

• Industrial factories requiring standardised, weatherproof power outlets for machinery and equipment connections.
• Construction sites where temporary and semi-permanent power distribution points must withstand outdoor exposure and mechanical impact.
• Workshop environments with machine tools, compressors, and other three-phase electrical equipment requiring secure plug-and-socket connections.
• Manufacturing plants where production-line machinery demands reliable, code-compliant power connection points.
• Commercial buildings with plant rooms, loading bays, or service areas requiring industrial-grade socket outlets.
• Outdoor industrial installations such as pump stations, substations, and process plant areas exposed to weather conditions.
• Temporary power connection systems for events, site offices, and portable equipment requiring IEC 309-2 compatible outlets.
• Power distribution boards and panels in industrial facilities where surface-mounted socket outlets are integrated into the distribution infrastructure.
