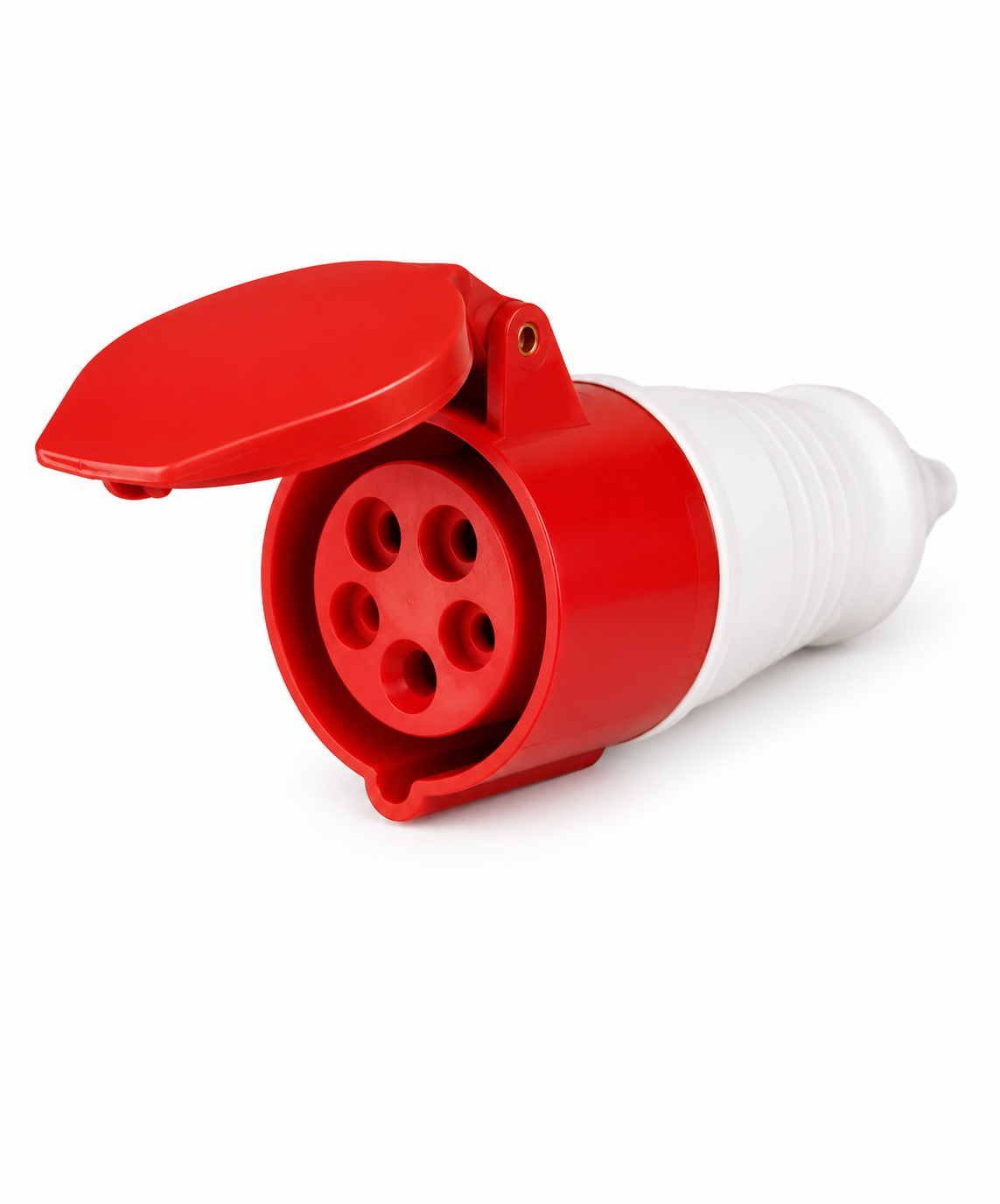

Industrial Connector Socket 16A & 32A 5 Pin T 215/ T225

The connector socket employs a screw clamp termination system that applies consistent clamping force to conductor ends, ensuring a gas-tight, vibration-resistant electrical joint suitable for portable and semi-permanent installations. The brass contact inserts are dimensioned and positioned in accordance with IEC 60309-2 to achieve the correct mating geometry at the 6h earth position, guaranteeing correct polarity and earth continuity on every connection cycle.

The IP44 protection class is achieved through precision-moulded thermoplastic housing geometry and integrated sealing features that prevent the ingress of solid objects greater than 1mm and water splashing from any direction. The socket is rated for operation across a temperature range of −25°C to +40°C and relative humidity up to 95%, ensuring consistent electrical performance in both cold-store environments and humid tropical or coastal industrial sites.

• Industrial power distribution panels and temporary power distribution units on manufacturing sites.
• Construction site temporary power supply for tools, lighting, and site welfare equipment.
• Workshop machinery connection points requiring standardised, lockable single-phase power outlets.
• Portable power systems and generator output connection for mobile or remote site operations.
• Factory floor equipment connection where frequent plug-in and plug-out cycles demand a durable, low-resistance interface.
• Outdoor event and entertainment power distribution requiring IP44-rated weatherproof connectivity.
• Agricultural and horticultural facilities where equipment is regularly moved between power points.
