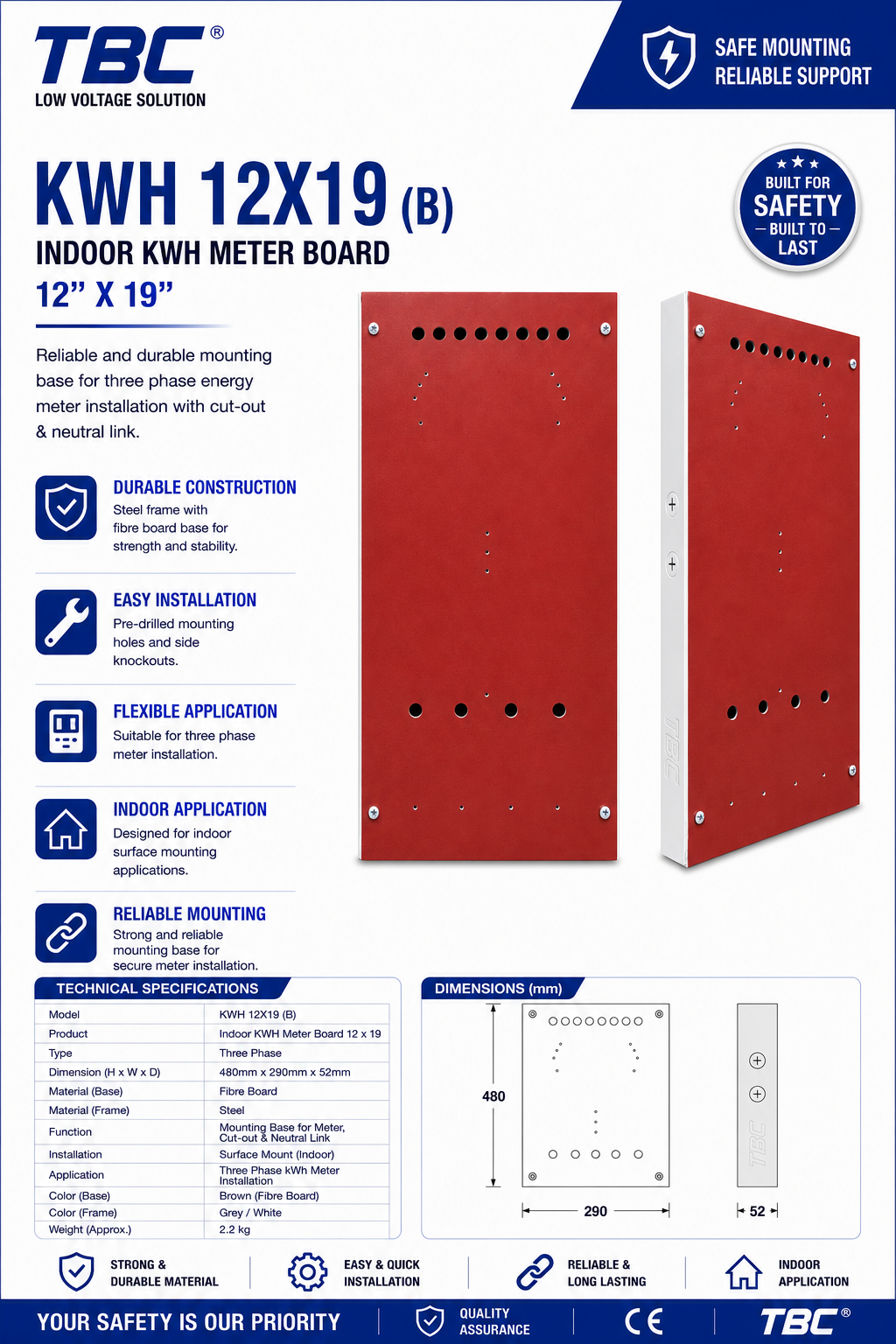

Indoor KWH Meter Board 12x19

The KWH 12X19 (B) employs a dual-material construction strategy in which the fibre board base provides the primary electrical insulation layer between mounted live components and the supporting structure, while the surrounding steel frame provides the mechanical enclosure and mounting interface. The fibre board substrate is selected for its dielectric properties and dimensional stability, ensuring that meter fixings and cut-out mounting points remain secure and correctly aligned throughout the service life of the installation.

The steel frame is formed to precise dimensional tolerances to achieve the specified 480mm x 290mm x 52mm overall envelope, enabling consistent fit within standardised meter cupboard openings. The shallow 52mm depth profile is engineered to accommodate single-phase metering components while maintaining a low-profile installation footprint suitable for flush or semi-flush indoor mounting arrangements.

• Residential properties requiring a dedicated three phase energy metering point at the utility intake position.
• Apartment blocks and multi-unit residential developments where individual tenant metering boards are installed within communal meter cupboards.
• Light commercial premises such as retail units, offices, and workshops requiring a compact single-phase metering enclosure.
• Utility company metering infrastructure installations where standardised meter board dimensions are specified for consistent deployment.
• Electrical distribution boards in schools, community centres, and small public buildings with single-phase supply arrangements.
• Renovation and refurbishment projects requiring replacement of existing single-phase meter boards with a modern, compliant enclosure solution.
• Electrical contractor panel-building operations where pre-configured meter boards reduce on-site assembly time and improve installation consistency.
