The fire aerosol are automatic fire aerosol extinguishing devices engineered for passive, maintenance-free fire suppression within enclosed electrical spaces. Activating autonomously at 170°C, these units require no external power source, control panel, or manual intervention to deploy — making them an ideal last line of defence inside switchgear panels, distribution boards, and control cabinets.
Featuring a dual nozzle design and a rapid 6-second suppression response, the fire aerosol series disperses a fine aerosol agent that effectively extinguishes fires without leaving residue that could damage electronic components or electrical contacts. The aerosol formulation is safe for use around live electrical equipment, ensuring continuity of protection without collateral harm.
With a 10-year effective service life and flexible DIN rail or 3M adhesive mounting options, these devices are suited for panel builders, electrical contractors, and facility managers seeking a compact, cost-effective fire suppression solution for enclosed electrical installations.

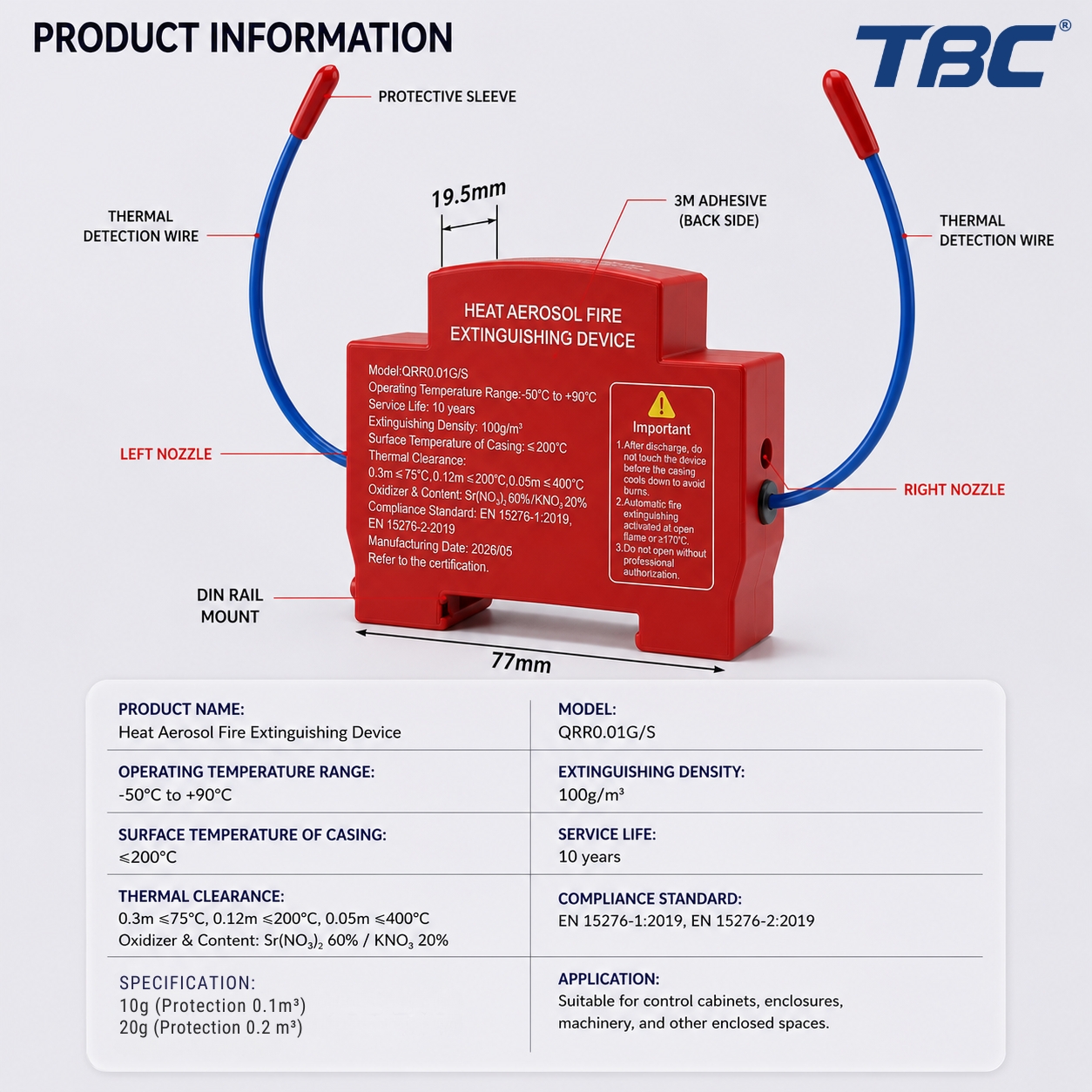

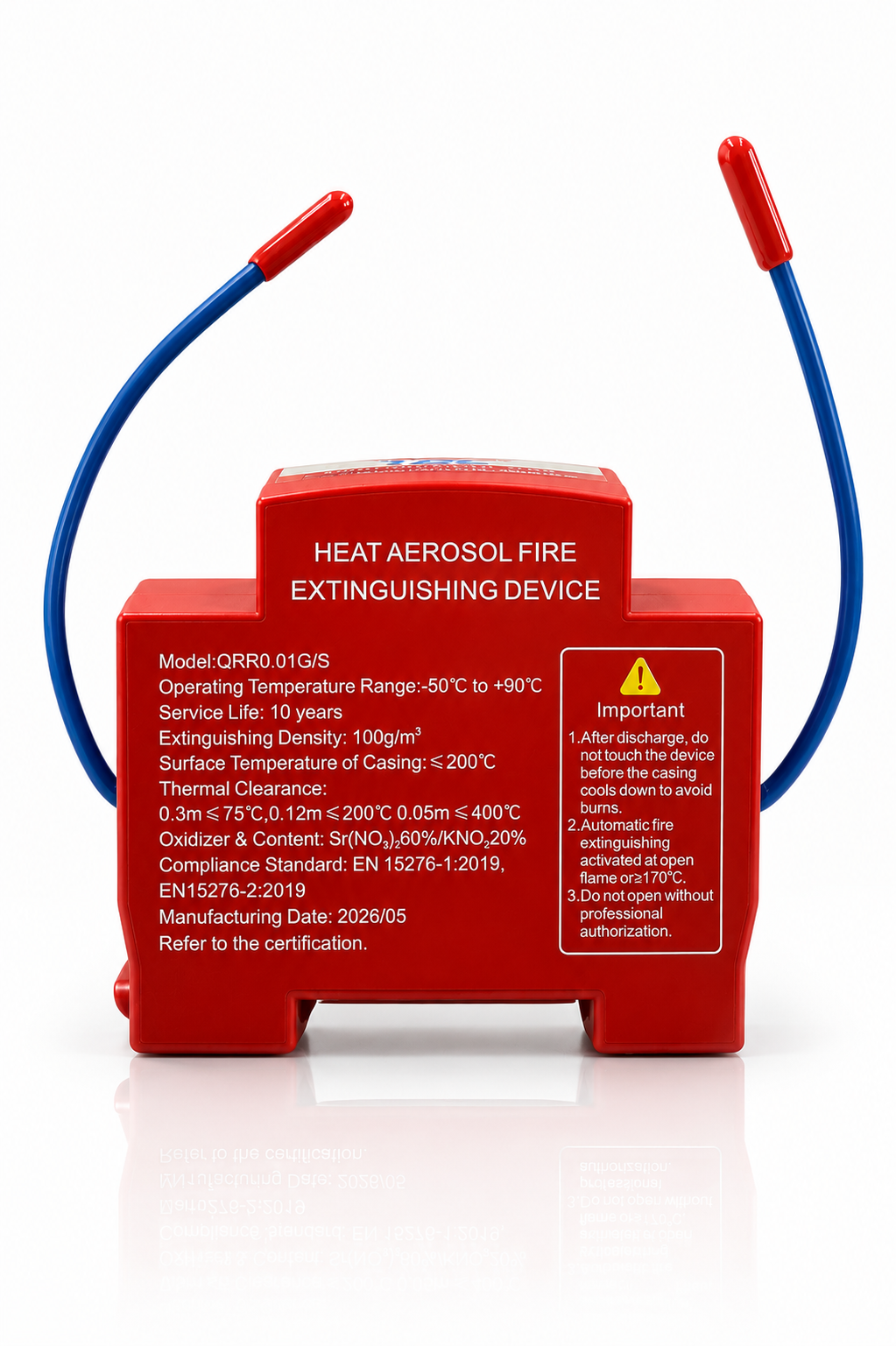

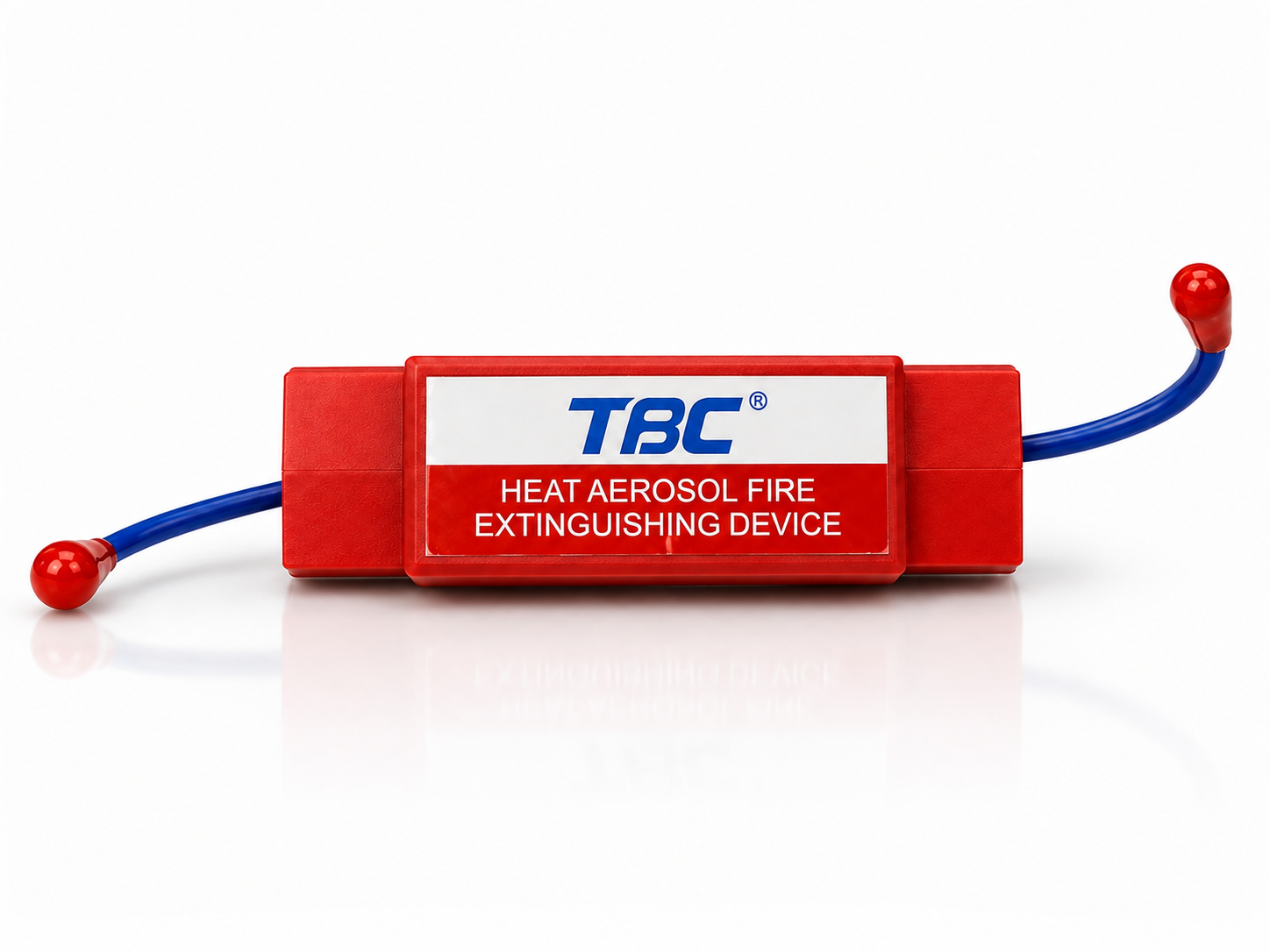

The Fire Aerosol Automatic Fire Extinguishing Devices represent a purpose-built solution for passive fire protection within enclosed electrical enclosures. Each unit houses a thermally sensitive activation element calibrated to trigger at 170°C, releasing a precisely measured aerosol charge — 10g for the GS-10 and 20g for the GS-20 — capable of protecting volumes of 0.1m³ and 0.2m³ respectively. The robust shell construction, rated to withstand surface temperatures up to 200°C, ensures the device remains intact and functional even as a fire develops around it.
Constructed for long-term passive deployment, the fire aerosol series requires no electrical connection, no pressurised gas cylinder, and no periodic recharging during its 10-year service life. The aerosol suppression agent is chemically inert with respect to electrical insulation materials and metallic contacts, meaning that components within the protected enclosure remain undamaged following a suppression event. This makes the GS series particularly well suited for protecting high-value switchgear, PLCs, metering equipment, and industrial control panels where downtime and component replacement costs are significant concerns.
The combination of DIN rail and 3M adhesive mounting methods provides installation flexibility across a wide range of enclosure types, from standard modular distribution boards to custom-fabricated steel cabinets, enabling straightforward integration into both new builds and retrofit projects.

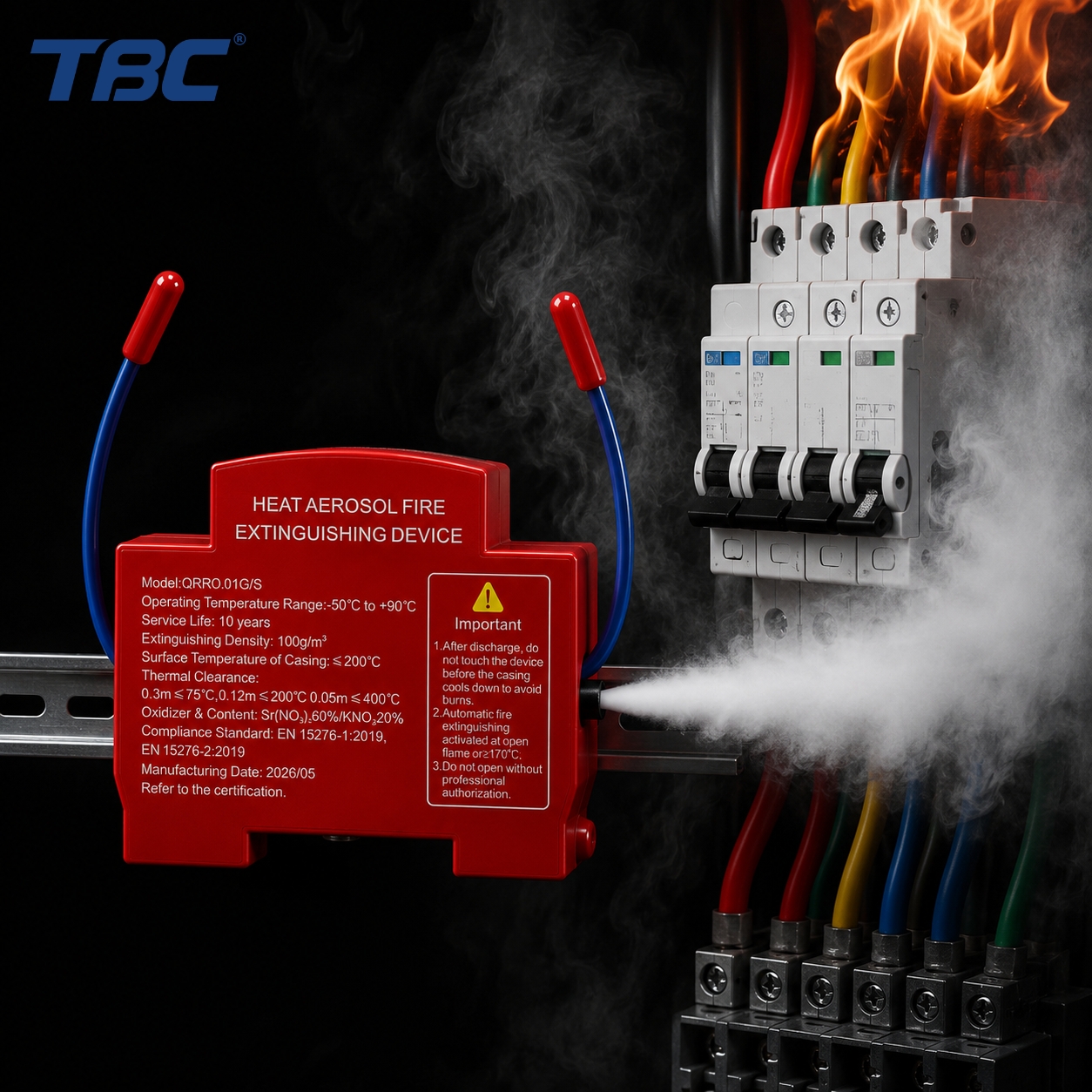

The fire aerosol series operates on a passive thermochemical activation principle. An internal heat-sensitive element responds to ambient temperature rise within the enclosure, triggering aerosol release at the calibrated threshold of 170°C without requiring any electrical signal or mechanical actuation from an external system. Upon activation, the dual nozzle assembly disperses the aerosol agent in a controlled pattern designed to achieve rapid, uniform coverage of the protected volume within 6 seconds of trigger.
The aerosol compound is a solid-to-gas phase suppression agent that interrupts the chemical chain reaction of combustion at the molecular level, achieving fire knockdown without oxygen displacement or pressure surge that could damage sensitive electronic components. The agent leaves no electrically conductive or corrosive residue, preserving the integrity of PCBs, busbars, terminals, and insulation materials within the enclosure.
| Model | Fire Aerosol |
|---|---|
| Activation Temperature | 170°C |
| Activation Time | 6 Seconds |
| Operating Temperature | -50°C ~ +90°C |
| Shell Temperature Resistance | ≤ 200°C |
| Effective Service Life | 10 Years |
| Aerosol Output | 10g (GS-10) / 20g (GS-20) |
| Protected Volume | 0.1m³ (GS-10) / 0.2m³ (GS-20) |
| Mounting Type | DIN Rail / 3M Adhesive |
| Application Environment | Enclosed Spaces |
| Dimensions (H × D × W) | 75mm × 66mm × 19.5mm |

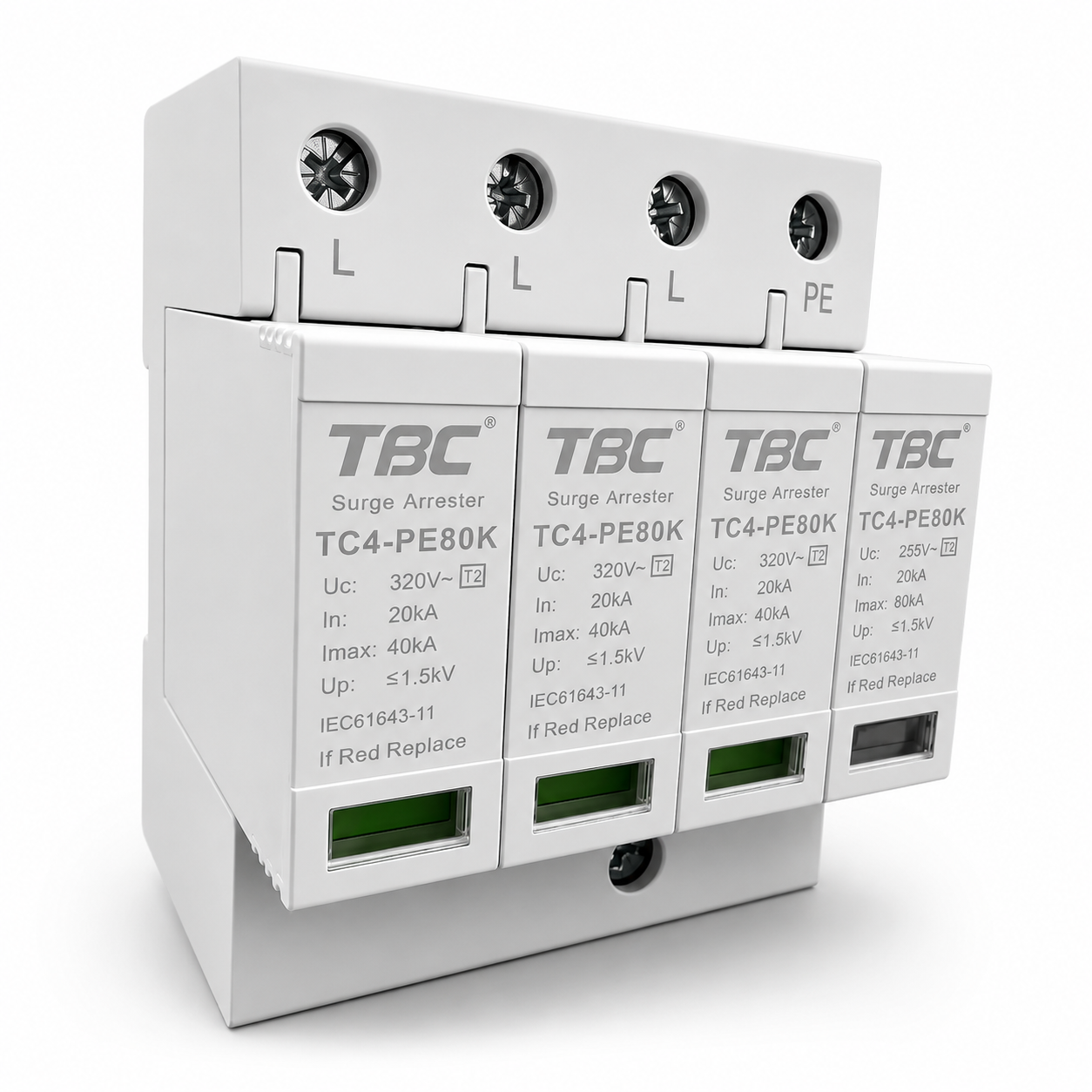

TC4-PE80K
The TC4-PE80K is a Type 2 AC Surge Protective Device in a 3+1 configuration, engineered to protect l...
View Details

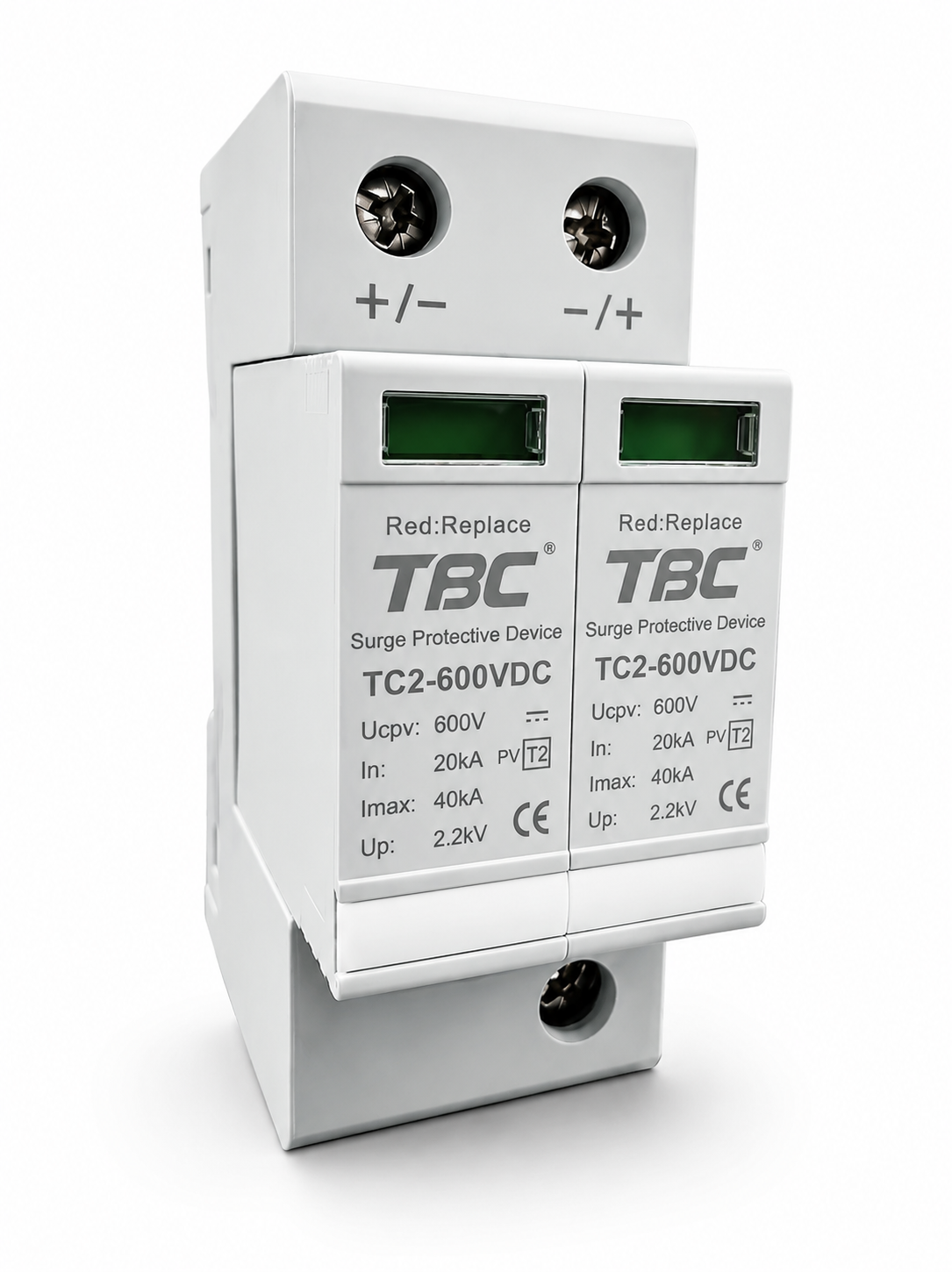

TC2-600VDC
The TBC TC2-600VDC is a Type 2 DC Surge Protective Device engineered for photovoltaic solar systems ...
View Details
TC4-70K
Advanced Type 1+Type 2 surge protection device designed to safeguard electrical equipment against tr...
View Details

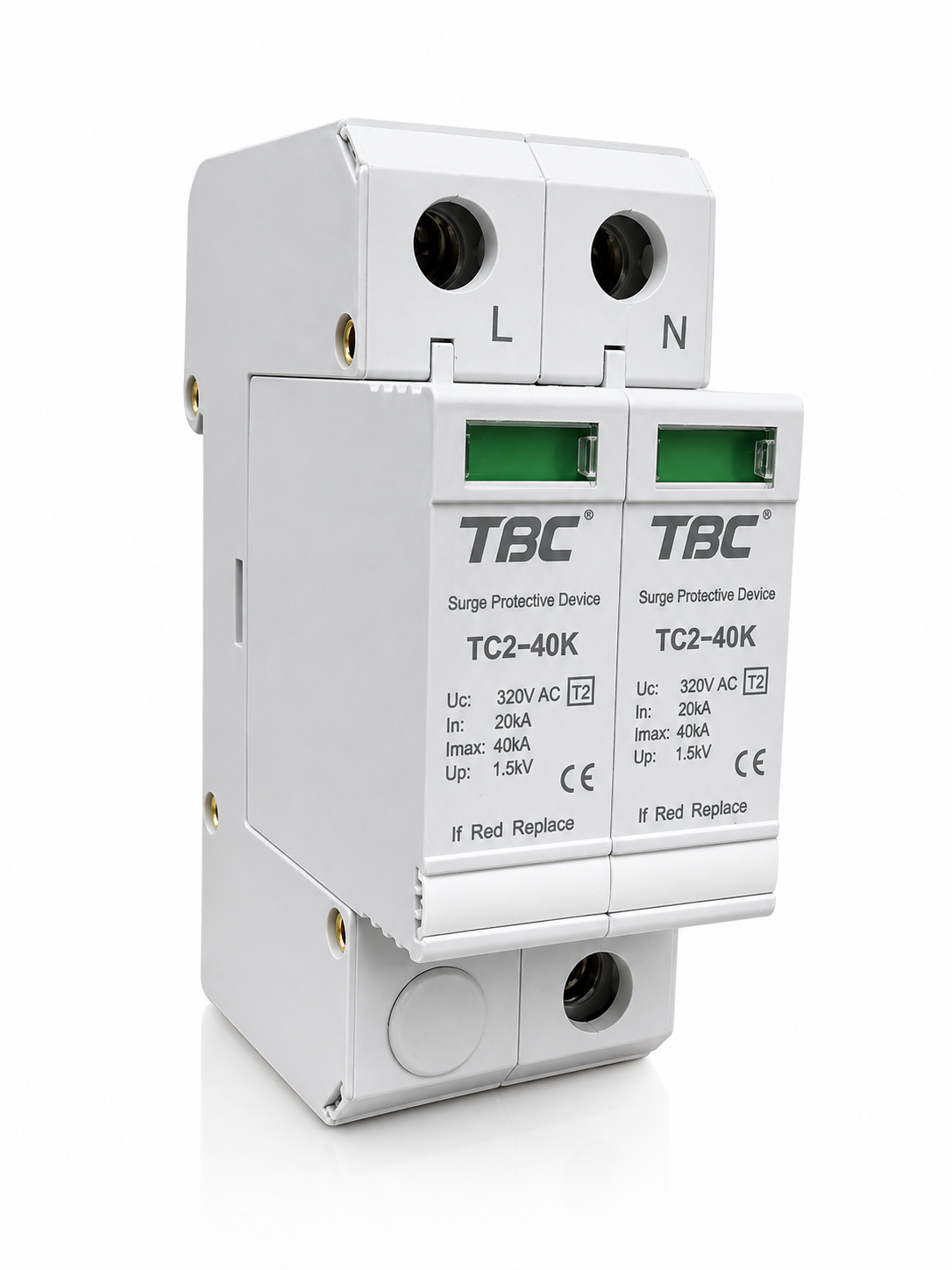

TC2-40K / TC4-40K
